• Black nylon slotted pan head machine screws in various metric sizes and lengths
  • Slotted pan head nylon machine screw metric DIN 85 plastic black
1 2

Slotted Pan Head Machine Screw - Nylon Metric DIN 85

Slotted Pan Head Machine Screw - Nylon Metric DIN 85

For use with a flat blade screw driver, our nylon pan head screws, plastic pan head screws also know as metric nylon PA66 DIN 85 (EN ISO 1580) slotted pan head plastic screws have a chamfered top and are available to order with a Phillips drive.

  • Thread M2, M2.5, M3, M4, M5, M6, M8 and M10
  • Lengths: 4-75mm
  • Nylon 66
  • UL94-V2
  • RoHS Compliant
  • Operating Temperature -35 to +85°C


    Supplied in packs of 1000

    Black available to order, please call
How to Request a Quote
  1. Find the size and product code you need from table below.
  2. Enter product code and quantities required
  3. Click Add To Quote
  4. Repeat on any other product pages as needed.
  5. Once done, submit your quote to our sales team who will be in touch within 1 hour.

Alternatively feel free to call us now on 01279 656189 for an immediate response!
View full details

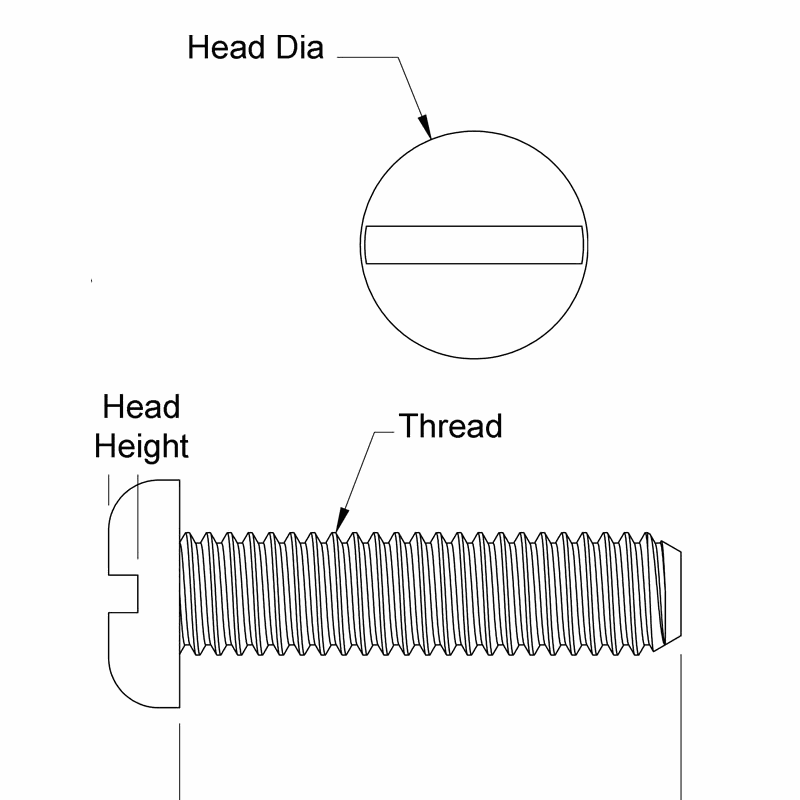

Product Code Desc Thread Head Dia Head Height Length
MS-M02-004-PAN004 M2 X 4 0.4mm 3.8mm 1.3mm 4mm
MS-M02-004-PAN005 M2 X 5 0.4mm 3.8mm 1.3mm 5mm
MS-M02-004-PAN006 M2 X 6 0.4mm 3.8mm 1.3mm 6mm
MS-M02-004-PAN008 M2 X 8 0.4mm 3.8mm 1.3mm 8mm
MS-M02-004-PAN010 M2 X 10 0.4mm 3.8mm 1.3mm 10mm
MS-M02-004-PAN012 M2 X 12 0.4mm 3.8mm 1.3mm 12mm
MS-M02-004-PAN016 M2 X 16 0.4mm 3.8mm 1.3mm 16mm
MS-M02-004-PAN020 M2 X 20 0.4mm 3.8mm 1.3mm 20mm
MS-M02-004-PAN025 M2 X 25 0.4mm 3.8mm 1.3mm 25mm
MS-M025-0045-PAN004 M2.5 X 4 0.45mm 5.0mm 1.5mm 4mm
MS-M025-0045-PAN005 M2.5 X 5 0.45mm 5.0mm 1.5mm 5mm
MS-M025-0045-PAN006 M2.5 X 6 0.45mm 5.0mm 1.5mm 6mm
MS-M025-0045-PAN008 M2.5 X 8 0.45mm 5.0mm 1.5mm 8mm
MS-M025-0045-PAN010 M2.5 X 10 0.45mm 5.0mm 1.5mm 10mm
MS-M025-0045-PAN012 M2.5 X 12 0.45mm 5.0mm 1.5mm 12mm
MS-M025-0045-PAN016 M2.5 X 16 0.45mm 5.0mm 1.5mm 16mm
MS-M025-0045-PAN020 M2.5 X 20 0.45mm 5.0mm 1.5mm 20mm
MS-M025-0045-PAN025 M2.5 X 25 0.45mm 5.0mm 1.5mm 25mm
MS-M03-005-PAN004 M3 X 4 0.5mm 6.0mm 1.8mm 4mm
MS-M03-005-PAN005 M3 X 5 0.5mm 6.0mm 1.8mm 5mm
MS-M03-005-PAN006 M3 X 6 0.5mm 6.0mm 1.8mm 6mm
MS-M03-005-PAN008 M3 X 8 0.5mm 6.0mm 1.8mm 8mm
MS-M03-005-PAN010 M3 X 10 0.5mm 6.0mm 1.8mm 10mm
MS-M03-005-PAN012 M3 X 12 0.5mm 6.0mm 1.8mm 12mm
MS-M03-005-PAN016 M3 X 16 0.5mm 6.0mm 1.8mm 16mm
MS-M03-005-PAN020 M3 X 20 0.5mm 6.0mm 1.8mm 20mm
MS-M03-005-PAN025 M3 X 25 0.5mm 6.0mm 1.8mm 25mm
MS-M03-005-PAN030 M3 X 30 0.5mm 6.0mm 1.8mm 30mm
MS-M03-005-PAN035 M3 X 35 0.5mm 6.0mm 1.8mm 35mm
MS-M04-007-PAN006 M4 X 6 0.7mm 8.0mm 2.4mm 6mm
MS-M04-007-PAN008 M4 X 8 0.7mm 8.0mm 2.4mm 8mm
MS-M04-007-PAN010 M4 X 10 0.7mm 8.0mm 2.4mm 10mm
MS-M04-007-PAN012 M4 X 12 0.7mm 8.0mm 2.4mm 12mm
MS-M04-007-PAN016 M4 X 16 0.7mm 8.0mm 2.4mm 16mm
MS-M04-007-PAN020 M4 X 20 0.7mm 8.0mm 2.4mm 20mm
MS-M04-007-PAN025 M4 X 25 0.7mm 8.0mm 2.4mm 25mm
MS-M04-007-PAN030 M4 X 30 0.7mm 8.0mm 2.4mm 30mm
MS-M04-007-PAN035 M4 X 35 0.7mm 8.0mm 2.4mm 35mm
MS-M04-007-PAN040 M4 X 40 0.7mm 8.0mm 2.4mm 40mm
MS-M05-008-PAN006 M5 X 6 0.8mm 10.0mm 3.0mm 6mm
MS-M05-008-PAN008 M5 X 8 0.8mm 10.0mm 3.0mm 8mm
MS-M05-008-PAN010 M5 X 10 0.8mm 10.0mm 3.0mm 10mm
MS-M05-008-PAN012 M5 X 12 0.8mm 10.0mm 3.0mm 12mm
MS-M05-008-PAN016 M5 X 16 0.8mm 10.0mm 3.0mm 16mm
MS-M05-008-PAN020 M5 X 20 0.8mm 10.0mm 3.0mm 20mm
MS-M05-008-PAN025 M5 X 25 0.8mm 10.0mm 3.0mm 25mm
MS-M05-008-PAN030 M5 X 30 0.8mm 10.0mm 3.0mm 30mm
MS-M05-008-PAN035 M5 X 35 0.8mm 10.0mm 3.0mm 35mm
MS-M05-008-PAN040 M5 X 40 0.8mm 10.0mm 3.0mm 40mm
MS-M06-010-PAN005 M6 X 5 1mm 12.0mm 3.6mm 5mm
MS-M06-010-PAN008 M6 X 8 1mm 12.0mm 3.6mm 8mm
MS-M06-010-PAN010 M6 X 10 1mm 12.0mm 3.6mm 10mm
MS-M06-010-PAN012 M6 X 12 1mm 12.0mm 3.6mm 12mm
MS-M06-010-PAN016 M6 X 16 1mm 12.0mm 3.6mm 16mm
MS-M06-010-PAN020 M6 X 20 1mm 12.0mm 3.6mm 20mm
MS-M06-010-PAN025 M6 X 25 1mm 12.0mm 3.6mm 25mm
MS-M06-010-PAN030 M6 X 30 1mm 12.0mm 3.6mm 30mm
MS-M06-010-PAN035 M6 X 35 1mm 12.0mm 3.6mm 35mm
MS-M06-010-PAN040 M6 X 40 1mm 12.0mm 3.6mm 40mm
MS-M06-010-PAN045 M6 X 45 1mm 12.0mm 3.6mm 45mm
MS-M06-010-PAN050 M6 X 50 1mm 12.0mm 3.6mm 50mm
MS-M06-010-PAN060 M6 X 60 1mm 12.0mm 3.6mm 60mm
MS-M06-010-PAN070 M6 X 70 1mm 12.0mm 3.6mm 70mm
MS-M06-010-PAN075 M6 X 75 1mm 12.0mm 3.6mm 75mm
MS-M08-0125-PAN010 M8 X 10 1.25mm 16.0mm 4.8mm 10mm
MS-M08-0125-PAN016 M8 X 16 1.25mm 16.0mm 4.8mm 16mm
MS-M08-0125-PAN020 M8 X 20 1.25mm 16.0mm 4.8mm 20mm
MS-M08-0125-PAN025 M8 X 25 1.25mm 16.0mm 4.8mm 25mm
MS-M08-0125-PAN030 M8 X 30 1.25mm 16.0mm 4.8mm 30mm
MS-M08-0125-PAN035 M8 X 35 1.25mm 16.0mm 4.8mm 35mm
MS-M08-0125-PAN050 M8 X 50 1.25mm 16.0mm 4.8mm 50mm
MS-M08-0125-PAN070 M8 X 70 1.25mm 16.0mm 4.8mm 70mm
MS-M10-0150-PAN016 M10 X 16 1.5mm 20.0mm 6.0mm 16mm
MS-M10-0150-PAN020 M10 X 20 1.5mm 20.0mm 6.0mm 20mm
MS-M10-0150-PAN025 M10 X 25 1.5mm 20.0mm 6.0mm 25mm
MS-M10-0150-PAN030 M10 X 30 1.5mm 20.0mm 6.0mm 30mm
MS-M10-0150-PAN035 M10 X 35 1.5mm 20.0mm 6.0mm 35mm
MS-M10-0150-PAN050 M10 X 50 1.5mm 20.0mm 6.0mm 50mm
MS-M10-0150-PAN060 M10 X 60 1.5mm 20.0mm 6.0mm 60mm

Why shop with us?

  • Best priced trade discounts

    Indifit is a leading supplier of industrial components with a reputation for top quality at competitive, affordable prices for your organisation. For pricing and availability of specific items, feel free to browse our online catalogue and reach out to us if you’d like a quotation for a component.

    Create a trade account

  • Huge range of engineering components

    Finding the right industrial component for your specific application can be a frustrating experience, but it doesn’t have to be. Our guarantee to you is that you’ll always be received by friendly, helpful, and efficient experts. Take advantage of our product and industry expertise to find exactly what you’re looking for.

    Browse our stock

  • Fast next-day delivery

    We offer fast next-day delivery on all in-stock products from our warehouse in the UK. We never charge for minimum orders nor do we have minimum order quantities, so whether it’s a packet of fasteners or bulk quantities you can depend on our speedy next-day delivery to your address.

    Our delivery options

Related Products

  • Decades of experience

  • Huge range of engineering finishing components

  • Best priced trade discounts

  • Fast next day delivery

Frequently Asked Questions

What are the main advantages of using a slotted pan head machine screw made of nylon?
A slotted pan head machine screw made of nylon offers excellent corrosion resistance, electrical insulating properties, and durability. Its flat top design allows for secure fastening with a flat blade screwdriver, making it ideal for electronic and plastic assemblies.
Can I order these nylon slotted pan head screws in different sizes and lengths?
Yes, these nylon slotted pan head screws are available in thread sizes from M2 to M10 and lengths range from 4mm to 75mm, providing flexibility for various application needs.
Are these nylon slotted pan head screws suitable for high-temperature environments?
These screws can operate effectively within a temperature range of -35°C to +85°C, making them suitable for most standard applications but not recommended for very high-temperature settings beyond this range.
What are the material and compliance specifications of these slotted pan head screws?
Made from nylon 66, these screws are UL94-V2 flame retardant and RoHS compliant, ensuring safety, environmental sustainability, and high performance in diverse industries.
Is it possible to get these slotted pan head screws with a Phillips drive instead of slotted?
Yes, these nylon pan head screws are also available with a Phillips drive. Please contact us to place an order for the Phillips version for your specific needs.
What are the main applications of the slotted pan head machine screws?
The slotted pan head machine screws are ideal for use in plastic, electronic, and DIY projects where a secure and flush fit is needed, thanks to their chamfered top and versatile drive options.
What sizes and lengths are available for these nylon pan head screws?
These slotted pan head screws come in a range of thread sizes from M2 to M10 and lengths from 4mm to 75mm, providing options to suit various applications.
Are these nylon pan head screws suitable for high-temperature environments?
Yes, these screws are made from Nylon 66 with an operating temperature range of -35°C to +85°C, making them suitable for many moderate-temperature applications.
Can I purchase these slotted pan head screws with a Phillips drive instead of a slotted?
Yes, while they are primarily designed with a slotted drive, these nylon pan head screws are also available with a Phillips drive upon request, offering greater flexibility for your project.
Are these screws environmentally friendly and compliant with safety standards?
Absolutely, these slotted pan head screws are RoHS compliant, indicating they meet European standards for environmental safety, and are made from UL94-V2 rated nylon for safety and durability.
