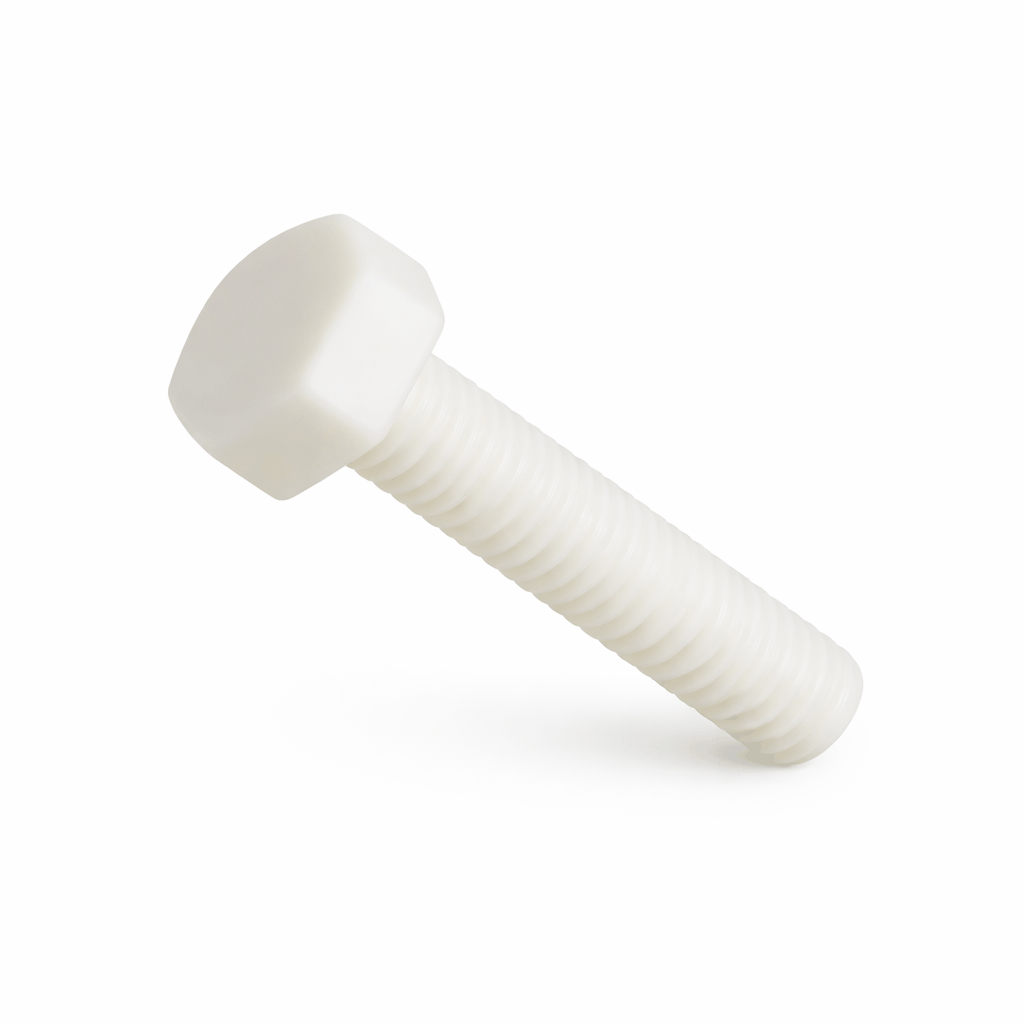

• Nylon hex machine screws DIN 933 metric sizes M2 to M12 non-magnetic plastic screws
  • Nylon metric hex machine screws DIN933 in various sizes and lengths
1 2

Hex Machine Screws Nylon Metric DIN933

Hex Machine Screws Nylon Metric DIN933

Our nylon metric DIN 34810 (formerly DIN 933) hex head screws made of Nylon 66 are non-magnetic and can be used where magnetism may cause problems. These nylon DIN 933 screws, also known as plastic machine screws are for use with a hex socket or spanner.

  • Thread M2, M2.5, M3, M4, M5, M6, M8, M10 and M12
  • Lengths: 4-70mm
  • Nylon 66
  • UL94-V2
  • RoHS Compliant
  • Operating Temperature -35 to +85°C
How to Request a Quote
  1. Find the size and product code you need from table below.
  2. Enter product code and quantities required
  3. Click Add To Quote
  4. Repeat on any other product pages as needed.
  5. Once done, submit your quote to our sales team who will be in touch within 1 hour.

Alternatively feel free to call us now on 01279 656189 for an immediate response!
View full details

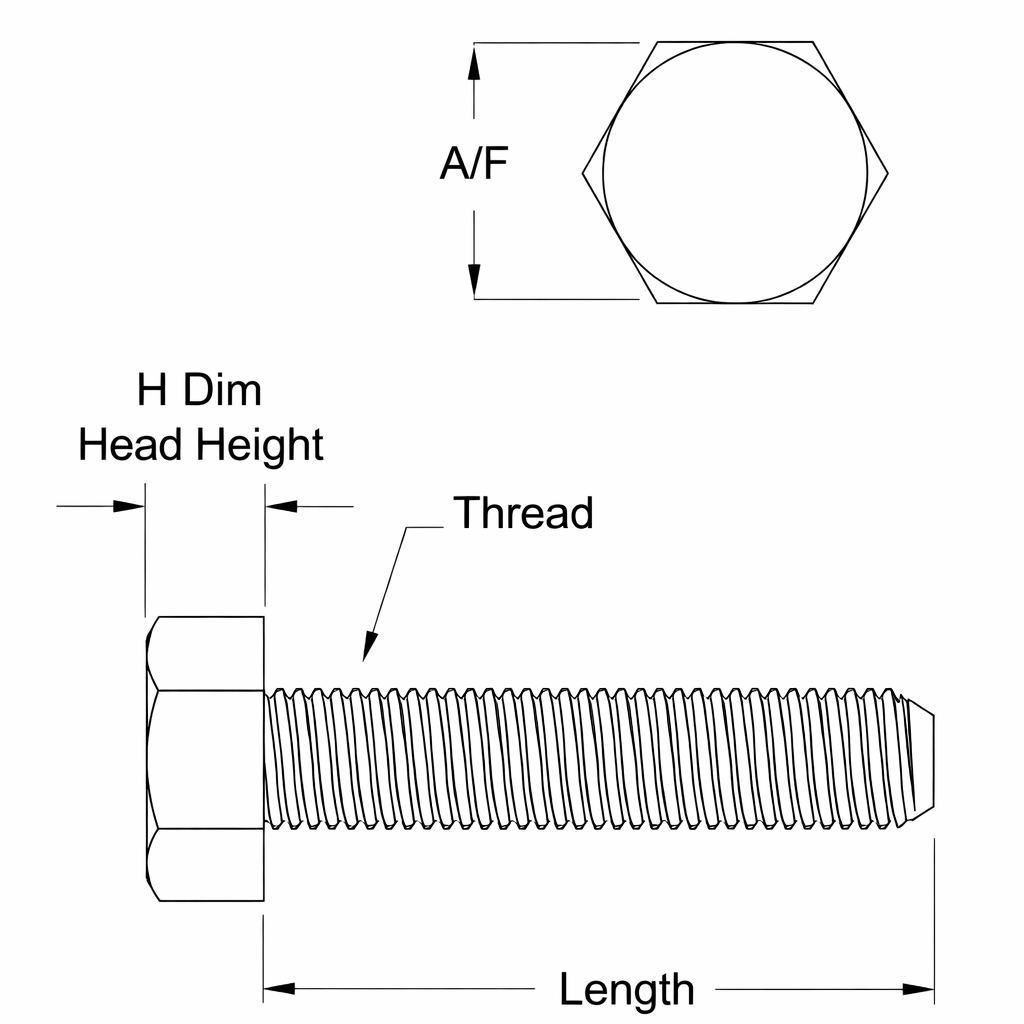

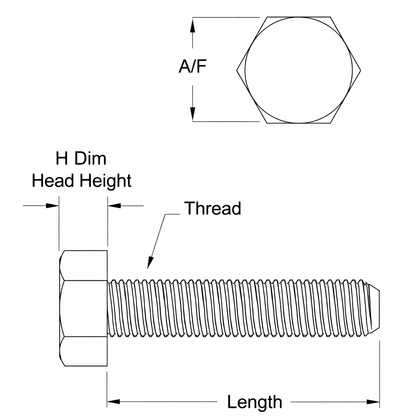

Sku Desc Thread A/F Head Height Length
MS-M02-004-HX004 M2 X 4 0.4mm 3.00mm 1.40mm 4mm
MS-M02-004-HX005 M2 X 5 0.4mm 3.00mm 1.40mm 5mm
MS-M02-004-HX006 M2 X 6 0.4mm 3.00mm 1.40mm 6mm
MS-M02-004-HX008 M2 X 8 0.4mm 3.00mm 1.40mm 8mm
MS-M02-004-HX010 M2 X 10 0.4mm 3.00mm 1.40mm 10mm
MS-M02-004-HX012 M2 X 12 0.4mm 3.00mm 1.40mm 12mm
MS-M02-004-HX016 M2 X 16 0.4mm 3.00mm 1.40mm 16mm
MS-M02-004-HX020 M2 X 20 0.4mm 3.00mm 1.40mm 20mm
MS-M02-004-HX025 M2 X 25 0.4mm 3.00mm 1.40mm 25mm
MS-M025-0045-HX004 M2.5 X 4 0.45mm 4.00mm 2.00mm 4mm
MS-M025-0045-HX004.5 M2.5 X 4.5 0.45mm 4.00mm 2.00mm 4.5mm
MS-M025-0045-HX005 M2.5 X 5 0.45mm 4.00mm 2.00mm 5mm
MS-M025-0045-HX006 M2.5 X 6 0.45mm 4.00mm 2.00mm 6mm
MS-M025-0045-HX008 M2.5 X 8 0.45mm 4.00mm 2.00mm 8mm
MS-M025-0045-HX010 M2.5 X 10 0.45mm 4.00mm 2.00mm 10mm
MS-M025-0045-HX012 M2.5 X 12 0.45mm 4.00mm 2.00mm 12mm
MS-M025-0045-HX016 M2.5 X 16 0.45mm 4.00mm 2.00mm 16mm
MS-M025-0045-HX020 M2.5 X 20 0.45mm 4.00mm 2.00mm 20mm
MS-M025-0045-HX025 M2.5 X 25 0.45mm 4.00mm 2.00mm 25mm
MS-M03-005-HX004 M3 X 4 0.5mm 5.50mm 2.00mm 4mm
MS-M03-005-HX005 M3 X 5 0.5mm 5.50mm 2.00mm 5mm
MS-M03-005-HX006 M3 X 6 0.5mm 5.50mm 2.00mm 6mm
MS-M03-005-HX008 M3 X 8 0.5mm 5.50mm 2.00mm 8mm
MS-M03-005-HX010 M3 X 10 0.5mm 5.50mm 2.00mm 10mm
MS-M03-005-HX012 M3 X 12 0.5mm 5.50mm 2.00mm 12mm
MS-M03-005-HX015 M3 X 15 0.5mm 5.50mm 2.00mm 15mm
MS-M03-005-HX016 M3 X 16 0.5mm 5.50mm 2.00mm 16mm
MS-M03-005-HX020 M3 X 20 0.5mm 5.50mm 2.00mm 20mm
MS-M03-005-HX025 M3 X 25 0.5mm 5.50mm 2.00mm 25mm
MS-M03-005-HX030 M3 X 30 0.5mm 5.50mm 2.00mm 30mm
MS-M03-005-HX035 M3 X 35 0.5mm 5.50mm 2.00mm 35mm
MS-M04-007-HX005 M4 X 5 0.7mm 7.00mm 2.80mm 5mm
MS-M04-007-HX006 M4 X 6 0.7mm 7.00mm 2.80mm 6mm
MS-M04-007-HX008 M4 X 8 0.7mm 7.00mm 2.80mm 8mm
MS-M04-007-HX010 M4 X 10 0.7mm 7.00mm 2.80mm 10mm
MS-M04-007-HX012 M4 X 12 0.7mm 7.00mm 2.80mm 12mm
MS-M04-007-HX015 M4 X 15 0.7mm 7.00mm 2.80mm 15mm
MS-M04-007-HX016 M4 X 16 0.7mm 7.00mm 2.80mm 16mm
MS-M04-007-HX020 M4 X 20 0.7mm 7.00mm 2.80mm 20mm
MS-M04-007-HX025 M4 X 25 0.7mm 7.00mm 2.80mm 25mm
MS-M04-007-HX030 M4 X 30 0.7mm 7.00mm 2.80mm 30mm
MS-M04-007-HX035 M4 X 35 0.7mm 7.00mm 2.80mm 35mm
MS-M04-007-HX040 M4 X 40 0.7mm 7.00mm 2.80mm 40mm
MS-M05-008-HX006 M5 X 6 0.8mm 8.00mm 3.50mm 6mm
MS-M05-008-HX008 M5 X 8 0.8mm 8.00mm 3.50mm 8mm
MS-M05-008-HX010 M5 X 10 0.8mm 8.00mm 3.50mm 10mm
MS-M05-008-HX012 M5 X 12 0.8mm 8.00mm 3.50mm 12mm
MS-M05-008-HX015 M5 X 15 0.8mm 8.00mm 3.50mm 15mm
MS-M05-008-HX016 M5 X 16 0.8mm 8.00mm 3.50mm 16mm
MS-M05-008-HX020 M5 X 20 0.8mm 8.00mm 3.50mm 20mm
MS-M05-008-HX025 M5 X 25 0.8mm 8.00mm 3.50mm 25mm
MS-M05-008-HX030 M5 X 30 0.8mm 8.00mm 3.50mm 30mm
MS-M05-008-HX035 M5 X 35 0.8mm 8.00mm 3.50mm 35mm
MS-M05-008-HX040 M5 X 40 0.8mm 8.00mm 3.50mm 40mm
MS-M05-008-HX050 M5 X 50 0.8mm 8.00mm 3.50mm 50mm
MS-M05-008-HX070 M5 X 70 0.8mm 8.00mm 3.50mm 70mm
MS-M06-010-HX005 M6 X 5 1mm 10.00mm 4.00mm 5mm
MS-M06-010-HX006 M6 X 6 1mm 10.00mm 4.00mm 6mm
MS-M06-010-HX008 M6 X 8 1mm 10.00mm 4.00mm 8mm
MS-M06-010-HX010 M6 X 10 1mm 10.00mm 4.00mm 10mm
MS-M06-010-HX012 M6 X 12 1mm 10.00mm 4.00mm 12mm
MS-M06-010-HX015 M6 X 15 1mm 10.00mm 4.00mm 15mm
MS-M06-010-HX016 M6 X 16 1mm 10.00mm 4.00mm 16mm
MS-M06-010-HX020 M6 X 20 1mm 10.00mm 4.00mm 20mm
MS-M06-010-HX025 M6 X 25 1mm 10.00mm 4.00mm 25mm
MS-M06-010-HX030 M6 X 30 1mm 10.00mm 4.00mm 30mm
MS-M06-010-HX035 M6 X 35 1mm 10.00mm 4.00mm 35mm
MS-M06-010-HX040 M6 X 40 1mm 10.00mm 4.00mm 40mm
MS-M06-010-HX045 M6 X 45 1mm 10.00mm 4.00mm 45mm
MS-M06-010-HX050 M6 X 50 1mm 10.00mm 4.00mm 50mm
MS-M06-010-HX060 M6 X 60 1mm 10.00mm 4.00mm 60mm
MS-M06-010-HX070 M6 X 70 1mm 10.00mm 4.00mm 70mm
MS-M08-0125-HX006 M8 X 6 1.25mm 13.00mm 5.30mm 6mm
MS-M08-0125-HX008 M8 X 8 1.25mm 13.00mm 5.30mm 8mm
MS-M08-0125-HX010 M8 X 10 1.25mm 13.00mm 5.30mm 10mm
MS-M08-0125-HX012 M8 X 12 1.25mm 13.00mm 5.30mm 12mm
MS-M08-0125-HX015 M8 X 15 1.25mm 13.00mm 5.30mm 15mm
MS-M08-0125-HX016 M8 X 16 1.25mm 13.00mm 5.30mm 16mm
MS-M08-0125-HX020 M8 X 20 1.25mm 13.00mm 5.30mm 20mm
MS-M08-0125-HX025 M8 X 25 1.25mm 13.00mm 5.30mm 25mm
MS-M08-0125-HX030 M8 X 30 1.25mm 13.00mm 5.30mm 30mm
MS-M08-0125-HX035 M8 X 35 1.25mm 13.00mm 5.30mm 35mm
MS-M08-0125-HX040 M8 X 40 1.25mm 13.00mm 5.30mm 40mm
MS-M08-0125-HX050 M8 X 50 1.25mm 13.00mm 5.30mm 50mm
MS-M08-0125-HX060 M8 X 60 1.25mm 13.00mm 5.30mm 60mm
MS-M08-0125-HX070 M8 X 70 1.25mm 13.00mm 5.30mm 70mm
MS-M08-0125-HX080 M8 X 80 1.25mm 13.00mm 5.30mm 80mm
MS-M10-0150-HX015 M10 X 15 1.5mm 17.00mm 6.40mm 15mm
MS-M10-0150-HX016 M10 X 16 1.5mm 17.00mm 6.40mm 16mm
MS-M10-0150-HX020 M10 X 20 1.5mm 17.00mm 6.40mm 20mm
MS-M10-0150-HX025 M10 X 25 1.5mm 17.00mm 6.40mm 25mm
MS-M10-0150-HX030 M10 X 30 1.5mm 17.00mm 6.40mm 30mm
MS-M10-0150-HX035 M10 X 35 1.5mm 17.00mm 6.40mm 35mm
MS-M10-0150-HX040 M10 X 40 1.5mm 17.00mm 6.40mm 40mm
MS-M10-0150-HX050 M10 X 50 1.5mm 17.00mm 6.40mm 50mm
MS-M10-0150-HX060 M10 X 60 1.5mm 17.00mm 6.40mm 60mm
MS-M12-0175-HX020 M12 X 20 1.75mm 18.00mm 7.50mm 20mm
MS-M12-0175-HX025 M12 X 25 1.75mm 18.00mm 7.50mm 25mm
MS-M12-0175-HX030 M12 X 30 1.75mm 18.00mm 7.50mm 30mm
MS-M12-0175-HX035 M12 X 35 1.75mm 18.00mm 7.50mm 35mm
MS-M12-0175-HX040 M12 X 40 1.75mm 18.00mm 7.50mm 40mm
MS-M12-0175-HX050 M12 X 50 1.75mm 18.00mm 7.50mm 50mm
MS-M12-0175-HX060 M12 X 60 1.75mm 18.00mm 7.50mm 60mm

Why shop with us?

  • Best priced trade discounts

    Indifit is a leading supplier of industrial components with a reputation for top quality at competitive, affordable prices for your organisation. For pricing and availability of specific items, feel free to browse our online catalogue and reach out to us if you’d like a quotation for a component.

    Create a trade account

  • Huge range of engineering components

    Finding the right industrial component for your specific application can be a frustrating experience, but it doesn’t have to be. Our guarantee to you is that you’ll always be received by friendly, helpful, and efficient experts. Take advantage of our product and industry expertise to find exactly what you’re looking for.

    Browse our stock

  • Fast next-day delivery

    We offer fast next-day delivery on all in-stock products from our warehouse in the UK. We never charge for minimum orders nor do we have minimum order quantities, so whether it’s a packet of fasteners or bulk quantities you can depend on our speedy next-day delivery to your address.

    Our delivery options

Related Products

  • Decades of experience

  • Huge range of engineering finishing components

  • Best priced trade discounts

  • Fast next day delivery

Frequently Asked Questions

What are the main benefits of using nylon hex machine screws over metal ones?
Nylon hex machine screws offer non-magnetic properties, making them ideal for applications sensitive to magnetism. They are also lightweight, resistant to corrosion, and suitable for environments where metal screws may rust or degrade.
What sizes and lengths are available for these nylon hex machine screws?
Our nylon hex machine screws come in a variety of sizes from M2 to M12, with lengths ranging from 4mm to 70mm, accommodating different project needs and applications.
Are these nylon hex machine screws suitable for high-temperature environments?
Yes, these screws are operable within a temperature range of -35°C to +85°C, making them suitable for most standard industrial and mechanical applications.
What certifications and standards do these nylon hex machine screws meet?
These screws are RoHS compliant and made according to DIN 34810 standards, ensuring quality, safety, and environmental responsibility.
How do I care for and install nylon hex machine screws correctly?
Install these screws using a compatible hex socket or spanner, and avoid excessive torque to prevent damage. They require minimal maintenance; just keep them clean and free from harsh chemicals to maintain their durability.
What are the main benefits of choosing nylon hex machine screws over metal screws?
Nylon hex machine screws, like our DIN 933 variety, are non-magnetic and resistant to corrosion, making them ideal for applications where metal may cause issues or corrosion is a concern. They are also lightweight and suitable for environments requiring non-conductive fasteners.
Are these nylon hex machine screws suitable for high-temperature applications?
Yes, these nylon hex machine screws can operate within a temperature range of -35°C to +85°C, making them suitable for moderate temperature environments but not for extremely high-heat applications.
What sizes and lengths are available for these nylon hex machine screws?
Our nylon hex machine screws are available in thread sizes from M2 to M12 and lengths ranging from 4mm to 70mm, providing a variety of options for different assembly needs.
How does the design of these screws facilitate easy installation?
These screws feature a hex head design suitable for use with a hex socket or spanner, allowing for secure installation and easy tightening or loosening with standard tools.
Are these nylon machine screws environmentally compliant and safe to use?
Yes, these nylon hex machine screws are RoHS compliant and made from Nylon 66 with UL94-V2 flame retardant rating, ensuring safety and environmental compliance for various industrial applications.
