What are the main benefits of using PVC Insulation Tapes for electrical work?

PVC Insulation Tapes provide excellent insulation, protection, and fixing for wires and cables. They are flame retardant, flexible, and resistant to abrasion, ensuring durability and safety in electrical applications.

Are PVC Insulation Tapes suitable for high-temperature environments?

Yes, PVC Insulation Tapes have a temperature rating of -18°C to +105°C, making them suitable for a wide range of environments, including areas with moderate heat exposure.

How does the flame retardant feature of PVC Insulation Tapes enhance safety?

The flame retardant property ensures that the tape self-extinguishes, reducing the risk of fire hazards in electrical installations and providing added safety for users and equipment.

What are the specifications of the PVC Insulation Tapes?

These tapes have a total thickness of 0.15mm, an elongation of 125%, tensile strength of 22 N/10 mm, and a dielectric strength of 40 kV/mm, meeting BS EN 60454-3-1 standards.

Can PVC Insulation Tapes be used for harnessing wires and cables?

Yes, PVC Insulation Tapes are ideal for harnessing wires and cables due to their flexibility, good adhesion, and protective properties against abrasion, making cable management easier and more secure.

1 1

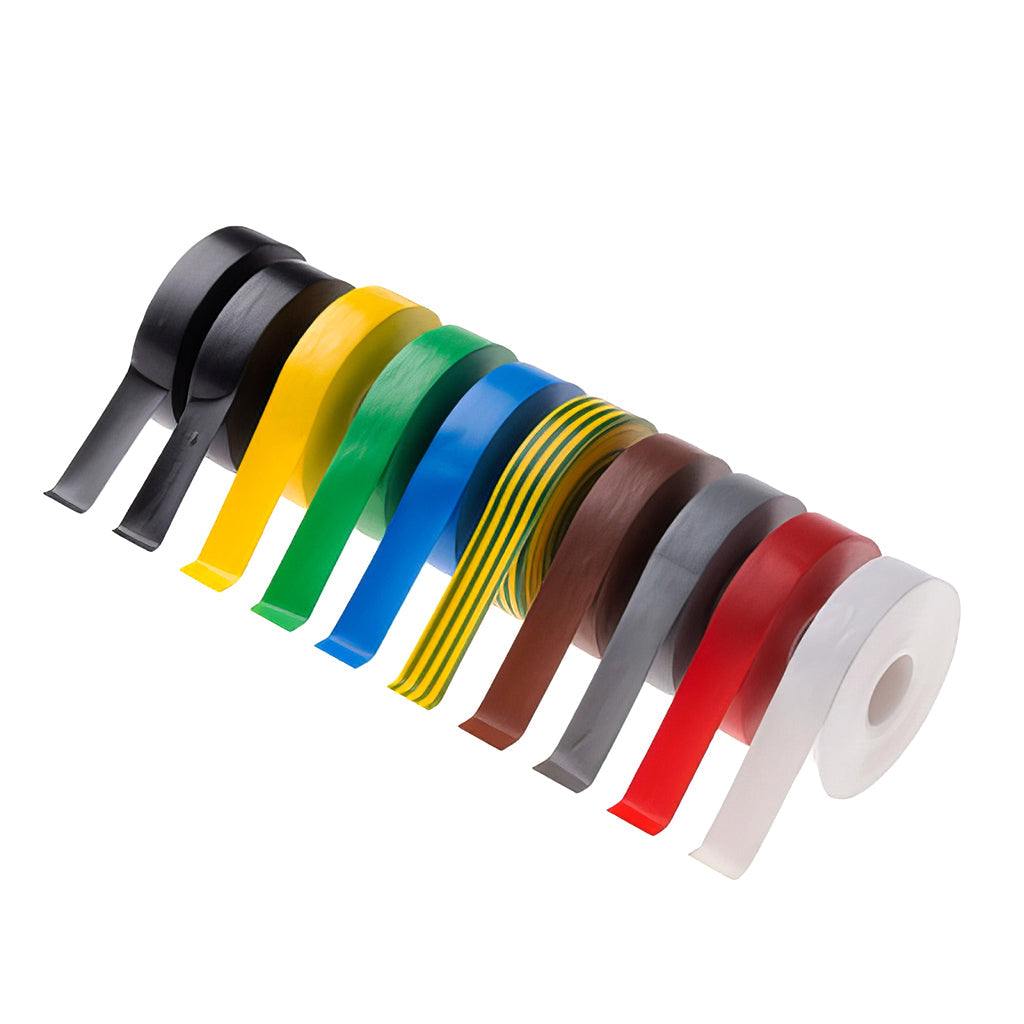

PVC Insulation Tapes

Material: PVC
A high quality PVC Insulation Tape
Manufactured to BS EN 60454-3-1 standards
Flame retardant
General purpose electrical tape
Used for insulation, protection and fixing
Harnessing of wires and cables
Flexible with good protection against abrasion
Material: PVC
A high quality PVC Insulation Tape
Manufactured to BS EN 60454-3-1 standards
Flame retardant
General purpose electrical tape
Used for insulation, protection and fixing
Harnessing of wires and cables
Flexible with good protection against abrasion

Technical Data
Property	Value
Total Thickness	0.15mm (±0.02)
Elongation	125%
Tensile Strength	22 N/10 mm
Adhesion	Rubber based
- Steel	2.5 N/10 mm
- Self	2.5 N/10 mm
Temperature Rating	-18°C to +105°C
Flame Retardancy	Self extinguishing
Dielectric Strength	40 kV/mm

How to Request a Quote

Find the size and product code you need from table below.
Enter product code and quantities required
Click Add To Quote
Repeat on any other product pages as needed.
Once done, submit your quote to our sales team who will be in touch within 1 hour.

Alternatively feel free to call us now on 01279 656189 for an immediate response!

View full details

SKU	Colour	Width (mm)	Length (m)	Thickness (mm)
PVC19X20-BLA	Black	19mm	20m	0.15mm
PVC19X5-YLW	Yellow	19mm	5m	0.15mm
PVC19X20-BLU	Blue	19mm	20m	0.15mm
PVC19X5-WHT	White	19mm	5m	0.15mm
PVC19X20-BRN	Brown	19mm	20m	0.15mm
PVC19X5-RED	Red	19mm	5m	0.15mm
PVC19X20-G/Y	Green/Yellow	19mm	20m	0.15mm
PVC19X5-GRY	Grey	19mm	5m	0.15mm
PVC19X20-GRN	Green	19mm	20m	0.15mm
PVC19X5-G/Y	Green/Yellow	19mm	5m	0.15mm
PVC19X20-GRY	Grey	19mm	20m	0.15mm
PVC19X5-GRN	Green	19mm	5m	0.15mm
PVC19X5-BRN	Brown	19mm	5m	0.15mm
PVC19X5-BLU	Blue	19mm	5m	0.15mm
PVC19X5-BLA	Black	19mm	5m	0.15mm
PVC19X20-RED	Red	19mm	20m	0.15mm
PVC19X20-WHT	White	19mm	20m	0.15mm
PVC19X20-YLW	Yellow	19mm	20m	0.15mm
PVC19X20-ORANGE	Orange	19mm	20m	0.15mm
PVC19X20-PURPLE	Purple	19mm	20m	0.15mm
PVC19X33-BLA	Black	19mm	33m	0.15mm
PVC19X33-BLU	Blue	19mm	33m	0.15mm
PVC19X33-BRN	Brown	19mm	33m	0.15mm
PVC19X33-G/Y	Green/Yellow	19mm	33m	0.15mm
PVC19X33-GRN	Green	19mm	33m	0.15mm
PVC19X33-GRY	Grey	19mm	33m	0.15mm
PVC19X33-RED	Red	19mm	33m	0.15mm
PVC19X33-WHT	White	19mm	33m	0.15mm
PVC19X33-YLW	Yellow	19mm	33m	0.15mm
PVC19X33-ORANGE	Orange	19mm	33m	0.15mm
PVC19X33-PURPLE	Purple	19mm	33m	0.15mm
PVC50X33-BLA	Black	50mm	33m	0.15mm
PVC50X33-BLU	Blue	50mm	33m	0.15mm
PVC50X33-BRN	Brown	50mm	33m	0.15mm
PVC50X33-G/Y	Green/Yellow	50mm	33m	0.15mm
PVC50X33-Green	Green	50mm	33m	0.15mm
PVC50X33-GRY	Grey	50mm	33m	0.15mm
PVC50X33-RED	Red	50mm	33m	0.15mm
PVC50X33-WHT	White	50mm	33m	0.15mm
PVC50X33-YLW	Yellow	50mm	33m	0.15mm
