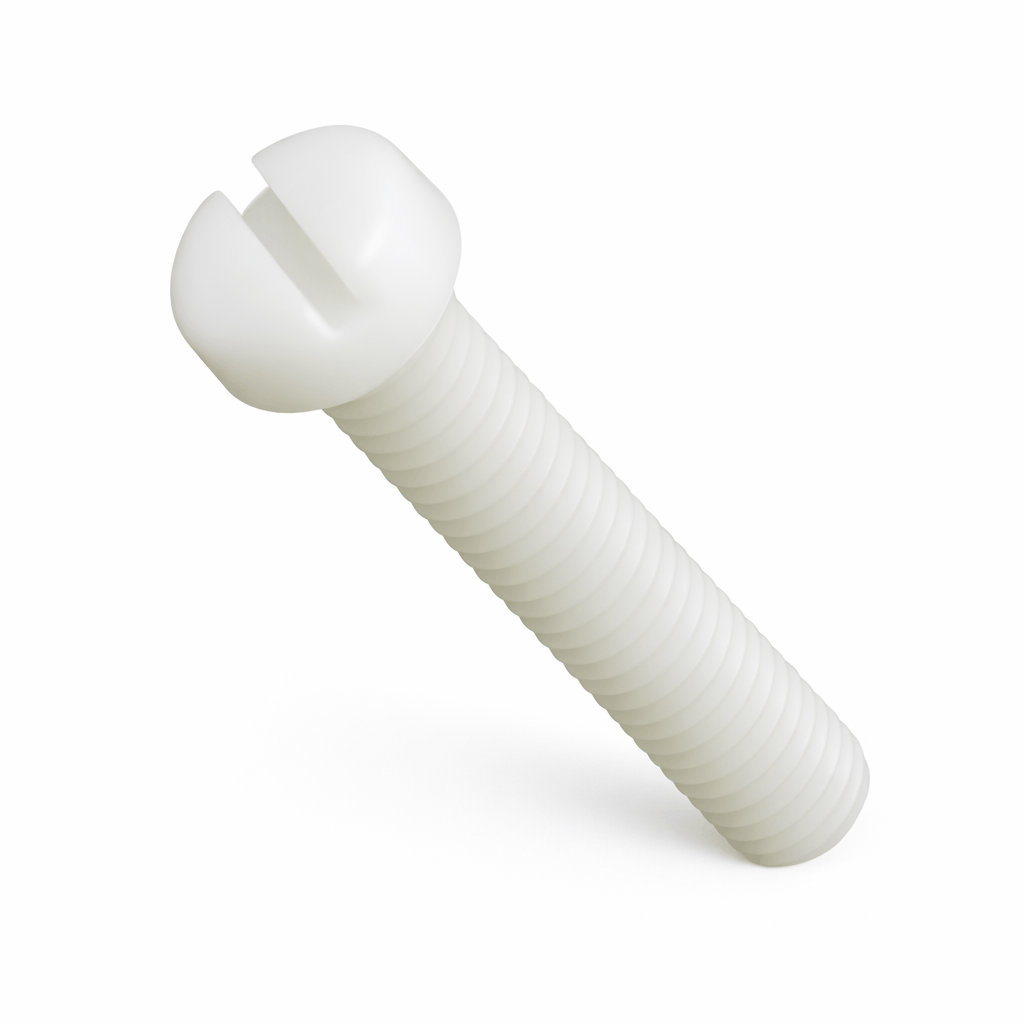

• Slotted cheese head nylon machine screw DIN 84 metric corrosion resistant
  • Black nylon slotted cheese head machine screw M4 DIN 84 corrosion resistant
1 2

Slotted Cheese Head Machine Screw - Nylon Metric DIN 84

Slotted Cheese Head Machine Screw - Nylon Metric DIN 84

Moulded nylon PA66 DIN 84 (EN ISO 1207) metric cheese head screws, plastic machine screws are corrosion resistant and have a high strength to weight ratio. Non-magnetic with low thermal conductivity properties. These nylon slotted cheese head screws or nylon DIN 84 screws, nylon cheese head screws are suitable for use with slot drive tools.

Threads: M2, M2.5, M3, M4, M5, M6, M8 and M10
Lengths: 4 - 70mm
Nylon 66 UL94-V2
RoHS Compliant
Operating Temperature -35 to +85°C

Sold in packs of 1000

Black available to order, please call
How to Request a Quote
  1. Find the size and product code you need from table below.
  2. Enter product code and quantities required
  3. Click Add To Quote
  4. Repeat on any other product pages as needed.
  5. Once done, submit your quote to our sales team who will be in touch within 1 hour.

Alternatively feel free to call us now on 01279 656189 for an immediate response!
View full details

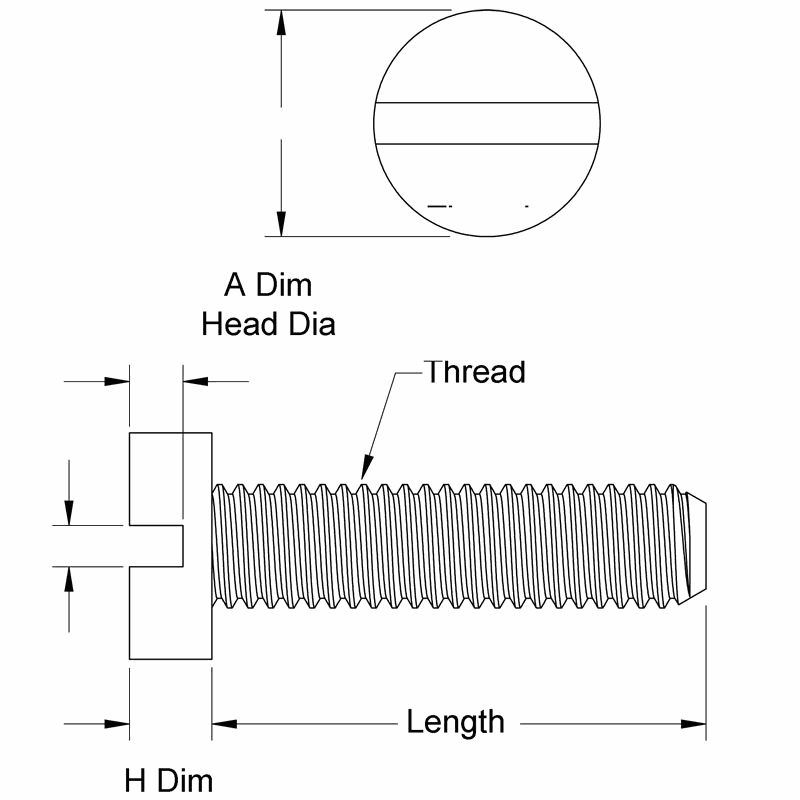

Sku Desc Thread Head Dia Head Height Length
MS-M02-004-CHS004 M2 X 4 0.4mm 3.8mm 1.3mm 4mm
MS-M02-004-CHS005 M2 X 5 0.4mm 3.8mm 1.3mm 5mm
MS-M02-004-CHS006 M2 X 6 0.4mm 3.8mm 1.3mm 6mm
MS-M02-004-CHS008 M2 X 8 0.4mm 3.8mm 1.3mm 8mm
MS-M02-004-CHS010 M2 X 10 0.4mm 3.8mm 1.3mm 10mm
MS-M02-004-CHS012 M2 X 12 0.4mm 3.8mm 1.3mm 12mm
MS-M02-004-CHS016 M2 X 16 0.4mm 3.8mm 1.3mm 16mm
MS-M02-004-CHS020 M2 X 20 0.4mm 3.8mm 1.3mm 20mm
MS-M02-004-CHS025 M2 X 25 0.4mm 3.8mm 1.3mm 25mm
MS-M025-0045-CHS004 M2.5 X 4 0.45mm 4.5mm 1.6mm 4mm
MS-M025-0045-CHS005 M2.5 X 5 0.45mm 4.5mm 1.6mm 5mm
MS-M025-0045-CHS006 M2.5 X 6 0.45mm 4.5mm 1.6mm 6mm
MS-M025-0045-CHS008 M2.5 X 8 0.45mm 4.5mm 1.6mm 8mm
MS-M025-0045-CHS010 M2.5 X 10 0.45mm 4.5mm 1.6mm 10mm
MS-M025-0045-CHS012 M2.5 X 12 0.45mm 4.5mm 1.6mm 12mm
MS-M025-0045-CHS016 M2.5 X 16 0.45mm 4.5mm 1.6mm 16mm
MS-M025-0045-CHS020 M2.5 X 20 0.45mm 4.5mm 1.6mm 20mm
MS-M025-0045-CHS025 M2.5 X 25 0.45mm 4.5mm 1.6mm 25mm
MS-M03-005-CHS004 M3 X 4 0.5mm 5.5mm 2mm 4mm
MS-M03-005-CHS005 M3 X 5 0.5mm 5.5mm 2mm 5mm
MS-M03-005-CHS006 M3 X 6 0.5mm 5.5mm 2mm 6mm
MS-M03-005-CHS008 M3 X 8 0.5mm 5.5mm 2mm 8mm
MS-M03-005-CHS010 M3 X 10 0.5mm 5.5mm 2mm 10mm
MS-M03-005-CHS012 M3 X 12 0.5mm 5.5mm 2mm 12mm
MS-M03-005-CHS016 M3 X 16 0.5mm 5.5mm 2mm 16mm
MS-M03-005-CHS020 M3 X 20 0.5mm 5.5mm 2mm 20mm
MS-M03-005-CHS025 M3 X 25 0.5mm 5.5mm 2mm 25mm
MS-M03-005-CHS030 M3 X 30 0.5mm 5.5mm 2mm 30mm
MS-M03-005-CHS035 M3 X 35 0.5mm 5.5mm 2mm 35mm
MS-M035-006-CHS025 M3.5 X 25 0.6mm 6mm 2.4mm 25mm
MS-M04-007-CHS006 M4 X 6 0.7mm 7mm 2.6mm 6mm
MS-M04-007-CHS008 M4 X 8 0.7mm 7mm 2.6mm 8mm
MS-M04-007-CHS010 M4 X 10 0.7mm 7mm 2.6mm 10mm
MS-M04-007-CHS012 M4 X 12 0.7mm 7mm 2.6mm 12mm
MS-M04-007-CHS016 M4 X 16 0.7mm 7mm 2.6mm 16mm
MS-M04-007-CHS020 M4 X 20 0.7mm 7mm 2.6mm 20mm
MS-M04-007-CHS025 M4 X 25 0.7mm 7mm 2.6mm 25mm
MS-M04-007-CHS030 M4 X 30 0.7mm 7mm 2.6mm 30mm
MS-M04-007-CHS035 M4 X 35 0.7mm 7mm 2.6mm 35mm
MS-M04-007-CHS040 M4 X 40 0.7mm 7mm 2.6mm 40mm
MS-M05-008-CHS006 M5 X 6 0.8mm 8.5mm 3.3mm 6mm
MS-M05-008-CHS008 M5 X 8 0.8mm 8.5mm 3.3mm 8mm
MS-M05-008-CHS010 M5 X 10 0.8mm 8.5mm 3.3mm 10mm
MS-M05-008-CHS012 M5 X 12 0.8mm 8.5mm 3.3mm 12mm
MS-M05-008-CHS016 M5 X 16 0.8mm 8.5mm 3.3mm 16mm
MS-M05-008-CHS020 M5 X 20 0.8mm 8.5mm 3.3mm 20mm
MS-M05-008-CHS025 M5 X 25 0.8mm 8.5mm 3.3mm 25mm
MS-M05-008-CHS030 M5 X 30 0.8mm 8.5mm 3.3mm 30mm
MS-M05-008-CHS035 M5 X 35 0.8mm 8.5mm 3.3mm 35mm
MS-M05-008-CHS040 M5 X 40 0.8mm 8.5mm 3.3mm 40mm
MS-M06-010-CHS005 M6 X 5 1mm 10mm 3.9mm 5mm
MS-M06-010-CHS008 M6 X 8 1mm 10mm 3.9mm 8mm
MS-M06-010-CHS010 M6 X 10 1mm 10mm 3.9mm 10mm
MS-M06-010-CHS012 M6 X 12 1mm 10mm 3.9mm 12mm
MS-M06-010-CHS016 M6 X 16 1mm 10mm 3.9mm 16mm
MS-M06-010-CHS020 M6 X 20 1mm 10mm 3.9mm 20mm
MS-M06-010-CHS025 M6 X 25 1mm 10mm 3.9mm 25mm
MS-M06-010-CHS030 M6 X 30 1mm 10mm 3.9mm 30mm
MS-M06-010-CHS035 M6 X 35 1mm 10mm 3.9mm 35mm
MS-M06-010-CHS040 M6 X 40 1mm 10mm 3.9mm 40mm
MS-M06-010-CHS045 M6 X 45 1mm 10mm 3.9mm 45mm
MS-M06-010-CHS050 M6 X 50 1mm 10mm 3.9mm 50mm
MS-M06-010-CHS060 M6 X 60 1mm 10mm 3.9mm 60mm
MS-M06-010-CHS065 M6 X 65 1mm 10mm 3.9mm 65mm
MS-M06-010-CHS070 M6 X 70 1mm 10mm 3.9mm 70mm
MS-M06-010-CHS075 M6 X 75 1mm 10mm 3.9mm 75mm
MS-M08-0125-CHS010 M8 X 10 1.25mm 13mm 5mm 10mm
MS-M08-0125-CHS016 M8 X 16 1.25mm 13mm 5mm 16mm
MS-M08-0125-CHS020 M8 X 20 1.25mm 13mm 5mm 20mm
MS-M08-0125-CHS025 M8 X 25 1.25mm 13mm 5mm 25mm
MS-M08-0125-CHS030 M8 X 30 1.25mm 13mm 5mm 30mm
MS-M08-0125-CHS035 M8 X 35 1.25mm 13mm 5mm 35mm
MS-M08-0125-CHS050 M8 X 50 1.25mm 13mm 5mm 50mm
MS-M08-0125-CHS070 M8 X 70 1.25mm 13mm 5mm 70mm
MS-M10-0150-CHS016 M10 X 16 1.5mm 15.63mm 6mm 16mm
MS-M10-0150-CHS020 M10 X 20 1.5mm 15.63mm 6mm 20mm
MS-M10-0150-CHS025 M10 X 25 1.5mm 15.63mm 6mm 25mm
MS-M10-0150-CHS030 M10 X 30 1.5mm 15.63mm 6mm 30mm
MS-M10-0150-CHS035 M10 X 35 1.5mm 15.63mm 6mm 35mm
MS-M10-0150-CHS050 M10 X 50 1.5mm 15.63mm 6mm 50mm
MS-M10-0150-CHS060 M10 X 60 1.5mm 15.63mm 6mm 60mm

Why shop with us?

  • Best priced trade discounts

    Indifit is a leading supplier of industrial components with a reputation for top quality at competitive, affordable prices for your organisation. For pricing and availability of specific items, feel free to browse our online catalogue and reach out to us if you’d like a quotation for a component.

    Create a trade account

  • Huge range of engineering components

    Finding the right industrial component for your specific application can be a frustrating experience, but it doesn’t have to be. Our guarantee to you is that you’ll always be received by friendly, helpful, and efficient experts. Take advantage of our product and industry expertise to find exactly what you’re looking for.

    Browse our stock

  • Fast next-day delivery

    We offer fast next-day delivery on all in-stock products from our warehouse in the UK. We never charge for minimum orders nor do we have minimum order quantities, so whether it’s a packet of fasteners or bulk quantities you can depend on our speedy next-day delivery to your address.

    Our delivery options

Related Products

  • Decades of experience

  • Huge range of engineering finishing components

  • Best priced trade discounts

  • Fast next day delivery

Frequently Asked Questions

What are the main benefits of choosing nylon slotted cheese head machine screws?
Nylon slotted cheese head machine screws offer excellent corrosion resistance, a high strength-to-weight ratio, and low thermal conductivity, making them ideal for various industrial applications where durability and lightweight performance are needed.
Are these nylon slotted cheese head screws suitable for specific tools or applications?
Yes, these nylon DIN 84 screws are designed for use with slot drive tools and are suitable for use in environments where non-magnetic properties are important, such as in electronics or medical equipment.
What sizes and lengths are available for the nylon slotted cheese head machine screws?
These screws are available in thread sizes from M2 to M10 and in lengths ranging from 4mm to 70mm, providing versatile options for different projects and applications.
Can I use these nylon cheese head screws in high-temperature environments?
These nylon screws have an operating temperature range of -35°C to +85°C, making them suitable for most standard industrial environments but not for extremely high-temperature applications.
How many screws are included in each pack, and is custom coloring available?
Each pack contains 1000 nylon slotted cheese head machine screws, and custom black color orders can be arranged by contacting our customer service.
What are the main benefits of using a nylon slotted cheese head machine screw?
Nylon slotted cheese head machine screws offer high strength-to-weight ratio, corrosion resistance, and low thermal conductivity, making them ideal for lightweight, durable, and non-magnetic applications.
What sizes and lengths are available for the nylon slotted cheese head machine screw?
These nylon cheese head machine screws come in various thread sizes including M2, M2.5, M3, M4, M5, M6, M8, and M10, with lengths ranging from 4 to 70mm.
Are these nylon slotted cheese head machine screws suitable for use with specific tools?
Yes, these nylon screws are designed to be compatible with slot drive tools, ensuring ease of installation and removal in various applications.
What are the operating temperature limits for the nylon slotted cheese head machine screw?
These nylon screws can operate effectively within a temperature range of -35°C to +85°C, suitable for most industrial and mechanical environments.
How are the nylon slotted cheese head machine screws sold and are different colors available?
They are sold in packs of 1000, and black color is available upon request—please contact us for ordering black nylon screws.
