BLACKSMITH DRILL BITS

Blacksmith Drills

Material: High grade steel Standard helix 118° point Reduced shank Ideally suited for hand held drilling applications Suitable for steel, cast iron, copper, brass, iron and plastics

Find the right option

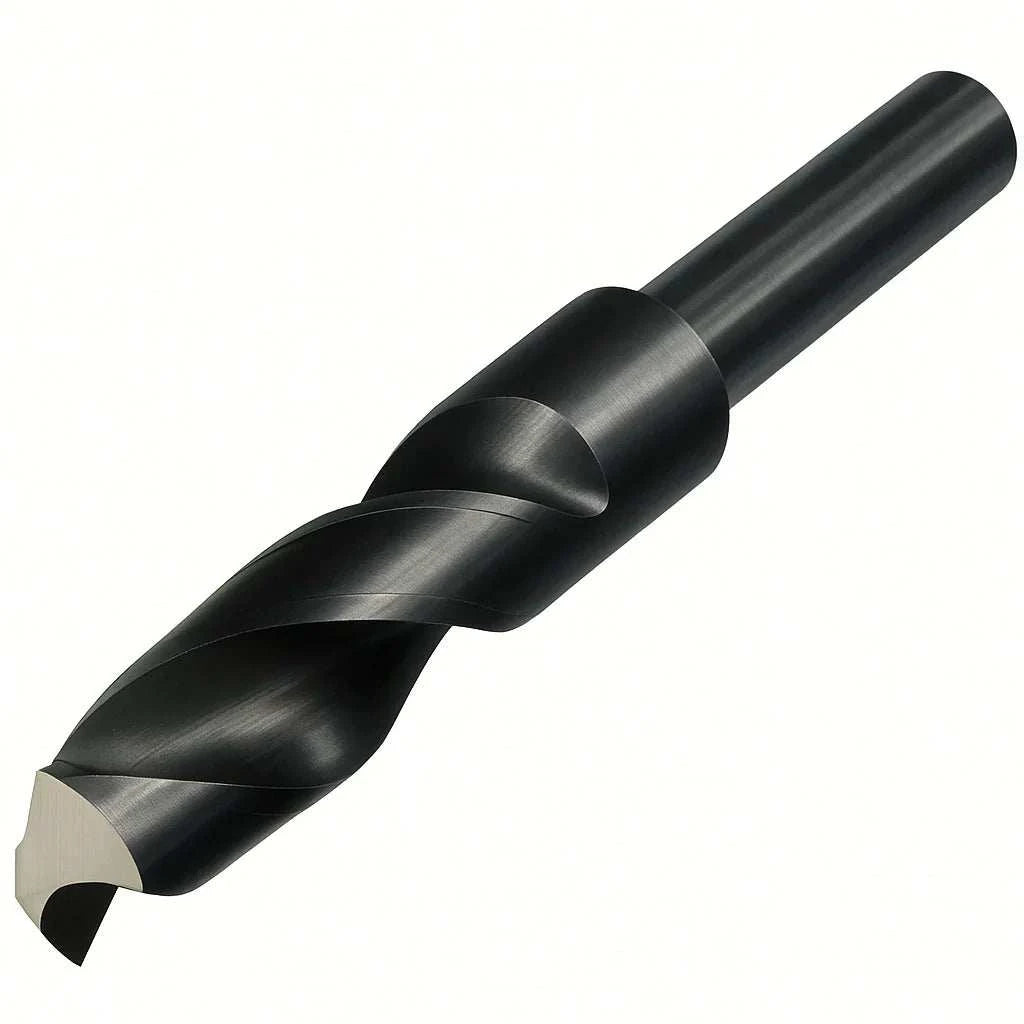

  • Set of blacksmith drills made of high grade steel with standard helix and 118° point, suitable for hand held drilling in various metals and plastics
1 1

Technical guidanceExpert support for the right solution

Samples availableGet the right part before you commit

UK & European sourcingAlternatives beyond the catalogue

Trade enquiries welcomeFrom one-off parts to ongoing supply

Read full product description
  • Material: High grade steel
  • Standard helix
  • 118° point
  • Reduced shank
  • Ideally suited for hand held drilling applications
  • Suitable for steel, cast iron, copper, brass, iron and plastics
FIND THE RIGHT COMPONENT

Available product options.

Search by size, dimensions or specification, select a matching product and add it to your quotation basket.

QUOTE ONLY · NO PAYMENT

Available options

Choose a matching part to review its specifications

26 options
Part numberSize / technical detailOther specificationAction
BSD13.5 BSD13.5 —
BSD14.0 BSD14.0 —
BSD14.5 BSD14.5 —
BSD15.0 BSD15.0 —
BSD15.5 BSD15.5 —
BSD16.0 BSD16.0 —
BSD16.5 BSD16.5 —
BSD17.0 BSD17.0 —
BSD17.5 BSD17.5 —
BSD18.0 BSD18.0 —
BSD18.5 BSD18.5 —
BSD19.0 BSD19.0 —
BSD19.5 BSD19.5 —
BSD20.0 BSD20.0 —
BSD21.0 BSD21.0 —
BSD22.0 BSD22.0 —
BSD23.0 BSD23.0 —
BSD24.0 BSD24.0 —
BSD25.0 BSD25.0 —
BSD26.0 BSD26.0 —
BSD3/4 BSD3/4 —
BSD5/8 BSD5/8 —
BSD7/8 BSD7/8 —
BSD9/16 BSD9/16 —
BSD11/16 BSD11/16 —
BSD100 BSD100 —

Select an option to view its full specifications and choose a quantity for your quote.

Your selected product

Blacksmith Drills
BSD13.5

Choose a part number and quantity to request a quotation. No online payment is taken.

How does requesting a quote work?
  1. Find the size and product code you need from table below.
  2. Enter product code and quantities required
  3. Click Add To Quote
  4. Repeat on any other product pages as needed.
  5. Once done, submit your quote to our sales team who will be in touch within 1 hour.

Alternatively feel free to call us now on 01279 656189 for an immediate response!

View full details
Choose by specification: filter the options above, compare the full table below, and select any matching part number. Both views stay in sync.Ask our technical team →
Full technical specifications — select a part numberReal product dimensions and technical details from Indifit's catalogue
TECHNICAL DETAILS

Product specifications.

Find part numbers and compare available options
sku Drill Size (mm) Drill Size (inches) Material Overall Length (mm) Flute Length (mm) Shank Length (mm)
BSD13.5 13.5 – HSS 4241 152 76 12.7
BSD14.0 14.0 – HSS 4241 152 76 12.7
BSD14.5 14.5 – HSS 4241 152 76 12.7
BSD15.0 15.0 – HSS 4241 152 76 12.7
BSD15.5 15.5 – HSS 4241 152 76 12.7
BSD16.0 16.0 – HSS 4241 152 76 12.7
BSD16.5 16.5 – HSS 4241 152 76 12.7
BSD17.0 17.0 – HSS 4241 152 76 12.7
BSD17.5 17.5 – HSS 4241 152 76 12.7
BSD18.0 18.0 – HSS 4241 152 76 12.7
BSD18.5 18.5 – HSS 4241 152 76 12.7
BSD19.0 19.0 – HSS 4241 152 76 12.7
BSD19.5 19.5 – HSS 4241 152 76 12.7
BSD20.0 20.0 – HSS 4241 152 76 12.7
BSD21.0 21.0 – HSS 4241 152 76 12.7
BSD22.0 22.0 – HSS 4241 152 76 12.7
BSD23.0 23.0 – HSS 4241 152 76 12.7
BSD24.0 24.0 – HSS 4241 152 76 12.7
BSD25.0 25.0 – HSS 4241 152 76 12.7
BSD26.0 26.0 – HSS 4241 152 76 12.7
BSD3/4 – 3/4 HSS 4241 152 76 12.7
BSD5/8 – 5/8 HSS 4241 152 76 12.7
BSD7/8 – 7/8 HSS 4241 152 76 12.7
BSD9/16 – 9/16 HSS 4241 152 76 12.7
BSD11/16 – 11/16 HSS 4241 152 76 12.7
BSD100 – 1 HSS 4241 152 76 12.7
