Nylon Nuts

Metric Nylon Wing Nuts - DIN 315

DIN 315 Nylon Wing Nuts are suitable for hand tightening and releasing in all applications where easy access or break down is needed. These nylon wing nuts are strong and simple to use.

Find the right option

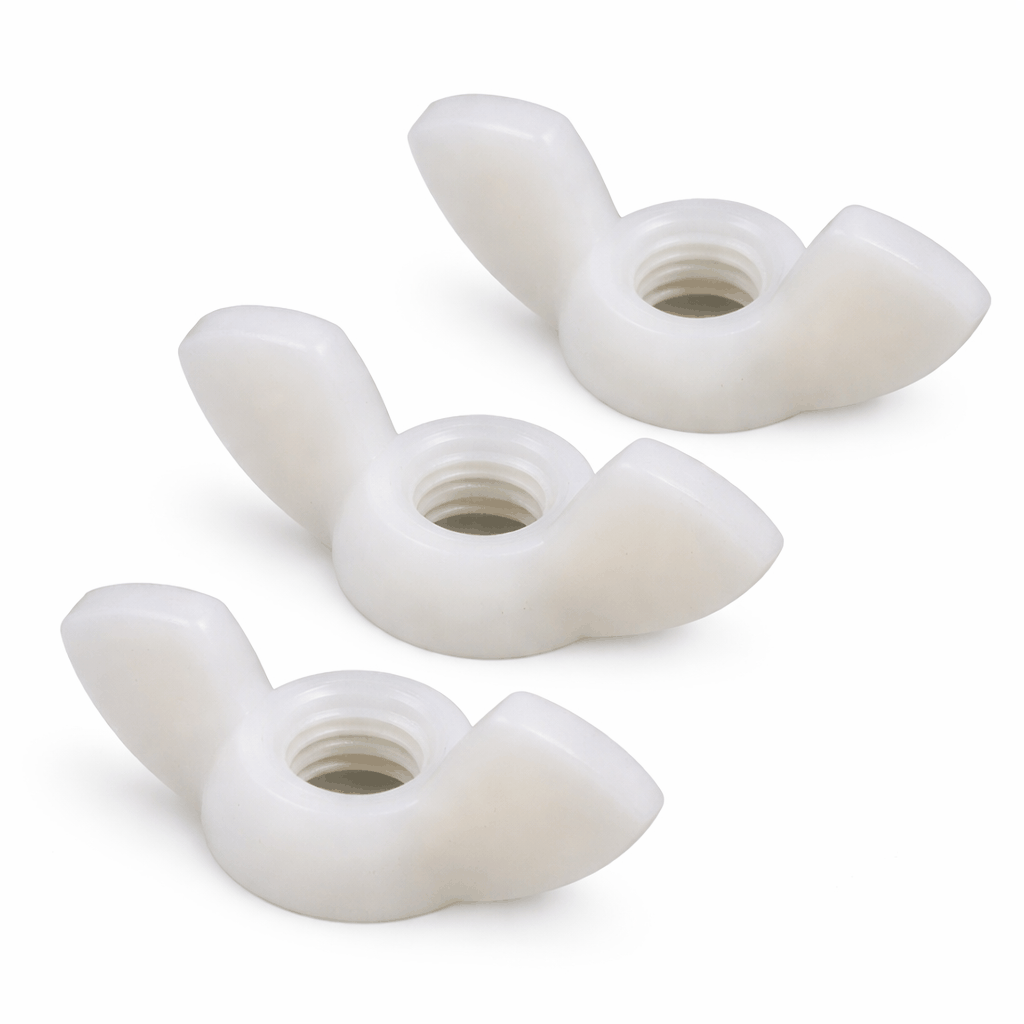

  • Metric nylon wing nuts DIN 315 in various sizes for easy hand tightening and releasing
1 3

Technical guidanceExpert support for the right solution

Samples availableGet the right part before you commit

UK & European sourcingAlternatives beyond the catalogue

Trade enquiries welcomeFrom one-off parts to ongoing supply

Read full product description

DIN 315 Nylon Wing Nuts are suitable for hand tightening and releasing in all applications where easy access or break down is needed. These nylon wing nuts are strong and simple to use.

  • Available in sizes, M4, M5, M6, M8 and M10
  • Nylon 66
  • UL94-V2
  • Temperature range -35 to +85°C

    Supplied in packs of 1000

    Black available to order, please phone
FIND THE RIGHT COMPONENT

Available product options.

Search by size, dimensions or specification, select a matching product and add it to your quotation basket.

QUOTE ONLY · NO PAYMENT

Available options

Choose a matching part to review its specifications

5 options
Part numberSize / technical detailOther specificationAction
MNHN-M4-WNG MNHN-M4-WNG —
MNHN-M5-WNG MNHN-M5-WNG —
MNHN-M6-WNG MNHN-M6-WNG —
MNHN-M8-WNG MNHN-M8-WNG —
MNHN-M10-WNG MNHN-M10-WNG —

Select an option to view its full specifications and choose a quantity for your quote.

Your selected product

Metric Nylon Wing Nuts - DIN 315
MNHN-M4-WNG

Choose a part number and quantity to request a quotation. No online payment is taken.

How does requesting a quote work?
  1. Find the size and product code you need from table below.
  2. Enter product code and quantities required
  3. Click Add To Quote
  4. Repeat on any other product pages as needed.
  5. Once done, submit your quote to our sales team who will be in touch within 1 hour.

Alternatively feel free to call us now on 01279 656189 for an immediate response!

View full details
01 · START HERE

Check the dimensions. Find your part number.

Use the full specification table below to identify the correct size and part number. Then return to Available product options above to select that exact part and request a quote.

Select your part & request a quote

Full technical specifications compare sizes & part numbers

Find your part in the table below, then select the matching option above to request a quote.

ALL SPECIFICATIONS VISIBLE

Check each column heading for the relevant measurements and product details. ↔ Swipe sideways to see every column.

TECHNICAL DETAILS

Product specifications.

Find part numbers and compare available options

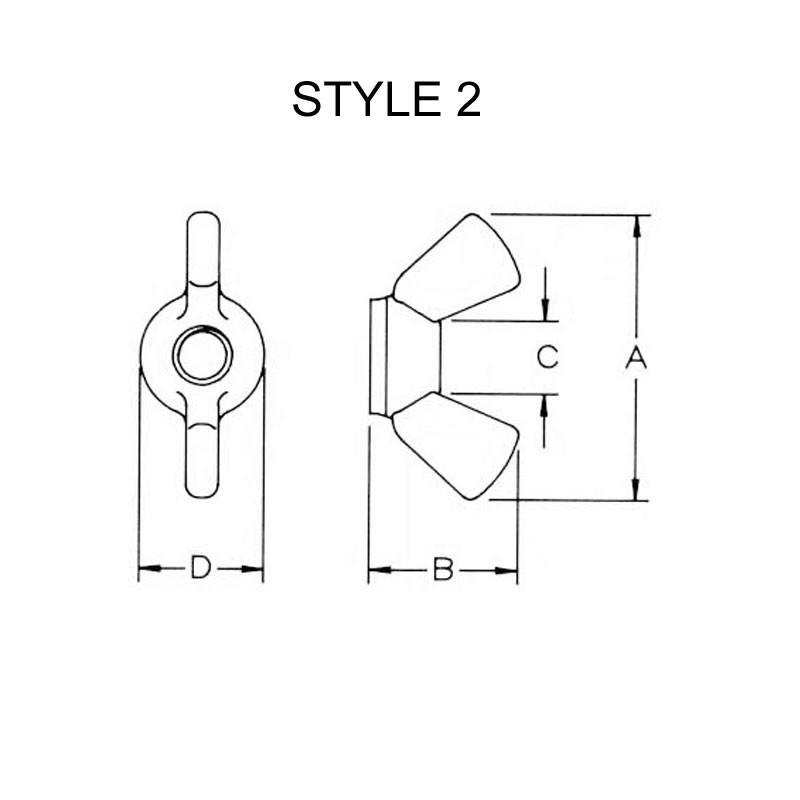

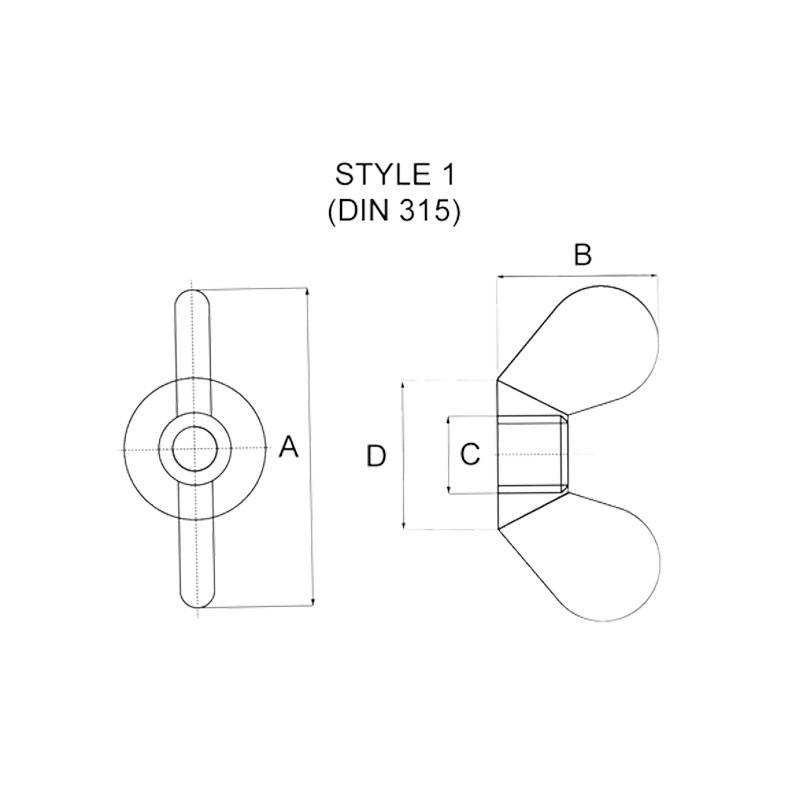

Sku Desc Thread A B C D Style
MNHN-M4-WNG M4 0.7mm 16.00mm 11.50mm M4 10.00mm 1
MNHN-M5-WNG M5 0.8mm 22.80mm 12.20mm M5 10.40mm 2
MNHN-M6-WNG M6 1mm 28.30mm 16.00mm M6 11.00mm 1
MNHN-M8-WNG M8 1.25mm 35.00mm 19.90mm M8 14.00mm 1
MNHN-M10-WNG M10 1.5mm 35.05mm 18.29mm M10 16.51mm 2

Found the correct part number? Select it from the available options above and add it to your quote list.
