Nylon Nuts
Metric Nylon Knuled Thumb Nuts - Form A

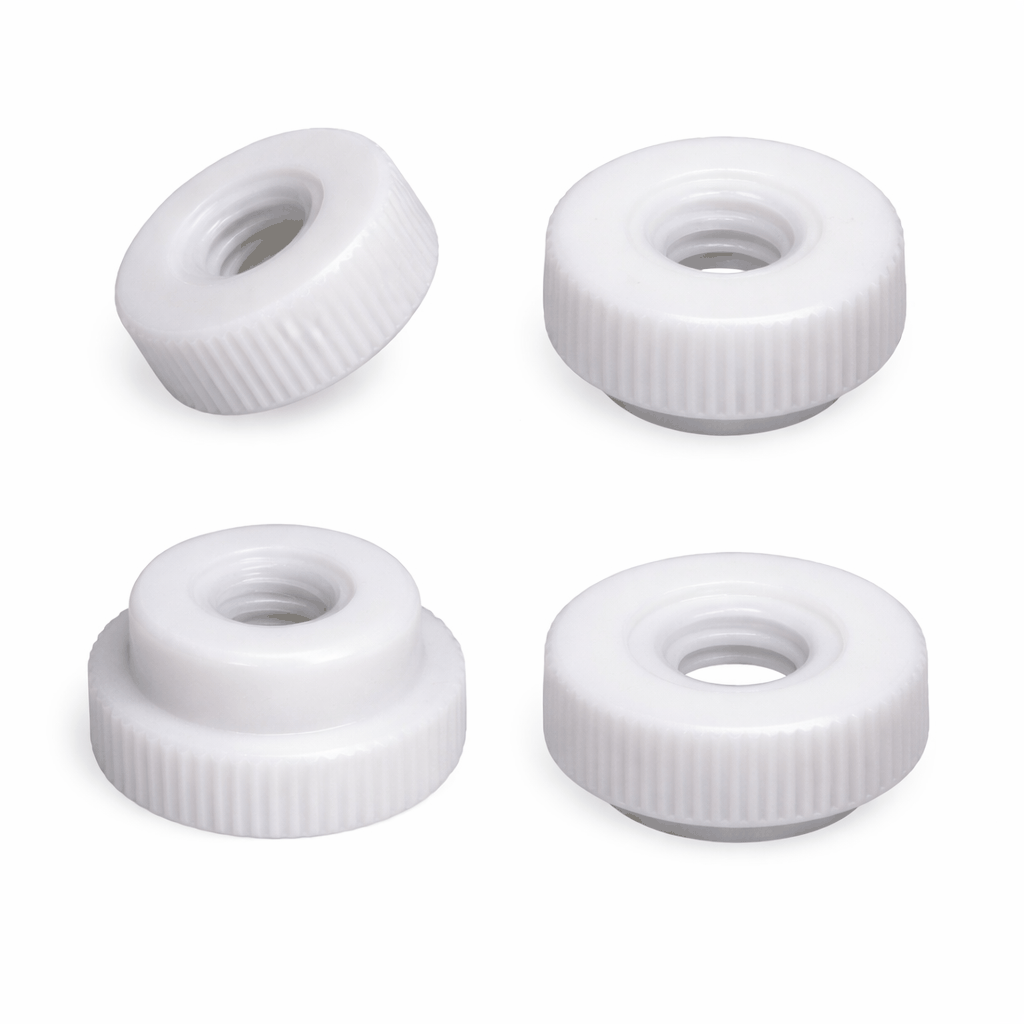

Our range of metric nylon knurled thumb nuts - form A, available in M3, M4, M5, M6 and M8 sizes. These nuts feature a knurled top section to allow for easy tightening and loosening by hand. Suitable for applications where quick access and frequent removal is...
Find the right option
Technical guidanceExpert support for the right solution
Samples availableGet the right part before you commit
UK & European sourcingAlternatives beyond the catalogue
Trade enquiries welcomeFrom one-off parts to ongoing supply
Read full product description
Our range of metric nylon knurled thumb nuts - form A, available in M3, M4, M5, M6 and M8 sizes. These nuts feature a knurled top section to allow for easy tightening and loosening by hand. Suitable for applications where quick access and frequent removal is required. Our thumb nuts are non-conductive making them ideal for environments where electrical conductivity must be avoided.
- Sizes M3 to M8
- Nylon 66
- UL94 V2
- RoHS Compliant
- Operating Temperature -35 to +85°C
- Available in White Nylon
Supplied in packs of 1000
Available product options.
Search by size, dimensions or specification, select a matching product and add it to your quotation basket.
Your selected product
How does requesting a quote work?
- Find the size and product code you need from table below.
- Enter product code and quantities required
- Click Add To Quote
- Repeat on any other product pages as needed.
- Once done, submit your quote to our sales team who will be in touch within 1 hour.
Alternatively feel free to call us now on 01279 656189 for an immediate response!
Check the dimensions. Find your part number.
Use the full specification table below to identify the correct size and part number. Then return to Available product options above to select that exact part and request a quote.
Full technical specifications compare sizes & part numbers
Find your part in the table below, then select the matching option above to request a quote.
Check each column heading for the relevant measurements and product details. ↔ Swipe sideways to see every column.
Product specifications.

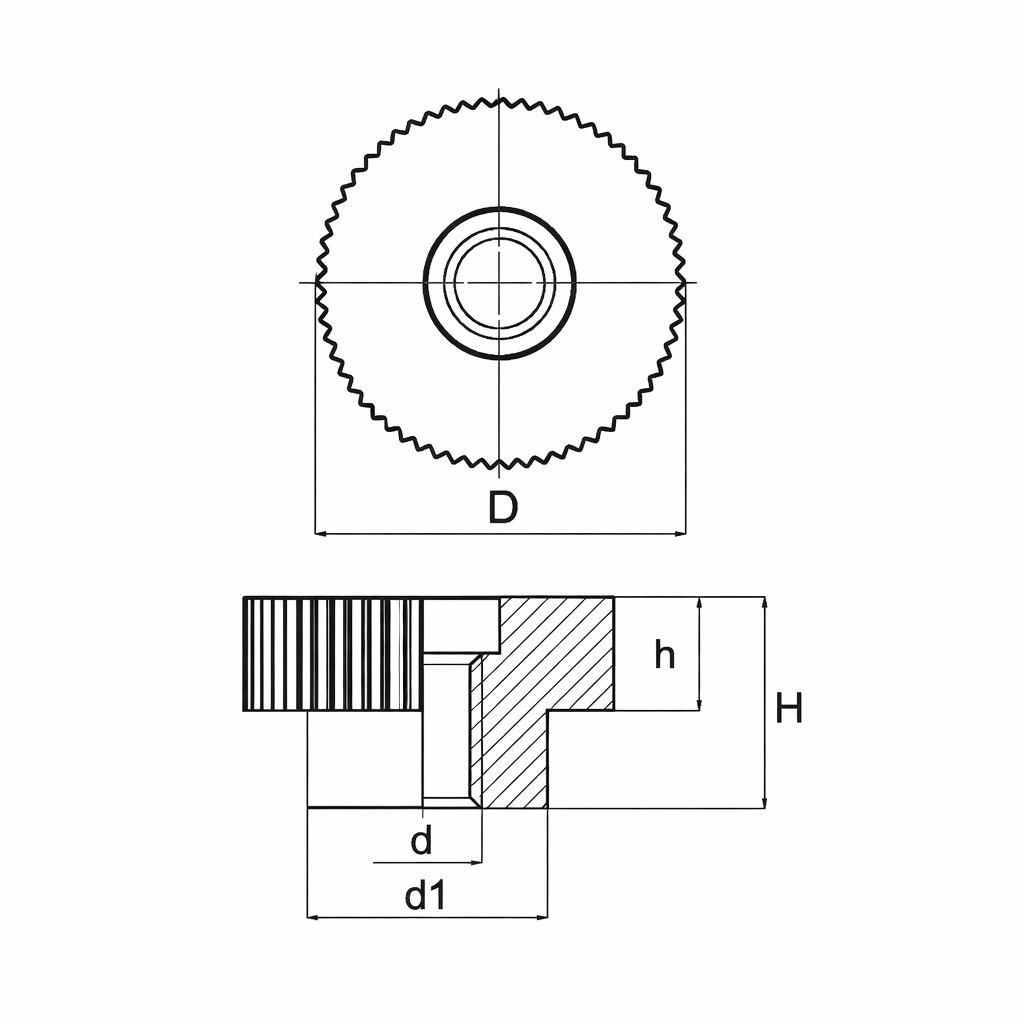

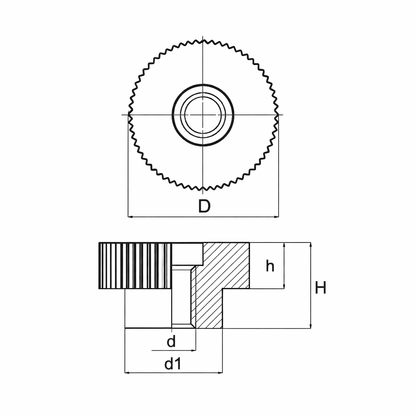

| Sku | Thread (d Dim) | h Dim | OD (D Dim) | H Dim | d1 Dim |
|---|---|---|---|---|---|
| MNKTN-M3-1-W | M3 | 3.50mm | 12.00mm | 5.00mm | 8.50mm |
| MNKTN-M3-2-W | M3 | 3.50mm | 12.00mm | 7.00mm | 7.00mm |
| MNKTN-M4-1-W | M4 | 6.00mm | 20.00mm | 7.50mm | 10.00mm |
| MNKTN-M4-2-W | M4 | 4.50mm | 16.00mm | 6.00mm | 10.00mm |
| MNKTN-M4-3-W | M4 | 3.50mm | 14.00mm | 5.00mm | 8.50mm |
| MNKTN-M4-4-W | M4 | 4.50mm | 16.00mm | 8.00mm | 9.50mm |
| MNKTN-M4-5-W | M4 | 3.50mm | 12.00mm | 7.00mm | 7.00mm |
| MNKTN-M5-1-W | M5 | 6.00mm | 19.00mm | 7.50mm | 10.00mm |
| MNKTN-M5-2-W | M5 | 4.50mm | 16.00mm | 6.00mm | 10.00mm |
| MNKTN-M5-3-W | M5 | 6.00mm | 19.00mm | 11.00mm | 13.00mm |
| MNKTN-M5-4-W | M5 | 4.50mm | 16.00mm | 8.00mm | 9.50mm |
| MNKTN-M5-5-W | M5 | 3.50mm | 14.00mm | 7.00mm | 8.80mm |
| MNKTN-M6-1-W | M6 | 6.00mm | 19.00mm | 7.50mm | 10.00mm |
| MNKTN-M6-2-W | M6 | 4.50mm | 16.00mm | 6.00mm | 10.00mm |
| MNKTN-M6-3-W | M6 | 6.00mm | 20.00mm | 11.00mm | 13.00mm |
| MNKTN-M6-4-W | M6 | 4.50mm | 16.00mm | 8.00mm | 9.50mm |
| MNKTN-M8-1-W | M8 | 6.00mm | 24.00mm | 7.50mm | 13.00mm |
