Nylon Nuts

Metric Nylon Hex Nuts - DIN 934

Our range of standard nylon nuts. Metric DIN 34814 (formerly DIN 934, DIN 555) Nylon hex Nuts mate perfectly with all our externally threaded products including machine screws, threaded rod (DIN 976-1) and threaded PCB standoffs. For use with spanner or socket drive. M2 - M16...

Find the right option

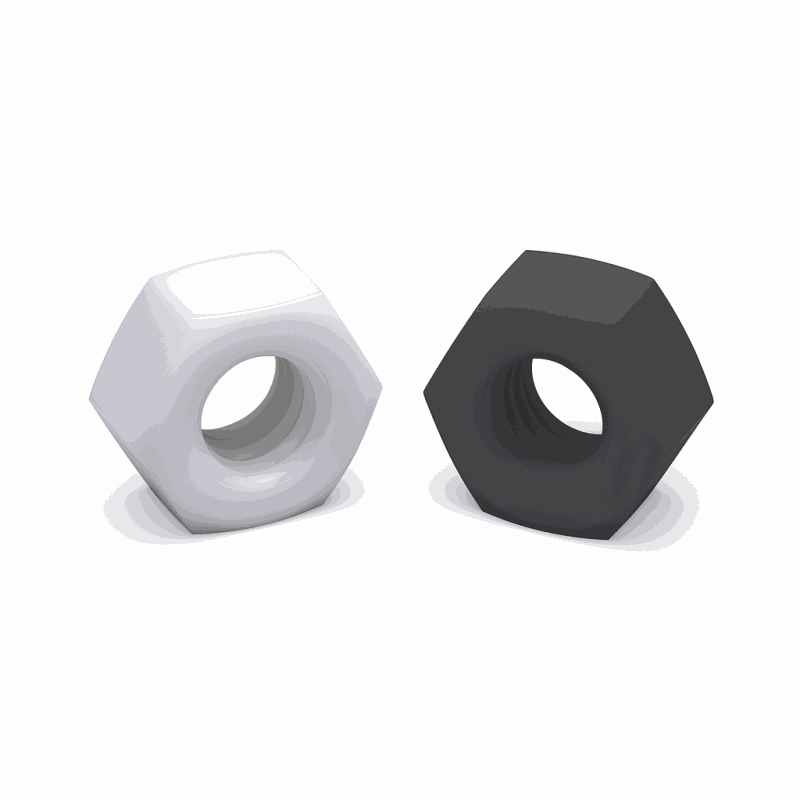

  • Metric nylon hex nuts in various sizes M2 to M16 made from Nylon 66, suitable for spanner or socket drive, supplied in packs of 1000
1 2

Technical guidanceExpert support for the right solution

Samples availableGet the right part before you commit

UK & European sourcingAlternatives beyond the catalogue

Trade enquiries welcomeFrom one-off parts to ongoing supply

Read full product description

Our range of standard nylon nuts. Metric DIN 34814 (formerly DIN 934, DIN 555) Nylon hex Nuts mate perfectly with all our externally threaded products including machine screws, threaded rod (DIN 976-1) and threaded PCB standoffs. For use with spanner or socket drive. M2 - M16 available. Larger sizes on demand.

Supplied in packs of 1000

  • Sizes - M2, M2.5, M3, M3.5, M4, M5, M6, M8, M10, M12 and M16
  • Nylon 66
  • UL94-V2
  • Temperature range -35 to +85°C
FIND THE RIGHT COMPONENT

Available product options.

Search by size, dimensions or specification, select a matching product and add it to your quotation basket.

QUOTE ONLY · NO PAYMENT

Available options

Choose a matching part to review its specifications

22 options
Part numberSize / technical detailOther specificationAction
MNHN-M2 MNHN-M2 —
MNHN-M2-B MNHN-M2-B —
MNHN-M2.5 MNHN-M2.5 —
MNHN-M2.5-B MNHN-M2.5-B —
MNHN-M3 MNHN-M3 —
MNHN-M3-B MNHN-M3-B —
MNHN-M3.5 MNHN-M3.5 —
MNHN-M3.5-B MNHN-M3.5-B —
MNHN-M4 MNHN-M4 —
MNHN-M4-B MNHN-M4-B —
MNHN-M5 MNHN-M5 —
MNHN-M5-B MNHN-M5-B —
MNHN-M6 MNHN-M6 —
MNHN-M6-B MNHN-M6-B —
MNHN-M8 MNHN-M8 —
MNHN-M8-B MNHN-M8-B —
MNHN-M10 MNHN-M10 —
MNHN-M10-B MNHN-M10-B —
MNHN-M12 MNHN-M12 —
MNHN-M12-B MNHN-M12-B —
MNHN-M16 MNHN-M16 —
MNHN-M16-B MNHN-M16-B —

Select an option to view its full specifications and choose a quantity for your quote.

Your selected product

Metric Nylon Hex Nuts - DIN 934
MNHN-M2

Choose a part number and quantity to request a quotation. No online payment is taken.

How does requesting a quote work?
  1. Find the size and product code you need from table below.
  2. Enter product code and quantities required
  3. Click Add To Quote
  4. Repeat on any other product pages as needed.
  5. Once done, submit your quote to our sales team who will be in touch within 1 hour.

Alternatively feel free to call us now on 01279 656189 for an immediate response!

View full details
01 · START HERE

Check the dimensions. Find your part number.

Use the full specification table below to identify the correct size and part number. Then return to Available product options above to select that exact part and request a quote.

Select your part & request a quote

Full technical specifications compare sizes & part numbers

Find your part in the table below, then select the matching option above to request a quote.

ALL SPECIFICATIONS VISIBLE

Check each column heading for the relevant measurements and product details. ↔ Swipe sideways to see every column.

TECHNICAL DETAILS

Product specifications.

Find part numbers and compare available options

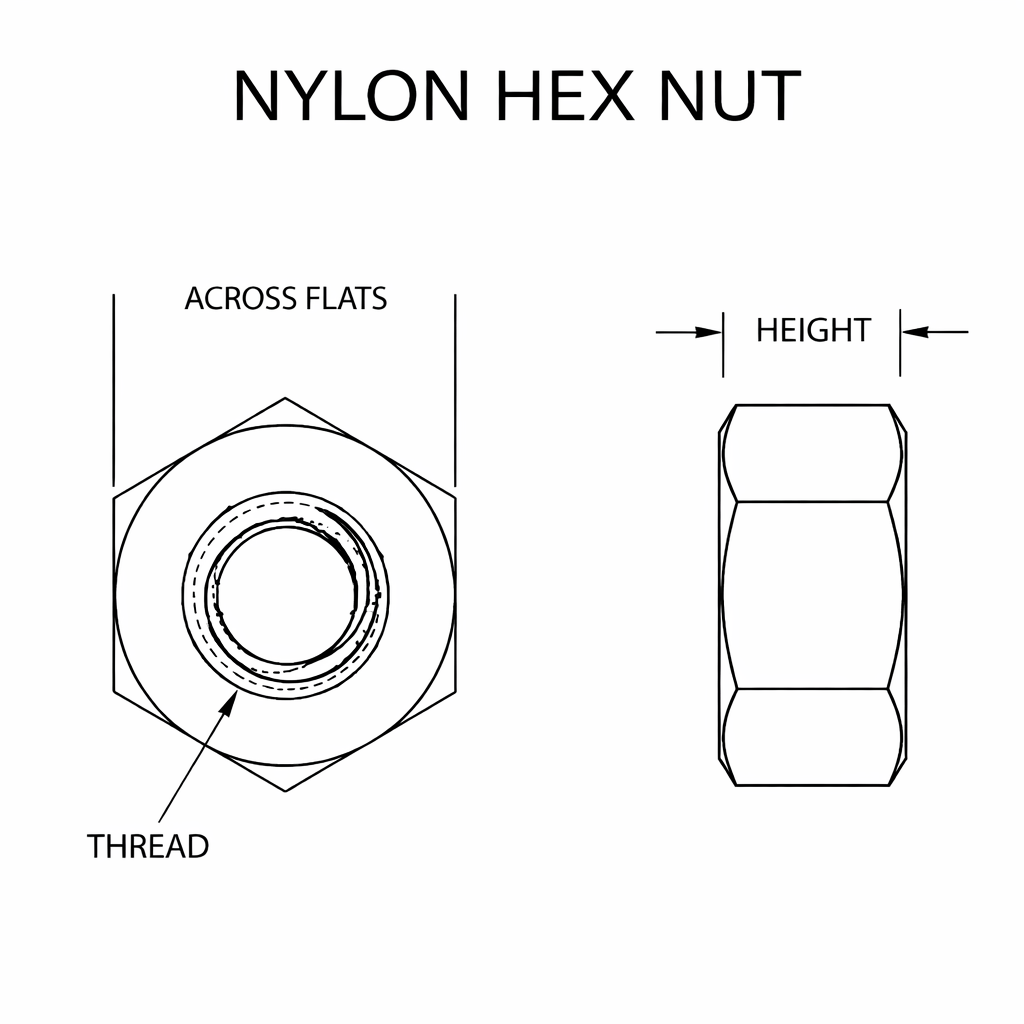

sku Color Desc Height Width X Flats
MNHN-M2 Natural M2 1.20mm 3.90mm
MNHN-M2-B Black M2 1.20mm 3.90mm
MNHN-M2.5 Natural M2.5 2.10mm 5.10mm
MNHN-M2.5-B Black M2.5 2.10mm 5.10mm
MNHN-M3 Natural M3 2.40mm 5.60mm
MNHN-M3-B Black M3 2.40mm 5.60mm
MNHN-M3.5 Natural M3.5 2.70mm 6.90mm
MNHN-M3.5-B Black M3.5 2.70mm 6.90mm
MNHN-M4 Natural M4 3.20mm 7.00mm
MNHN-M4-B Black M4 3.20mm 7.00mm
MNHN-M5 Natural M5 4.00mm 8.00mm
MNHN-M5-B Black M5 4.00mm 8.00mm
MNHN-M6 Natural M6 5.00mm 10.00mm
MNHN-M6-B Black M6 5.00mm 10.00mm
MNHN-M8 Natural M8 6.50mm 12.00mm
MNHN-M8-B Black M8 6.50mm 12.00mm
MNHN-M10 Natural M10 8.00mm 17.00mm
MNHN-M10-B Black M10 8.00mm 17.00mm
MNHN-M12 Natural M12 10.10mm 19.00mm
MNHN-M12-B Black M12 10.10mm 19.00mm
MNHN-M16 Natural M16 13.30mm 24.00mm
MNHN-M16-B Black M16 13.30mm 24.00mm

Found the correct part number? Select it from the available options above and add it to your quote list.

Choose this part in Available options
