Nylon Nuts

Metric Nylon Flange Hex Nuts

Our range of plastic Metric Flange Hex Nuts fit perfectly with all our externally threaded products including machine screws and threaded rod. These nylon 66 nuts are for use with spanner or socket drive. Available in sizes M3 - M24.

Find the right option

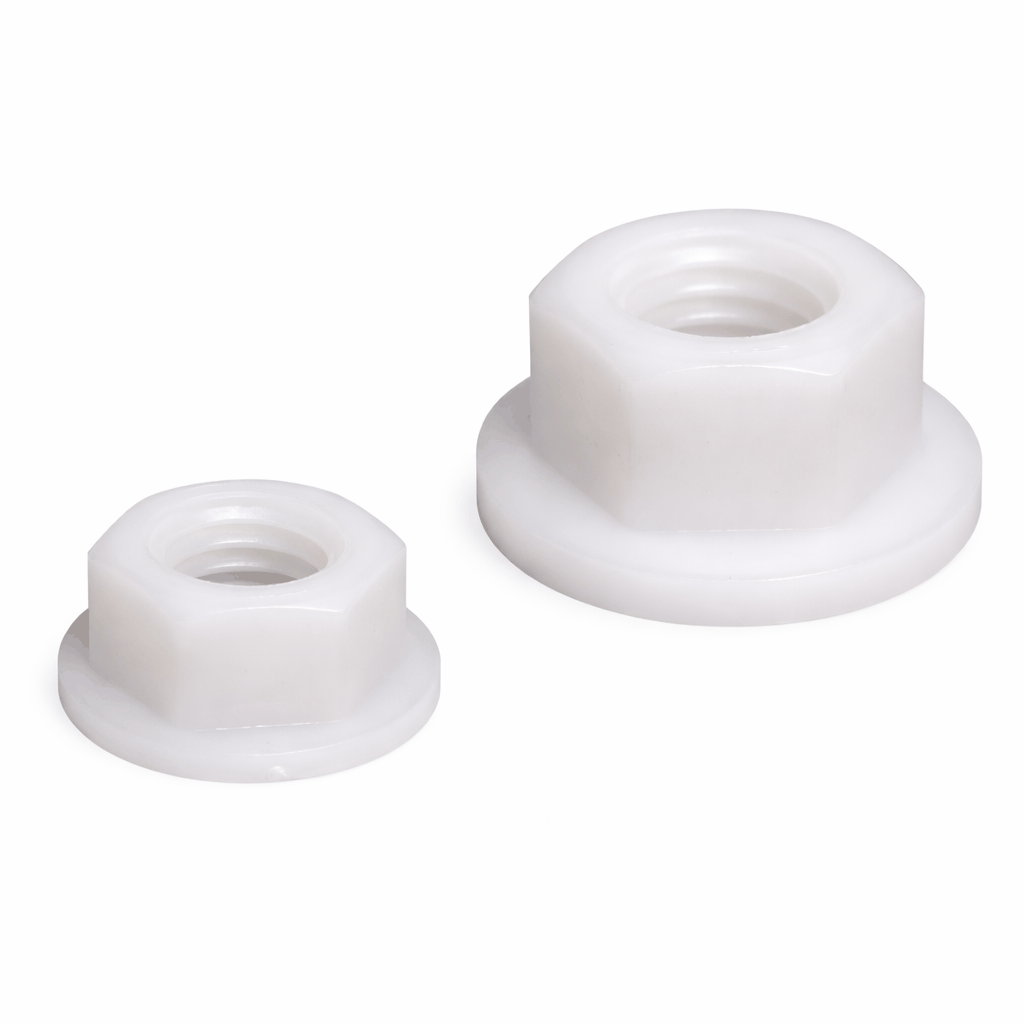

  • Metric Nylon Flange Hex Nuts in various sizes for threaded rods and machine screws
1 2

Technical guidanceExpert support for the right solution

Samples availableGet the right part before you commit

UK & European sourcingAlternatives beyond the catalogue

Trade enquiries welcomeFrom one-off parts to ongoing supply

Read full product description

Our range of plastic Metric Flange Hex Nuts fit perfectly with all our externally threaded products including machine screws and threaded rod. These nylon 66 nuts are for use with spanner or socket drive. Available in sizes M3 - M24.

  • Sizes M3, M4, M5, M6, M8, M10, M12, M16, M20 and M24
  • Nylon 66
  • UL94-V2
  • Temperature range -35 to +85°C

    Supplied in packs of 1000

FIND THE RIGHT COMPONENT

Available product options.

Search by size, dimensions or specification, select a matching product and add it to your quotation basket.

QUOTE ONLY · NO PAYMENT

Available options

Choose a matching part to review its specifications

10 options
Part numberSize / technical detailOther specificationAction
MNHN-M3-FN MNHN-M3-FN —
MNHN-M4-FN MNHN-M4-FN —
MNHN-M5-FN MNHN-M5-FN —
MNHN-M6-FN MNHN-M6-FN —
MNHN-M8-FN MNHN-M8-FN —
MNHN-M10-FN MNHN-M10-FN —
MNHN-M12-FN MNHN-M12-FN —
MNHN-M16-FN MNHN-M16-FN —
MNHN-M20-FN MNHN-M20-FN —
MNHN-M24-FN MNHN-M24-FN —

Select an option to view its full specifications and choose a quantity for your quote.

Your selected product

Metric Nylon Flange Hex Nuts
MNHN-M3-FN

Choose a part number and quantity to request a quotation. No online payment is taken.

How does requesting a quote work?
  1. Find the size and product code you need from table below.
  2. Enter product code and quantities required
  3. Click Add To Quote
  4. Repeat on any other product pages as needed.
  5. Once done, submit your quote to our sales team who will be in touch within 1 hour.

Alternatively feel free to call us now on 01279 656189 for an immediate response!

View full details
01 · START HERE

Check the dimensions. Find your part number.

Use the full specification table below to identify the correct size and part number. Then return to Available product options above to select that exact part and request a quote.

Select your part & request a quote

Full technical specifications compare sizes & part numbers

Find your part in the table below, then select the matching option above to request a quote.

ALL SPECIFICATIONS VISIBLE

Check each column heading for the relevant measurements and product details. ↔ Swipe sideways to see every column.

TECHNICAL DETAILS

Product specifications.

Find part numbers and compare available options

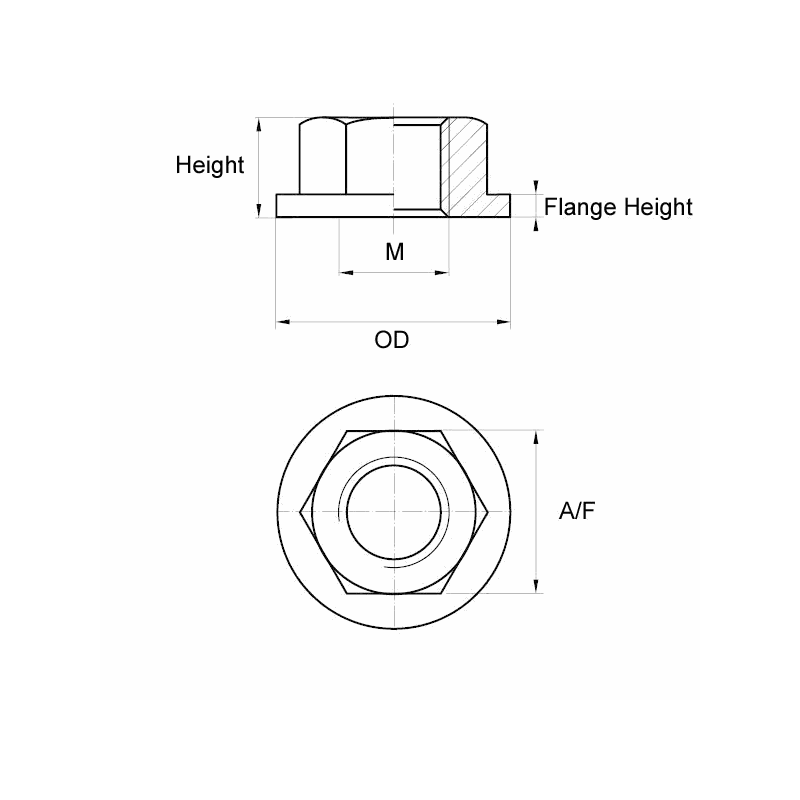

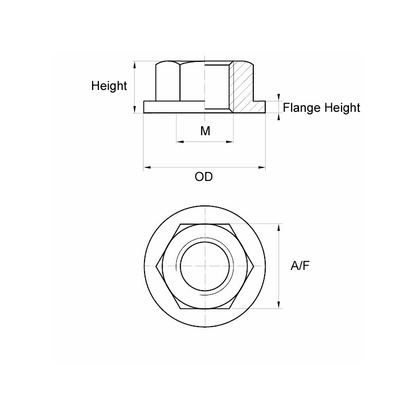

Sku Desc OD A/F Height Flange Height
MNHN-M3-FN M3 7.8mm 5.5mm 3.3mm 1.1mm
MNHN-M4-FN M4 9.5mm 7.0mm 4.2mm 1.1mm
MNHN-M5-FN M5 11.0mm 8.0mm 5.2mm 1.0mm
MNHN-M6-FN M6 13.0mm 10.0mm 6.0mm 1.2mm
MNHN-M8-FN M8 16.8mm 13.0mm 7.4mm 1.4mm
MNHN-M10-FN M10 21.7mm 16.0mm 9.5mm 1.8mm
MNHN-M12-FN M12 27.1mm 18.0mm 12.7mm 3.0mm
MNHN-M16-FN M16 35.0mm 24.0mm 16.6mm 3.0mm
MNHN-M20-FN M20 44.0mm 30.0mm 20.0mm 3.5mm
MNHN-M24-FN M24 53.0mm 36.0mm 23.8mm 4.0mm

Found the correct part number? Select it from the available options above and add it to your quote list.

Choose this part in Available options
