Nylon Nuts

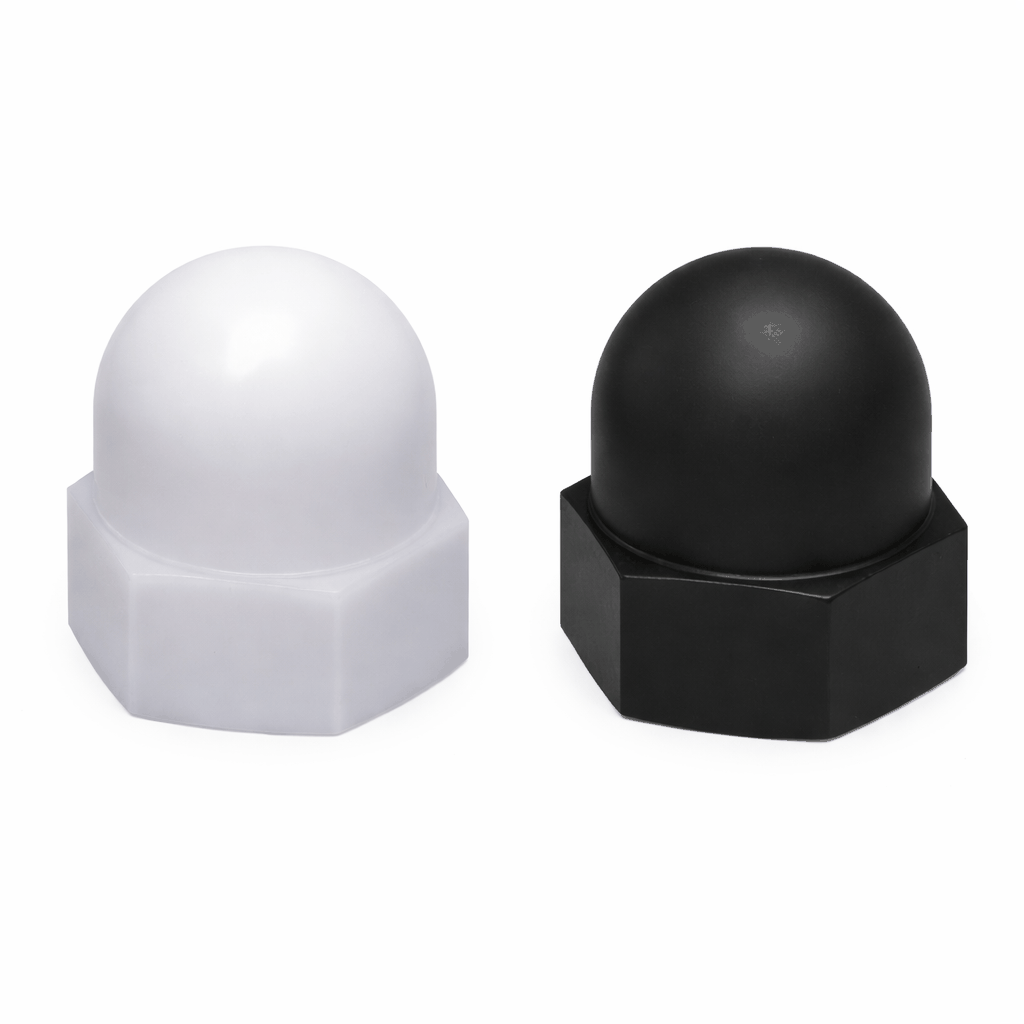

Metric Nylon Dome Nuts

Our range of plastic Metric similar to DIN 1587 Nylon 66 Cap Nuts provide an extra level of thread protection, the domed top provides a neat uniform finish, capping and securing machine screws and threaded rod. M3 - M12 available.

Find the right option

1 2

Technical guidanceExpert support for the right solution

Samples availableGet the right part before you commit

UK & European sourcingAlternatives beyond the catalogue

Trade enquiries welcomeFrom one-off parts to ongoing supply

Read full product description

Available in sizes, M3, M4, M5, M6, M8, M10 and M12
Nylon 66 Natural & Black
UL94-V2
Temperature range -35°C to +85°C

Supplied in packs of 1000

FIND THE RIGHT COMPONENT

Available product options.

Search by size, dimensions or specification, select a matching product and add it to your quotation basket.

QUOTE ONLY · NO PAYMENT

Available options

Choose a matching part to review its specifications

14 options

Part number	Size / technical detail	Other specification
MNHN-M3-CN	MNHN-M3-CN	—
MNHN-M3-CN-B	MNHN-M3-CN-B	—
MNHN-M4-CN	MNHN-M4-CN	—
MNHN-M4-CN-B	MNHN-M4-CN-B	—
MNHN-M5-CN	MNHN-M5-CN	—
MNHN-M5-CN-B	MNHN-M5-CN-B	—
MNHN-M6-CN	MNHN-M6-CN	—
MNHN-M6-CN-B	MNHN-M6-CN-B	—
MNHN-M8-CN	MNHN-M8-CN	—
MNHN-M8-CN-B	MNHN-M8-CN-B	—
MNHN-M10-CN	MNHN-M10-CN	—
MNHN-M10-CN-B	MNHN-M10-CN-B	—
MNHN-M12-CN	MNHN-M12-CN	—
MNHN-M12-CN-B	MNHN-M12-CN-B	—

Select an option to view its full specifications and choose a quantity for your quote.

Your selected product

MNHN-M3-CN

Selected part number

Choose a part number and quantity to request a quotation. No online payment is taken.

How does requesting a quote work?

Find the size and product code you need from table below.
Enter product code and quantities required
Click Add To Quote
Repeat on any other product pages as needed.
Once done, submit your quote to our sales team who will be in touch within 1 hour.

Alternatively feel free to call us now on 01279 656189 for an immediate response!

View full details

01 · START HERE

Check the dimensions. Find your part number.

Use the full specification table below to identify the correct size and part number. Then return to Available product options above to select that exact part and request a quote.

Select your part & request a quote

Full technical specifications compare sizes & part numbers

Find your part in the table below, then select the matching option above to request a quote.

ALL SPECIFICATIONS VISIBLE

Check each column heading for the relevant measurements and product details. ↔ Swipe sideways to see every column.

TECHNICAL DETAILS

Product specifications.

Find part numbers and compare available options

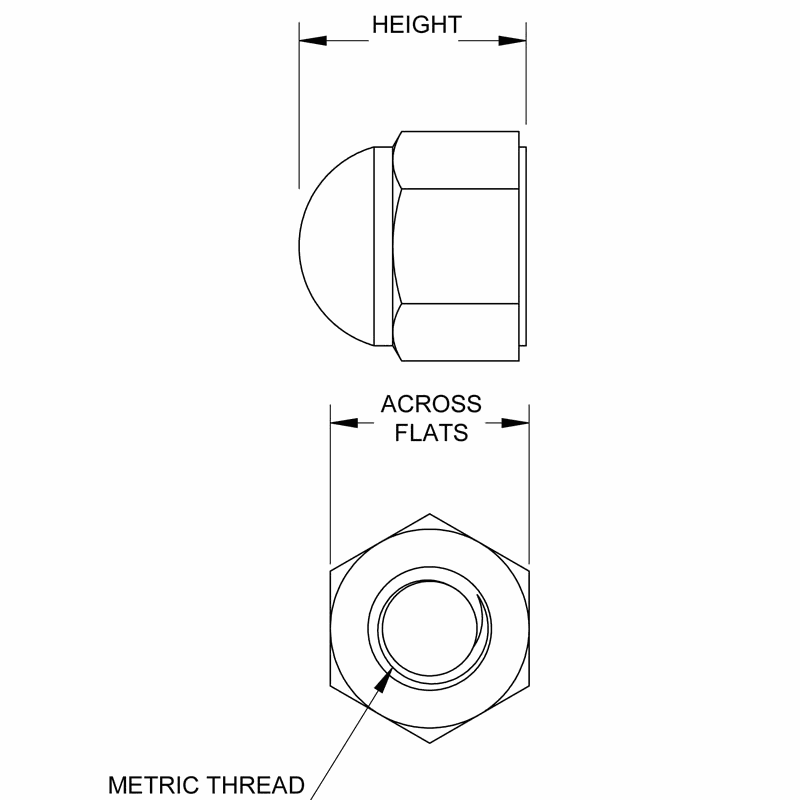

SKU	Colour	Thread Dia	Height	Width X Flats
MNHN-M3-CN	Natural	M3 -0.5	6.5mm	5.5mm
MNHN-M3-CN-B	Black	M3 -0.5	6.5mm	5.5mm
MNHN-M4-CN	Natural	M4 -0.7	7.7mm	6.9mm
MNHN-M4-CN-B	Black	M4 -0.7	7.7mm	6.9mm
MNHN-M5-CN	Natural	M5 -0.8	9.5mm	8.7mm
MNHN-M5-CN-B	Black	M5 -0.8	9.5mm	8.7mm
MNHN-M6-CN	Natural	M6 -1.0	10.3mm	9.9mm
MNHN-M6-CN-B	Black	M6 -1.0	10.3mm	9.9mm
MNHN-M8-CN	Natural	M8 -1.25	12.8mm	12.8mm
MNHN-M8-CN-B	Black	M8 -1.25	12.8mm	12.8mm
MNHN-M10-CN	Natural	M10 -1.5	17.4mm	16.7mm
MNHN-M10-CN-B	Black	M10 -1.5	17.4mm	16.7mm
MNHN-M12-CN	Natural	M12 -1.75	22.0mm	17.5mm
MNHN-M12-CN-B	Black	M12 -1.75	22.0mm	17.5mm

Found the correct part number? Select it from the available options above and add it to your quote list.

Choose this part in Available options
