MEDIUM DUTY HIGH TEMPERATURE PLATE MOUNTED CASTORS 150-200KG RATING

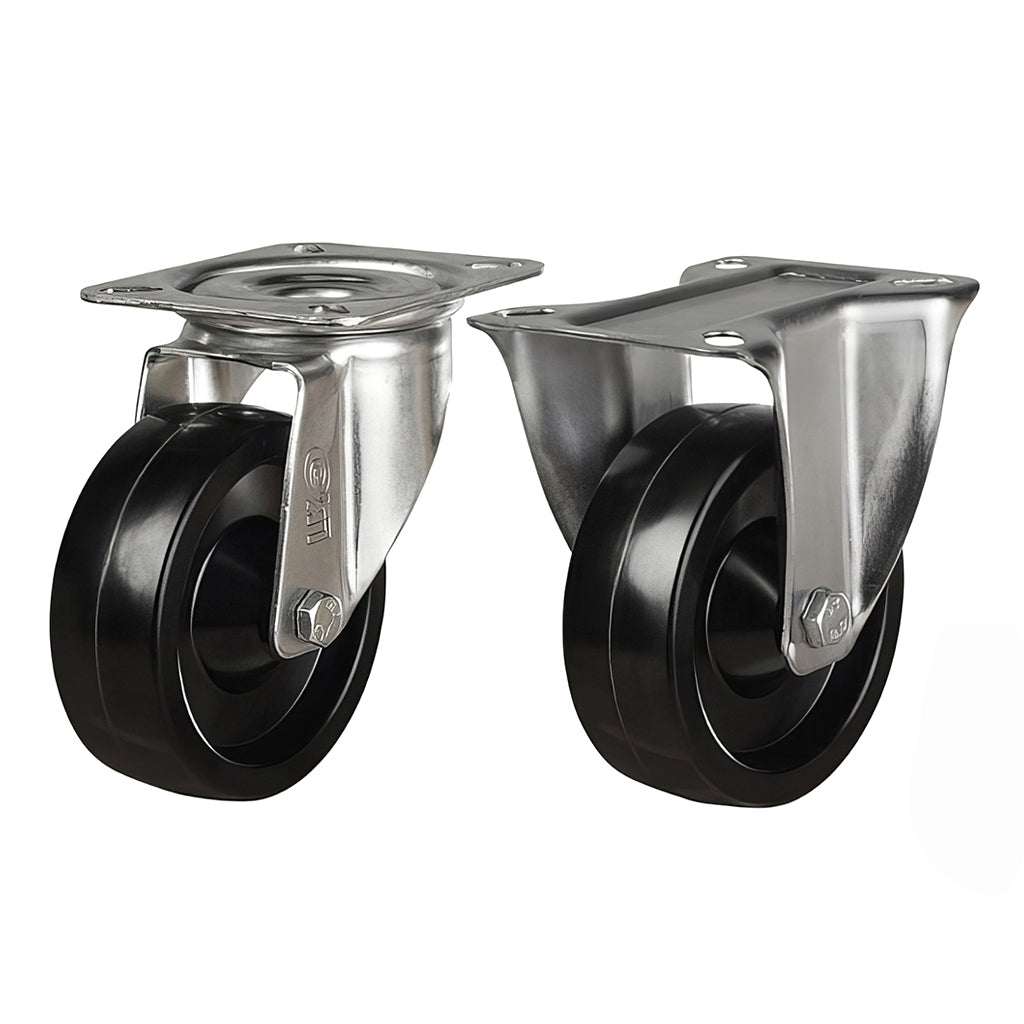

High Temperature swivel castor made from pressed steel housing fitted with a phenolic resin wheel with a working temperature up to 220c centigrade .

Find the right option
  • Medium duty high temperature swivel castor with phenolic resin wheel for up to 220°C applications
1 1

Technical guidanceExpert support for the right solution

Samples availableGet the right part before you commit

UK & European sourcingAlternatives beyond the catalogue

Trade enquiries welcomeFrom one-off parts to ongoing supply

Read full product description

High Temperature swivel castor made from pressed steel housing fitted with a phenolic resin wheel with a working temperature up to 220c centigrade .

These swivel castors are well suited to bakery ovens , autoclaves , paint booths and many food cooking applications.

Care must be taken when selecting as 220c centigrade is a guide only based on a typical time cycle and application.

We use only the high quality high temperature grease and special high temperature head seal to help protect the ball bearings and bearings raceways.

Our LV swivel castor assembly is a high Temperature swivel castor assembly and must not be compared or confused with others castors who simply use standard bearing seals and greases which DO NOT WORK CORRECTLY.

  • Zinc-Plated Finish
  • Slotted Hole Centres
  • Unique Swivel Head Design
  • Phenolic Resin Wheel
  • Hi-Temperature 220-280°C
  • Suited to Cooking Applications
  • Low Rolling Resistance
  • 90° shore D
  • Plain Bearing Wheel
  • Heat Resistance - Continuous - 40°C - + 220°C
  • Heat Resistance - Intermittent - 40°C - + 250°C
FIND THE RIGHT COMPONENT

Available product options.

Search by size, dimensions or specification, select a matching product and add it to your quotation basket.

QUOTE ONLY · NO PAYMENT

Available options

Choose a matching part to review its specifications

4 options
Part numberSize / technical detailOther specificationAction
C100/LV4HT220 Swivel / 100mm / 38 | 128mm | 105 x 85 | 80 x 60 | 150KG —
C100/LV8HT220 Fixed / 100mm / 38 | 128mm | 105 x 85 | 80 x 60 | 150KG —
C100/LV4HT280 Swivel / 100mm / 38 | 128mm | 105 x 85 | 80 x 60 | 200KG —
C100/LV8HT280 Fixed / 100mm / 38 | 128mm | 105 x 85 | 80 x 60 | 200KG —

Select an option to view its full specifications and choose a quantity for your quote.

Your selected product

MEDIUM DUTY HIGH TEMPERATURE PLATE MOUNTED CASTORS 150-200KG RATING
C100/LV4HT220

Choose a part number and quantity to request a quotation. No online payment is taken.

How does requesting a quote work?
  1. Find the size and product code you need from table below.
  2. Enter product code and quantities required
  3. Click Add To Quote
  4. Repeat on any other product pages as needed.
  5. Once done, submit your quote to our sales team who will be in touch within 1 hour.

Alternatively feel free to call us now on 01279 656189 for an immediate response!

View full details
01 · START HERE

Check the dimensions. Find your part number.

Use the full specification table below to identify the correct size and part number. Then return to Available product options above to select that exact part and request a quote.

Select your part & request a quote

Full technical specifications compare sizes & part numbers

Find your part in the table below, then select the matching option above to request a quote.

ALL SPECIFICATIONS VISIBLE

Check each column heading for the relevant measurements and product details. ↔ Swipe sideways to see every column.

TECHNICAL DETAILS

Product specifications.

Find part numbers and compare available options
SKU Type Wheel Dia Tread Width Overall Height (mm) Plate Size Hole Spacing Weight Loading
C100/LV4HT220 Swivel 100mm 38 128mm 105 x 85 80 x 60 150KG
C100/LV8HT220 Fixed 100mm 38 128mm 105 x 85 80 x 60 150KG
C100/LV4HT280 Swivel 100mm 38 128mm 105 x 85 80 x 60 200KG
C100/LV8HT280 Fixed 100mm 38 128mm 105 x 85 80 x 60 200KG

Found the correct part number? Select it from the available options above and add it to your quote list.
