Castors wheels

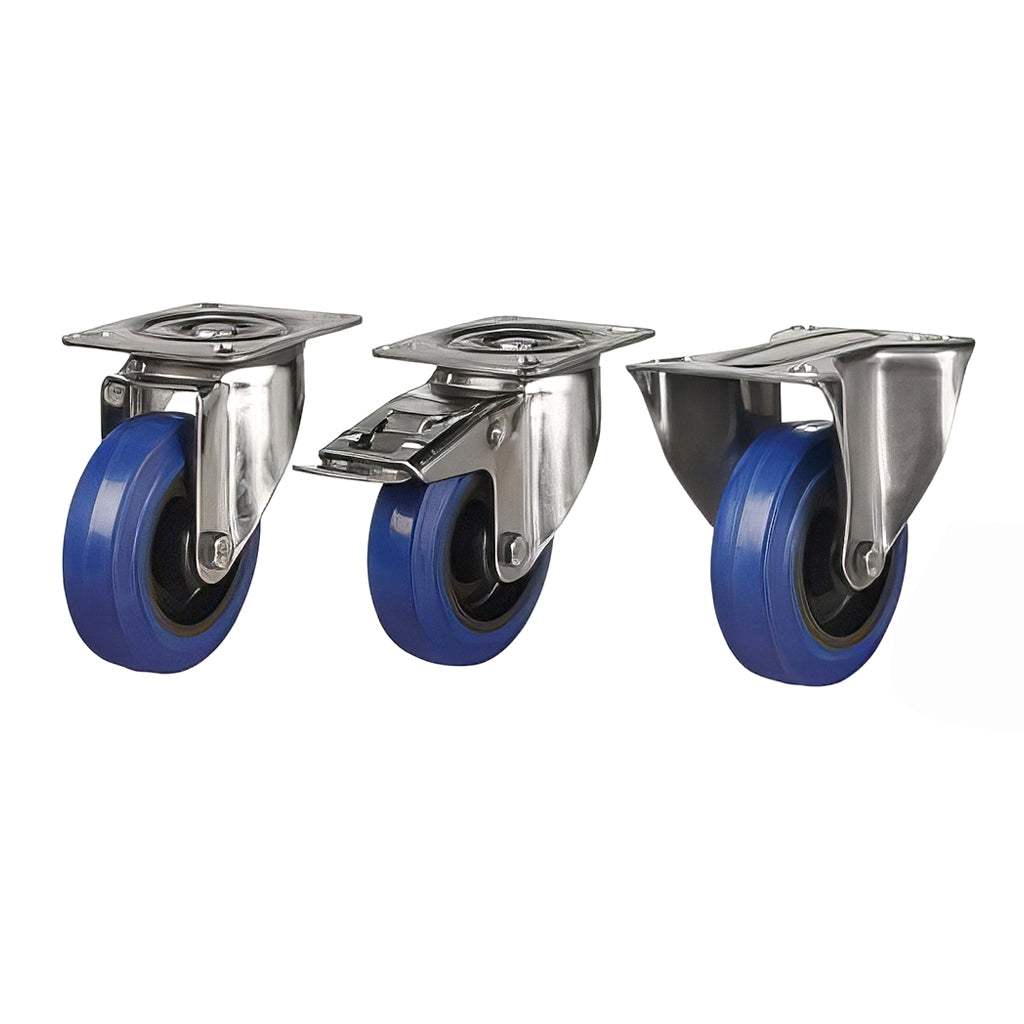

MEDIUM DUTY PLATE MOUNTED STAINLESS STEEL CASTORS C/W BLUE ELASTIC TYRE 150-350KG LOAD RATING

Swivel castors with a Pressed stainless steel castor bracket, fitted with a blue synthetic Non-Marking Rubber wheel. These swivel casters range from 80mm-200mm and have a capacity up to 350Kg per caster.

Find the right option
  • Medium duty plate mounted stainless steel swivel castor with blue non-marking elastic tyre and 150-350kg load rating
1 1

Technical guidanceExpert support for the right solution

Samples availableGet the right part before you commit

UK & European sourcingAlternatives beyond the catalogue

Trade enquiries welcomeFrom one-off parts to ongoing supply

Read full product description

Swivel castors with a Pressed stainless steel castor bracket, fitted with a blue synthetic Non-Marking Rubber wheel.
These swivel casters range from 80mm-200mm and have a capacity up to 350Kg per caster.

Blue non-marking thermoplastic rubber, smooth and quiet running with floor protection from damage.
They are bonded to plastic or nylon centres and are used a lot for medical castors and furniture castors.

  • Chromium-Nickel Stainless Steel
  • Corrosion Resistant
  • Slotted Hole Centre
  • High Quality Elastic Rubber Wheel
  • Wheel Hardness 65° shore A
  • Low Noise Operation
  • Nut and Bolt Axle
  • Roller Bearing Wheel Centre
  • - 25°C - + 80°C
FIND THE RIGHT COMPONENT

Available product options.

Search by size, dimensions or specification, select a matching product and add it to your quotation basket.

QUOTE ONLY · NO PAYMENT

Available options

Choose a matching part to review its specifications

15 options
Part numberSize / technical detailOther specificationAction
C080/SSDR4BNB Swivel / 80mm / 34 | 105 x 85 | 80x60 (9) | Roller Bearing | 106mm | 150KG —
C080/SSDR4BNBSWB Swivel braked / 80mm / 34 | 105 x 85 | 80x60 (9) | Roller Bearing | 106mm | 150KG —
C080/SSDR8BNB Fixed / 80mm / 34 | 105 x 85 | 80x60 (9) | Roller Bearing | 106mm | 150KG —
C100/SSDR4BNB Swivel / 100mm / 34 | 105 x 85 | 80x60 (9) | Roller Bearing | 128mm | 180KG —
C100/SSDR4BNBSWB Swivel braked / 100mm / 34 | 105 x 85 | 80x60 (9) | Roller Bearing | 128mm | 180KG —
C100/SSDR8BNB Fixed / 100mm / 34 | 105 x 85 | 80x60 (9) | Roller Bearing | 128mm | 180KG —
C125/SSDR4BNB Swivel / 125mm / 36 | 105 x 85 | 80x60 (9) | Roller Bearing | 152mm | 250KG —
C125/SSDR4BNBSWB Swivel braked / 125mm / 36 | 105 x 85 | 80x60 (9) | Roller Bearing | 152mm | 250KG —
C125/SSDR8BNB Fixed / 125mm / 36 | 105 x 85 | 80x60 (9) | Roller Bearing | 152mm | 250KG —
C160/SSDR4BNB Swivel / 160mm / 45 | 135 x 105 | 105x80 (11) | Roller Bearing | 195mm | 350KG —
C160/SSDR4BNBSWB Swivel braked / 160mm / 45 | 135 x 105 | 105x80 (11) | Roller Bearing | 195mm | 350KG —
C160/SSDR8BNB Fixed / 160mm / 45 | 135 x 105 | 105x80 (11) | Roller Bearing | 195mm | 350KG —
C200/SSDR4BNB Swivel / 200mm / 45 | 135 x 105 | 105x80 (11) | Roller Bearing | 237mm | 350KG —
C200/SSDR4BNBSWB Swivel braked / 200mm / 45 | 135 x 105 | 105x80 (11) | Roller Bearing | 237mm | 350KG —
C200/SSDR8BNB Fixed / 200mm / 45 | 135 x 105 | 105x80 (11) | Roller Bearing | 237mm | 350KG —

Select an option to view its full specifications and choose a quantity for your quote.

Your selected product

MEDIUM DUTY PLATE MOUNTED STAINLESS STEEL CASTORS C/W BLUE ELASTIC TYRE 150-350KG LOAD RATING
C080/SSDR4BNB

Choose a part number and quantity to request a quotation. No online payment is taken.

How does requesting a quote work?
  1. Find the size and product code you need from table below.
  2. Enter product code and quantities required
  3. Click Add To Quote
  4. Repeat on any other product pages as needed.
  5. Once done, submit your quote to our sales team who will be in touch within 1 hour.

Alternatively feel free to call us now on 01279 656189 for an immediate response!

View full details
01 · START HERE

Check the dimensions. Find your part number.

Use the full specification table below to identify the correct size and part number. Then return to Available product options above to select that exact part and request a quote.

Select your part & request a quote

Full technical specifications compare sizes & part numbers

Find your part in the table below, then select the matching option above to request a quote.

ALL SPECIFICATIONS VISIBLE

Check each column heading for the relevant measurements and product details. ↔ Swipe sideways to see every column.

TECHNICAL DETAILS

Product specifications.

Find part numbers and compare available options
SKU Type Wheel Diameter Tread Width Plate Size Bolthole Spacing Bearing Type Overall Height Weight Loading
C080/SSDR4BNB Swivel 80mm 34 105 x 85 80x60 (9) Roller Bearing 106mm 150KG
C080/SSDR4BNBSWB Swivel braked 80mm 34 105 x 85 80x60 (9) Roller Bearing 106mm 150KG
C080/SSDR8BNB Fixed 80mm 34 105 x 85 80x60 (9) Roller Bearing 106mm 150KG
C100/SSDR4BNB Swivel 100mm 34 105 x 85 80x60 (9) Roller Bearing 128mm 180KG
C100/SSDR4BNBSWB Swivel braked 100mm 34 105 x 85 80x60 (9) Roller Bearing 128mm 180KG
C100/SSDR8BNB Fixed 100mm 34 105 x 85 80x60 (9) Roller Bearing 128mm 180KG
C125/SSDR4BNB Swivel 125mm 36 105 x 85 80x60 (9) Roller Bearing 152mm 250KG
C125/SSDR4BNBSWB Swivel braked 125mm 36 105 x 85 80x60 (9) Roller Bearing 152mm 250KG
C125/SSDR8BNB Fixed 125mm 36 105 x 85 80x60 (9) Roller Bearing 152mm 250KG
C160/SSDR4BNB Swivel 160mm 45 135 x 105 105x80 (11) Roller Bearing 195mm 350KG
C160/SSDR4BNBSWB Swivel braked 160mm 45 135 x 105 105x80 (11) Roller Bearing 195mm 350KG
C160/SSDR8BNB Fixed 160mm 45 135 x 105 105x80 (11) Roller Bearing 195mm 350KG
C200/SSDR4BNB Swivel 200mm 45 135 x 105 105x80 (11) Roller Bearing 237mm 350KG
C200/SSDR4BNBSWB Swivel braked 200mm 45 135 x 105 105x80 (11) Roller Bearing 237mm 350KG
C200/SSDR8BNB Fixed 200mm 45 135 x 105 105x80 (11) Roller Bearing 237mm 350KG

Found the correct part number? Select it from the available options above and add it to your quote list.
