MEDIUM DUTY NYLON SINGLE BOLT HOLE STAINLESS STEEL CASTORS 40-80KG LOAD RATING

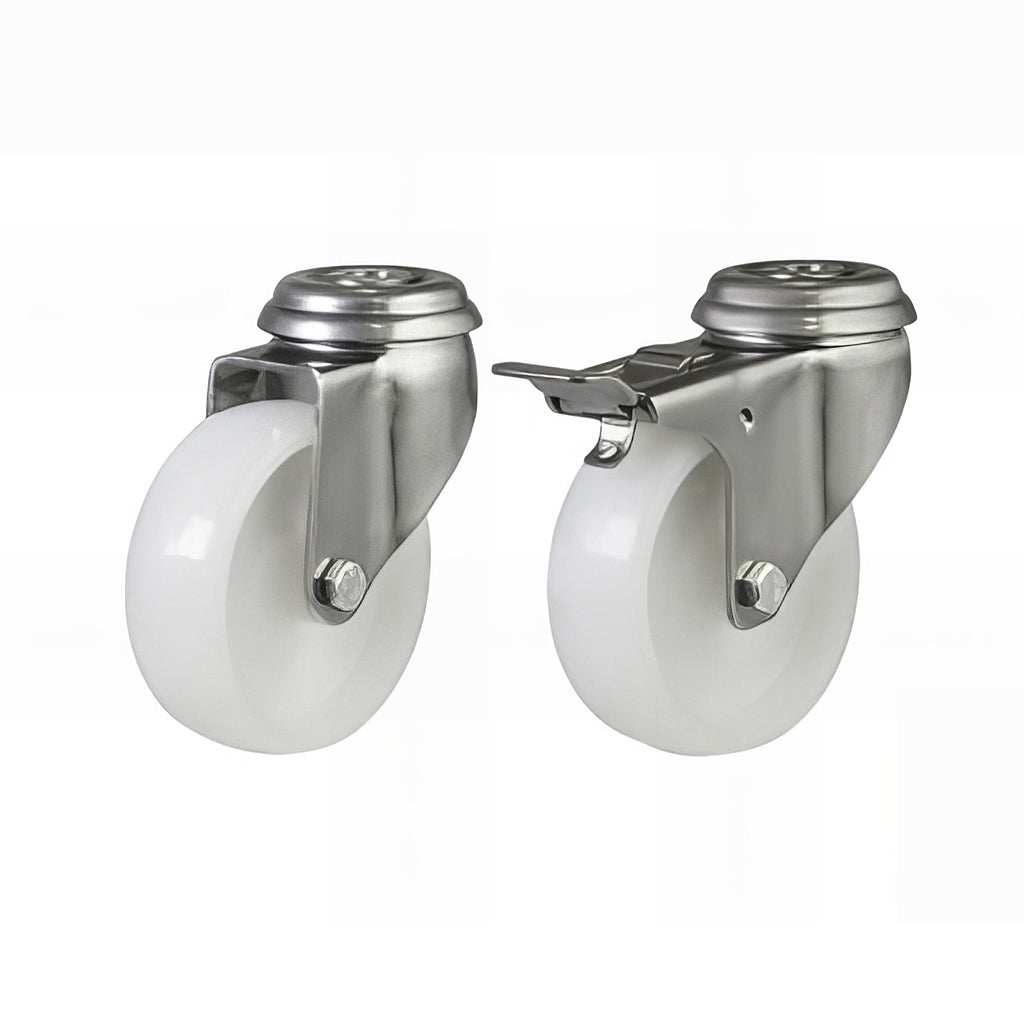

Bolt Hole castors with a Stainless Steel castor bracket, fitted with a Nylon wheel.

Find the right option
  • Medium duty nylon single bolt hole stainless steel castor with 40-80kg load capacity and non-marking wheel
1 1

Technical guidanceExpert support for the right solution

Samples availableGet the right part before you commit

UK & European sourcingAlternatives beyond the catalogue

Trade enquiries welcomeFrom one-off parts to ongoing supply

Read full product description

Bolt Hole castors with a Stainless Steel castor bracket, fitted with a Nylon wheel.

These Bolt Hole castors range from 50mm-75mm and have a capacity up to 80 Kg per castor.

Solid Nylon Wheels are most often white although alternative colours are available, less friendly to floors but do offer incredible load capacity compared to many wheel materials.

They are light in weight and very hard wearing and priced competitively.

  • Chromium-Nickel Stainless Steel
  • Single Hole Fixing
  • Impact Resistant Nylon
  • Black or White Nylon Wheel
  • Low Rolling Resistance
  • 70° shore D Non Marking
  • Nut and Bolt Axle
  • Non Marking
  • Plain Bearing Wheel
  • 20°C - + 80°C
FIND THE RIGHT COMPONENT

Available product options.

Search by size, dimensions or specification, select a matching product and add it to your quotation basket.

QUOTE ONLY · NO PAYMENT

Available options

Choose a matching part to review its specifications

4 options
Part numberSize / technical detailOther specificationAction
C050/SSDRLBH10NY Swivel / 50mm / 20mm | 10.5mm | Plain | 71mm | 40KG —
C050/SSDRLBH10NYSWB Swivel braked / 50mm / 20mm | 10.5mm | Plain | 71mm | 40KG —
C075/SSDRLBH10NY Swivel / 75mm / 25mm | 10.5mm | Plain | 95mm | 80KG —
C075/SSDRLBH10NYSWB Swivel braked / 75mm / 25mm | 10.5mm | Plain | 95mm | 80KG —

Select an option to view its full specifications and choose a quantity for your quote.

Your selected product

MEDIUM DUTY NYLON SINGLE BOLT HOLE STAINLESS STEEL CASTORS 40-80KG LOAD RATING
C050/SSDRLBH10NY

Choose a part number and quantity to request a quotation. No online payment is taken.

How does requesting a quote work?
  1. Find the size and product code you need from table below.
  2. Enter product code and quantities required
  3. Click Add To Quote
  4. Repeat on any other product pages as needed.
  5. Once done, submit your quote to our sales team who will be in touch within 1 hour.

Alternatively feel free to call us now on 01279 656189 for an immediate response!

View full details
01 · START HERE

Check the dimensions. Find your part number.

Use the full specification table below to identify the correct size and part number. Then return to Available product options above to select that exact part and request a quote.

Select your part & request a quote

Full technical specifications compare sizes & part numbers

Find your part in the table below, then select the matching option above to request a quote.

ALL SPECIFICATIONS VISIBLE

Check each column heading for the relevant measurements and product details. ↔ Swipe sideways to see every column.

TECHNICAL DETAILS

Product specifications.

Find part numbers and compare available options
SKU Type Wheel Diameter Tread Width Bolthole Bearing Type Overall Height Weight Loading
C050/SSDRLBH10NY Swivel 50mm 20mm 10.5mm Plain 71mm 40KG
C050/SSDRLBH10NYSWB Swivel braked 50mm 20mm 10.5mm Plain 71mm 40KG
C075/SSDRLBH10NY Swivel 75mm 25mm 10.5mm Plain 95mm 80KG
C075/SSDRLBH10NYSWB Swivel braked 75mm 25mm 10.5mm Plain 95mm 80KG
