Castors wheels
MEDIUM DUTY NYLON PLATE MOUNTED STAINLESS STEEL CASTORS 40-80KG LOAD RATING

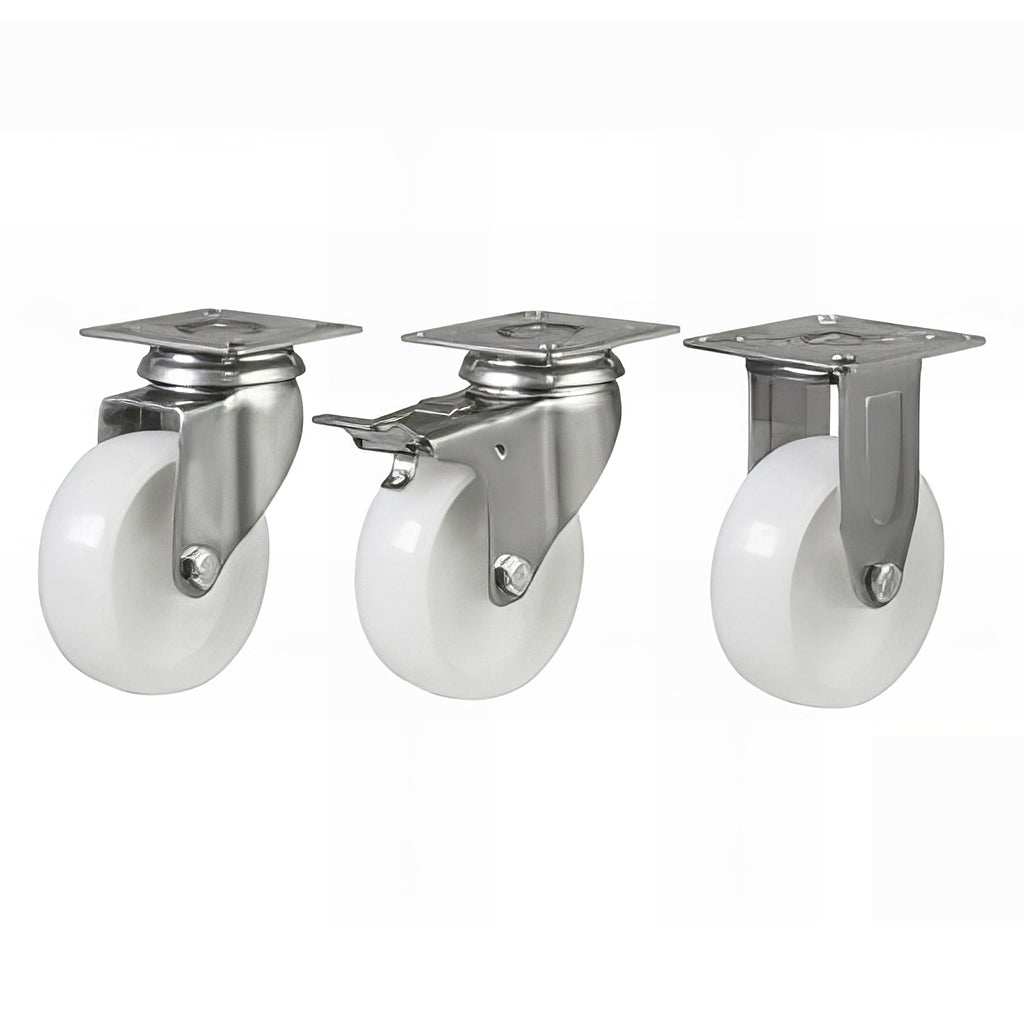

Swivel Braked castors with a Stainless Steel castor bracket, fitted with a Nylon wheel.
Find the right option
Technical guidanceExpert support for the right solution
Samples availableGet the right part before you commit
UK & European sourcingAlternatives beyond the catalogue
Trade enquiries welcomeFrom one-off parts to ongoing supply
Read full product description
Swivel Braked castors with a Stainless Steel castor bracket, fitted with a Nylon wheel.
These plate mounted castors range from 50mm-75mm and have a capacity up to 80 Kg per castor.
Solid Nylon Wheels are most often white although alternative colours are available, less friendly to floors but do offer incredible load capacity compared to many wheel materials.
They are light in weight and very hard wearing and priced competitively.
- Chromium-Nickel Stainless Steel
- Slotted Hole Centre
- Total Stop Brake
- Impact Resistant Nylon
- Black or White Nylon Wheel
- Low Rolling Resistance
- 70° shore D Non Marking
- Nut and Bolt Axle
- Non Marking
- Plain Bearing Wheel
- - 20°C - + 80°C
Available product options.
Search by size, dimensions or specification, select a matching product and add it to your quotation basket.
Your selected product
How does requesting a quote work?
- Find the size and product code you need from table below.
- Enter product code and quantities required
- Click Add To Quote
- Repeat on any other product pages as needed.
- Once done, submit your quote to our sales team who will be in touch within 1 hour.
Alternatively feel free to call us now on 01279 656189 for an immediate response!
Check the dimensions. Find your part number.
Use the full specification table below to identify the correct size and part number. Then return to Available product options above to select that exact part and request a quote.
Full technical specifications compare sizes & part numbers
Find your part in the table below, then select the matching option above to request a quote.
Check each column heading for the relevant measurements and product details. ↔ Swipe sideways to see every column.
Product specifications.
| SKU | Type | Wheel Diameter | Tread Width | Plate Size | Bolthole Spacing | Bearing Type | Overall Height | Weight Loading |
|---|---|---|---|---|---|---|---|---|
| C050/SSDRL4NY | Swivel | 50mm | 20mm | 50x50 | 35x35 | Plain | 73mm | 40KG |
| C050/SSDRL4NYSWB | Swivel braked | 50mm | 20mm | 50x50 | 35x35 | Plain | 73mm | 40KG |
| C050/SSDRL8NY | Fixed | 50mm | 20mm | 50x50 | 35x35 | Plain | 73mm | 40KG |
| C075/SSDRL4NY | Swivel | 75mm | 25mm | 60x60 | 43x43 | Plain | 100mm | 80KG |
| C075/SSDRL4NYSWB | Swivel braked | 75mm | 25mm | 60x60 | 43x43 | Plain | 100mm | 80KG |
| C075/SSDRL8NY | Fixed | 75mm | 25mm | 60x60 | 43x43 | Plain | 100mm | 80KG |
Found the correct part number? Select it from the available options above and add it to your quote list.
