MEDIUM DUTY PLATE MOUNTED STAINLESS STEEL CASTORS C/W GREY TYRE 40-100KG LOAD RATING

Swivel braked castors with a stainless steel castor bracket, fitted with a Synthetic Non-Marking Rubber wheel. These braked casters range from 50mm-125mm and have a capacity up to 100 Kg per caster. Grey non-marking thermoplastic rubber, TPR, Tyres offer quiet running and protect floors from damage....

Find the right option

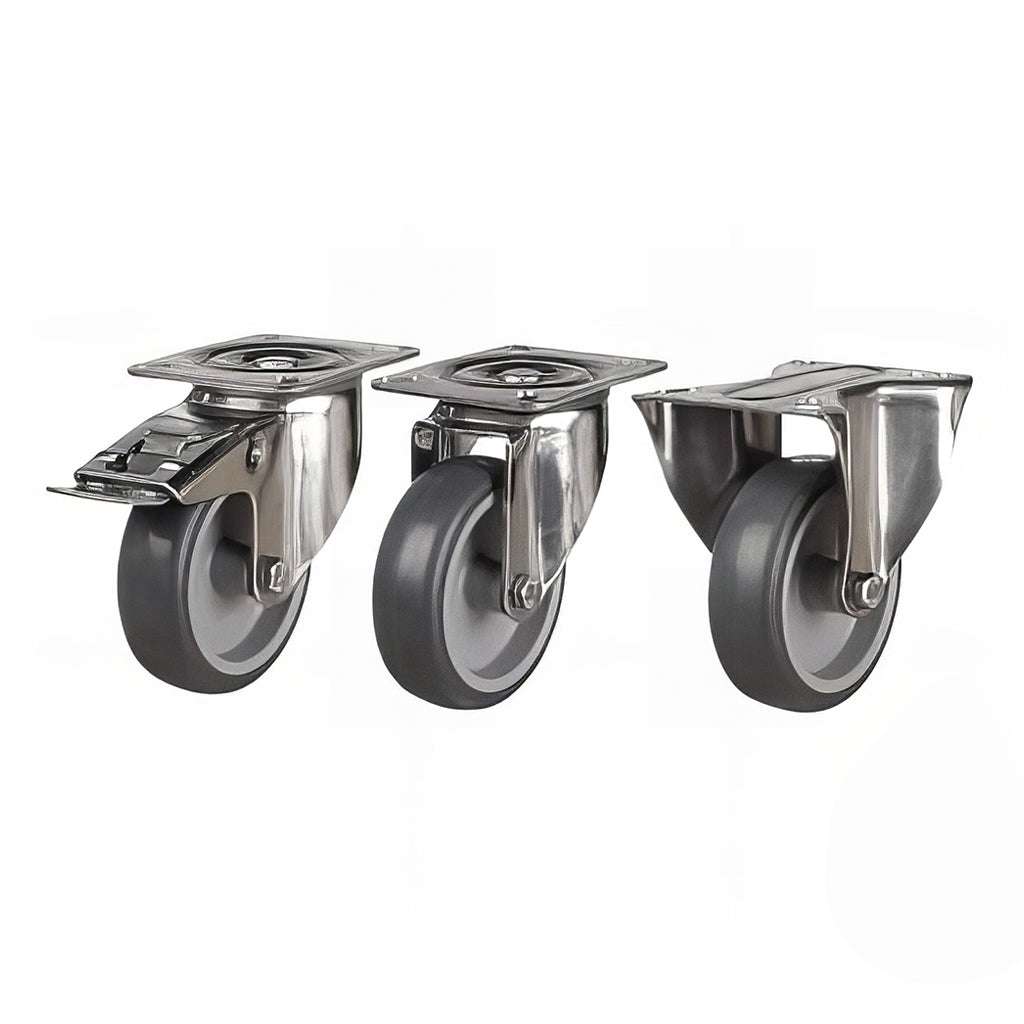

  • Medium duty plate mounted stainless steel swivel braked castor with grey non-marking rubber tyre for 40-100kg load
1 1

Technical guidanceExpert support for the right solution

Samples availableGet the right part before you commit

UK & European sourcingAlternatives beyond the catalogue

Trade enquiries welcomeFrom one-off parts to ongoing supply

Read full product description

Swivel braked castors with a stainless steel castor bracket, fitted with a Synthetic Non-Marking Rubber wheel.
These braked casters range from 50mm-125mm and have a capacity up to 100 Kg per caster.
Grey non-marking thermoplastic rubber, TPR, Tyres offer quiet running and protect floors from damage.
They are bonded to plastic or nylon centres and are used a lot for medical castors and furniture castors.

  • Chromium-Nickel Stainless Steel
  • Corrosion Resistant
  • Slotted Hole Centres
  • Wheel Synthetic Rubber-Elastomer (TPE)
  • 85° shore A Non Marking
  • Plain Bearing Wheel
  • - 20°C - + 60°C
FIND THE RIGHT COMPONENT

Available product options.

Search by size, dimensions or specification, select a matching product and add it to your quotation basket.

QUOTE ONLY · NO PAYMENT

Available options

Choose a matching part to review its specifications

15 options
Part numberSize / technical detailOther specificationAction
C050/SSDRL4TPR Swivel / 50mm / 20mm | 60x60 | 43x43 | Plain | 70mm | 40KG —
C050/SSDRL4TPRSWB Swivel braked / 50mm / 20mm | 60x60 | 43x43 | Plain | 70mm | 40KG —
C050/SSDRL8TPR Fixed / 50mm / 20mm | 60x60 | 43x43 | Plain | 70mm | 40KG —
C075/SSDRL4TPR Swivel / 75mm / 23mm | 60x60 | 43x43 | Plain | 100mm | 50KG —
C075/SSDRL4TPRSWB Swivel braked / 75mm / 23mm | 60x60 | 43x43 | Plain | 100mm | 50KG —
C075/SSDRL8TPR Fixed / 75mm / 23mm | 60x60 | 43x43 | Plain | 100mm | 50KG —
C080/SSDR4TPR Swivel / 80mm / 32mm | 105 x 85 | 80x60 (8) | Plain | 106mm | 60KG —
C080/SSDR4TPRSWB Swivel braked / 80mm / 32mm | 105 x 85 | 80x60 (8) | Plain | 106mm | 60KG —
C080/SSDR8TPR Fixed / 80mm / 32mm | 105 x 85 | 80x60 (8) | Plain | 106mm | 60KG —
C100/SSDR4TPR Swivel / 100mm / 32mm | 105 x 85 | 80x60 (8) | Plain | 128mm | 80KG —
C100/SSDR4TPRSWB Swivel braked / 100mm / 32mm | 105 x 85 | 80x60 (8) | Plain | 128mm | 80KG —
C100/SSDR8TPR Fixed / 100mm / 32mm | 105 x 85 | 80x60 (8) | Plain | 128mm | 80KG —
C125/SSDR4TPR Swivel / 125mm / 32mm | 105 x 85 | 80x60 (8) | Plain | 152mm | 100KG —
C125/SSDR4TPRSWB Swivel braked / 125mm / 32mm | 105 x 85 | 80x60 (8) | Plain | 152mm | 100KG —
C125/SSDR8TPR Fixed / 125mm / 32mm | 105 x 85 | 80x60 (8) | Plain | 152mm | 100KG —

Select an option to view its full specifications and choose a quantity for your quote.

Your selected product

MEDIUM DUTY PLATE MOUNTED STAINLESS STEEL CASTORS C/W GREY TYRE 40-100KG LOAD RATING
C050/SSDRL4TPR

Choose a part number and quantity to request a quotation. No online payment is taken.

How does requesting a quote work?
  1. Find the size and product code you need from table below.
  2. Enter product code and quantities required
  3. Click Add To Quote
  4. Repeat on any other product pages as needed.
  5. Once done, submit your quote to our sales team who will be in touch within 1 hour.

Alternatively feel free to call us now on 01279 656189 for an immediate response!

View full details
01 · START HERE

Check the dimensions. Find your part number.

Use the full specification table below to identify the correct size and part number. Then return to Available product options above to select that exact part and request a quote.

Select your part & request a quote

Full technical specifications compare sizes & part numbers

Find your part in the table below, then select the matching option above to request a quote.

ALL SPECIFICATIONS VISIBLE

Check each column heading for the relevant measurements and product details. ↔ Swipe sideways to see every column.

TECHNICAL DETAILS

Product specifications.

Find part numbers and compare available options
SKU Type Wheel Diameter Tread Width Plate Size Bolthole Spacing Bearing Type Overall Height Weight Loading
C050/SSDRL4TPR Swivel 50mm 20mm 60x60 43x43 Plain 70mm 40KG
C050/SSDRL4TPRSWB Swivel braked 50mm 20mm 60x60 43x43 Plain 70mm 40KG
C050/SSDRL8TPR Fixed 50mm 20mm 60x60 43x43 Plain 70mm 40KG
C075/SSDRL4TPR Swivel 75mm 23mm 60x60 43x43 Plain 100mm 50KG
C075/SSDRL4TPRSWB Swivel braked 75mm 23mm 60x60 43x43 Plain 100mm 50KG
C075/SSDRL8TPR Fixed 75mm 23mm 60x60 43x43 Plain 100mm 50KG
C080/SSDR4TPR Swivel 80mm 32mm 105 x 85 80x60 (8) Plain 106mm 60KG
C080/SSDR4TPRSWB Swivel braked 80mm 32mm 105 x 85 80x60 (8) Plain 106mm 60KG
C080/SSDR8TPR Fixed 80mm 32mm 105 x 85 80x60 (8) Plain 106mm 60KG
C100/SSDR4TPR Swivel 100mm 32mm 105 x 85 80x60 (8) Plain 128mm 80KG
C100/SSDR4TPRSWB Swivel braked 100mm 32mm 105 x 85 80x60 (8) Plain 128mm 80KG
C100/SSDR8TPR Fixed 100mm 32mm 105 x 85 80x60 (8) Plain 128mm 80KG
C125/SSDR4TPR Swivel 125mm 32mm 105 x 85 80x60 (8) Plain 152mm 100KG
C125/SSDR4TPRSWB Swivel braked 125mm 32mm 105 x 85 80x60 (8) Plain 152mm 100KG
C125/SSDR8TPR Fixed 125mm 32mm 105 x 85 80x60 (8) Plain 152mm 100KG

Found the correct part number? Select it from the available options above and add it to your quote list.

Choose this part in Available options
