MEDIUM DUTY SINGLE BOLT HOLE CASTORS C/W -PLASTIC CENTRE - RED POLYURTHANE TYRE 200-260KG RATING

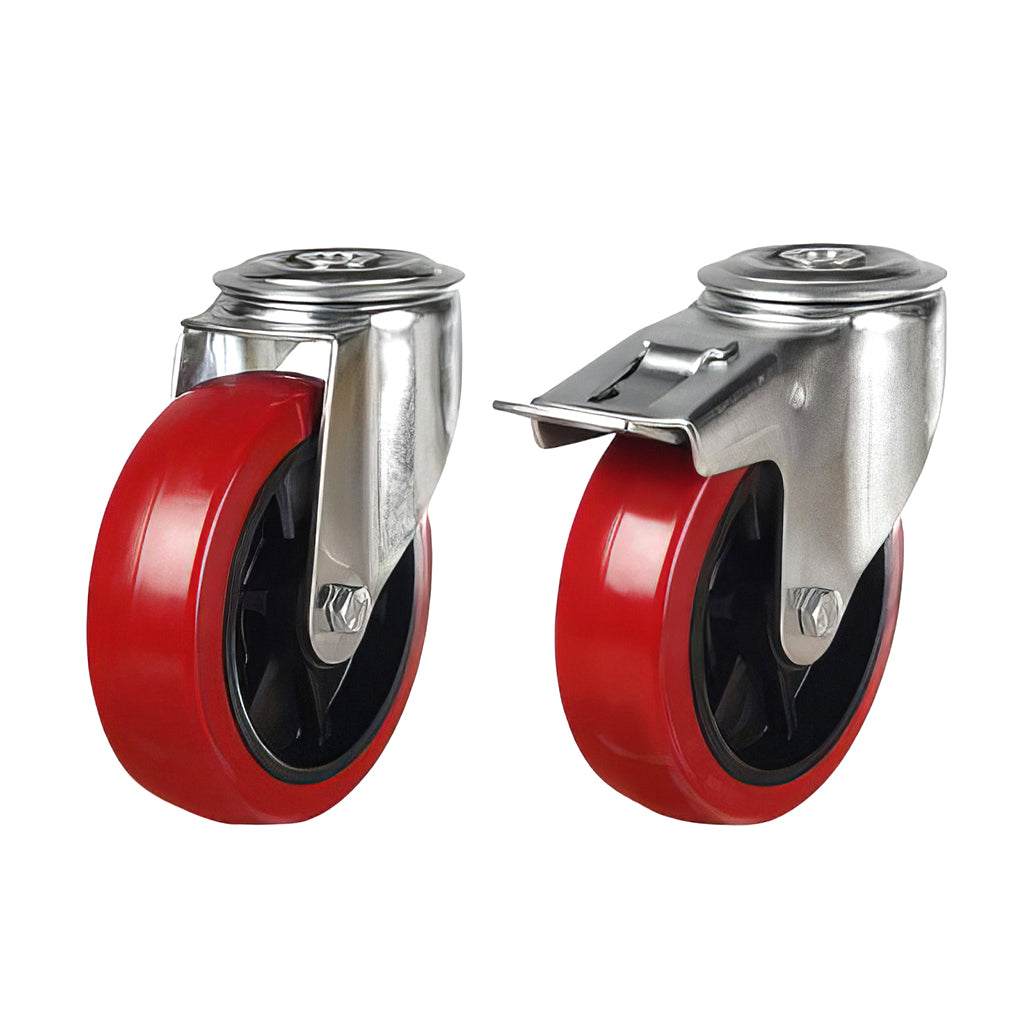

Bolt hole castor made from pressed steel fitted with a thermoplastic polyurethane wheel which also has roller bearings which greatly improve rolling resistance .
Find the right option
Technical guidanceExpert support for the right solution
Samples availableGet the right part before you commit
UK & European sourcingAlternatives beyond the catalogue
Trade enquiries welcomeFrom one-off parts to ongoing supply
Read full product description
Bolt hole castor made from pressed steel fitted with a thermoplastic polyurethane wheel which also has roller bearings which greatly improve rolling resistance .
These bolt hole casters range from 100mm-125mm and have a capacity up to 260 Kg per caster.
polyurethane sometime known as poly nylon wheels and castors offer high load capacity compared to many wheel materials.
They are light in weight and very hard wearing and good value for money.
They help reduce the likelihood of floor damage which which can happen. We would recommend polyurethane tyred castors and wheels when cost is a concern and a smooth floor is likely, By using a polyurethane tyred wheel you reduce the likelihood of floor damaged which is often to the case when using stand white nylon or Polypropylene as a wheel material.
- Zinc-Plated Finish
- Single Hole Fixing
- Injection Polyurethane
- Non-Marking
- Low Rolling Resistance
- 60+/- shore D Non Marking
- Nut and Bolt Axle
- Roller Bearing Wheel Centre
- - 20°C - + 60°C
Available product options.
Search by size, dimensions or specification, select a matching product and add it to your quotation basket.
Your selected product
How does requesting a quote work?
- Find the size and product code you need from table below.
- Enter product code and quantities required
- Click Add To Quote
- Repeat on any other product pages as needed.
- Once done, submit your quote to our sales team who will be in touch within 1 hour.
Alternatively feel free to call us now on 01279 656189 for an immediate response!
Check the dimensions. Find your part number.
Use the full specification table below to identify the correct size and part number. Then return to Available product options above to select that exact part and request a quote.
Full technical specifications compare sizes & part numbers
Find your part in the table below, then select the matching option above to request a quote.
Check each column heading for the relevant measurements and product details. ↔ Swipe sideways to see every column.
Product specifications.
| SKU | Type | Wheel Dia | Tread Width | Overall Height (mm) | Bolt Hole Size | Weight Loading |
|---|---|---|---|---|---|---|
| C100/DRBH12PNRB | Swivel | 100mm | 34 | 128mm | 12.2mm | 200KG |
| C100/DRBH12PNRBSWB | Swivel braked | 100mm | 34 | 128mm | 12.2mm | 200KG |
| C125/DRBH12PNRB | Swivel | 125mm | 40 | 152mm | 12.2mm | 260KG |
| C125/DRBH12PNRBSWB | Swivel braked | 125mm | 40 | 152mm | 12.2mm | 260KG |
Found the correct part number? Select it from the available options above and add it to your quote list.
Choose this part in Available optionsChallenge Indifit.
Send us a part number, drawing or specification and our team will help you find the right solution. More than a supplier — an extension of your team.
