Castors wheels

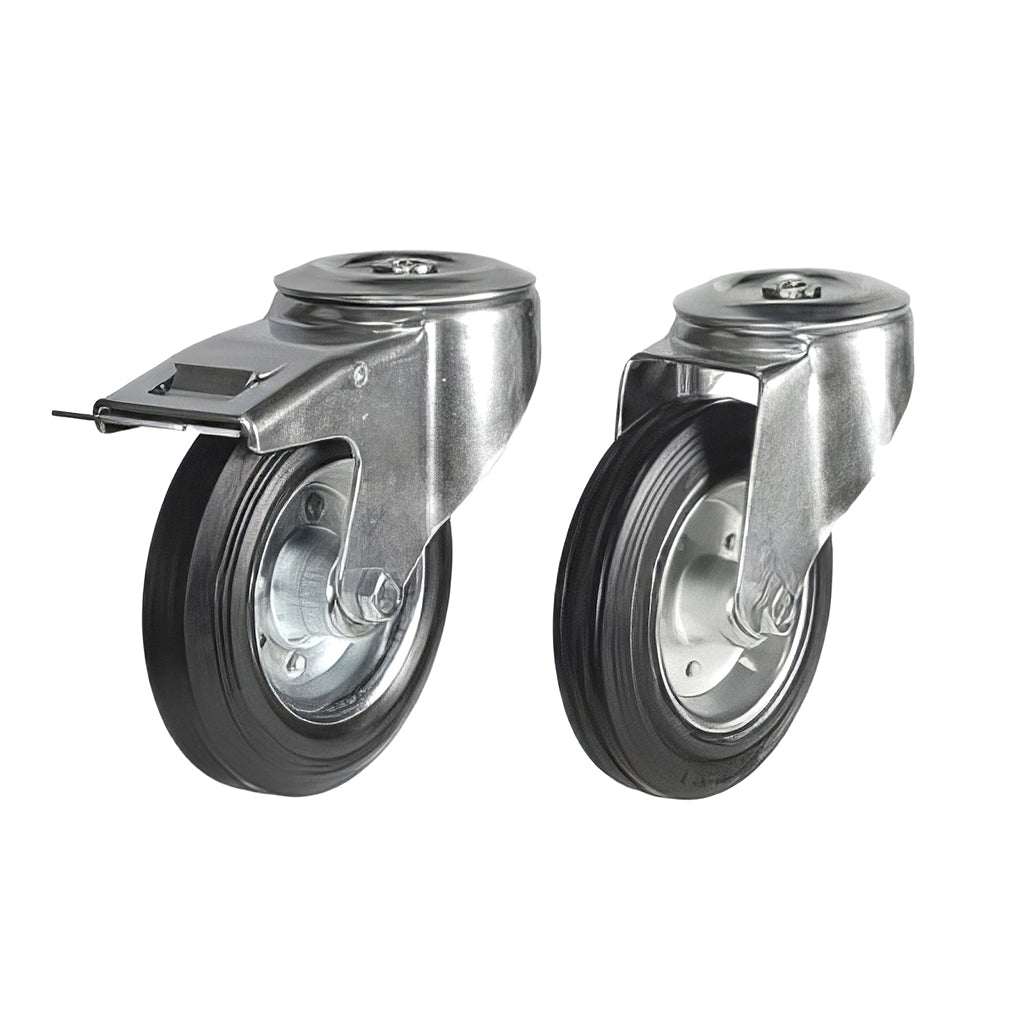

MEDIUM DUTY SINGLE BOLT HOLE CASTORS C/W STEEL CENTRE - BLACK RUBBER TYRE 65-205KG RATING
Bolt Hole castors with a Pressed Steel castor bracket, fitted with a Rubber Tyre On Steel Disk Centre & Rubber Tyre On Plastic wheel.
Find the right option
Technical guidanceExpert support for the right solution
Samples availableGet the right part before you commit
UK & European sourcingAlternatives beyond the catalogue
Trade enquiries welcomeFrom one-off parts to ongoing supply
Read full product description
Bolt Hole castors with a Pressed Steel castor bracket, fitted with a Rubber Tyre On Steel Disk Centre & Rubber Tyre On Plastic wheel.
These Bolt Hole casters range from 80mm - 200mm and have a capacity up to 205 Kg per caster. Rubber tyred castor wheels give a smooth ride and are quiet.
Although load capacities of these castors are not very high they are used on warehouse trolleys, Sack truck wheels and jockey wheels.
If they are not used over a period of time these castors can develop flats.
Black rubber tyres protect the floor from damage.
- Zinc-Plated Finish
- Single Hole Fixng
- Solid Rubber Wheel
- Wheel Hardness 80° shore A
- Nut and Bolt Axle
- Roller Bearing Wheel Centre
- - 25°C - + 80°C
Available product options.
Search by size, dimensions or specification, select a matching product and add it to your quotation basket.
Your selected product
How does requesting a quote work?
- Find the size and product code you need from table below.
- Enter product code and quantities required
- Click Add To Quote
- Repeat on any other product pages as needed.
- Once done, submit your quote to our sales team who will be in touch within 1 hour.
Alternatively feel free to call us now on 01279 656189 for an immediate response!
Check the dimensions. Find your part number.
Use the full specification table below to identify the correct size and part number. Then return to Available product options above to select that exact part and request a quote.
Full technical specifications compare sizes & part numbers
Find your part in the table below, then select the matching option above to request a quote.
Check each column heading for the relevant measurements and product details. ↔ Swipe sideways to see every column.
Product specifications.
| SKU | Type | Wheel Dia | Tread Width | Overall Height (mm) | Bolt Hole Size | Weight Loading |
|---|---|---|---|---|---|---|
| C080/DRBH12BSB | Swivel | 80mm | 30 | 106mm | 12.2mm | 65KG |
| C080/DRBH12BSBSWB | Swivel braked | 80mm | 30 | 106mm | 12.2mm | 65KG |
| C100/DRBH12BSB | Swivel | 100mm | 32 | 128mm | 12.2mm | 80KG |
| C100/DRBH12BSBSWB | Swivel braked | 100mm | 32 | 128mm | 12.2mm | 80KG |
| C125/DRBH12BSB | Swivel | 125mm | 37 | 152mm | 12.2mm | 100KG |
| C125/DRBH12BSBSWB | Swivel braked | 125mm | 37 | 152mm | 12.2mm | 100KG |
| C160/DRBH12BSB | Swivel | 160mm | 40 | 195mm | 12.2mm | 175KG |
| C160/DRBH12BSBSWB | Swivel braked | 160mm | 40 | 195mm | 12.2mm | 175KG |
| C200/DRBH12BSB | Swivel | 200mm | 50 | 237mm | 12.2mm | 205KG |
| C200/DRBH12BSBSWB | Swivel braked | 200mm | 50 | 237mm | 12.2mm | 205KG |
Found the correct part number? Select it from the available options above and add it to your quote list.
