Castors wheels

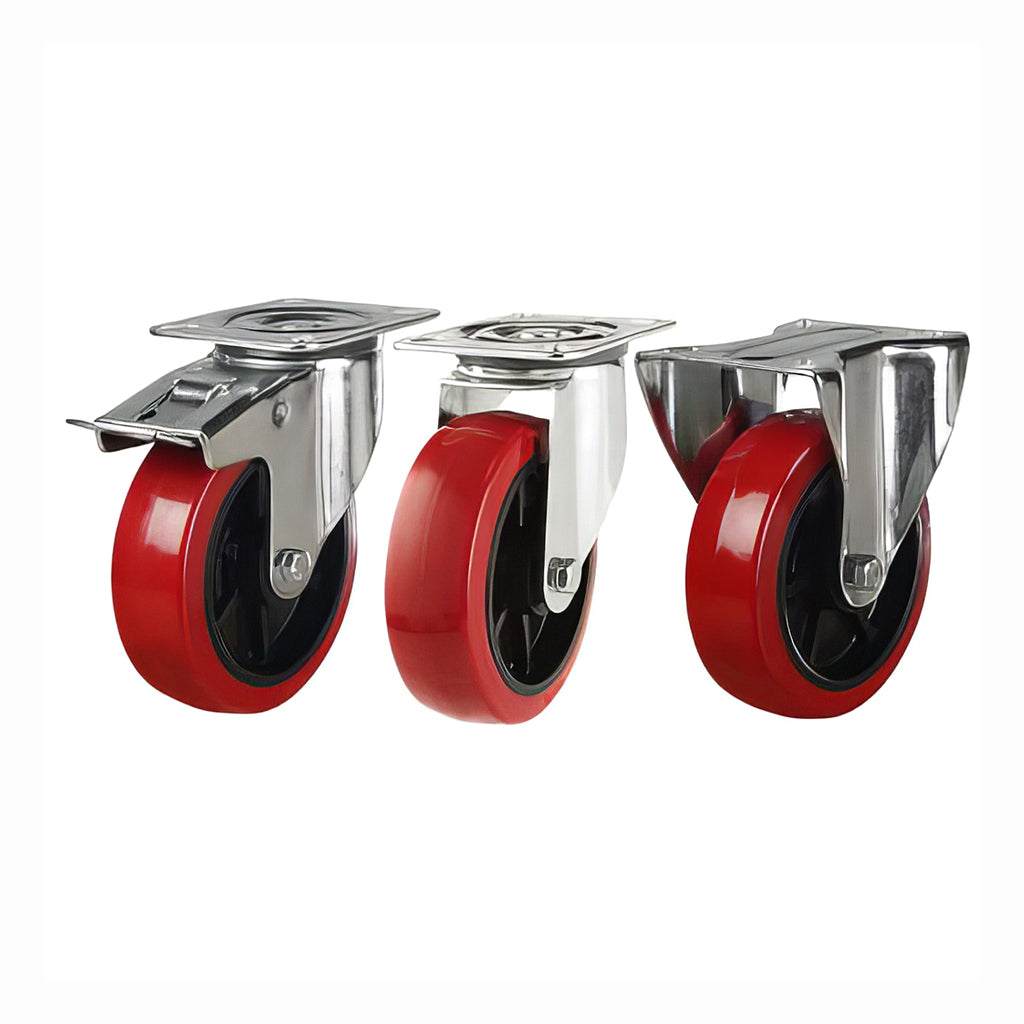

MEDIUM DUTY PLATE MOUNTED CASTORS C/W -PLASTIC CENTRE - RED POLYURTHANE TYRE 200-260KG RATING

Pressed steel fitted with a thermoplastic polyurethane wheel which also has roller bearings which greatly improve rolling resistance .

Find the right option
  • Medium duty plate mounted castors with red polyurethane tyre and roller bearing wheel center
  • Medium Duty Nylon Wheel white industrial caster with 100-380 kg load capacity for trolleys and carts
  • Plastic square tube inserts for imperial sizes ½”–2” protecting tubing ends and providing a professional finish
1 3

Technical guidanceExpert support for the right solution

Samples availableGet the right part before you commit

UK & European sourcingAlternatives beyond the catalogue

Trade enquiries welcomeFrom one-off parts to ongoing supply

Read full product description

Pressed steel fitted with a thermoplastic polyurethane wheel which also has roller bearings which greatly improve rolling resistance .

These casters range from 100mm-125mm and have a capacity up to 260 Kg per caster.
Polyurethane sometime known as poly nylon wheels and castors offer high load capacity compared to many wheel materials.
They are light in weight and very hard wearing and good value for money.
They help reduce the likelihood of floor damage which which can happen. We would recommend polyurethane tyred castors and wheels when cost is a concern and a smooth floor is likely, By using a polyurethane tyred wheel you reduce the likelihood of floor damaged which is often to the case when using standard white nylon or Polypropylene as a wheel material.

  • Zinc-Plated Finish
  • Slotted Hole Centres
  • Injection Polyurethane
  • Non-Marking
  • Low Rolling Resistance
  • 60+/- shore D Non Marking
  • Nut and Bolt Axle
  • Roller Bearing Wheel Centre
  • - 20°C - + 60°C
FIND THE RIGHT COMPONENT

Available product options.

Search by size, dimensions or specification, select a matching product and add it to your quotation basket.

QUOTE ONLY · NO PAYMENT

Available options

Choose a matching part to review its specifications

9 options
Part numberSize / technical detailOther specificationAction
C100/DR4PNRB Swivel / 100mm / 34 | 105 x 85 | 80 x 60 | 128mm | 200KG —
C100/DR4PNRBSWB Swivel braked / 100mm / 34 | 105 x 85 | 80 x 60 | 128mm | 200KG —
C100/DR8PNRB Fixed / 100mm / 34 | 105 x 85 | 80 x 60 | 128mm | 200KG —
C125/DR4PNRB Swivel / 125mm / 40 | 105 x 85 | 80 x 60 | 152mm | 260KG —
C125/DR4PNRBSWB Swivel braked / 125mm / 40 | 105 x 85 | 80 x 60 | 152mm | 260KG —
C125/DR8PNRB Fixed / 125mm / 40 | 105 x 85 | 80 x 60 | 152mm | 260KG —
C125/DR4PNRBLP Swivel / 125mm / 40 | 135x110 | 105 x 80 | 157mm | 260KG —
C125/DR4PNRBSWBLP Swivel braked / 125mm / 40 | 135x110 | 105 x 80 | 157mm | 260KG —
C125/DR8PNRBLP Fixed / 125mm / 40 | 135x110 | 105 x 80 | 157mm | 260KG —

Select an option to view its full specifications and choose a quantity for your quote.

Your selected product

MEDIUM DUTY PLATE MOUNTED CASTORS C/W -PLASTIC CENTRE - RED POLYURTHANE TYRE 200-260KG RATING
C100/DR4PNRB

Choose a part number and quantity to request a quotation. No online payment is taken.

How does requesting a quote work?
  1. Find the size and product code you need from table below.
  2. Enter product code and quantities required
  3. Click Add To Quote
  4. Repeat on any other product pages as needed.
  5. Once done, submit your quote to our sales team who will be in touch within 1 hour.

Alternatively feel free to call us now on 01279 656189 for an immediate response!

View full details
01 · START HERE

Check the dimensions. Find your part number.

Use the full specification table below to identify the correct size and part number. Then return to Available product options above to select that exact part and request a quote.

Select your part & request a quote

Full technical specifications compare sizes & part numbers

Find your part in the table below, then select the matching option above to request a quote.

ALL SPECIFICATIONS VISIBLE

Check each column heading for the relevant measurements and product details. ↔ Swipe sideways to see every column.

TECHNICAL DETAILS

Product specifications.

Find part numbers and compare available options
SKU Type Wheel Dia Tread Width Plate Size Fixing Centres Overall Height (mm) Weight Loading
C100/DR4PNRB Swivel 100mm 34 105 x 85 80 x 60 128mm 200KG
C100/DR4PNRBSWB Swivel braked 100mm 34 105 x 85 80 x 60 128mm 200KG
C100/DR8PNRB Fixed 100mm 34 105 x 85 80 x 60 128mm 200KG
C125/DR4PNRB Swivel 125mm 40 105 x 85 80 x 60 152mm 260KG
C125/DR4PNRBSWB Swivel braked 125mm 40 105 x 85 80 x 60 152mm 260KG
C125/DR8PNRB Fixed 125mm 40 105 x 85 80 x 60 152mm 260KG
C125/DR4PNRBLP Swivel 125mm 40 135x110 105 x 80 157mm 260KG
C125/DR4PNRBSWBLP Swivel braked 125mm 40 135x110 105 x 80 157mm 260KG
C125/DR8PNRBLP Fixed 125mm 40 135x110 105 x 80 157mm 260KG

Found the correct part number? Select it from the available options above and add it to your quote list.
