PLASTIC ROUND TUBE INSERT WITH METAL THREAD

Name: PLASTIC ROUND TUBE INSERT WITH METAL THREAD
Brand: Indifit
SKU: BFZD160/0706
Availability: InStock

Suitable for heavier duty applications.

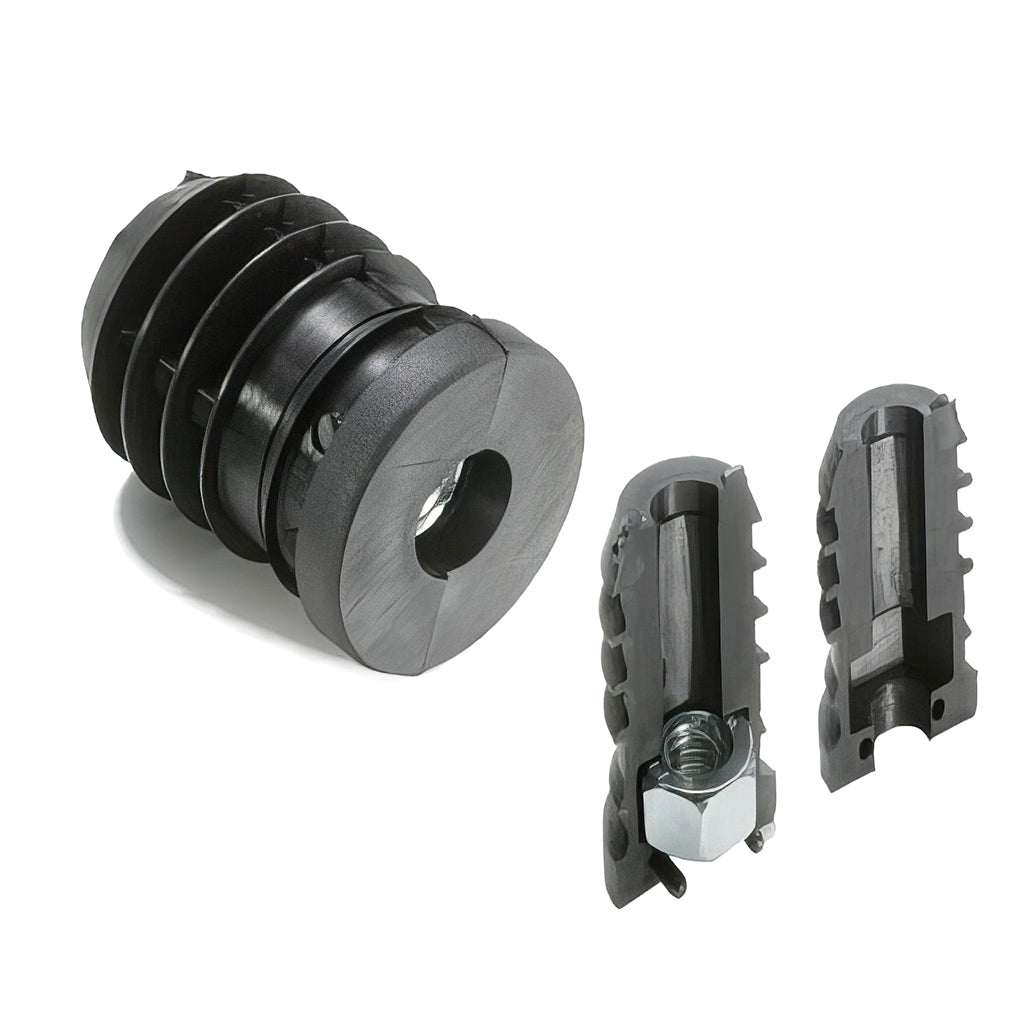

High quality, strong nylon moulding with captive BZP steel nut.

Ribbed shank to suit range of wall thickness.

Most sizes supplied to order on short lead times. Min quantities may apply.

How to Request a Quote

Find the size and product code you need from table below.
Enter product code and quantities required
Click Add To Quote
Repeat on any other product pages as needed.
Once done, submit your quote to our sales team who will be in touch within 1 hour.

Alternatively feel free to call us now on 01279 656189 for an immediate response!

View full details

SKU	Tube OD (mm)	Tube Wall (mm)	Head Thickness (mm)	Shank Length (mm)	Thread Size
BFZD160/0706	16	0.8	5	34	M6
BFZD160/1005	16	1	5	34	M5
BFZD160/1006	16	1	5	34	M6
BFZD160/1505	16	1.5	5	34	M5
BFZD160/1506	16	1.5	5	34	M6
BFZD180/1205	18	1.2	2	34	M5
BFZD190/1506	19	1.5	5	34	M6
BFZD190/1508	19	1.5	5	34	M8
BFZD200/0506	20	0.8	5	34	M6
BFZD200/101508	20	1.0-1.5	5	34	M8
BFZD200/1506	20	1.5	5	34	M6
BFZD200/2008	20	2	5	34	M8
BFZD220/1008	22	1	5	34	M8
BFZD220/1508	22	1.5	5	34	M8
BFZD220/2008	22	2	5	34	M8
BFZD250/152006	25	1.5-2.0	5	34	M6
BFZD250/152008	25	1.5-2.0	5	34	M8
BFZD250/152010	25	1.5-2.0	5	33	M10
BFZD280/152006	28	1.5-2.0	5	34	M6
BFZD280/152008	28	1.5-2.0	5	34	M8
BFZD280/152010	28	1.5-2.0	5	34	M10
BFZD280/3010	28	3	5	34	M10
BFZD300/1008	30	1	5	34	M8
BFZD300/1010	30	1	5	34	M10
BFZD300/152008	30	1.5-2.0	5	34	M8
BFZD300/152010	30	1.5-2.0	5	34	M10
BFZD300/2210	30	2.2	5	34	M10
BFZD300/2212	30	2.2	5	34	M12
BFZD300/3010	30	3	5	34	M10
BFZD300/4010	30	4	5	34	M10
BFZD320/152008	32	1.5-2.0	5	34	M8
BFZD320/152010	32	1.5-2.0	5	34	M10
BFZD340/1510	34	1.5	5	34	M10
BFZD350/152008	35	1.5-2.0	5	34	M8
BFZD350/152010	35	1.5-2.0	5	34	M10
BFZD350/2508	35	2.5	5	34	M8
BFZD350/2510	35	2.5	5	34	M10
BFZD380/1206	38	1.2	5	34	M6
BFZD380/152010	38	1.5-2.0	5	34	M10
BFZD380/2008	38	2	5	34	M8
BFZD380/2510	38	2.5	5	34	M10
BFZD380/4510	38	4.5	5	34	M10
BFZD380/5010	38	5	5	34	M10
BFZD400/152008	40	1.5-2.0	5	34	M8
BFZD400/152010	40	1.5-2.0	5	34	M10
BFZD400/152012	40	1.5-2.0	5	34	M12
BFZD420/152510	42	1.5-2.5	5	34	M10
BFZD420/152512	42	1.5-2.5	5	33	M12
BFZD450/152008	45	1.5-2.0	5	34	M8
BFZD450/152010	45	1.5-2.0	5	34	M10
BFZD500/1508	50	1.5	5	34	M8
BFZD500/1510	50	1.5	5	34	M10
BFZD500/2008	50	2	5	34	M8
BFZD500/2010	50	2	5	34	M10
BFZD500/2512	50	2.5	5	34	M12
BFZD500/3008	50	3	5	34	M8
BFZD600/1510	60	1.5	5	34	M10
BFZD600/2008	60	2	5	34	M8
BFZD600/2010	60	2	5	34	M10
BFZD600/2012	60	2	5	32	M12
BFZD700/3010	70	3	5	15	M10
