What advantages do pin terminals offer for electrical wiring projects?

Pin terminals provide a secure, reliable connection for stranded wires, ensuring safety and excellent electrical performance. Their insulated design also offers added protection, making them ideal for various electrical applications.

Are pin terminals suitable for outdoor or harsh environment use?

Yes, pin terminals with tin-plated pins and vinyl insulation are resistant to corrosion and can withstand operating temperatures from -10°C to +75°C, making them suitable for both indoor and outdoor electrical installations.

How do I choose the right size of pin terminal for my wire?

Choose the correct pin terminal size by matching the wire gauge to the color-coded insulation, which indicates different wire sizes and ratings. This ensures optimal fit and secure, professional termination.

Can pin terminals be used with different types of electrical connectors?

Yes, pin terminals are compatible with screw terminals, terminal blocks, and various electrical equipment, providing versatility for multiple applications like control panels and distribution boards.

What is the ease of installation when using pin terminals?

Pin terminals feature a flared barrel for quick wire insertion and low insertion force, simplifying installation. Additionally, their design allows for easy crimping to ensure a secure and reliable electrical connection.

1 1

Pin Terminals

Name: Pin Terminals
Brand: Hornet Electrical Supplies
SKU: RP1909
Availability: InStock

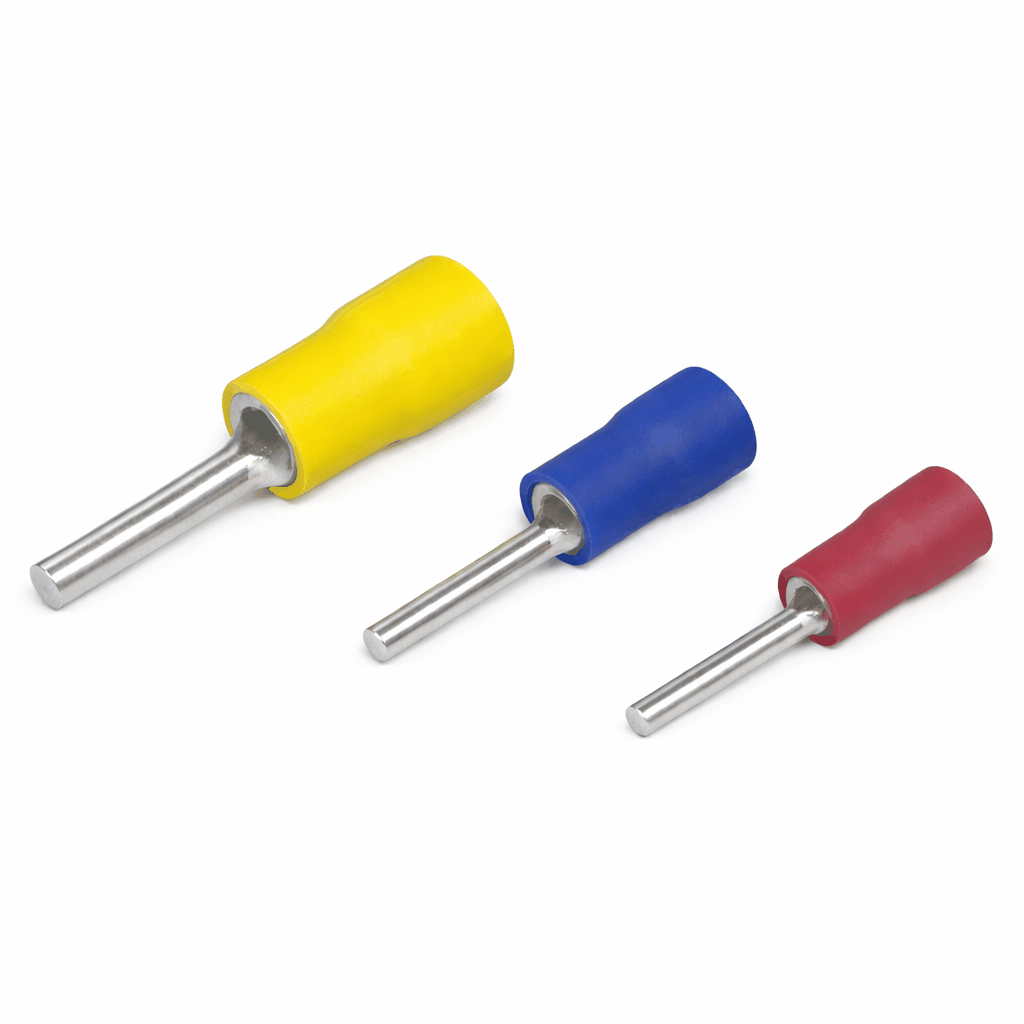

Pin Terminals

Pin Terminals are designed to provide a secure, reliable, and professional termination for stranded electrical wires. These terminals are ideal for use in screw terminals, terminal blocks, and electrical equipment where a solid pin connection is required. The insulated design improves safety, while the flared barrel ensures easy wire insertion and consistent crimping results.

Product Features

• High-conductivity copper conductor for excellent electrical performance
• Tin-plated pin for corrosion resistance and long service life
• Vinyl insulation for added protection and electrical safety
• Flared barrel for quick and easy wire insertion
• Low insertion force for smooth installation
• Easy crimping while ensuring secure termination
• Colour-coded insulation for easy wire size and rating identification
• Suitable for industrial, commercial & domestic electrical use

Technical Information

• Conductor Material: Copper
• Insulation Material: Vinyl
• Plating: Tin
• Operating Temperature: -10°C to +75°C
• Maximum Voltage Rating: 600V
• Maximum Current Rating:
– Red: 19A
– Blue: 27A
– Yellow: 48A
• Design: Insulated pin terminal with flared barrel

Typical Uses

• Electrical control panels and terminal blocks
• Distribution boards and electrical enclosures
• Industrial machinery and automation wiring
• Commercial and domestic electrical installations
• Professional electrical installation and maintenance work

How to Request a Quote

Find the size and product code you need from table below.
Enter product code and quantities required
Click Add To Quote
Repeat on any other product pages as needed.
Once done, submit your quote to our sales team who will be in touch within 1 hour.

Alternatively feel free to call us now on 01279 656189 for an immediate response!

View full details

SKU	Color	Size
RP1909	Red	9.0mm
RP1912	Red	12.0mm
BP1909	Blue	9.0mm
BP1912	Blue	12.0mm
YP2914	Yellow	14.0mm
