Ring Terminals

Ring Terminals Ring Terminals are designed to provide a strong, secure, and permanent electrical connection where reliability is critical. The closed ring design ensures the terminal remains firmly fixed under screws or studs, reducing the risk of accidental disconnection due to vibration or movement. Ideal for...

Find the right option

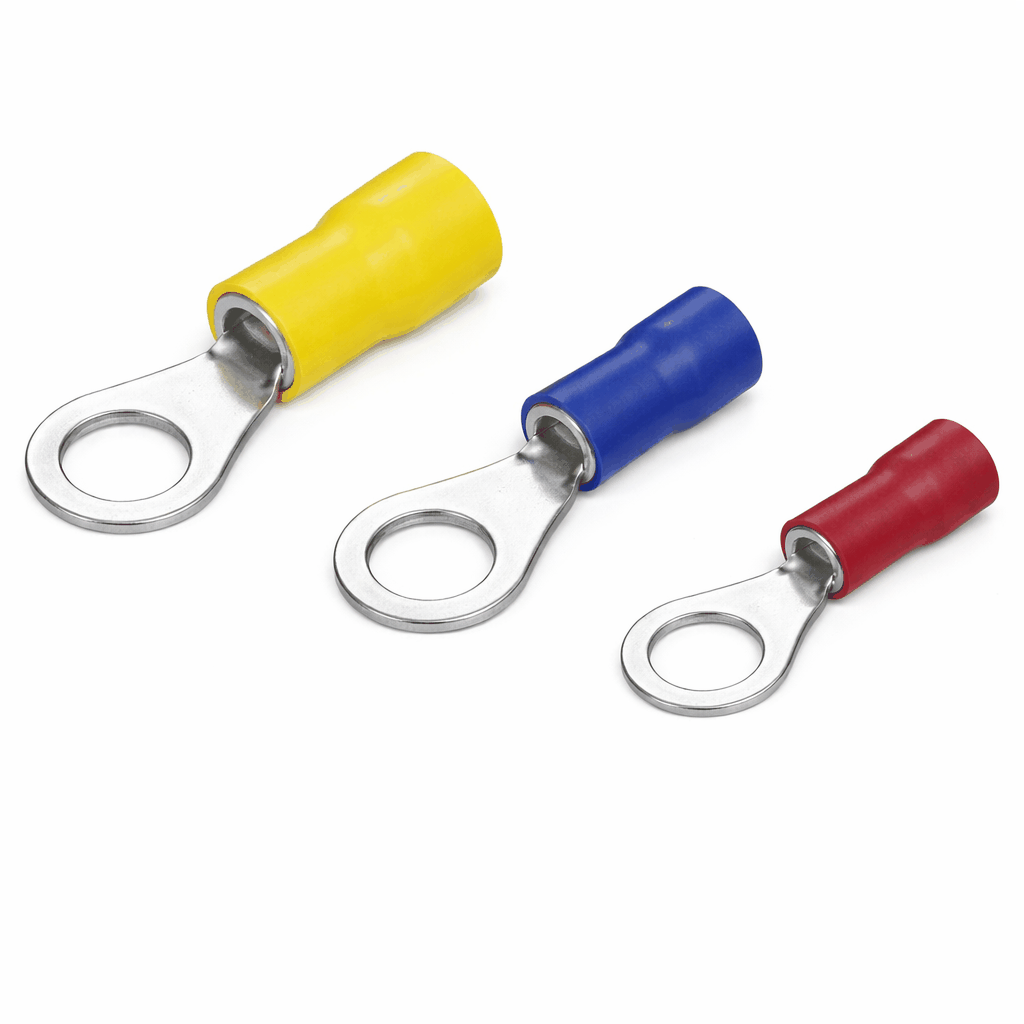

  • Close-up of insulated copper ring terminals with vinyl insulation and tin plating for secure electrical connections
1 1

Technical guidanceExpert support for the right solution

Samples availableGet the right part before you commit

UK & European sourcingAlternatives beyond the catalogue

Trade enquiries welcomeFrom one-off parts to ongoing supply

Read full product description

Ring Terminals

Ring Terminals are designed to provide a strong, secure, and permanent electrical connection where reliability is critical. The closed ring design ensures the terminal remains firmly fixed under screws or studs, reducing the risk of accidental disconnection due to vibration or movement. Ideal for automotive, industrial, and electrical panel applications requiring dependable performance.

Product Features

• High-conductivity copper terminal body for excellent electrical performance
• Tin-plated finish for corrosion resistance and long service life
• Vinyl insulation for added protection and electrical safety
• Closed ring design for secure, vibration-resistant connections
• Flared barrel for easy and quick wire insertion
• Low insertion force for smooth installation
• Easy crimping while ensuring secure termination
• Colour-coded insulation for easy wire size and rating identification
• Suitable for industrial, commercial & domestic electrical use

Technical Information

• Terminal Body Material: Copper
• Insulation Material: Vinyl
• Plating: Tin
• Operating Temperature: -10°C to +75°C
• Maximum Voltage Rating: 600V
• Maximum Current Rating:
– Red: 19A
– Blue: 27A
– Yellow: 48A
• Design: Insulated ring terminal with flared barrel

Typical Uses

• Electrical control panels and terminal blocks
• Automotive and marine electrical systems
• Industrial machinery and equipment wiring
• Power distribution and grounding applications
• Professional electrical installation and maintenance work

FIND THE RIGHT COMPONENT

Available product options.

Search by size, dimensions or specification, select a matching product and add it to your quotation basket.

QUOTE ONLY · NO PAYMENT

Available options

Choose a matching part to review its specifications

31 options
Part numberSize / technical detailOther specificationAction
RR32 Red / 3.2mm (6BA) —
RR37 Red / 3.7mm (4BA) —
RR43 Red / 4.3mm (3BA) —
RR53 Red / 5.3mm (2BA) —
RR53L Red / 5.3mm (2BA) Long C/Sleeve —
RR64 Red / 6.4mm (0BA) —
RR64L Red / 6.4mm (0BA) Long C/Sleeve —
RR84 Red / 8.4mm (5/16) —
RR84L Red / 8.4mm (5/16) Long C/Sleeve —
RR105 Red / 10.5mm (3/8) —
RR130 Red / 13.0mm (1/2) —
BR32 Blue / 3.2mm (6BA) —
BR37 Blue / 3.7mm (4BA) —
BR43 Blue / 4.3mm (3BA) —
BR53 Blue / 5.3mm (2BA) —
BR53L Blue / 5.3mm (2BA) Long C/Sleeve —
BR64 Blue / 6.4mm (0BA) —
BR64L Blue / 6.4mm (0BA) Long C/Sleeve —
BR84 Blue / 8.4mm (5/16) —
BR84L Blue / 8.4mm (5/16) Long C/Sleeve —
BR105 Blue / 10.5mm (3/8) —
BR130 Blue / 13.0mm (1/2) —
YR43 Yellow / 4.3mm (3BA) —
YR53 Yellow / 5.3mm (2BA) —
YR64 Yellow / 6.4mm (0BA) —
YR64L Yellow / 6.4mm (0BA) Long C/Sleeve —
YR84 Yellow / 8.4mm (5/16) —
YR84L Yellow / 8.4mm (5/16) Long C/Sleeve —
YR105 Yellow / 10.5mm (3/8) —
YR105L Yellow / 10.5mm (3/8) Long C/Sleeve —
YR130 Yellow / 13.0mm (1/2) —

Select an option to view its full specifications and choose a quantity for your quote.

Your selected product

Ring Terminals
RR32

Choose a part number and quantity to request a quotation. No online payment is taken.

How does requesting a quote work?
  1. Find the size and product code you need from table below.
  2. Enter product code and quantities required
  3. Click Add To Quote
  4. Repeat on any other product pages as needed.
  5. Once done, submit your quote to our sales team who will be in touch within 1 hour.

Alternatively feel free to call us now on 01279 656189 for an immediate response!

View full details
Choose by specification: filter the options above, compare the full table below, and select any matching part number. Both views stay in sync.Ask our technical team →
Full technical specifications — select a part numberReal product dimensions and technical details from Indifit's catalogue
TECHNICAL DETAILS

Product specifications.

Find part numbers and compare available options
SKU Color Size
RR32 Red 3.2mm (6BA)
RR37 Red 3.7mm (4BA)
RR43 Red 4.3mm (3BA)
RR53 Red 5.3mm (2BA)
RR53L Red 5.3mm (2BA) Long C/Sleeve
RR64 Red 6.4mm (0BA)
RR64L Red 6.4mm (0BA) Long C/Sleeve
RR84 Red 8.4mm (5/16)
RR84L Red 8.4mm (5/16) Long C/Sleeve
RR105 Red 10.5mm (3/8)
RR130 Red 13.0mm (1/2)
BR32 Blue 3.2mm (6BA)
BR37 Blue 3.7mm (4BA)
BR43 Blue 4.3mm (3BA)
BR53 Blue 5.3mm (2BA)
BR53L Blue 5.3mm (2BA) Long C/Sleeve
BR64 Blue 6.4mm (0BA)
BR64L Blue 6.4mm (0BA) Long C/Sleeve
BR84 Blue 8.4mm (5/16)
BR84L Blue 8.4mm (5/16) Long C/Sleeve
BR105 Blue 10.5mm (3/8)
BR130 Blue 13.0mm (1/2)
YR43 Yellow 4.3mm (3BA)
YR53 Yellow 5.3mm (2BA)
YR64 Yellow 6.4mm (0BA)
YR64L Yellow 6.4mm (0BA) Long C/Sleeve
YR84 Yellow 8.4mm (5/16)
YR84L Yellow 8.4mm (5/16) Long C/Sleeve
YR105 Yellow 10.5mm (3/8)
YR105L Yellow 10.5mm (3/8) Long C/Sleeve
YR130 Yellow 13.0mm (1/2)
