What are butt connector terminals used for in electrical wiring?

Butt connector terminals are designed to securely join two electrical wires end-to-end, ensuring a reliable, professional inline connection perfect for automotive, industrial, and household wiring applications.

How do I ensure a proper connection with butt connector terminals?

Select the correct size of butt connector terminals for your wires, insert the stripped wires into the flared barrel, and use a crimping tool to secure the connection firmly, ensuring a strong and conductive joint.

What safety features do butt connector terminals offer?

These connectors come with vinyl insulation and a wire stop feature that provide added protection and prevent incorrect wire insertion, making electrical connections safer and more reliable.

Are butt connector terminals resistant to corrosion?

Yes, the butt connector terminals have a tin-plated finish that offers excellent corrosion resistance and extends their service life, especially in harsh environments.

What are the key specifications I should look for in butt connector terminals?

Important specifications include their maximum voltage rating of 600V, temperature range of -10°C to +75°C, and colored insulation to identify wire sizes and ratings, ensuring they meet your specific project needs.

1 1

Butt Connector Terminals

Name: Butt Connector Terminals
Brand: Hornet Electrical Supplies
SKU: RBC
Availability: InStock

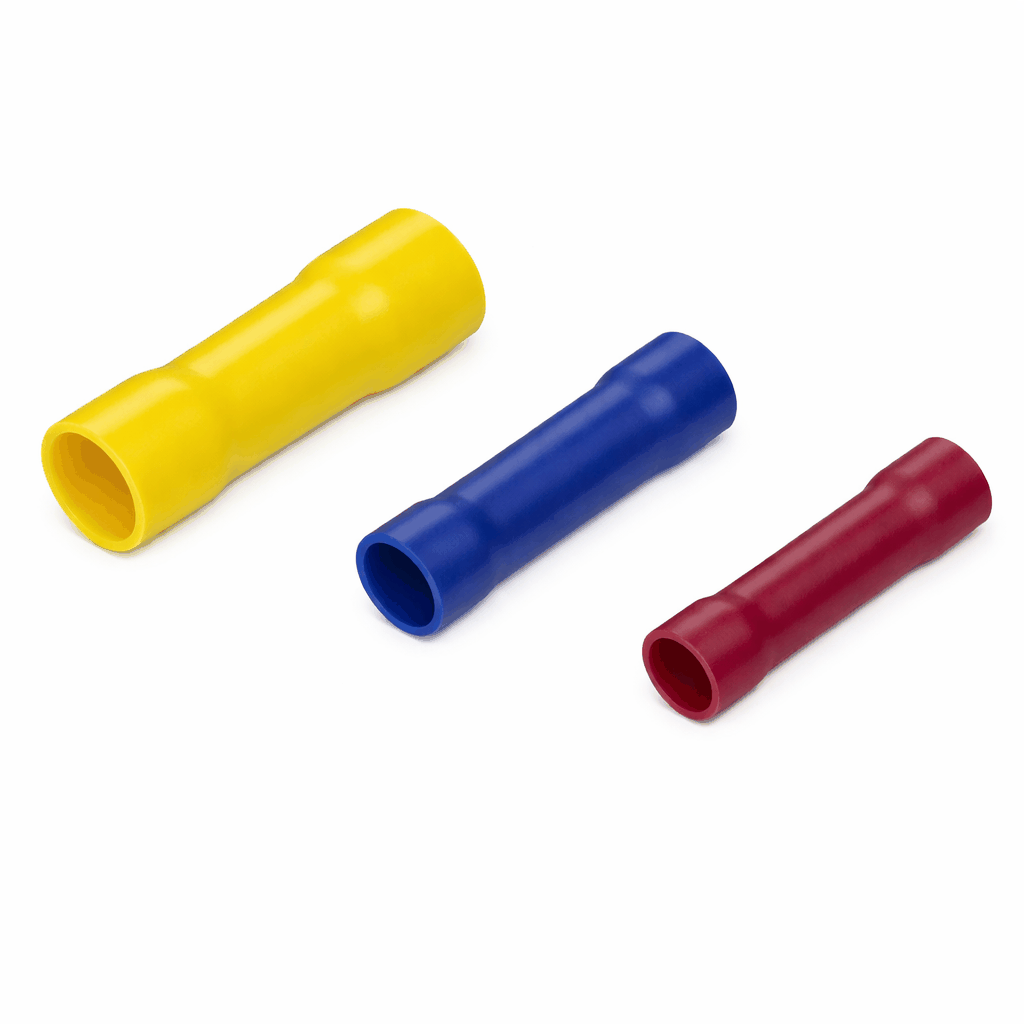

Butt Connector Terminals

Butt Connector Terminals are designed to securely join two electrical wires end-to-end, providing a strong, reliable, and professional inline connection. These connectors ensure consistent electrical conductivity while protecting the joint from mechanical stress. Ideal for automotive, industrial, and general electrical wiring applications where dependable splicing is required.

Product Features

• Brass conductor for reliable electrical conductivity
• Tin-plated finish for corrosion resistance and extended service life
• Vinyl insulation for added protection and electrical safety
• Inline butt connector design for secure wire-to-wire joining
• Flared barrel for easy and accurate wire insertion
• Built-in wire stop feature ensures correct wire positioning
• Easy crimping while ensuring secure termination
• Colour-coded insulation for easy wire size and rating identification
• Suitable for automotive, industrial & domestic electrical use

Technical Information

• Conductor Material: Brass
• Insulation Material: Vinyl
• Plating: Tin
• Operating Temperature: -10°C to +75°C
• Maximum Voltage Rating: 600V
• Maximum Current Rating:
– Red: 19A
– Blue: 27A
– Yellow: 48A
• Design: Insulated butt connector with wire stop

Typical Uses

• Automotive wiring repairs and extensions
• Electrical control panels and enclosures
• Industrial machinery and equipment wiring
• Appliance and lighting installations
• Professional electrical installation and maintenance work

How to Request a Quote

Find the size and product code you need from table below.
Enter product code and quantities required
Click Add To Quote
Repeat on any other product pages as needed.
Once done, submit your quote to our sales team who will be in touch within 1 hour.

Alternatively feel free to call us now on 01279 656189 for an immediate response!

View full details

SKU	Size	Colour
RBC	3.3mm	Red
BBC	4.0mm	Blue
YBC	5.5mm	Yellow
