Cable Termination
Fork Terminals
Fork Terminals Fork Terminals are designed to provide a secure, reliable, and professional electrical connection where fast installation and easy removal are required. The forked design allows the terminal to be fitted or removed without fully removing the screw, making them ideal for control panels, terminal...
Find the right option
Technical guidanceExpert support for the right solution
Samples availableGet the right part before you commit
UK & European sourcingAlternatives beyond the catalogue
Trade enquiries welcomeFrom one-off parts to ongoing supply
Read full product description

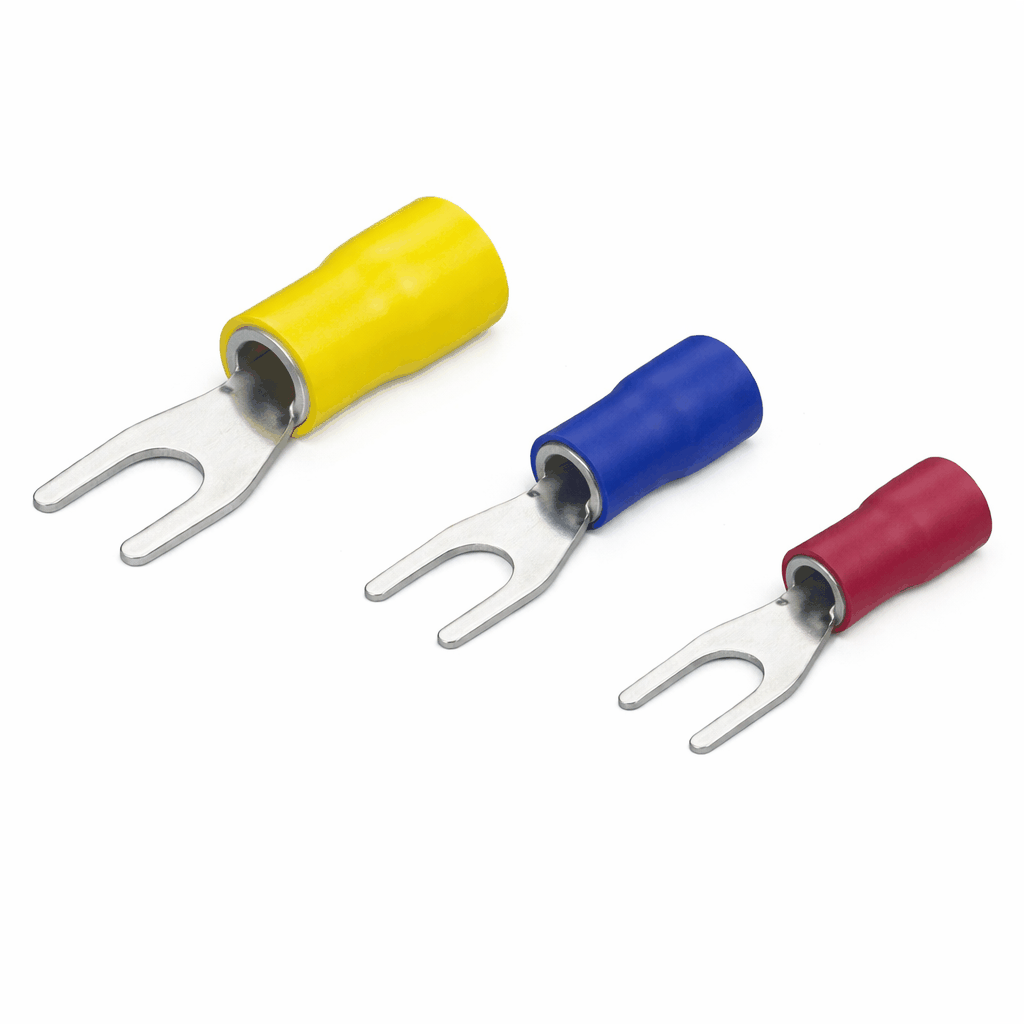

Fork Terminals
Fork Terminals are designed to provide a secure, reliable, and professional electrical connection where fast installation and easy removal are required. The forked design allows the terminal to be fitted or removed without fully removing the screw, making them ideal for control panels, terminal blocks, and maintenance-friendly electrical installations.
Product Features
• High-conductivity copper conductor for excellent electrical performance
• Tin-plated fork for corrosion resistance and long service life
• Vinyl insulation for added protection and electrical safety
• Forked design allows quick connection without removing screws
• Flared barrel for easy and fast wire insertion
• Low insertion force for smooth installation
• Easy crimping while ensuring secure termination
• Colour-coded insulation for easy wire size and rating identification
• Suitable for industrial, commercial & domestic electrical use
Technical Information
• Conductor Material: Copper
• Insulation Material: Vinyl
• Plating: Tin
• Operating Temperature: -10°C to +75°C
• Maximum Voltage Rating: 600V
• Maximum Current Rating:
– Red: 19A
– Blue: 27A
– Yellow: 48A
• Design: Insulated fork terminal with flared barrel
Typical Uses
• Electrical control panels and terminal blocks
• Industrial machinery and automation wiring
• Automotive and appliance electrical systems
• Commercial and domestic electrical installations
• Professional electrical installation and maintenance work
Available product options.
Search by size, dimensions or specification, select a matching product and add it to your quotation basket.
Your selected product
How does requesting a quote work?
- Find the size and product code you need from table below.
- Enter product code and quantities required
- Click Add To Quote
- Repeat on any other product pages as needed.
- Once done, submit your quote to our sales team who will be in touch within 1 hour.
Alternatively feel free to call us now on 01279 656189 for an immediate response!
Full technical specifications — select a part numberReal product dimensions and technical details from Indifit's catalogue
Product specifications.
| SKU | Color | Size |
|---|---|---|
| RF32 | Red | 3.2mm (6BA) |
| RF37 | Red | 3.7mm (4BA) |
| RF43 | Red | 4.3mm (3BA) |
| RF53 | Red | 5.3mm (2BA) |
| RF64 | Red | 6.4mm (0BA) |
| BF32 | Blue | 3.2mm (6BA) |
| BF37 | Blue | 3.7mm (4BA) |
| BF43 | Blue | 4.3mm (3BA) |
| BF53 | Blue | 5.3mm (2BA) |
| BF64 | Blue | 6.4mm (0BA) |
| YF37 | Yellow | 3.7mm (4BA) |
| YF43 | Yellow | 4.3mm (3BA) |
| YF53 | Yellow | 5.3mm (2BA) |
| YF64 | Yellow | 6.4mm (0BA) |
| YF84 | Yellow | 8.4mm (5/16) |
