What is the load capacity of the medium duty plate mounted castors?

The medium duty plate mounted castors can handle a load capacity of up to 205 kg per caster, making them suitable for various light to medium-duty applications.

Are these castors suitable for use on smooth floors?

Yes, these medium duty plate mounted castors feature grey rubber tyres that provide a smooth ride and help protect floors from damage, making them ideal for smooth surfaces.

Can these castors be used for outdoor applications?

These castors are mainly designed for indoor use, such as warehouse trolleys and sack trucks, and are not recommended for rough outdoor surfaces as the rubber tyres may develop flats over time.

What are the dimensions available for these medium duty plate mounted castors?

The range of these swivel castors includes sizes from 80mm to 200mm, allowing you to select the appropriate size based on your specific needs.

How should I maintain these castors to ensure their longevity?

To maintain these castors, regularly check for flats or damage to the rubber tyres and ensure the swivel mechanism is properly lubricated for smooth operation.

1 1

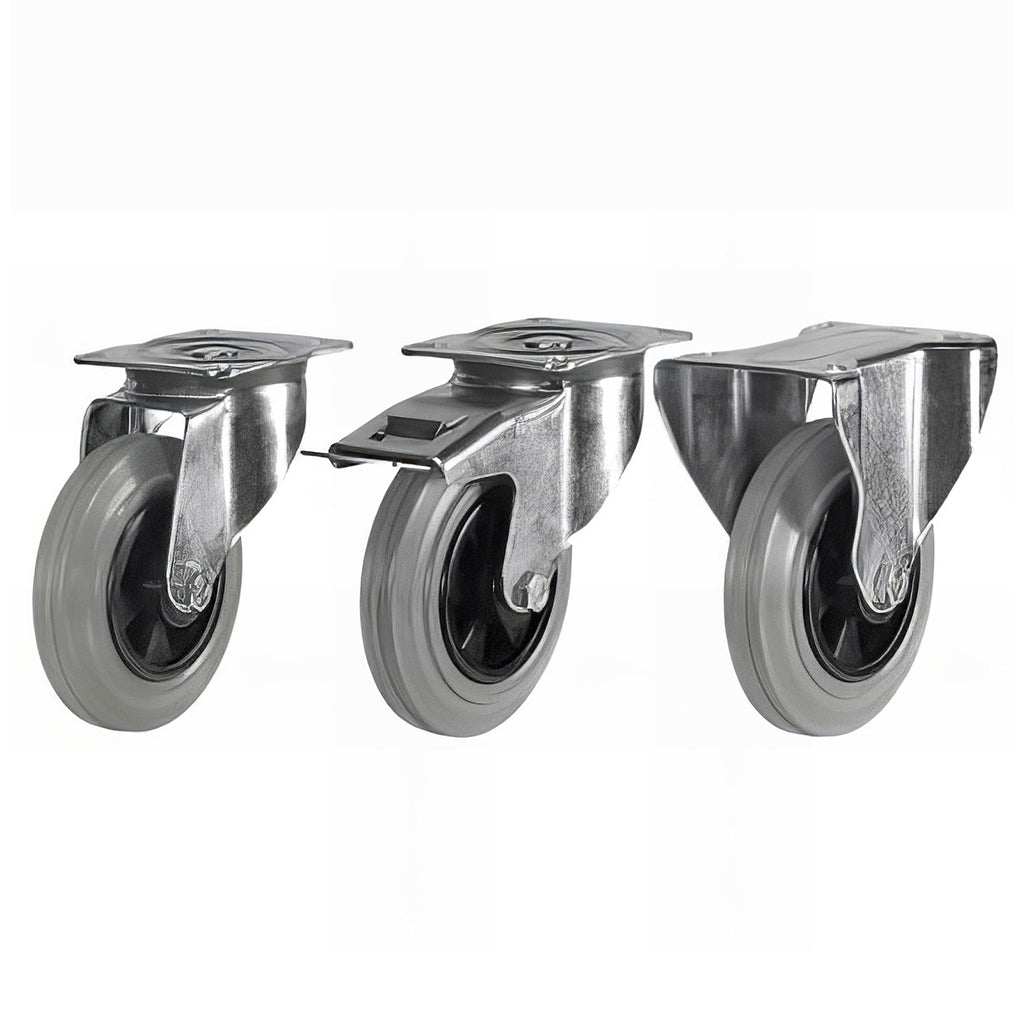

MEDIUM DUTY PLATE MOUNTED CASTORS C/W -PLASTIC CENTRE - GREY RUBBER TYRE 65-205KG RATING

Swivel castors with a Pressed Steel castor bracket, fitted with a grey non marking rubber tyre on plastic centre wheel .

These swivel casters range from 80mm-200mm and have a capacity up to 205 Kg per caster.

Grey rubber tyred castor wheels give a smooth ride and are quiet.

Although load capacities of these castors are not very high they are used on warehouse trolleys, Sack truck wheels and jockey wheels.

If they are not used over a period of time these castors can develop flats.
Grey rubber tyres protect the floor from damage.

How to Request a Quote

Find the size and product code you need from table below.
Enter product code and quantities required
Click Add To Quote
Repeat on any other product pages as needed.
Once done, submit your quote to our sales team who will be in touch within 1 hour.

Alternatively feel free to call us now on 01279 656189 for an immediate response!

View full details

SKU	Type	Wheel Dia	Tread Width	Plate Size	Fixing Centres	Overall Height (mm)	Weight Loading
C080/DR4GRB	Swivel	80mm	30	105 x 85	80 x 60	106mm	65KG
C080/DR4GRGSWB	Swivel braked	80mm	30	105 x 85	80 x 60	106mm	65KG
C080/DR8GRG	Fixed	80mm	30	105 x 85	80 x 60	106mm	65KG
C100/DR4GRG	Swivel	100mm	32	105 x 85	80 x 60	128mm	80KG
C100/DR4GRGSWB	Swivel braked	100mm	32	105 x 85	80 x 60	128mm	80KG
C100/DR8GRG	Fixed	100mm	32	105 x 85	80 x 60	128mm	80KG
C125/DR4GRG	Swivel	125mm	37	105 x 85	80 x 60	152mm	100KG
C125/DR4GRGSWB	Swivel braked	125mm	37	105 x 85	80 x 60	152mm	100KG
C125/DR8GRG	Fixed	125mm	37	105 x 85	80 x 60	152mm	100KG
C125/DR4GRGLP	Swivel	125mm	37	135x110	105 x 80	157mm	100KG
C125/DR4GRGLPSWB	Swivel braked	125mm	37	135x110	105 x 80	157mm	100KG
C125/DR8GRGLP	Fixed	125mm	37	135x110	105 x 80	157mm	100KG
C160/DR4GRG	Swivel	160mm	40	135 x 105	105 x 80	195mm	175KG
C160/DR4GRGSWB	Swivel braked	160mm	40	135 x 105	105 x 80	195mm	175KG
C160/DR8GRG	Fixed	160mm	40	135 x 105	105 x 80	195mm	175KG
C200/DR4GRG	Swivel	200mm	50	135 x 105	105 x 80	237mm	205KG
C200/DR4GRGSWB	Swivel braked	200mm	50	135 x 105	105 x 80	237mm	205KG
C200/DR8GRG	Fixed	200mm	50	135 x 105	105 x 80	237mm	205KG
