LOW PROFILE ROUND BODY REDUCED HEAD THREADED RIVET INSERT NUTS

Female through-threaded tubular body with low profile head. Very quick and easy way to create threaded bushes in sheet metal, tubes or similar material.

Find the right option

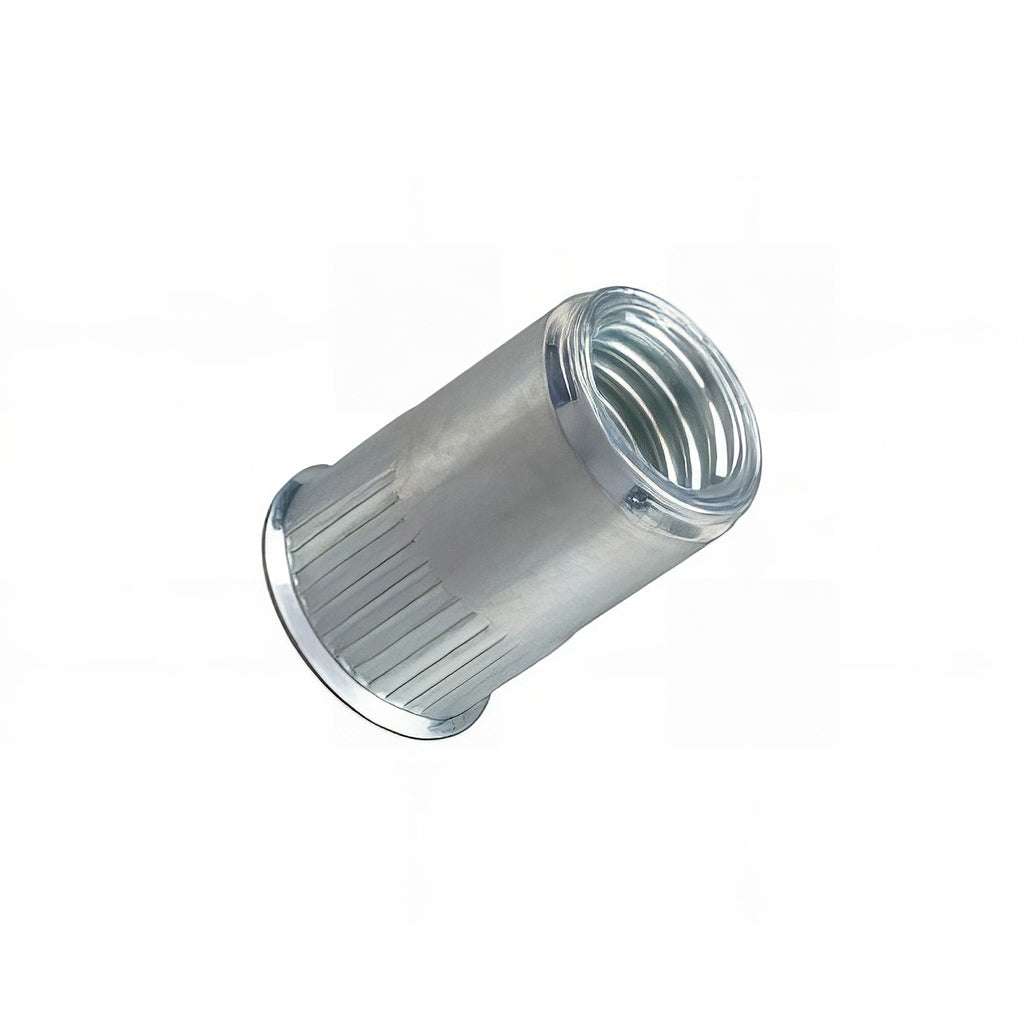

  • Low profile round body threaded rivet insert nut for sheet metal applications
1 1

Technical guidanceExpert support for the right solution

Samples availableGet the right part before you commit

UK & European sourcingAlternatives beyond the catalogue

Trade enquiries welcomeFrom one-off parts to ongoing supply

Read full product description

Female through-threaded tubular body with low profile head. Very quick and easy way to create threaded bushes in sheet metal, tubes or similar material.

Very easy product to apply and the nuts are ideal for application from front side only (no need for rear access).

Please note: the size range shown in the listed table is a selection of the most popular fasteners we sell. However, the size range we can supply is too vast to be listed here, so if the size or specification you require is not shown, please call the sales office and we will endeavour to supply to your requirement.

FIND THE RIGHT COMPONENT

Available product options.

Search by size, dimensions or specification, select a matching product and add it to your quotation basket.

QUOTE ONLY · NO PAYMENT

Available options

Choose a matching part to review its specifications

20 options
Part numberSize / technical detailOther specificationAction
APR04SS Stainless A2 / M4 / Raw | 500 | 7 | 6.4 | 0.5-3.0 | 10 | 0.6 —
APR04ZC Steel / M4 / Zinc | 1000 | 7 | 6.4 | 0.5-2.0 | 10.5 | 0.5 —
APR05SS Stainless A2 / M5 / Raw | 500 | 8 | 7.2 | 0.5-3.0 | 11.5 | 0.6 —
APR05ZC Steel / M5 / Zinc | 1000 | 7.8 | 7.2 | 0.5-2.5 | 12 | 0.5 —
APR06SS Stainless A2 / M6 / Raw | 200 | 10 | 9.6 | 0.5-3.0 | 14 | 0.6 —
APR06ZC Steel / M6 / Zinc | 1000 | 10.3 | 9.6 | 1.0-3.0 | 15 | 0.6 —
APR08SS Stainless A2 / M8 / Raw | 200 | 12 | 10.5 | 0.5-3.0 | 15.5 | 0.6 —
APR08ZC Steel / M8 / Zinc | 500 | 11.4 | 10.5 | 1.0-3.5 | 16 | 0.6 —
APR10SS Stainless A2 / M10 / Raw | 100 | 13.5 | 12.7 | 0.8-3.5 | 19.5 | 0.8 —
APR10ZC Steel / M10 / Zinc | 200 | 13.8 | 12.7 | 1.0-4.0 | 20 | 0.6 —
APRM04 Steel / M4 / Zinc | 1000 | 7 | 6 | 0.5-3.0 | 10 | 0.6 —
APRM04SS Stainless A2 / M4 / Raw | 500 | 7 | 6 | 0.5-3.0 | 10 | 0.6 —
APRM05 Steel / M5 / Zinc | 1000 | 8 | 7 | 0.5-3.0 | 11.5 | 0.6 —
APRM05SS Stainless A2 / M5 / Raw | 500 | 8 | 7 | 0.5-3.0 | 11.5 | 0.6 —
APRM06 Steel / M6 / Zinc | 1000 | 10 | 9 | 0.5-3.0 | 14 | 0.6 —
APRM06SS Stainless A2 / M6 / Raw | 200 | 10 | 9 | 0.5-3.0 | 14 | 0.6 —
APRM08 Steel / M8 / Zinc | 1000 | 12 | 11 | 0.5-3.0 | 15.5 | 0.6 —
APRM08SS Stainless A2 / M8 / Raw | 200 | 12 | 11 | 0.5-3.0 | 15.5 | 0.6 —
APRM10 Steel / M10 / Zinc | 500 | 13.5 | 13 | 0.8-3.5 | 19.5 | 0.8 —
APRM10SS Stainless A2 / M10 / Raw | 100 | 13.5 | 13 | 0.8-3.5 | 19.5 | 0.8 —

Select an option to view its full specifications and choose a quantity for your quote.

Your selected product

LOW PROFILE ROUND BODY REDUCED HEAD THREADED RIVET INSERT NUTS
APR04SS

Choose a part number and quantity to request a quotation. No online payment is taken.

How does requesting a quote work?
  1. Find the size and product code you need from table below.
  2. Enter product code and quantities required
  3. Click Add To Quote
  4. Repeat on any other product pages as needed.
  5. Once done, submit your quote to our sales team who will be in touch within 1 hour.

Alternatively feel free to call us now on 01279 656189 for an immediate response!

View full details
01 · START HERE

Check the dimensions. Find your part number.

Use the full specification table below to identify the correct size and part number. Then return to Available product options above to select that exact part and request a quote.

Select your part & request a quote

Full technical specifications compare sizes & part numbers

Find your part in the table below, then select the matching option above to request a quote.

ALL SPECIFICATIONS VISIBLE

Check each column heading for the relevant measurements and product details. ↔ Swipe sideways to see every column.

TECHNICAL DETAILS

Product specifications.

Find part numbers and compare available options
SKU Material Thread Size Finish Pack Qty Head dia Hole size Material grip range Total Body length Csk Head depth
APR04SS Stainless A2 M4 Raw 500 7 6.4 0.5-3.0 10 0.6
APR04ZC Steel M4 Zinc 1000 7 6.4 0.5-2.0 10.5 0.5
APR05SS Stainless A2 M5 Raw 500 8 7.2 0.5-3.0 11.5 0.6
APR05ZC Steel M5 Zinc 1000 7.8 7.2 0.5-2.5 12 0.5
APR06SS Stainless A2 M6 Raw 200 10 9.6 0.5-3.0 14 0.6
APR06ZC Steel M6 Zinc 1000 10.3 9.6 1.0-3.0 15 0.6
APR08SS Stainless A2 M8 Raw 200 12 10.5 0.5-3.0 15.5 0.6
APR08ZC Steel M8 Zinc 500 11.4 10.5 1.0-3.5 16 0.6
APR10SS Stainless A2 M10 Raw 100 13.5 12.7 0.8-3.5 19.5 0.8
APR10ZC Steel M10 Zinc 200 13.8 12.7 1.0-4.0 20 0.6
APRM04 Steel M4 Zinc 1000 7 6 0.5-3.0 10 0.6
APRM04SS Stainless A2 M4 Raw 500 7 6 0.5-3.0 10 0.6
APRM05 Steel M5 Zinc 1000 8 7 0.5-3.0 11.5 0.6
APRM05SS Stainless A2 M5 Raw 500 8 7 0.5-3.0 11.5 0.6
APRM06 Steel M6 Zinc 1000 10 9 0.5-3.0 14 0.6
APRM06SS Stainless A2 M6 Raw 200 10 9 0.5-3.0 14 0.6
APRM08 Steel M8 Zinc 1000 12 11 0.5-3.0 15.5 0.6
APRM08SS Stainless A2 M8 Raw 200 12 11 0.5-3.0 15.5 0.6
APRM10 Steel M10 Zinc 500 13.5 13 0.8-3.5 19.5 0.8
APRM10SS Stainless A2 M10 Raw 100 13.5 13 0.8-3.5 19.5 0.8

Found the correct part number? Select it from the available options above and add it to your quote list.
