LOW PROFILE HEXAGON BODY REDUCED HEAD THREADED RIVET INSERT NUTS

Female through-threaded hex and hex/tubular body with low profile head. Very quick and easy way to create threaded bushes in sheet metal, tubes or similar material.

Find the right option

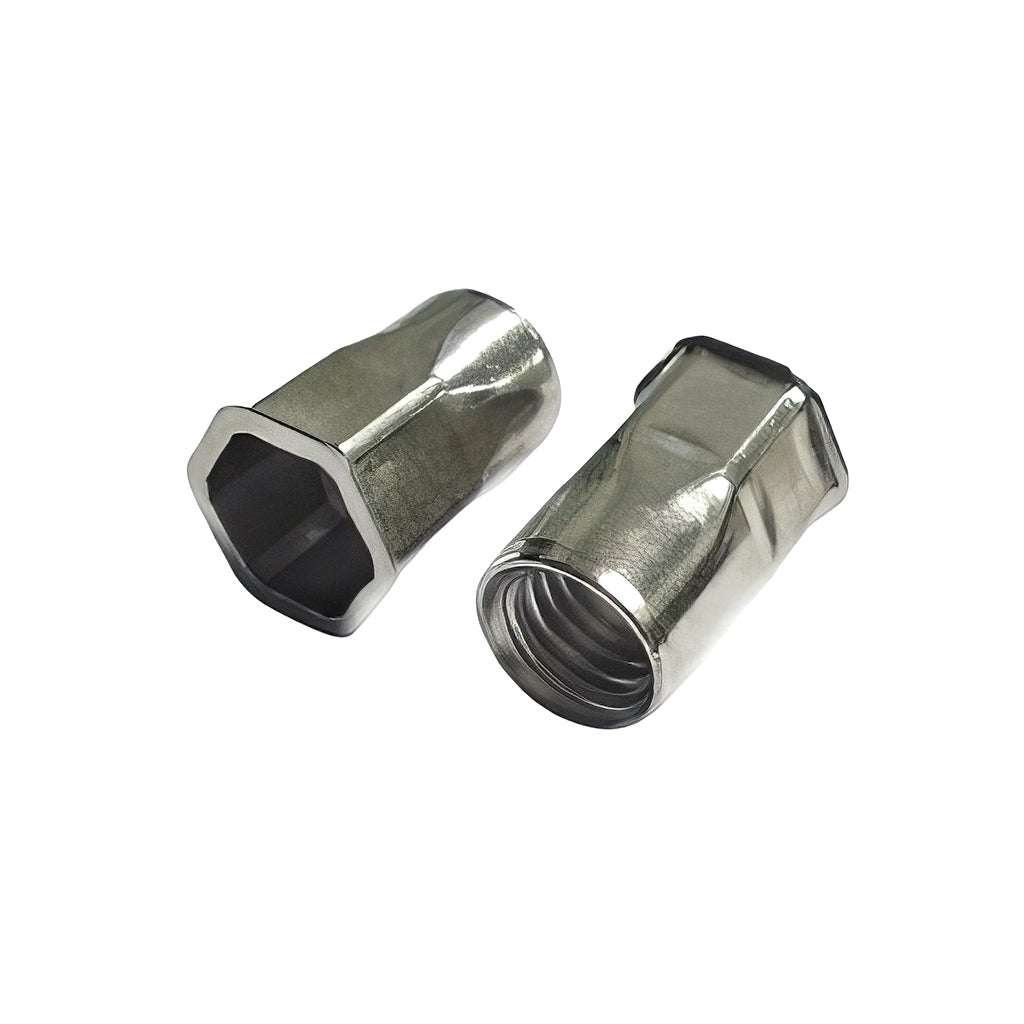

  • Low profile hexagon body threaded rivet insert nut for sheet metal fastening
1 1

Technical guidanceExpert support for the right solution

Samples availableGet the right part before you commit

UK & European sourcingAlternatives beyond the catalogue

Trade enquiries welcomeFrom one-off parts to ongoing supply

Read full product description

Female through-threaded hex and hex/tubular body with low profile head. Very quick and easy way to create threaded bushes in sheet metal, tubes or similar material.

Very easy product to apply and the nuts are ideal for application from front side only (no need for rear access).

Please note: the size range shown in the listed table is a selection of the most popular fasteners we sell. However, the size range we can supply is too vast to be listed here, so if the size or specification you require is not shown, please call the sales office and we will endeavour to supply to your requirement.

FIND THE RIGHT COMPONENT

Available product options.

Search by size, dimensions or specification, select a matching product and add it to your quotation basket.

QUOTE ONLY · NO PAYMENT

Available options

Choose a matching part to review its specifications

15 options
Part numberSize / technical detailOther specificationAction
APR04FH Steel / M4 / Zinc | 1000 | 7 | 0.5-3.0 | 12 | 0.8 | Full hex | 6.1 —
APR04HH Steel / M4 / Zinc | 1000 | 6.5 | 0.5-2.5 | 12 | 0.6 | Half hex | 6.1 —
APR04HHSS Stainless A2 / M4 / Raw | 500 | 6.5 | 0.5-2.5 | 12 | 0.6 | Half hex | 6.1 —
APR05FH Steel / M5 / Zinc | 1000 | 8 | 0.5-2.5 | 14 | 0.8 | Full hex | 7.1 —
APR05HH Steel / M5 / Zinc | 1000 | 7.5 | 0.5-3.0 | 14 | 0.6 | Half hex | 7.1 —
APR05HHSS Stainless A2 / M5 / Raw | 500 | 7.5 | 0.5-3.0 | 14 | 0.6 | Half hex | 7.1 —
APR06FH Steel / M6 / Zinc | 1000 | 10 | 0.5-2.5 | 16 | 0.8 | Full hex | 9.1 —
APR06HH Steel / M6 / Zinc | 1000 | 9.5 | 0.5-3.0 | 16 | 0.6 | Half hex | 9.1 —
APR06HHSS Stainless A2 / M6 / Raw | 500 | 9.5 | 0.5-3.0 | 16 | 0.6 | Half hex | 9.1 —
APR08FH Steel / M8 / Zinc | 1000 | 12 | 0.5-2.5 | 18 | 0.8 | Full hex | 11.1 —
APR08HH Steel / M8 / Zinc | 1000 | 11.5 | 0.5-3.0 | 17 | 0.6 | Half hex | 11.1 —
APR08HHSS Stainless A2 / M8 / Raw | 500 | 11.5 | 0.5-3.0 | 17 | 0.6 | Half hex | 11.1 —
APR10FH Steel / M10 / Zinc | 500 | 13.5 | 0.5-4.0 | 22 | 0.8 | Full hex | 13.1 —
APR10HH Steel / M10 / Zinc | 500 | 13.5 | 1.0-4.0 | 20.5 | 0.6 | Half hex | 13.1 —
APR10HHSS Stainless A2 / M10 / Raw | 500 | 13.5 | 1.0-4.0 | 20.5 | 0.6 | Half hex | 13.1 —

Select an option to view its full specifications and choose a quantity for your quote.

Your selected product

LOW PROFILE HEXAGON BODY REDUCED HEAD THREADED RIVET INSERT NUTS
APR04FH

Choose a part number and quantity to request a quotation. No online payment is taken.

How does requesting a quote work?
  1. Find the size and product code you need from table below.
  2. Enter product code and quantities required
  3. Click Add To Quote
  4. Repeat on any other product pages as needed.
  5. Once done, submit your quote to our sales team who will be in touch within 1 hour.

Alternatively feel free to call us now on 01279 656189 for an immediate response!

View full details
01 · START HERE

Check the dimensions. Find your part number.

Use the full specification table below to identify the correct size and part number. Then return to Available product options above to select that exact part and request a quote.

Select your part & request a quote

Full technical specifications compare sizes & part numbers

Find your part in the table below, then select the matching option above to request a quote.

ALL SPECIFICATIONS VISIBLE

Check each column heading for the relevant measurements and product details. ↔ Swipe sideways to see every column.

TECHNICAL DETAILS

Product specifications.

Find part numbers and compare available options
SKU Material Thread Size Finish Pack Qty Head dia Material grip range Total Body length Csk Head depth Body type A/f Hole size
APR04FH Steel M4 Zinc 1000 7 0.5-3.0 12 0.8 Full hex 6.1
APR04HH Steel M4 Zinc 1000 6.5 0.5-2.5 12 0.6 Half hex 6.1
APR04HHSS Stainless A2 M4 Raw 500 6.5 0.5-2.5 12 0.6 Half hex 6.1
APR05FH Steel M5 Zinc 1000 8 0.5-2.5 14 0.8 Full hex 7.1
APR05HH Steel M5 Zinc 1000 7.5 0.5-3.0 14 0.6 Half hex 7.1
APR05HHSS Stainless A2 M5 Raw 500 7.5 0.5-3.0 14 0.6 Half hex 7.1
APR06FH Steel M6 Zinc 1000 10 0.5-2.5 16 0.8 Full hex 9.1
APR06HH Steel M6 Zinc 1000 9.5 0.5-3.0 16 0.6 Half hex 9.1
APR06HHSS Stainless A2 M6 Raw 500 9.5 0.5-3.0 16 0.6 Half hex 9.1
APR08FH Steel M8 Zinc 1000 12 0.5-2.5 18 0.8 Full hex 11.1
APR08HH Steel M8 Zinc 1000 11.5 0.5-3.0 17 0.6 Half hex 11.1
APR08HHSS Stainless A2 M8 Raw 500 11.5 0.5-3.0 17 0.6 Half hex 11.1
APR10FH Steel M10 Zinc 500 13.5 0.5-4.0 22 0.8 Full hex 13.1
APR10HH Steel M10 Zinc 500 13.5 1.0-4.0 20.5 0.6 Half hex 13.1
APR10HHSS Stainless A2 M10 Raw 500 13.5 1.0-4.0 20.5 0.6 Half hex 13.1

Found the correct part number? Select it from the available options above and add it to your quote list.

Choose this part in Available options
