COUNTERSUNK HEAD THREADED RIVET INSERT NUTS

Female though-threaded tubular body with countersunk head. Very quick and easy way to create threaded bushes in sheet metal, tubes or similar material.

Find the right option

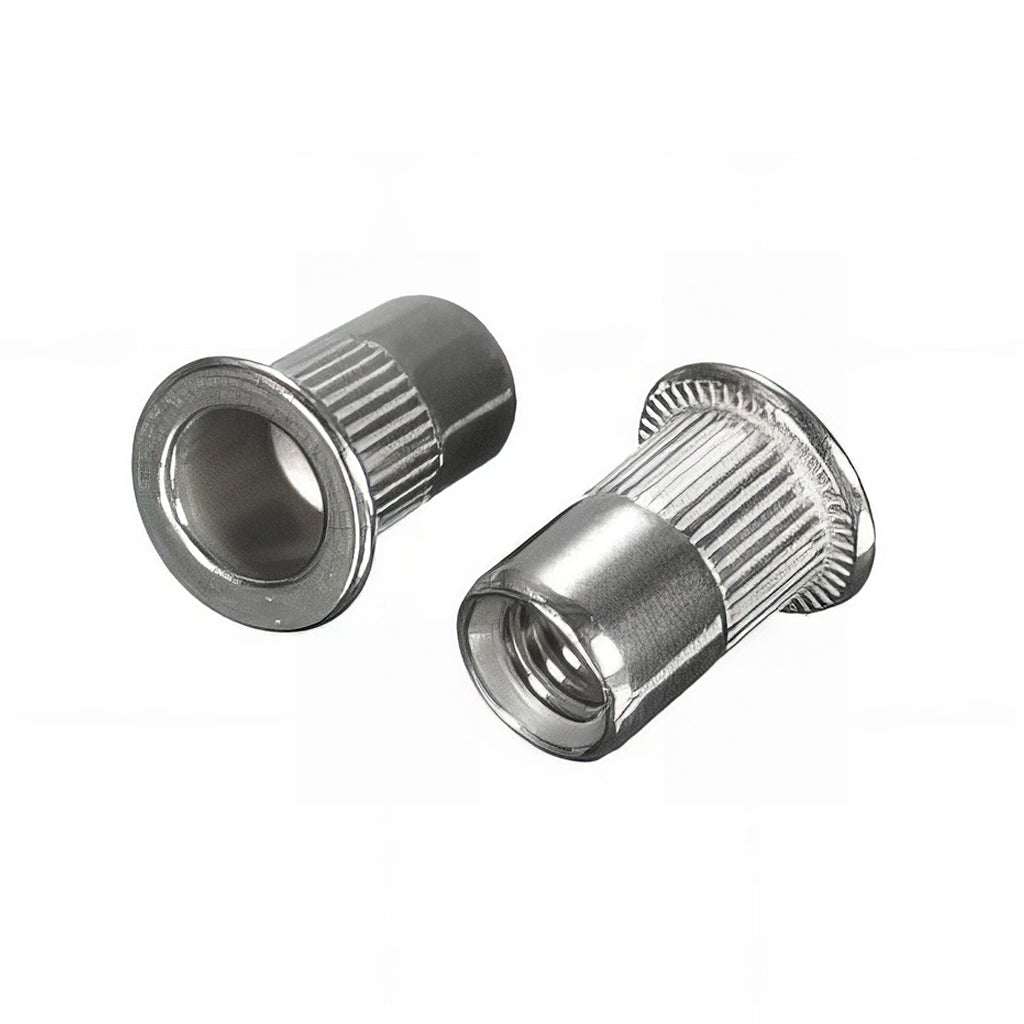

  • Countersunk head threaded rivet insert nuts for sheet metal assembly
1 1

Technical guidanceExpert support for the right solution

Samples availableGet the right part before you commit

UK & European sourcingAlternatives beyond the catalogue

Trade enquiries welcomeFrom one-off parts to ongoing supply

Read full product description

Female though-threaded tubular body with countersunk head. Very quick and easy way to create threaded bushes in sheet metal, tubes or similar material.

Very easy product to apply and the nuts are ideal for application from front side only (no need for rear access).

Please note: the size range shown in the listed table is a selection of the most popular fasteners we sell. However, the size range we can supply is too vast to be listed here, so if the size or specification you require is not shown, please call the sales office and we will endeavour to supply to your requirement.

FIND THE RIGHT COMPONENT

Available product options.

Search by size, dimensions or specification, select a matching product and add it to your quotation basket.

QUOTE ONLY · NO PAYMENT

Available options

Choose a matching part to review its specifications

15 options
Part numberSize / technical detailOther specificationAction
AFTSC04 Steel / M4 / Zinc | 1000 | 9 | 6 | 1.5-3.5 | 11.5 | 1.5 —
AFTSC04AL Aluminium / M4 / Raw | 1000 | 9 | 6 | 1.5-3.5 | 11.5 | 1.5 —
AFTSC04SS Stainless A2 / M4 / Raw | 500 | 9 | 6 | 1.5-3.5 | 11.5 | 1.5 —
AFTSC05 Steel / M5 / Zinc | 1000 | 10 | 7 | 1.5-4.0 | 13.5 | 1.5 —
AFTSC05AL Aluminium / M5 / Raw | 1000 | 10 | 7 | 1.5-4.0 | 13.5 | 1.5 —
AFTSC05SS Stainless A2 / M5 / Raw | 500 | 10 | 7 | 1.5-4.0 | 13.5 | 1.5 —
AFTSC06 Steel / M6 / Zinc | 1000 | 12 | 9 | 1.5-4.5 | 16 | 1.5 —
AFTSC06AL Aluminium / M6 / Raw | 1000 | 12 | 9 | 1.5-4.5 | 16 | 1.5 —
AFTSC06SS Stainless A2 / M6 / Raw | 200 | 12 | 9 | 1.5-4.5 | 16 | 1.5 —
AFTSC08 Steel / M8 / Zinc | 500 | 14 | 11 | 1.5-4.5 | 19 | 1.5 —
AFTSC08AL Aluminium / M8 / Raw | 500 | 14 | 11 | 1.5-4.5 | 19 | 1.5 —
AFTSC08SS Stainless A2 / M8 / Raw | 200 | 14 | 11 | 1.5-4.5 | 19 | 1.5 —
AFTSC10 Steel / M10 / Zinc | 500 | 15 | 13 | 1.5-4.5 | 21 | 1.5 —
AFTSC10AL Aluminium / M10 / Raw | 500 | 15 | 13 | 1.5-4.5 | 21 | 1.5 —
AFTSC10SS Stainless A2 / M10 / Raw | 100 | 15 | 13 | 1.5-4.5 | 21 | 1.5 —

Select an option to view its full specifications and choose a quantity for your quote.

Your selected product

COUNTERSUNK HEAD THREADED RIVET INSERT NUTS
AFTSC04

Choose a part number and quantity to request a quotation. No online payment is taken.

How does requesting a quote work?
  1. Find the size and product code you need from table below.
  2. Enter product code and quantities required
  3. Click Add To Quote
  4. Repeat on any other product pages as needed.
  5. Once done, submit your quote to our sales team who will be in touch within 1 hour.

Alternatively feel free to call us now on 01279 656189 for an immediate response!

View full details
01 · START HERE

Check the dimensions. Find your part number.

Use the full specification table below to identify the correct size and part number. Then return to Available product options above to select that exact part and request a quote.

Select your part & request a quote

Full technical specifications compare sizes & part numbers

Find your part in the table below, then select the matching option above to request a quote.

ALL SPECIFICATIONS VISIBLE

Check each column heading for the relevant measurements and product details. ↔ Swipe sideways to see every column.

TECHNICAL DETAILS

Product specifications.

Find part numbers and compare available options
SKU Material Thread Size Finish Pack Qty Head dia Hole size Material grip range Total Body length Csk Head depth
AFTSC04 Steel M4 Zinc 1000 9 6 1.5-3.5 11.5 1.5
AFTSC04AL Aluminium M4 Raw 1000 9 6 1.5-3.5 11.5 1.5
AFTSC04SS Stainless A2 M4 Raw 500 9 6 1.5-3.5 11.5 1.5
AFTSC05 Steel M5 Zinc 1000 10 7 1.5-4.0 13.5 1.5
AFTSC05AL Aluminium M5 Raw 1000 10 7 1.5-4.0 13.5 1.5
AFTSC05SS Stainless A2 M5 Raw 500 10 7 1.5-4.0 13.5 1.5
AFTSC06 Steel M6 Zinc 1000 12 9 1.5-4.5 16 1.5
AFTSC06AL Aluminium M6 Raw 1000 12 9 1.5-4.5 16 1.5
AFTSC06SS Stainless A2 M6 Raw 200 12 9 1.5-4.5 16 1.5
AFTSC08 Steel M8 Zinc 500 14 11 1.5-4.5 19 1.5
AFTSC08AL Aluminium M8 Raw 500 14 11 1.5-4.5 19 1.5
AFTSC08SS Stainless A2 M8 Raw 200 14 11 1.5-4.5 19 1.5
AFTSC10 Steel M10 Zinc 500 15 13 1.5-4.5 21 1.5
AFTSC10AL Aluminium M10 Raw 500 15 13 1.5-4.5 21 1.5
AFTSC10SS Stainless A2 M10 Raw 100 15 13 1.5-4.5 21 1.5

Found the correct part number? Select it from the available options above and add it to your quote list.

Choose this part in Available options
