FLANGE HEAD THREADED RIVET INSERT NUTS

Female though-threaded tubular body with ‘top hat’ shaped flange head. Very quick and easy way to create threaded bushes in sheet metal, tubes or similar material.

Find the right option

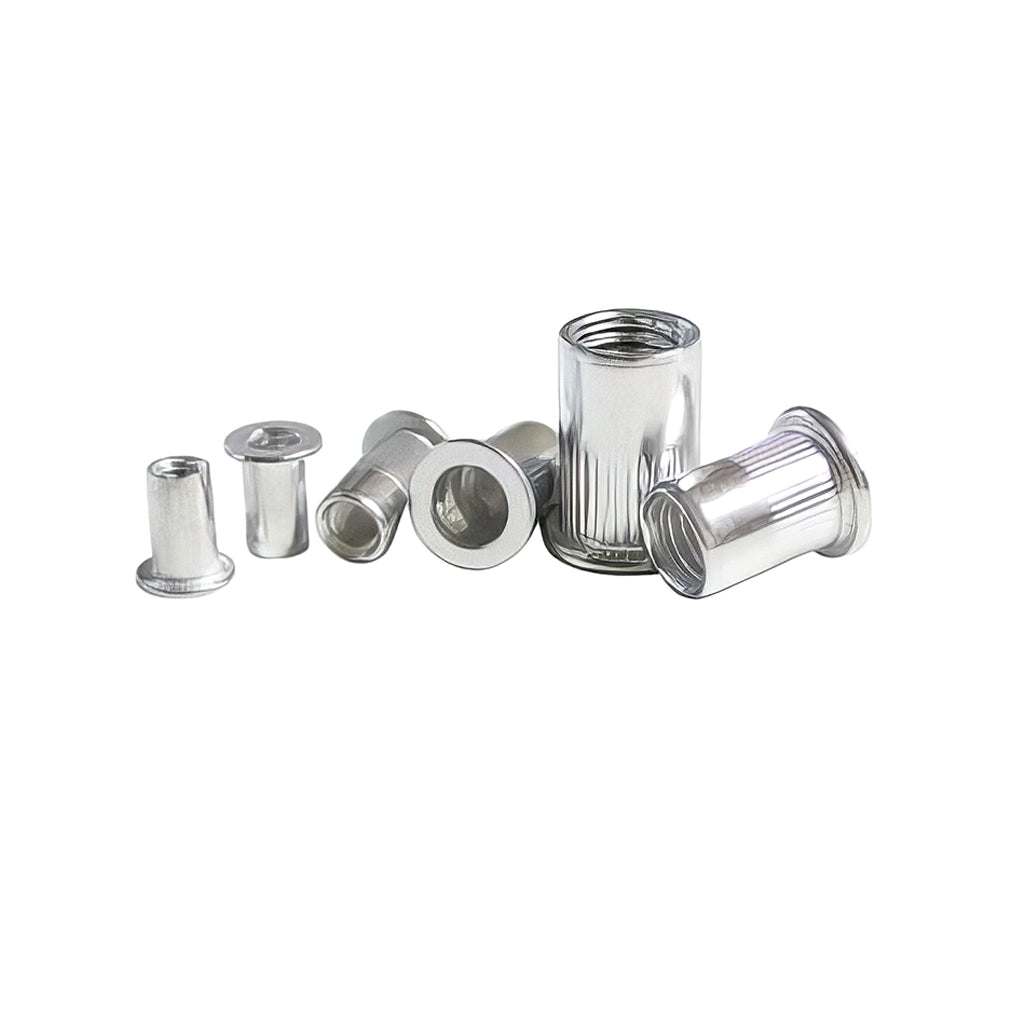

  • Flange head threaded rivet insert nuts for sheet metal with top hat flange design
1 1

Technical guidanceExpert support for the right solution

Samples availableGet the right part before you commit

UK & European sourcingAlternatives beyond the catalogue

Trade enquiries welcomeFrom one-off parts to ongoing supply

Read full product description

Female though-threaded tubular body with ‘top hat’ shaped flange head. Very quick and easy way to create threaded bushes in sheet metal, tubes or similar material.

Very easy product to apply and the nuts are ideal for application from front side only (no need for rear access).

Please note: the size range shown in the listed table is a selection of the most popular fasteners we sell. However, the size range we can supply is too vast to be listed here, so if the size or specification you require is not shown, please call the sales office and we will endeavour to supply to your requirement.

FIND THE RIGHT COMPONENT

Available product options.

Search by size, dimensions or specification, select a matching product and add it to your quotation basket.

QUOTE ONLY · NO PAYMENT

Available options

Choose a matching part to review its specifications

28 options
Part numberSize / technical detailOther specificationAction
AFTTC03 Steel / M3 / Zinc | 1000 | 7 | 5 | 0.5-3.0 | 10 | 0.9 —
AFTTC03SS Stainless A2 / M3 / Raw | 200 | 7 | 5 | 0.5-3.0 | 10 | 0.9 —
AFTTC04 Steel / M4 / Zinc | 1000 | 9 | 6 | 0.3-3.0 | 10 | 1 —
AFTTC04AL Aluminium / M4 / Raw | 1000 | 9 | 6 | 0.3-3.0 | 10 | 1 —
AFTTC04SS Stainless A2 / M4 / Raw | 200 | 9 | 6 | 0.3-3.0 | 10 | 1 —
AFTTC05 Steel / M5 / Zinc | 1000 | 10 | 7 | 0.3-3.0 | 12 | 1 —
AFTTC05AL Aluminium / M5 / Raw | 1000 | 10 | 7 | 0.3-3.0 | 12 | 1 —
AFTTC05SS Stainless A2 / M5 / Raw | 200 | 10 | 7 | 0.3-3.0 | 12 | 1 —
AFTTC06 Steel / M6 / Zinc | 1000 | 13 | 9 | 0.5-3.0 | 14.5 | 1.5 —
AFTTC06AL Aluminium / M6 / Raw | 1000 | 13 | 9 | 0.5-3.0 | 14.5 | 1.5 —
AFTTC06SS Stainless A2 / M6 / Raw | 200 | 13 | 9 | 0.5-3.0 | 14.5 | 1.5 —
AFTTC08 Steel / M8 / Zinc | 1000 | 16 | 11 | 0.5-3.0 | 16 | 1.5 —
AFTTC08AL Aluminium / M8 / Raw | 1000 | 16 | 11 | 0.5-3.0 | 16 | 1.5 —
AFTTC08SS Stainless A2 / M8 / Raw | 200 | 16 | 11 | 0.5-3.0 | 16 | 1.5 —
AFTTC10 Steel / M10 / Zinc | 500 | 19 | 13 | 0.5-3.0 | 17 | 2 —
AFTTC10AL Aluminium / M10 / Raw | 500 | 19 | 13 | 0.5-3.0 | 17 | 2 —
AFTTC10SS Stainless A2 / M10 / Raw | 200 | 19 | 13 | 0.5-3.0 | 17 | 2 —
AFTTC12 Steel / M12 / Zinc | 500 | 23 | 16 | 1.0-4.0 | 23 | 2 —
AFTTL04 Steel / M4 / Zinc | 1000 | 9 | 6 | 3.1-4.0 | 11.5 | 1 —
AFTTL04SS Stainless A2 / M4 / Raw | 200 | 9 | 6 | 3.1-4.0 | 11.5 | 1 —
AFTTL05 Steel / M5 / Zinc | 1000 | 10 | 7 | 3.1-4.0 | 15 | 1 —
AFTTL05SS Stainless A2 / M5 / Raw | 200 | 10 | 7 | 3.1-4.0 | 15 | 1 —
AFTTL06 Steel / M6 / Zinc | 1000 | 13 | 9 | 3.4-4.5 | 16 | 1.5 —
AFTTL06SS Stainless A2 / M6 / Raw | 200 | 13 | 9 | 3.4-4.5 | 16 | 1.5 —
AFTTL08 Steel / M8 / Zinc | 1000 | 16 | 11 | 3.1-5.5 | 18.5 | 1.5 —
AFTTL08SS Stainless A2 / M8 / Raw | 200 | 16 | 11 | 3.1-5.5 | 18.5 | 1.5 —
AFTTL10 Steel / M10 / Zinc | 500 | 19 | 13 | 3.1-6.0 | 22 | 2 —
AFTTL10SS Stainless A2 / M10 / Raw | 200 | 19 | 13 | 3.1-6.0 | 22 | 2 —

Select an option to view its full specifications and choose a quantity for your quote.

Your selected product

FLANGE HEAD THREADED RIVET INSERT NUTS
AFTTC03

Choose a part number and quantity to request a quotation. No online payment is taken.

How does requesting a quote work?
  1. Find the size and product code you need from table below.
  2. Enter product code and quantities required
  3. Click Add To Quote
  4. Repeat on any other product pages as needed.
  5. Once done, submit your quote to our sales team who will be in touch within 1 hour.

Alternatively feel free to call us now on 01279 656189 for an immediate response!

View full details
01 · START HERE

Check the dimensions. Find your part number.

Use the full specification table below to identify the correct size and part number. Then return to Available product options above to select that exact part and request a quote.

Select your part & request a quote

Full technical specifications compare sizes & part numbers

Find your part in the table below, then select the matching option above to request a quote.

ALL SPECIFICATIONS VISIBLE

Check each column heading for the relevant measurements and product details. ↔ Swipe sideways to see every column.

TECHNICAL DETAILS

Product specifications.

Find part numbers and compare available options
SKU Material Thread Size Finish Pack Qty Head dia Hole dia Material grip range Body flute length Head Thickness
AFTTC03 Steel M3 Zinc 1000 7 5 0.5-3.0 10 0.9
AFTTC03SS Stainless A2 M3 Raw 200 7 5 0.5-3.0 10 0.9
AFTTC04 Steel M4 Zinc 1000 9 6 0.3-3.0 10 1
AFTTC04AL Aluminium M4 Raw 1000 9 6 0.3-3.0 10 1
AFTTC04SS Stainless A2 M4 Raw 200 9 6 0.3-3.0 10 1
AFTTC05 Steel M5 Zinc 1000 10 7 0.3-3.0 12 1
AFTTC05AL Aluminium M5 Raw 1000 10 7 0.3-3.0 12 1
AFTTC05SS Stainless A2 M5 Raw 200 10 7 0.3-3.0 12 1
AFTTC06 Steel M6 Zinc 1000 13 9 0.5-3.0 14.5 1.5
AFTTC06AL Aluminium M6 Raw 1000 13 9 0.5-3.0 14.5 1.5
AFTTC06SS Stainless A2 M6 Raw 200 13 9 0.5-3.0 14.5 1.5
AFTTC08 Steel M8 Zinc 1000 16 11 0.5-3.0 16 1.5
AFTTC08AL Aluminium M8 Raw 1000 16 11 0.5-3.0 16 1.5
AFTTC08SS Stainless A2 M8 Raw 200 16 11 0.5-3.0 16 1.5
AFTTC10 Steel M10 Zinc 500 19 13 0.5-3.0 17 2
AFTTC10AL Aluminium M10 Raw 500 19 13 0.5-3.0 17 2
AFTTC10SS Stainless A2 M10 Raw 200 19 13 0.5-3.0 17 2
AFTTC12 Steel M12 Zinc 500 23 16 1.0-4.0 23 2
AFTTL04 Steel M4 Zinc 1000 9 6 3.1-4.0 11.5 1
AFTTL04SS Stainless A2 M4 Raw 200 9 6 3.1-4.0 11.5 1
AFTTL05 Steel M5 Zinc 1000 10 7 3.1-4.0 15 1
AFTTL05SS Stainless A2 M5 Raw 200 10 7 3.1-4.0 15 1
AFTTL06 Steel M6 Zinc 1000 13 9 3.4-4.5 16 1.5
AFTTL06SS Stainless A2 M6 Raw 200 13 9 3.4-4.5 16 1.5
AFTTL08 Steel M8 Zinc 1000 16 11 3.1-5.5 18.5 1.5
AFTTL08SS Stainless A2 M8 Raw 200 16 11 3.1-5.5 18.5 1.5
AFTTL10 Steel M10 Zinc 500 19 13 3.1-6.0 22 2
AFTTL10SS Stainless A2 M10 Raw 200 19 13 3.1-6.0 22 2

Found the correct part number? Select it from the available options above and add it to your quote list.

Choose this part in Available options
