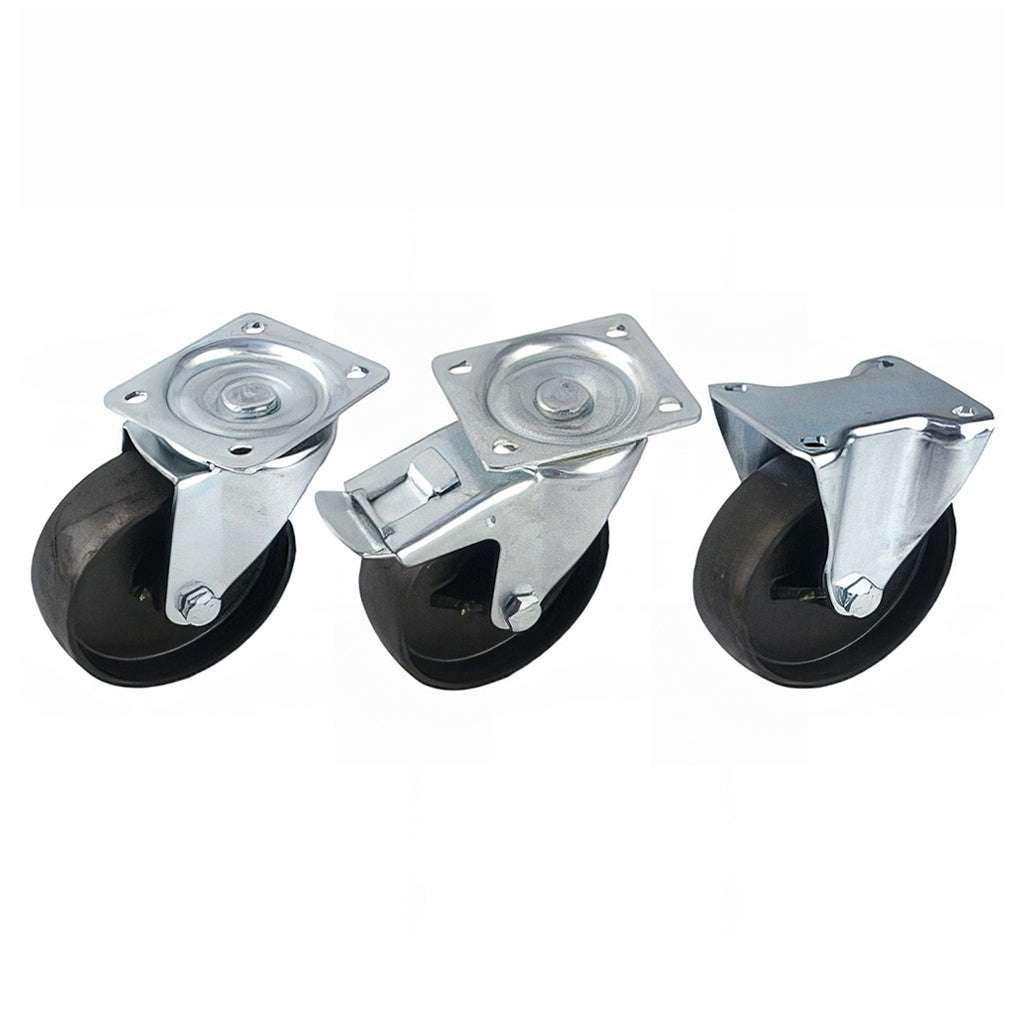

• Medium Duty Plate Mounted Castor with cast iron wheel and swivel or fixed options, 270-500kg capacity
1 1

MEDIUM DUTY PLATE MOUNTED CASTOR C/W CAST IRON WHEEL 270-500KG

MEDIUM DUTY PLATE MOUNTED CASTOR C/W CAST IRON WHEEL 270-500KG

Pressed steel plate fitting castor in swivel, swivel braked and fixed configurations.

Cast iron wheel with plain, roller or ball bearing axles.

How to Request a Quote
  1. Find the size and product code you need from table below.
  2. Enter product code and quantities required
  3. Click Add To Quote
  4. Repeat on any other product pages as needed.
  5. Once done, submit your quote to our sales team who will be in touch within 1 hour.

Alternatively feel free to call us now on 01279 656189 for an immediate response!
View full details
SKU Type Wheel Dia Wheel Type Tread Width Swivel Radius O Height Plate Size Load Cap kg Bolthole Spacing Bearing
C100/HCI Swivel 100mm Cast iron 40 98 128 105x86 270 80x60 (8) Plain
C100/HCIB Swivel 100mm Cast iron 40 98 128 105x86 270 80x60 (8) Roller
C100/HCIBJ Swivel 100mm Cast iron 40 98 128 105x86 270 80x60 (8) Ball journal
C100/HCIBJSWB Swivel brake 100mm Cast iron 40 116 128 105x86 270 80x60 (8) Ball journal
C100/HCIBSWB Swivel brake 100mm Cast iron 40 116 128 105x86 270 80x60 (8) Roller
C100/HCISWB Swivel brake 100mm Cast iron 40 116 128 105x86 270 80x60 (8) Plain
C125/HCI Swivel 125mm Cast iron 40 104 155 105x86 350 80x60 (8) Plain
C100/HFCI Fixed 100mm Cast iron 40 104 128 105x86 270 80x60 (8) Plain
C100/HFCI Fixed 100mm Cast iron 40 116 128 105x86 270 80x60 (8) Plain
C100/HFCI Fixed 100mm Cast iron 40 128 128 105x86 270 80x60 (8) Plain
C100/HFCI Fixed 100mm Cast iron 40 153 128 105x86 270 80x60 (8) Plain
C100/HFCI Fixed 100mm Cast iron 40 165 128 105x86 270 80x60 (8) Plain
C100/HFCI Fixed 100mm Cast iron 40 98 128 105x86 270 80x60 (8) Plain
C125/HCIB Swivel 125mm Cast iron 40 104 155 105x86 350 80x60 (8) Roller
C100/HFCIB Fixed 100mm Cast iron 40 104 128 105x86 270 80x60 (8) Roller
C100/HFCIB Fixed 100mm Cast iron 40 116 128 105x86 270 80x60 (8) Roller
C100/HFCIB Fixed 100mm Cast iron 40 128 128 105x86 270 80x60 (8) Roller
C100/HFCIB Fixed 100mm Cast iron 40 153 128 105x86 270 80x60 (8) Roller
C100/HFCIB Fixed 100mm Cast iron 40 165 128 105x86 270 80x60 (8) Roller
C100/HFCIB Fixed 100mm Cast iron 40 98 128 105x86 270 80x60 (8) Roller
C125/HCIBJ Swivel 125mm Cast iron 40 104 155 105x86 350 80x60 (8) Ball journal
C100/HFCIBJ Fixed 100mm Cast iron 40 104 128 105x86 270 80x60 (8) Ball journal
C100/HFCIBJ Fixed 100mm Cast iron 40 116 128 105x86 270 80x60 (8) Ball journal
C100/HFCIBJ Fixed 100mm Cast iron 40 128 128 105x86 270 80x60 (8) Ball journal
C100/HFCIBJ Fixed 100mm Cast iron 40 153 128 105x86 270 80x60 (8) Ball journal
C100/HFCIBJ Fixed 100mm Cast iron 40 165 128 105x86 270 80x60 (8) Ball journal
C100/HFCIBJ Fixed 100mm Cast iron 40 98 128 105x86 270 80x60 (8) Ball journal
C100/HPCIB Swivel 100mm Cast iron 40 98 129 135x110 270 105X75/80 (10) Roller
C100/HPCIBJ Swivel 100mm Cast iron 40 98 129 135x110 270 105X75/80 (10) Ball journal
C100/HPCIBJSWB Swivel brake 100mm Cast iron 40 116 129 135x110 270 105X75/80 (10) Ball journal
C100/HPCIBSWB Swivel brake 100mm Cast iron 40 116 129 135x110 270 105X75/80 (10) Roller
C100/HPCISWB Swivel brake 100mm Cast iron 40 116 129 135x110 270 105X75/80 (10) Plain
C100/HPFCI Fixed 100mm Cast iron 40 104 129 135x115 270 105X75/80 (10) Plain
C100/HPFCI Fixed 100mm Cast iron 40 116 129 135x115 270 105X75/80 (10) Plain
C100/HPFCI Fixed 100mm Cast iron 40 128 129 135x115 270 105X75/80 (10) Plain
C100/HPFCI Fixed 100mm Cast iron 40 153 129 135x115 270 105X75/80 (10) Plain
C100/HPFCI Fixed 100mm Cast iron 40 165 129 135x115 270 105X75/80 (10) Plain
C100/HPFCI Fixed 100mm Cast iron 40 98 129 135x115 270 105X75/80 (10) Plain
C100/HPFCIB Fixed 100mm Cast iron 40 104 129 135x115 270 105X75/80 (10) Roller
C100/HPFCIB Fixed 100mm Cast iron 40 116 129 135x115 270 105X75/80 (10) Roller
C100/HPFCIB Fixed 100mm Cast iron 40 128 129 135x115 270 105X75/80 (10) Roller
C100/HPFCIB Fixed 100mm Cast iron 40 153 129 135x115 270 105X75/80 (10) Roller
C100/HPFCIB Fixed 100mm Cast iron 40 165 129 135x115 270 105X75/80 (10) Roller
C100/HPFCIB Fixed 100mm Cast iron 40 98 129 135x115 270 105X75/80 (10) Roller
C100/HPFCIBJ Fixed 100mm Cast iron 40 104 129 135x115 270 105X75/80 (10) Ball journal
C100/HPFCIBJ Fixed 100mm Cast iron 40 116 129 135x115 270 105X75/80 (10) Ball journal
C100/HPFCIBJ Fixed 100mm Cast iron 40 128 129 135x115 270 105X75/80 (10) Ball journal
C100/HPFCIBJ Fixed 100mm Cast iron 40 153 129 135x115 270 105X75/80 (10) Ball journal
C100/HPFCIBJ Fixed 100mm Cast iron 40 165 129 135x115 270 105X75/80 (10) Ball journal
C100/HPFCIBJ Fixed 100mm Cast iron 40 98 129 135x115 270 105X75/80 (10) Ball journal
C100/PHCI Swivel 100mm Cast iron 40 98 129 135x110 270 105X75/80 (10) Plain
C125/HCIBJSWB Swivel brake 125mm Cast iron 40 128 155 105x86 350 80x60 (8) Ball journal
C125/HCIBSWB Swivel brake 125mm Cast iron 40 128 155 105x86 350 80x60 (8) Roller
C125/HCISWB Swivel brake 125mm Cast iron 40 128 155 105x86 350 80x60 (8) Plain
C125/HFCI Fixed 125mm Cast iron 40 104 155 105x86 350 80x60 (8) Plain
C125/HFCI Fixed 125mm Cast iron 40 116 155 105x86 350 80x60 (8) Plain
C125/HFCI Fixed 125mm Cast iron 40 128 155 105x86 350 80x60 (8) Plain
C125/HFCI Fixed 125mm Cast iron 40 153 155 105x86 350 80x60 (8) Plain
C125/HFCI Fixed 125mm Cast iron 40 165 155 105x86 350 80x60 (8) Plain
C125/HFCI Fixed 125mm Cast iron 40 98 155 105x86 350 80x60 (8) Plain
C125/HFCIB Fixed 125mm Cast iron 40 104 155 105x86 350 80x60 (8) Roller
C125/HFCIB Fixed 125mm Cast iron 40 116 155 105x86 350 80x60 (8) Roller
C125/HFCIB Fixed 125mm Cast iron 40 128 155 105x86 350 80x60 (8) Roller
C125/HFCIB Fixed 125mm Cast iron 40 153 155 105x86 350 80x60 (8) Roller
C125/HFCIB Fixed 125mm Cast iron 40 165 155 105x86 350 80x60 (8) Roller
C125/HFCIB Fixed 125mm Cast iron 40 98 155 105x86 350 80x60 (8) Roller
C125/HFCIBJ Fixed 125mm Cast iron 40 104 155 105x86 350 80x60 (8) Ball journal
C125/HFCIBJ Fixed 125mm Cast iron 40 116 155 105x86 350 80x60 (8) Ball journal
C125/HFCIBJ Fixed 125mm Cast iron 40 128 155 105x86 350 80x60 (8) Ball journal
C125/HFCIBJ Fixed 125mm Cast iron 40 153 155 105x86 350 80x60 (8) Ball journal
C125/HFCIBJ Fixed 125mm Cast iron 40 165 155 105x86 350 80x60 (8) Ball journal
C125/HFCIBJ Fixed 125mm Cast iron 40 98 155 105x86 350 80x60 (8) Ball journal
C125/HPCIB Swivel 125mm Cast iron 40 98 157 135x110 350 105X75/80 (10) Roller
C125/HPCIBJ Swivel 125mm Cast iron 40 98 157 135x110 350 105X75/80 (10) Ball journal
C125/HPCIBJSWB Swivel brake 125mm Cast iron 40 116 157 135x110 350 105X75/80 (10) Ball journal
C125/HPCIBSWB Swivel brake 125mm Cast iron 40 116 157 135x110 350 105X75/80 (10) Roller
C125/HPCISWB Swivel brake 125mm Cast iron 40 116 157 135x110 350 105X75/80 (10) Plain
C125/HPFCI Fixed 125mm Cast iron 40 104 157 135x115 350 105X75/80 (10) Plain
C125/HPFCI Fixed 125mm Cast iron 40 116 157 135x115 350 105X75/80 (10) Plain
C125/HPFCI Fixed 125mm Cast iron 40 128 157 135x115 350 105X75/80 (10) Plain
C125/HPFCI Fixed 125mm Cast iron 40 153 157 135x115 350 105X75/80 (10) Plain
C125/HPFCI Fixed 125mm Cast iron 40 165 157 135x115 350 105X75/80 (10) Plain
C125/HPFCI Fixed 125mm Cast iron 40 98 157 135x115 350 105X75/80 (10) Plain
C125/HPFCIB Fixed 125mm Cast iron 40 104 157 135x115 350 105X75/80 (10) Roller
C125/HPFCIB Fixed 125mm Cast iron 40 116 157 135x115 350 105X75/80 (10) Roller
C125/HPFCIB Fixed 125mm Cast iron 40 128 157 135x115 350 105X75/80 (10) Roller
C125/HPFCIB Fixed 125mm Cast iron 40 153 157 135x115 350 105X75/80 (10) Roller
C125/HPFCIB Fixed 125mm Cast iron 40 165 157 135x115 350 105X75/80 (10) Roller
C125/HPFCIB Fixed 125mm Cast iron 40 98 157 135x115 350 105X75/80 (10) Roller
C125/HPFCIBJ Fixed 125mm Cast iron 40 104 157 135x115 350 105X75/80 (10) Ball journal
C125/HPFCIBJ Fixed 125mm Cast iron 40 116 157 135x115 350 105X75/80 (10) Ball journal
C125/HPFCIBJ Fixed 125mm Cast iron 40 128 157 135x115 350 105X75/80 (10) Ball journal
C125/HPFCIBJ Fixed 125mm Cast iron 40 153 157 135x115 350 105X75/80 (10) Ball journal
C125/HPFCIBJ Fixed 125mm Cast iron 40 165 157 135x115 350 105X75/80 (10) Ball journal
C125/HPFCIBJ Fixed 125mm Cast iron 40 98 157 135x115 350 105X75/80 (10) Ball journal
C125/PHCI Swivel 125mm Cast iron 40 98 157 135x110 350 105X75/80 (10) Plain
C150/HPHFCI Fixed 150mm Cast iron 50 104 188 135x115 500 105X75/80 (10) Plain
C150/HPHFCI Fixed 150mm Cast iron 50 116 188 135x115 500 105X75/80 (10) Plain
C150/HPHFCI Fixed 150mm Cast iron 50 128 188 135x115 500 105X75/80 (10) Plain
C150/HPHFCI Fixed 150mm Cast iron 50 153 188 135x115 500 105X75/80 (10) Plain
C150/HPHFCI Fixed 150mm Cast iron 50 165 188 135x115 500 105X75/80 (10) Plain
C150/HPHFCI Fixed 150mm Cast iron 50 98 188 135x115 500 105X75/80 (10) Plain
C150/HPHFCIB Fixed 150mm Cast iron 50 104 188 135x115 500 105X75/80 (10) Roller
C150/HPHFCIB Fixed 150mm Cast iron 50 116 188 135x115 500 105X75/80 (10) Roller
C150/HPHFCIB Fixed 150mm Cast iron 50 128 188 135x115 500 105X75/80 (10) Roller
C150/HPHFCIB Fixed 150mm Cast iron 50 153 188 135x115 500 105X75/80 (10) Roller
C150/HPHFCIB Fixed 150mm Cast iron 50 165 188 135x115 500 105X75/80 (10) Roller
C150/HPHFCIB Fixed 150mm Cast iron 50 98 188 135x115 500 105X75/80 (10) Roller
C150/HPHFCIBJ Fixed 150mm Cast iron 50 104 188 135x115 500 105X75/80 (10) Ball journal
C150/HPHFCIBJ Fixed 150mm Cast iron 50 116 188 135x115 500 105X75/80 (10) Ball journal
C150/HPHFCIBJ Fixed 150mm Cast iron 50 128 188 135x115 500 105X75/80 (10) Ball journal
C150/HPHFCIBJ Fixed 150mm Cast iron 50 153 188 135x115 500 105X75/80 (10) Ball journal
C150/HPHFCIBJ Fixed 150mm Cast iron 50 165 188 135x115 500 105X75/80 (10) Ball journal
C150/HPHFCIBJ Fixed 150mm Cast iron 50 98 188 135x115 500 105X75/80 (10) Ball journal
C150/PHCI Swivel 150mm Cast iron 50 128 188 135x110 500 105X75/80 (10) Plain
C150/PHCIB Swivel 150mm Cast iron 50 128 188 135x110 500 105X75/80 (10) Roller
C150/PHCIBJ Swivel 150mm Cast iron 50 128 188 135x110 500 105X75/80 (10) Ball journal
C150/PHCIBJSWB Swivel brake 150mm Cast iron 50 165 188 135x110 500 105X75/80 (10) Ball journal
C150/PHCIBSWB Swivel brake 150mm Cast iron 50 165 188 135x110 500 105X75/80 (10) Roller
C150/PHCISWB Swivel brake 150mm Cast iron 50 165 188 135x110 500 105X75/80 (10) Plain
C200/HPHFCI Fixed 200mm Cast iron 50 104 238 135x115 500 105X75/80 (10) Plain
C200/HPHFCI Fixed 200mm Cast iron 50 116 238 135x115 500 105X75/80 (10) Plain
C200/HPHFCI Fixed 200mm Cast iron 50 128 238 135x115 500 105X75/80 (10) Plain
C200/HPHFCI Fixed 200mm Cast iron 50 153 238 135x115 500 105X75/80 (10) Plain
C200/HPHFCI Fixed 200mm Cast iron 50 165 238 135x115 500 105X75/80 (10) Plain
C200/HPHFCI Fixed 200mm Cast iron 50 98 238 135x115 500 105X75/80 (10) Plain
C200/HPHFCIB Fixed 200mm Cast iron 50 104 238 135x115 500 105X75/80 (10) Roller
C200/HPHFCIB Fixed 200mm Cast iron 50 116 238 135x115 500 105X75/80 (10) Roller
C200/HPHFCIB Fixed 200mm Cast iron 50 128 238 135x115 500 105X75/80 (10) Roller
C200/HPHFCIB Fixed 200mm Cast iron 50 153 238 135x115 500 105X75/80 (10) Roller
C200/HPHFCIB Fixed 200mm Cast iron 50 165 238 135x115 500 105X75/80 (10) Roller
C200/HPHFCIB Fixed 200mm Cast iron 50 98 238 135x115 500 105X75/80 (10) Roller
C200/HPHFCIBJ Fixed 200mm Cast iron 50 104 238 135x115 500 105X75/80 (10) Ball journal
C200/HPHFCIBJ Fixed 200mm Cast iron 50 116 238 135x115 500 105X75/80 (10) Ball journal
C200/HPHFCIBJ Fixed 200mm Cast iron 50 128 238 135x115 500 105X75/80 (10) Ball journal
C200/HPHFCIBJ Fixed 200mm Cast iron 50 153 238 135x115 500 105X75/80 (10) Ball journal
C200/HPHFCIBJ Fixed 200mm Cast iron 50 165 238 135x115 500 105X75/80 (10) Ball journal
C200/HPHFCIBJ Fixed 200mm Cast iron 50 98 238 135x115 500 105X75/80 (10) Ball journal
C200/PHCI Swivel 200mm Cast iron 50 153 238 135x110 500 105X75/80 (10) Plain
C200/PHCIB Swivel 200mm Cast iron 50 153 238 135x110 500 105X75/80 (10) Roller
C200/PHCIBJ Swivel 200mm Cast iron 50 153 238 135x110 500 105X75/80 (10) Ball journal
C200/PHCIBJSWB Swivel brake 200mm Cast iron 50 165 238 135x110 500 105X75/80 (10) Ball journal
C200/PHCIBSWB Swivel brake 200mm Cast iron 50 165 238 135x110 500 105X75/80 (10) Roller
C200/PHCISWB Swivel brake 200mm Cast iron 50 165 238 135x110 500 105X75/80 (10) Plain

Why shop with us?

  • Best priced trade discounts

    Indifit is a leading supplier of industrial components with a reputation for top quality at competitive, affordable prices for your organisation. For pricing and availability of specific items, feel free to browse our online catalogue and reach out to us if you’d like a quotation for a component.

    Create a trade account

  • Huge range of engineering components

    Finding the right industrial component for your specific application can be a frustrating experience, but it doesn’t have to be. Our guarantee to you is that you’ll always be received by friendly, helpful, and efficient experts. Take advantage of our product and industry expertise to find exactly what you’re looking for.

    Browse our stock

  • Fast next-day delivery

    We offer fast next-day delivery on all in-stock products from our warehouse in the UK. We never charge for minimum orders nor do we have minimum order quantities, so whether it’s a packet of fasteners or bulk quantities you can depend on our speedy next-day delivery to your address.

    Our delivery options

Related Products

  • Decades of experience

  • Huge range of engineering finishing components

  • Best priced trade discounts

  • Fast next day delivery
