HEAVY DUTY PLATE MOUNTED TWIN WHEEL CASTOR C/W CAST IRON WHEEL 1820-2500KG

Extra heavy duty plate fitting castor with housing manufactured from fabricated steel, black painted.

Find the right option

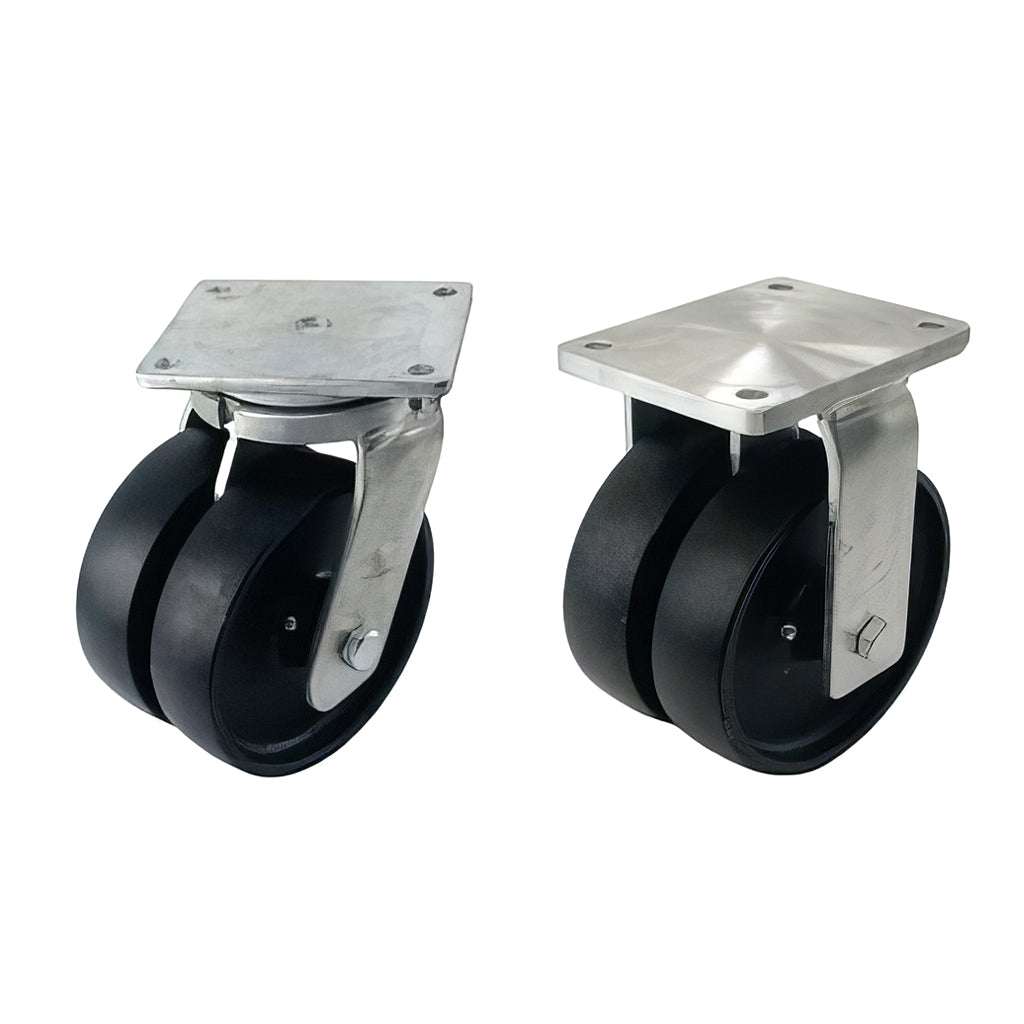

  • Heavy duty plate mounted twin wheel castor with cast iron wheels and sealed swivel head bearings
1 1

Technical guidanceExpert support for the right solution

Samples availableGet the right part before you commit

UK & European sourcingAlternatives beyond the catalogue

Trade enquiries welcomeFrom one-off parts to ongoing supply

Read full product description

Extra heavy duty plate fitting castor with housing manufactured from fabricated steel, black painted.

Thrust ball/tapered roller bearing swivel head fully sealed, with grease nipple.

Wheels of cast iron, ball bearing axles.

FIND THE RIGHT COMPONENT

Available product options.

Search by size, dimensions or specification, select a matching product and add it to your quotation basket.

QUOTE ONLY · NO PAYMENT

Available options

Choose a matching part to review its specifications

12 options
Part numberSize / technical detailOther specificationAction
C150/Q2CIBJ Swivel / 150mm / Cast iron | 2 x 50 | 140 | 212 | 175x140 | 1820 | 140x105 (14) | Ball journal —
C150/Q2FCIBJ Fixed / 150mm / Cast iron | 2 x 50 | 140 | 212 | 175x140 | 1820 | 140x105 (14) | Ball journal —
C150/Q2FCIBJ Fixed / 150mm / Cast iron | 2 x 50 | 175 | 212 | 175x140 | 1820 | 140x105 (14) | Ball journal —
C150/Q2FCIBJ Fixed / 150mm / Cast iron | 2 x 50 | 212 | 212 | 175x140 | 1820 | 140x105 (14) | Ball journal —
C200/Q2CIBJ Swivel / 200mm / Cast iron | 2 x 50 | 175 | 264 | 175x140 | 2000 | 140x105 (14) | Ball journal —
C200/Q2FCIBJ Fixed / 200mm / Cast iron | 2 x 50 | 140 | 264 | 175x140 | 2000 | 140x105 (14) | Ball journal —
C200/Q2FCIBJ Fixed / 200mm / Cast iron | 2 x 50 | 175 | 264 | 175x140 | 2000 | 140x105 (14) | Ball journal —
C200/Q2FCIBJ Fixed / 200mm / Cast iron | 2 x 50 | 212 | 264 | 175x140 | 2000 | 140x105 (14) | Ball journal —
C250/Q2CIBJ Swivel / 250mm / Cast iron | 2 x 50 | 212 | 314 | 175x140 | 2500 | 140x105 (14) | Ball journal —
C250/Q2FCIBJ Fixed / 250mm / Cast iron | 2 x 50 | 140 | 314 | 175x140 | 2500 | 140x105 (14) | Ball journal —
C250/Q2FCIBJ Fixed / 250mm / Cast iron | 2 x 50 | 175 | 314 | 175x140 | 2500 | 140x105 (14) | Ball journal —
C250/Q2FCIBJ Fixed / 250mm / Cast iron | 2 x 50 | 212 | 314 | 175x140 | 2500 | 140x105 (14) | Ball journal —

Select an option to view its full specifications and choose a quantity for your quote.

Your selected product

HEAVY DUTY PLATE MOUNTED TWIN WHEEL CASTOR C/W CAST IRON WHEEL 1820-2500KG
C150/Q2CIBJ

Choose a part number and quantity to request a quotation. No online payment is taken.

How does requesting a quote work?
  1. Find the size and product code you need from table below.
  2. Enter product code and quantities required
  3. Click Add To Quote
  4. Repeat on any other product pages as needed.
  5. Once done, submit your quote to our sales team who will be in touch within 1 hour.

Alternatively feel free to call us now on 01279 656189 for an immediate response!

View full details
01 · START HERE

Check the dimensions. Find your part number.

Use the full specification table below to identify the correct size and part number. Then return to Available product options above to select that exact part and request a quote.

Select your part & request a quote

Full technical specifications compare sizes & part numbers

Find your part in the table below, then select the matching option above to request a quote.

ALL SPECIFICATIONS VISIBLE

Check each column heading for the relevant measurements and product details. ↔ Swipe sideways to see every column.

TECHNICAL DETAILS

Product specifications.

Find part numbers and compare available options
SKU Type Wheel Dia Wheel Type Tread Width Swivel Radius O Height Plate Size Load Cap kg Bolthole Spacing Bearing
C150/Q2CIBJ Swivel 150mm Cast iron 2 x 50 140 212 175x140 1820 140x105 (14) Ball journal
C150/Q2FCIBJ Fixed 150mm Cast iron 2 x 50 140 212 175x140 1820 140x105 (14) Ball journal
C150/Q2FCIBJ Fixed 150mm Cast iron 2 x 50 175 212 175x140 1820 140x105 (14) Ball journal
C150/Q2FCIBJ Fixed 150mm Cast iron 2 x 50 212 212 175x140 1820 140x105 (14) Ball journal
C200/Q2CIBJ Swivel 200mm Cast iron 2 x 50 175 264 175x140 2000 140x105 (14) Ball journal
C200/Q2FCIBJ Fixed 200mm Cast iron 2 x 50 140 264 175x140 2000 140x105 (14) Ball journal
C200/Q2FCIBJ Fixed 200mm Cast iron 2 x 50 175 264 175x140 2000 140x105 (14) Ball journal
C200/Q2FCIBJ Fixed 200mm Cast iron 2 x 50 212 264 175x140 2000 140x105 (14) Ball journal
C250/Q2CIBJ Swivel 250mm Cast iron 2 x 50 212 314 175x140 2500 140x105 (14) Ball journal
C250/Q2FCIBJ Fixed 250mm Cast iron 2 x 50 140 314 175x140 2500 140x105 (14) Ball journal
C250/Q2FCIBJ Fixed 250mm Cast iron 2 x 50 175 314 175x140 2500 140x105 (14) Ball journal
C250/Q2FCIBJ Fixed 250mm Cast iron 2 x 50 212 314 175x140 2500 140x105 (14) Ball journal

Found the correct part number? Select it from the available options above and add it to your quote list.

Choose this part in Available options
