HEAVY DUTY TWIN WHEEL PLATE MOUNTED CASTOR C/W NYLON WHEEL 1500KG

Heavy duty fabricated zinc plated steel frame with double wheel configuration in swivel and fixed patterns.

Find the right option

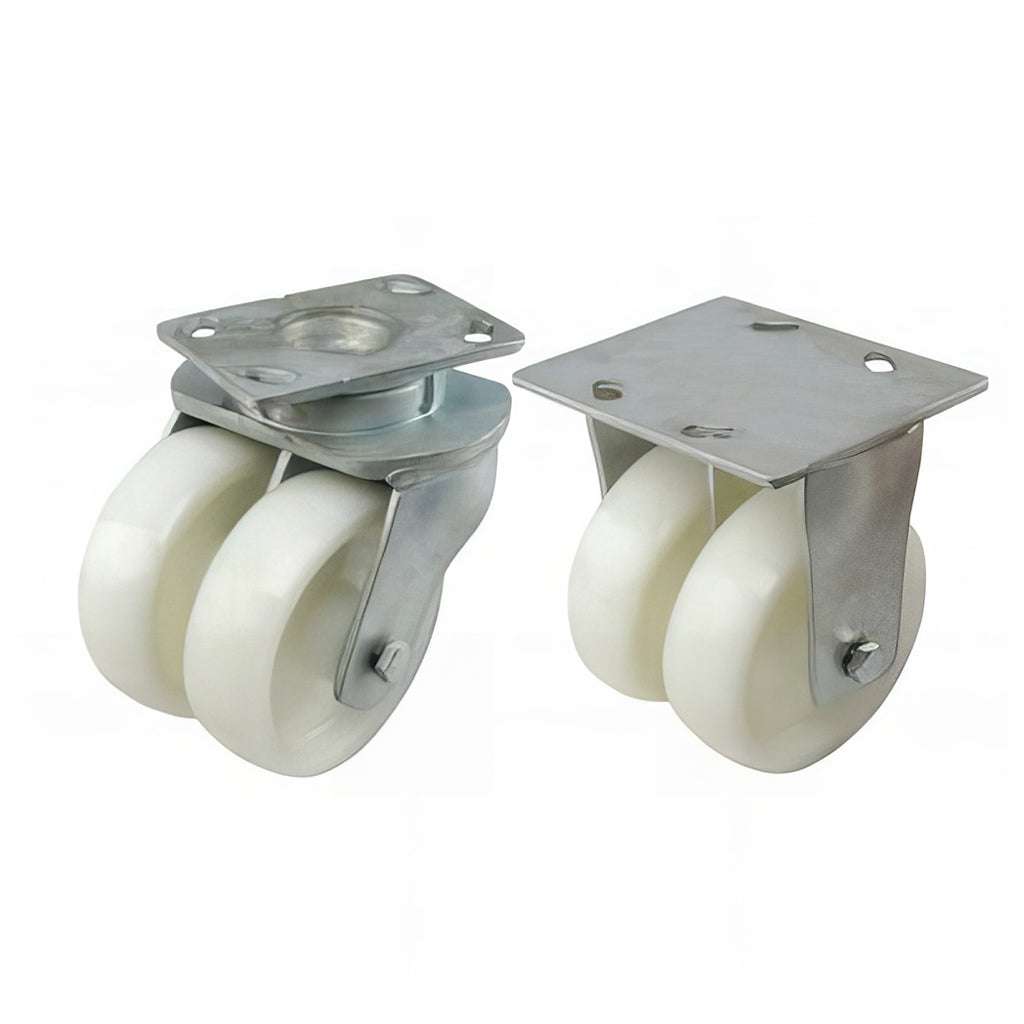

  • Heavy duty twin wheel plate mounted castor with white nylon wheels and zinc plated steel frame, 1500kg capacity
1 1

Technical guidanceExpert support for the right solution

Samples availableGet the right part before you commit

UK & European sourcingAlternatives beyond the catalogue

Trade enquiries welcomeFrom one-off parts to ongoing supply

Read full product description

Heavy duty fabricated zinc plated steel frame with double wheel configuration in swivel and fixed patterns.

Swivel also available with trailing wheel brake.

Sealed swivel head with grease nipple.

White nylon wheel with plain, roller or ball bearing axle.

FIND THE RIGHT COMPONENT

Available product options.

Search by size, dimensions or specification, select a matching product and add it to your quotation basket.

QUOTE ONLY · NO PAYMENT

Available options

Choose a matching part to review its specifications

10 options
Part numberSize / technical detailOther specificationAction
C125/2KFBNY Fixed / 125mm / White Nylon | 45 x 2 | 175 | 175x110 (12) | 1500 | 121/105x80/59 (12) | Roller | 127 —
C125/2KFBNY Fixed / 125mm / White Nylon | 45 x 2 | 175 | 175x110 (12) | 1500 | 121/105x80/59 (12) | Roller | 144 —
C125/2KFBNY Fixed / 125mm / White Nylon | 45 x 2 | 175 | 175x110 (12) | 1500 | 121/105x80/59 (12) | Roller | 167 —
C125/2KFNY Fixed / 125mm / White Nylon | 45 x 2 | 175 | 175x110 (12) | 1500 | 121/105x80/59 (12) | Plain | 127 —
C125/2KFNY Fixed / 125mm / White Nylon | 45 x 2 | 175 | 175x110 (12) | 1500 | 121/105x80/59 (12) | Plain | 144 —
C125/2KFNY Fixed / 125mm / White Nylon | 45 x 2 | 175 | 175x110 (12) | 1500 | 121/105x80/59 (12) | Plain | 167 —
C125/2KNY Swivel / 125mm / White Nylon | 45 x 2 | 175 | 150x110 (12) | 1500 | 121/105x80/59 (12) | Plain | 127 —
C125/2KNYB Swivel / 125mm / White Nylon | 45 x 2 | 175 | 150x110 (12) | 1500 | 121/105x80/59 (12) | Roller | 127 —
C125/2KNYBBR Swivel/wheel brake / 125mm / White Nylon | 45 x 2 | 175 | 150x110 (12) | 1500 | 121/105x80/59 (12) | Roller | 127 —
C125/2KNYBR Swivel/wheel brake / 125mm / White Nylon | 45 x 2 | 175 | 150x110 (12) | 1500 | 121/105x80/59 (12) | Plain | 127 —

Select an option to view its full specifications and choose a quantity for your quote.

Your selected product

HEAVY DUTY TWIN WHEEL PLATE MOUNTED CASTOR C/W NYLON WHEEL 1500KG
C125/2KFBNY

Choose a part number and quantity to request a quotation. No online payment is taken.

How does requesting a quote work?
  1. Find the size and product code you need from table below.
  2. Enter product code and quantities required
  3. Click Add To Quote
  4. Repeat on any other product pages as needed.
  5. Once done, submit your quote to our sales team who will be in touch within 1 hour.

Alternatively feel free to call us now on 01279 656189 for an immediate response!

View full details
01 · START HERE

Check the dimensions. Find your part number.

Use the full specification table below to identify the correct size and part number. Then return to Available product options above to select that exact part and request a quote.

Select your part & request a quote

Full technical specifications compare sizes & part numbers

Find your part in the table below, then select the matching option above to request a quote.

ALL SPECIFICATIONS VISIBLE

Check each column heading for the relevant measurements and product details. ↔ Swipe sideways to see every column.

TECHNICAL DETAILS

Product specifications.

Find part numbers and compare available options
SKU Type Wheel Dia Wheel Type Tread Width O Height Plate Size Load Cap kg Bolthole Spacing Bearing Swivel Radius
C125/2KFBNY Fixed 125mm White Nylon 45 x 2 175 175x110 (12) 1500 121/105x80/59 (12) Roller 127
C125/2KFBNY Fixed 125mm White Nylon 45 x 2 175 175x110 (12) 1500 121/105x80/59 (12) Roller 144
C125/2KFBNY Fixed 125mm White Nylon 45 x 2 175 175x110 (12) 1500 121/105x80/59 (12) Roller 167
C125/2KFNY Fixed 125mm White Nylon 45 x 2 175 175x110 (12) 1500 121/105x80/59 (12) Plain 127
C125/2KFNY Fixed 125mm White Nylon 45 x 2 175 175x110 (12) 1500 121/105x80/59 (12) Plain 144
C125/2KFNY Fixed 125mm White Nylon 45 x 2 175 175x110 (12) 1500 121/105x80/59 (12) Plain 167
C125/2KNY Swivel 125mm White Nylon 45 x 2 175 150x110 (12) 1500 121/105x80/59 (12) Plain 127
C125/2KNYB Swivel 125mm White Nylon 45 x 2 175 150x110 (12) 1500 121/105x80/59 (12) Roller 127
C125/2KNYBBR Swivel/wheel brake 125mm White Nylon 45 x 2 175 150x110 (12) 1500 121/105x80/59 (12) Roller 127
C125/2KNYBR Swivel/wheel brake 125mm White Nylon 45 x 2 175 150x110 (12) 1500 121/105x80/59 (12) Plain 127

Found the correct part number? Select it from the available options above and add it to your quote list.

Choose this part in Available options
