Castors wheels

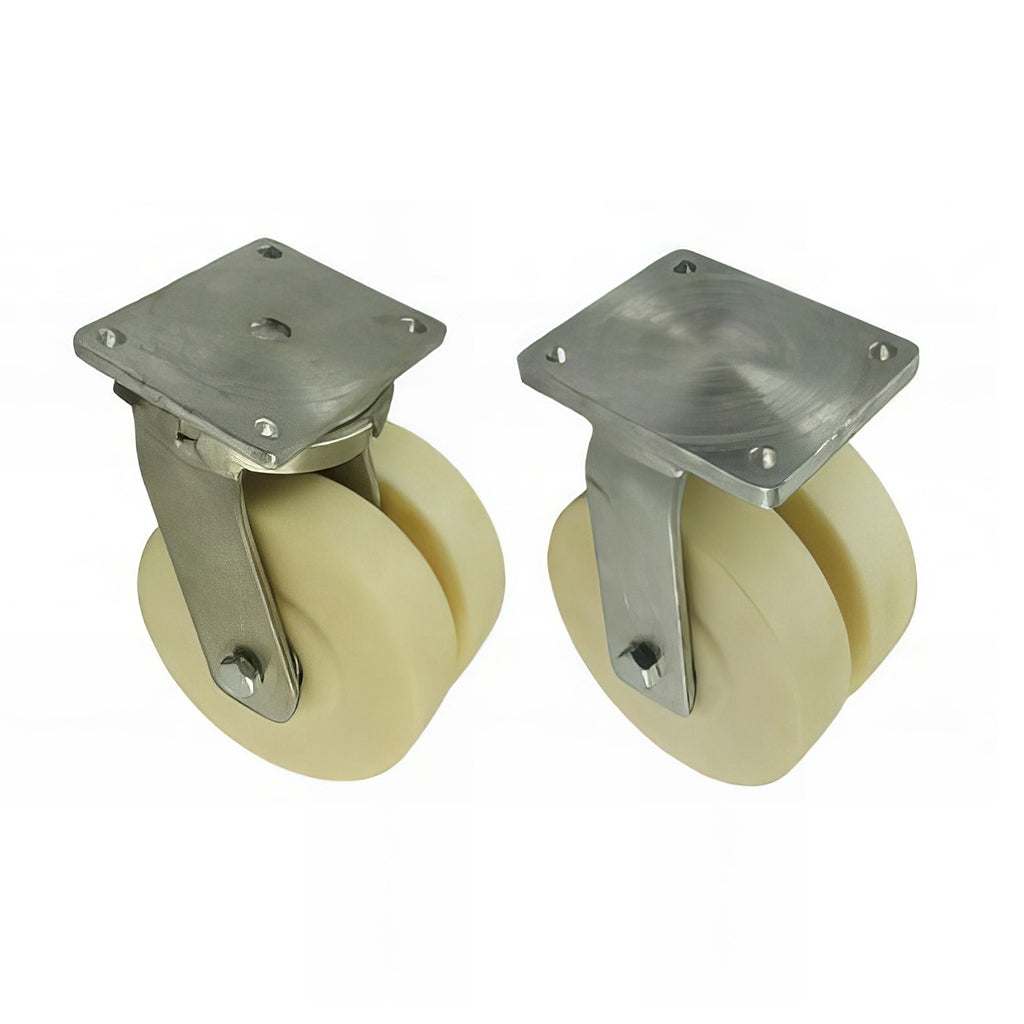

HEAVY DUTY PLATE MOUNTED TWIN WHEEL CASTOR C/W NYLON WHEEL 3000KG

Extra heavy duty plate fitting castor with housing manufactured from fabricated steel, bright zinc plated.

Find the right option
  • Heavy duty plate mounted twin wheel castor with nylon wheels and zinc plated steel housing, 3000kg capacity
1 1

Technical guidanceExpert support for the right solution

Samples availableGet the right part before you commit

UK & European sourcingAlternatives beyond the catalogue

Trade enquiries welcomeFrom one-off parts to ongoing supply

Read full product description

Extra heavy duty plate fitting castor with housing manufactured from fabricated steel, bright zinc plated.

Thrust ball/tapered roller bearing swivel head fully sealed, with grease nipple.

Wheels of super heavy duty cast white nylon, ball bearing axles.

FIND THE RIGHT COMPONENT

Available product options.

Search by size, dimensions or specification, select a matching product and add it to your quotation basket.

QUOTE ONLY · NO PAYMENT

Available options

Choose a matching part to review its specifications

12 options
Part numberSize / technical detailOther specificationAction
C150/Q2FNYBJHD Fixed / 150mm / White nylon - heavy duty | 2 x 45 | 212 | 175x140 | 3000 | 140x105 (14) | Ball journal | 140 —
C150/Q2FNYBJHD Fixed / 150mm / White nylon - heavy duty | 2 x 45 | 212 | 175x140 | 3000 | 140x105 (14) | Ball journal | 175 —
C150/Q2FNYBJHD Fixed / 150mm / White nylon - heavy duty | 2 x 45 | 212 | 175x140 | 3000 | 140x105 (14) | Ball journal | 212 —
C150/Q2NYBJHD Swivel / 150mm / White nylon - heavy duty | 2 x 45 | 212 | 175x140 | 3000 | 140x105 (14) | Ball journal | 140 —
C200/Q2FNYBJHD Fixed / 200mm / White nylon - heavy duty | 2 x 50 | 264 | 175x140 | 3000 | 140x105 (14) | Ball journal | 140 —
C200/Q2FNYBJHD Fixed / 200mm / White nylon - heavy duty | 2 x 50 | 264 | 175x140 | 3000 | 140x105 (14) | Ball journal | 175 —
C200/Q2FNYBJHD Fixed / 200mm / White nylon - heavy duty | 2 x 50 | 264 | 175x140 | 3000 | 140x105 (14) | Ball journal | 212 —
C200/Q2NYBJHD Swivel / 200mm / White nylon - heavy duty | 2 x 50 | 264 | 175x140 | 3000 | 140x105 (14) | Ball journal | 175 —
C250/Q2FNYBJHD Fixed / 250mm / White nylon - heavy duty | 2 x 50 | 314 | 175x140 | 3000 | 140x105 (14) | Ball journal | 140 —
C250/Q2FNYBJHD Fixed / 250mm / White nylon - heavy duty | 2 x 50 | 314 | 175x140 | 3000 | 140x105 (14) | Ball journal | 175 —
C250/Q2FNYBJHD Fixed / 250mm / White nylon - heavy duty | 2 x 50 | 314 | 175x140 | 3000 | 140x105 (14) | Ball journal | 212 —
C250/Q2NYBJHD Swivel / 250mm / White nylon - heavy duty | 2 x 50 | 314 | 175x140 | 3000 | 140x105 (14) | Ball journal | 212 —

Select an option to view its full specifications and choose a quantity for your quote.

Your selected product

HEAVY DUTY PLATE MOUNTED TWIN WHEEL CASTOR C/W NYLON WHEEL 3000KG
C150/Q2FNYBJHD

Choose a part number and quantity to request a quotation. No online payment is taken.

How does requesting a quote work?
  1. Find the size and product code you need from table below.
  2. Enter product code and quantities required
  3. Click Add To Quote
  4. Repeat on any other product pages as needed.
  5. Once done, submit your quote to our sales team who will be in touch within 1 hour.

Alternatively feel free to call us now on 01279 656189 for an immediate response!

View full details
01 · START HERE

Check the dimensions. Find your part number.

Use the full specification table below to identify the correct size and part number. Then return to Available product options above to select that exact part and request a quote.

Select your part & request a quote

Full technical specifications compare sizes & part numbers

Find your part in the table below, then select the matching option above to request a quote.

ALL SPECIFICATIONS VISIBLE

Check each column heading for the relevant measurements and product details. ↔ Swipe sideways to see every column.

TECHNICAL DETAILS

Product specifications.

Find part numbers and compare available options
SKU Type Wheel Dia Wheel Type Tread Width O Height Plate Size Load Cap kg Bolthole Spacing Bearing Swivel Radius
C150/Q2FNYBJHD Fixed 150mm White nylon - heavy duty 2 x 45 212 175x140 3000 140x105 (14) Ball journal 140
C150/Q2FNYBJHD Fixed 150mm White nylon - heavy duty 2 x 45 212 175x140 3000 140x105 (14) Ball journal 175
C150/Q2FNYBJHD Fixed 150mm White nylon - heavy duty 2 x 45 212 175x140 3000 140x105 (14) Ball journal 212
C150/Q2NYBJHD Swivel 150mm White nylon - heavy duty 2 x 45 212 175x140 3000 140x105 (14) Ball journal 140
C200/Q2FNYBJHD Fixed 200mm White nylon - heavy duty 2 x 50 264 175x140 3000 140x105 (14) Ball journal 140
C200/Q2FNYBJHD Fixed 200mm White nylon - heavy duty 2 x 50 264 175x140 3000 140x105 (14) Ball journal 175
C200/Q2FNYBJHD Fixed 200mm White nylon - heavy duty 2 x 50 264 175x140 3000 140x105 (14) Ball journal 212
C200/Q2NYBJHD Swivel 200mm White nylon - heavy duty 2 x 50 264 175x140 3000 140x105 (14) Ball journal 175
C250/Q2FNYBJHD Fixed 250mm White nylon - heavy duty 2 x 50 314 175x140 3000 140x105 (14) Ball journal 140
C250/Q2FNYBJHD Fixed 250mm White nylon - heavy duty 2 x 50 314 175x140 3000 140x105 (14) Ball journal 175
C250/Q2FNYBJHD Fixed 250mm White nylon - heavy duty 2 x 50 314 175x140 3000 140x105 (14) Ball journal 212
C250/Q2NYBJHD Swivel 250mm White nylon - heavy duty 2 x 50 314 175x140 3000 140x105 (14) Ball journal 212

Found the correct part number? Select it from the available options above and add it to your quote list.

Choose this part in Available options
