Castors wheels

HEAVY DUTY TWIN WHEEL PLATE MOUNTED CASTOR C/W NYLON WHEEL 1600-2400KG

Extra heavy duty plate fitting castor with housing manufactured from fabricated steel, bright zinc plated.

Find the right option

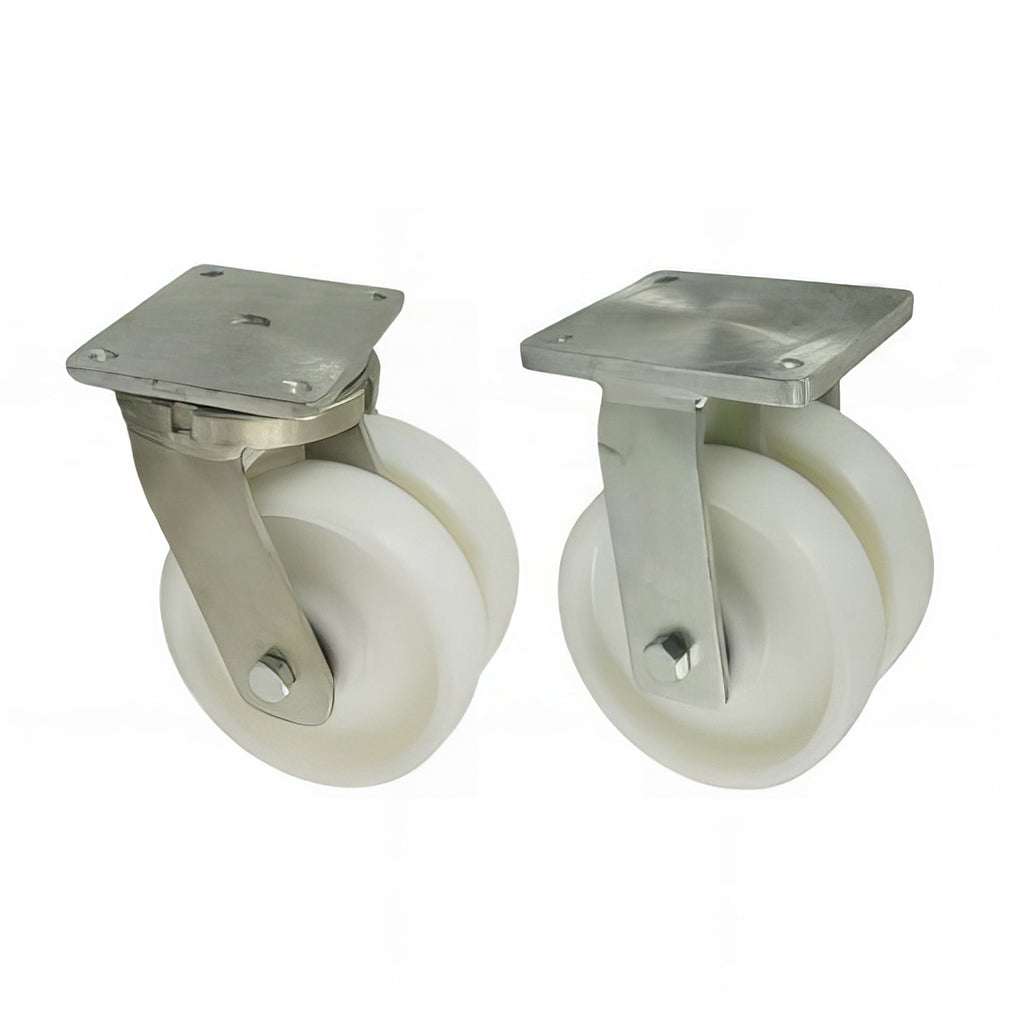

  • Heavy duty twin wheel plate mounted castor with nylon wheels and zinc plated steel housing
1 1

Technical guidanceExpert support for the right solution

Samples availableGet the right part before you commit

UK & European sourcingAlternatives beyond the catalogue

Trade enquiries welcomeFrom one-off parts to ongoing supply

Read full product description

Extra heavy duty plate fitting castor with housing manufactured from fabricated steel, bright zinc plated.

Thrust ball/tapered roller bearing swivel head fully sealed, with grease nipple.

Wheels of white nylon, ball bearing axles.

FIND THE RIGHT COMPONENT

Available product options.

Search by size, dimensions or specification, select a matching product and add it to your quotation basket.

QUOTE ONLY · NO PAYMENT

Available options

Choose a matching part to review its specifications

12 options
Part numberSize / technical detailOther specificationAction
C150/Q2NYBJ Swivel / 150mm / White Nylon | 2 x 45 | 140 | 212 | 175x140 | 1600 | 140x105 (14) | Ball journal —
C150/Q2FNYBJ Fixed / 150mm / White Nylon | 2 x 45 | 140 | 212 | 175x140 | 1600 | 140x105 (14) | Ball journal —
C150/Q2FNYBJ Fixed / 150mm / White Nylon | 2 x 45 | 175 | 212 | 175x140 | 1600 | 140x105 (14) | Ball journal —
C150/Q2FNYBJ Fixed / 150mm / White Nylon | 2 x 45 | 212 | 212 | 175x140 | 1600 | 140x105 (14) | Ball journal —
C200/Q2NYBJ Swivel / 200mm / White Nylon | 2 x 50 | 175 | 264 | 175x140 | 2000 | 140x105 (14) | Ball journal —
C200/Q2FNYBJ Fixed / 200mm / White Nylon | 2 x 50 | 140 | 264 | 175x140 | 2000 | 140x105 (14) | Ball journal —
C200/Q2FNYBJ Fixed / 200mm / White Nylon | 2 x 50 | 175 | 264 | 175x140 | 2000 | 140x105 (14) | Ball journal —
C200/Q2FNYBJ Fixed / 200mm / White Nylon | 2 x 50 | 212 | 264 | 175x140 | 2000 | 140x105 (14) | Ball journal —
C250/Q2NYBJ Swivel / 250mm / White Nylon | 2 x 50 | 212 | 314 | 175x140 | 2400 | 140x105 (14) | Ball journal —
C250/Q2FNYBJ Fixed / 250mm / White Nylon | 2 x 50 | 140 | 314 | 175x140 | 2400 | 140x105 (14) | Ball journal —
C250/Q2FNYBJ Fixed / 250mm / White Nylon | 2 x 50 | 175 | 314 | 175x140 | 2400 | 140x105 (14) | Ball journal —
C250/Q2FNYBJ Fixed / 250mm / White Nylon | 2 x 50 | 212 | 314 | 175x140 | 2400 | 140x105 (14) | Ball journal —

Select an option to view its full specifications and choose a quantity for your quote.

Your selected product

HEAVY DUTY TWIN WHEEL PLATE MOUNTED CASTOR C/W NYLON WHEEL 1600-2400KG
C150/Q2NYBJ

Choose a part number and quantity to request a quotation. No online payment is taken.

How does requesting a quote work?
  1. Find the size and product code you need from table below.
  2. Enter product code and quantities required
  3. Click Add To Quote
  4. Repeat on any other product pages as needed.
  5. Once done, submit your quote to our sales team who will be in touch within 1 hour.

Alternatively feel free to call us now on 01279 656189 for an immediate response!

View full details
01 · START HERE

Check the dimensions. Find your part number.

Use the full specification table below to identify the correct size and part number. Then return to Available product options above to select that exact part and request a quote.

Select your part & request a quote

Full technical specifications compare sizes & part numbers

Find your part in the table below, then select the matching option above to request a quote.

ALL SPECIFICATIONS VISIBLE

Check each column heading for the relevant measurements and product details. ↔ Swipe sideways to see every column.

TECHNICAL DETAILS

Product specifications.

Find part numbers and compare available options
SKU Type Wheel Dia Wheel Type Tread Width Swivel Radius O Height Plate Size Load Cap kg Bolthole Spacing Bearing
C150/Q2NYBJ Swivel 150mm White Nylon 2 x 45 140 212 175x140 1600 140x105 (14) Ball journal
C150/Q2FNYBJ Fixed 150mm White Nylon 2 x 45 140 212 175x140 1600 140x105 (14) Ball journal
C150/Q2FNYBJ Fixed 150mm White Nylon 2 x 45 175 212 175x140 1600 140x105 (14) Ball journal
C150/Q2FNYBJ Fixed 150mm White Nylon 2 x 45 212 212 175x140 1600 140x105 (14) Ball journal
C200/Q2NYBJ Swivel 200mm White Nylon 2 x 50 175 264 175x140 2000 140x105 (14) Ball journal
C200/Q2FNYBJ Fixed 200mm White Nylon 2 x 50 140 264 175x140 2000 140x105 (14) Ball journal
C200/Q2FNYBJ Fixed 200mm White Nylon 2 x 50 175 264 175x140 2000 140x105 (14) Ball journal
C200/Q2FNYBJ Fixed 200mm White Nylon 2 x 50 212 264 175x140 2000 140x105 (14) Ball journal
C250/Q2NYBJ Swivel 250mm White Nylon 2 x 50 212 314 175x140 2400 140x105 (14) Ball journal
C250/Q2FNYBJ Fixed 250mm White Nylon 2 x 50 140 314 175x140 2400 140x105 (14) Ball journal
C250/Q2FNYBJ Fixed 250mm White Nylon 2 x 50 175 314 175x140 2400 140x105 (14) Ball journal
C250/Q2FNYBJ Fixed 250mm White Nylon 2 x 50 212 314 175x140 2400 140x105 (14) Ball journal

Found the correct part number? Select it from the available options above and add it to your quote list.
