Castors wheels

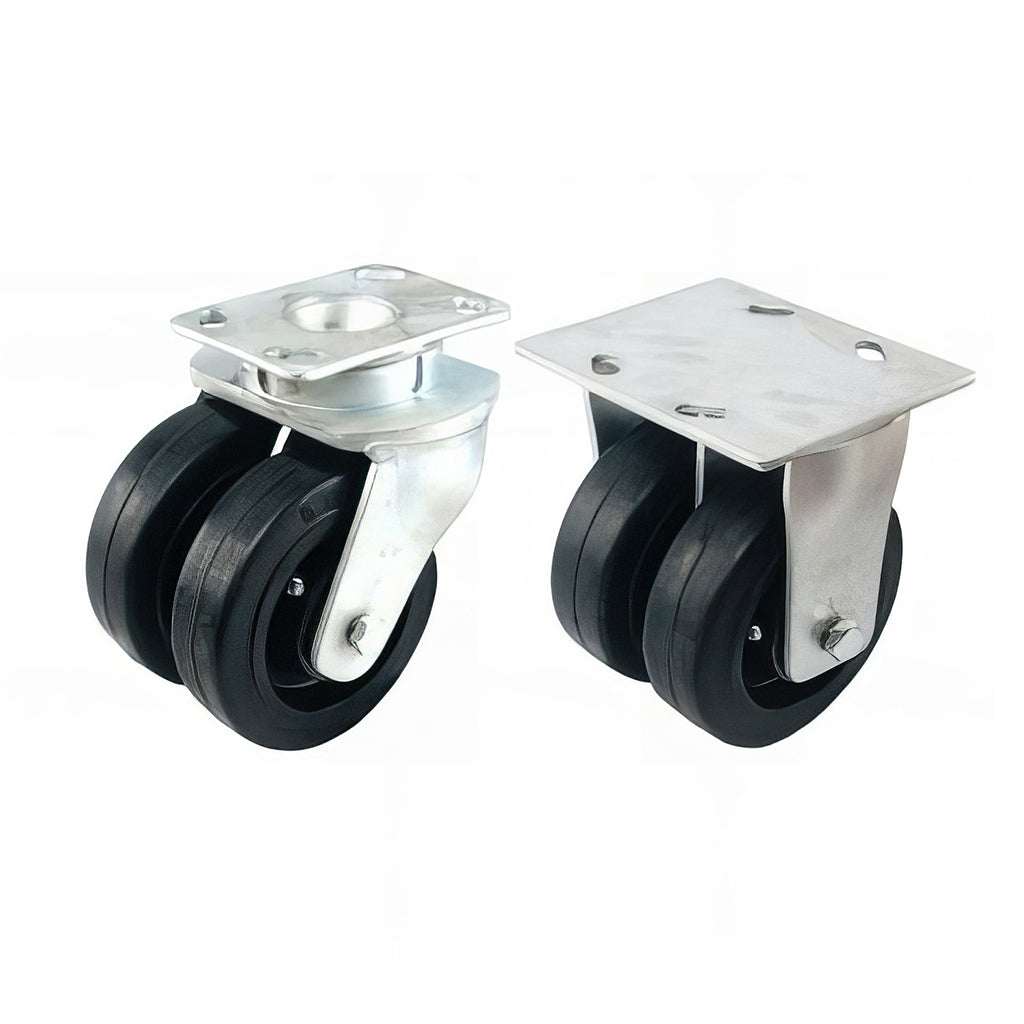

HEAVY DUTY PLATE MOUNTED TWIN WHEEL CASTOR C/W BLACK RUBBER TYRE/CAST IRON WHEEL 360-1200KG

Heavy duty fabricated black painted steel frame with double wheel configuration in swivel and fixed patterns.

Find the right option
  • Heavy duty plate mounted twin wheel castor with black rubber tyre and cast iron wheel, swivel and fixed options, 360-1200kg capacity
1 1

Technical guidanceExpert support for the right solution

Samples availableGet the right part before you commit

UK & European sourcingAlternatives beyond the catalogue

Trade enquiries welcomeFrom one-off parts to ongoing supply

Read full product description

Heavy duty fabricated black painted steel frame with double wheel configuration in swivel and fixed patterns.

Swivel also available with trailing wheel brake.

Sealed swivel head with grease nipple.

Black rubber tyre/cast iron wheel with ball bearing axle.

FIND THE RIGHT COMPONENT

Available product options.

Search by size, dimensions or specification, select a matching product and add it to your quotation basket.

QUOTE ONLY · NO PAYMENT

Available options

Choose a matching part to review its specifications

35 options
Part numberSize / technical detailOther specificationAction
C125/2KCRBJ Swivel / 125mm / Black rubber/cast iron | 38 x 2 | 127 | 175 | 150x110 (12) | 360 | 121/105x80/59 (12) | Ball journal —
C125/2KCRJBBR Swivel/wheel brake / 125mm / Black rubber/cast iron | 38 x 2 | 127 | 175 | 150x110 (12) | 360 | 121/105x80/59 (12) | Ball journal —
C125/2KFCRBJ Fixed / 125mm / Black rubber/cast iron | 38 x 2 | 127 | 175 | 175x110 (12) | 360 | 121/105x80/59 (12) | Ball journal —
C125/2KFCRBJ Fixed / 125mm / Black rubber/cast iron | 38 x 2 | 144 | 175 | 175x110 (12) | 360 | 121/105x80/59 (12) | Ball journal —
C125/2KFCRBJ Fixed / 125mm / Black rubber/cast iron | 38 x 2 | 167 | 175 | 175x110 (12) | 360 | 121/105x80/59 (12) | Ball journal —
C150/2KCR Swivel / 150mm / Black rubber/cast iron | 50 x 2 | 144 | 200 | 150x110 (12) | 700 | 121/105x80/59 (12) | Plain —
C150/2KCRB Swivel / 150mm / Black rubber/cast iron | 50 x 2 | 144 | 200 | 150x110 (12) | 700 | 121/105x80/59 (12) | Roller —
C150/2KCRBBR Swivel/wheel brake / 150mm / Black rubber/cast iron | 50 x 2 | 144 | 200 | 150x110 (12) | 700 | 121/105x80/59 (12) | Roller —
C150/2KCRBJ Swivel / 150mm / Black rubber/cast iron | 50 x 2 | 144 | 200 | 150x110 (12) | 700 | 121/105x80/59 (12) | Ball journal —
C150/2KCRBR Swivel/wheel brake / 150mm / Black rubber/cast iron | 50 x 2 | 144 | 200 | 150x110 (12) | 700 | 121/105x80/59 (12) | Plain —
C150/2KCRJBBR Swivel/wheel brake / 150mm / Black rubber/cast iron | 50 x 2 | 144 | 200 | 150x110 (12) | 700 | 121/105x80/59 (12) | Ball journal —
C150/2KFBCR Fixed / 150mm / Black rubber/cast iron | 50 x 2 | 127 | 200 | 175x110 (12) | 700 | 121/105x80/59 (12) | Roller —
C150/2KFBCR Fixed / 150mm / Black rubber/cast iron | 50 x 2 | 144 | 200 | 175x110 (12) | 700 | 121/105x80/59 (12) | Roller —
C150/2KFBCR Fixed / 150mm / Black rubber/cast iron | 50 x 2 | 167 | 200 | 175x110 (12) | 700 | 121/105x80/59 (12) | Roller —
C150/2KFCR Fixed / 150mm / Black rubber/cast iron | 50 x 2 | 127 | 200 | 175x110 (12) | 700 | 121/105x80/59 (12) | Plain —
C150/2KFCR Fixed / 150mm / Black rubber/cast iron | 50 x 2 | 144 | 200 | 175x110 (12) | 700 | 121/105x80/59 (12) | Plain —
C150/2KFCR Fixed / 150mm / Black rubber/cast iron | 50 x 2 | 167 | 200 | 175x110 (12) | 700 | 121/105x80/59 (12) | Plain —
C150/2KFCRBJ Fixed / 150mm / Black rubber/cast iron | 50 x 2 | 127 | 200 | 175x110 (12) | 700 | 121/105x80/59 (12) | Ball journal —
C150/2KFCRBJ Fixed / 150mm / Black rubber/cast iron | 50 x 2 | 144 | 200 | 175x110 (12) | 700 | 121/105x80/59 (12) | Ball journal —
C150/2KFCRBJ Fixed / 150mm / Black rubber/cast iron | 50 x 2 | 167 | 200 | 175x110 (12) | 700 | 121/105x80/59 (12) | Ball journal —
C200/2KCR Swivel / 200mm / Black rubber/cast iron | 60 x 2 | 167 | 250 | 150x110 (12) | 700 | 121/105x80/59 (12) | Plain —
C200/2KCRB Swivel / 200mm / Black rubber/cast iron | 60 x 2 | 167 | 250 | 150x110 (12) | 1200 | 121/105x80/59 (12) | Roller —
C200/2KCRBBR Swivel/wheel brake / 200mm / Black rubber/cast iron | 60 x 2 | 167 | 250 | 150x110 (12) | 1200 | 121/105x80/59 (12) | Roller —
C200/2KCRBJ Swivel / 200mm / Black rubber/cast iron | 60 x 2 | 167 | 250 | 150x110 (12) | 1200 | 121/105x80/59 (12) | Ball journal —
C200/2KCRBR Swivel/wheel brake / 200mm / Black rubber/cast iron | 60 x 2 | 167 | 250 | 150x110 (12) | 1200 | 121/105x80/59 (12) | Plain —
C200/2KCRJBBR Swivel/wheel brake / 200mm / Black rubber/cast iron | 60 x 2 | 167 | 250 | 150x110 (12) | 1200 | 121/105x80/59 (12) | Ball journal —
C200/2KFBCR Fixed / 200mm / Black rubber/cast iron | 60 x 2 | 127 | 250 | 175x110 (12) | 1200 | 121/105x80/59 (12) | Roller —
C200/2KFBCR Fixed / 200mm / Black rubber/cast iron | 60 x 2 | 144 | 250 | 175x110 (12) | 1200 | 121/105x80/59 (12) | Roller —
C200/2KFBCR Fixed / 200mm / Black rubber/cast iron | 60 x 2 | 167 | 250 | 175x110 (12) | 1200 | 121/105x80/59 (12) | Roller —
C200/2KFCR Fixed / 200mm / Black rubber/cast iron | 60 x 2 | 127 | 250 | 175x110 (12) | 1200 | 121/105x80/59 (12) | Plain —
C200/2KFCR Fixed / 200mm / Black rubber/cast iron | 60 x 2 | 144 | 250 | 175x110 (12) | 1200 | 121/105x80/59 (12) | Plain —
C200/2KFCR Fixed / 200mm / Black rubber/cast iron | 60 x 2 | 167 | 250 | 175x110 (12) | 1200 | 121/105x80/59 (12) | Plain —
C200/2KFCRBJ Fixed / 200mm / Black rubber/cast iron | 60 x 2 | 127 | 250 | 175x110 (12) | 1200 | 121/105x80/59 (12) | Ball journal —
C200/2KFCRBJ Fixed / 200mm / Black rubber/cast iron | 60 x 2 | 144 | 250 | 175x110 (12) | 1200 | 121/105x80/59 (12) | Ball journal —
C200/2KFCRBJ Fixed / 200mm / Black rubber/cast iron | 60 x 2 | 167 | 250 | 175x110 (12) | 1200 | 121/105x80/59 (12) | Ball journal —

Select an option to view its full specifications and choose a quantity for your quote.

Your selected product

HEAVY DUTY PLATE MOUNTED TWIN WHEEL CASTOR C/W BLACK RUBBER TYRE/CAST IRON WHEEL 360-1200KG
C125/2KCRBJ

Choose a part number and quantity to request a quotation. No online payment is taken.

How does requesting a quote work?
  1. Find the size and product code you need from table below.
  2. Enter product code and quantities required
  3. Click Add To Quote
  4. Repeat on any other product pages as needed.
  5. Once done, submit your quote to our sales team who will be in touch within 1 hour.

Alternatively feel free to call us now on 01279 656189 for an immediate response!

View full details
01 · START HERE

Check the dimensions. Find your part number.

Use the full specification table below to identify the correct size and part number. Then return to Available product options above to select that exact part and request a quote.

Select your part & request a quote

Full technical specifications compare sizes & part numbers

Find your part in the table below, then select the matching option above to request a quote.

ALL SPECIFICATIONS VISIBLE

Check each column heading for the relevant measurements and product details. ↔ Swipe sideways to see every column.

TECHNICAL DETAILS

Product specifications.

Find part numbers and compare available options
SKU Type Wheel Dia Wheel Type Tread Width Swivel Radius O Height Plate Size Load Cap kg Bolthole Spacing Bearing
C125/2KCRBJ Swivel 125mm Black rubber/cast iron 38 x 2 127 175 150x110 (12) 360 121/105x80/59 (12) Ball journal
C125/2KCRJBBR Swivel/wheel brake 125mm Black rubber/cast iron 38 x 2 127 175 150x110 (12) 360 121/105x80/59 (12) Ball journal
C125/2KFCRBJ Fixed 125mm Black rubber/cast iron 38 x 2 127 175 175x110 (12) 360 121/105x80/59 (12) Ball journal
C125/2KFCRBJ Fixed 125mm Black rubber/cast iron 38 x 2 144 175 175x110 (12) 360 121/105x80/59 (12) Ball journal
C125/2KFCRBJ Fixed 125mm Black rubber/cast iron 38 x 2 167 175 175x110 (12) 360 121/105x80/59 (12) Ball journal
C150/2KCR Swivel 150mm Black rubber/cast iron 50 x 2 144 200 150x110 (12) 700 121/105x80/59 (12) Plain
C150/2KCRB Swivel 150mm Black rubber/cast iron 50 x 2 144 200 150x110 (12) 700 121/105x80/59 (12) Roller
C150/2KCRBBR Swivel/wheel brake 150mm Black rubber/cast iron 50 x 2 144 200 150x110 (12) 700 121/105x80/59 (12) Roller
C150/2KCRBJ Swivel 150mm Black rubber/cast iron 50 x 2 144 200 150x110 (12) 700 121/105x80/59 (12) Ball journal
C150/2KCRBR Swivel/wheel brake 150mm Black rubber/cast iron 50 x 2 144 200 150x110 (12) 700 121/105x80/59 (12) Plain
C150/2KCRJBBR Swivel/wheel brake 150mm Black rubber/cast iron 50 x 2 144 200 150x110 (12) 700 121/105x80/59 (12) Ball journal
C150/2KFBCR Fixed 150mm Black rubber/cast iron 50 x 2 127 200 175x110 (12) 700 121/105x80/59 (12) Roller
C150/2KFBCR Fixed 150mm Black rubber/cast iron 50 x 2 144 200 175x110 (12) 700 121/105x80/59 (12) Roller
C150/2KFBCR Fixed 150mm Black rubber/cast iron 50 x 2 167 200 175x110 (12) 700 121/105x80/59 (12) Roller
C150/2KFCR Fixed 150mm Black rubber/cast iron 50 x 2 127 200 175x110 (12) 700 121/105x80/59 (12) Plain
C150/2KFCR Fixed 150mm Black rubber/cast iron 50 x 2 144 200 175x110 (12) 700 121/105x80/59 (12) Plain
C150/2KFCR Fixed 150mm Black rubber/cast iron 50 x 2 167 200 175x110 (12) 700 121/105x80/59 (12) Plain
C150/2KFCRBJ Fixed 150mm Black rubber/cast iron 50 x 2 127 200 175x110 (12) 700 121/105x80/59 (12) Ball journal
C150/2KFCRBJ Fixed 150mm Black rubber/cast iron 50 x 2 144 200 175x110 (12) 700 121/105x80/59 (12) Ball journal
C150/2KFCRBJ Fixed 150mm Black rubber/cast iron 50 x 2 167 200 175x110 (12) 700 121/105x80/59 (12) Ball journal
C200/2KCR Swivel 200mm Black rubber/cast iron 60 x 2 167 250 150x110 (12) 700 121/105x80/59 (12) Plain
C200/2KCRB Swivel 200mm Black rubber/cast iron 60 x 2 167 250 150x110 (12) 1200 121/105x80/59 (12) Roller
C200/2KCRBBR Swivel/wheel brake 200mm Black rubber/cast iron 60 x 2 167 250 150x110 (12) 1200 121/105x80/59 (12) Roller
C200/2KCRBJ Swivel 200mm Black rubber/cast iron 60 x 2 167 250 150x110 (12) 1200 121/105x80/59 (12) Ball journal
C200/2KCRBR Swivel/wheel brake 200mm Black rubber/cast iron 60 x 2 167 250 150x110 (12) 1200 121/105x80/59 (12) Plain
C200/2KCRJBBR Swivel/wheel brake 200mm Black rubber/cast iron 60 x 2 167 250 150x110 (12) 1200 121/105x80/59 (12) Ball journal
C200/2KFBCR Fixed 200mm Black rubber/cast iron 60 x 2 127 250 175x110 (12) 1200 121/105x80/59 (12) Roller
C200/2KFBCR Fixed 200mm Black rubber/cast iron 60 x 2 144 250 175x110 (12) 1200 121/105x80/59 (12) Roller
C200/2KFBCR Fixed 200mm Black rubber/cast iron 60 x 2 167 250 175x110 (12) 1200 121/105x80/59 (12) Roller
C200/2KFCR Fixed 200mm Black rubber/cast iron 60 x 2 127 250 175x110 (12) 1200 121/105x80/59 (12) Plain
C200/2KFCR Fixed 200mm Black rubber/cast iron 60 x 2 144 250 175x110 (12) 1200 121/105x80/59 (12) Plain
C200/2KFCR Fixed 200mm Black rubber/cast iron 60 x 2 167 250 175x110 (12) 1200 121/105x80/59 (12) Plain
C200/2KFCRBJ Fixed 200mm Black rubber/cast iron 60 x 2 127 250 175x110 (12) 1200 121/105x80/59 (12) Ball journal
C200/2KFCRBJ Fixed 200mm Black rubber/cast iron 60 x 2 144 250 175x110 (12) 1200 121/105x80/59 (12) Ball journal
C200/2KFCRBJ Fixed 200mm Black rubber/cast iron 60 x 2 167 250 175x110 (12) 1200 121/105x80/59 (12) Ball journal

Found the correct part number? Select it from the available options above and add it to your quote list.

Choose this part in Available options
CAN'T FIND THE RIGHT COMPONENT?

Challenge Indifit.

Send us a part number, drawing or specification and our team will help you find the right solution. More than a supplier — an extension of your team.
