DIE CAST BLACK HINGE

Die cast zinc hinge leafs, a 316 stainless steel pin and a tough black powder coated finish ensure our hinges are suitable for a wide range of demanding hinge applications.

Find the right option

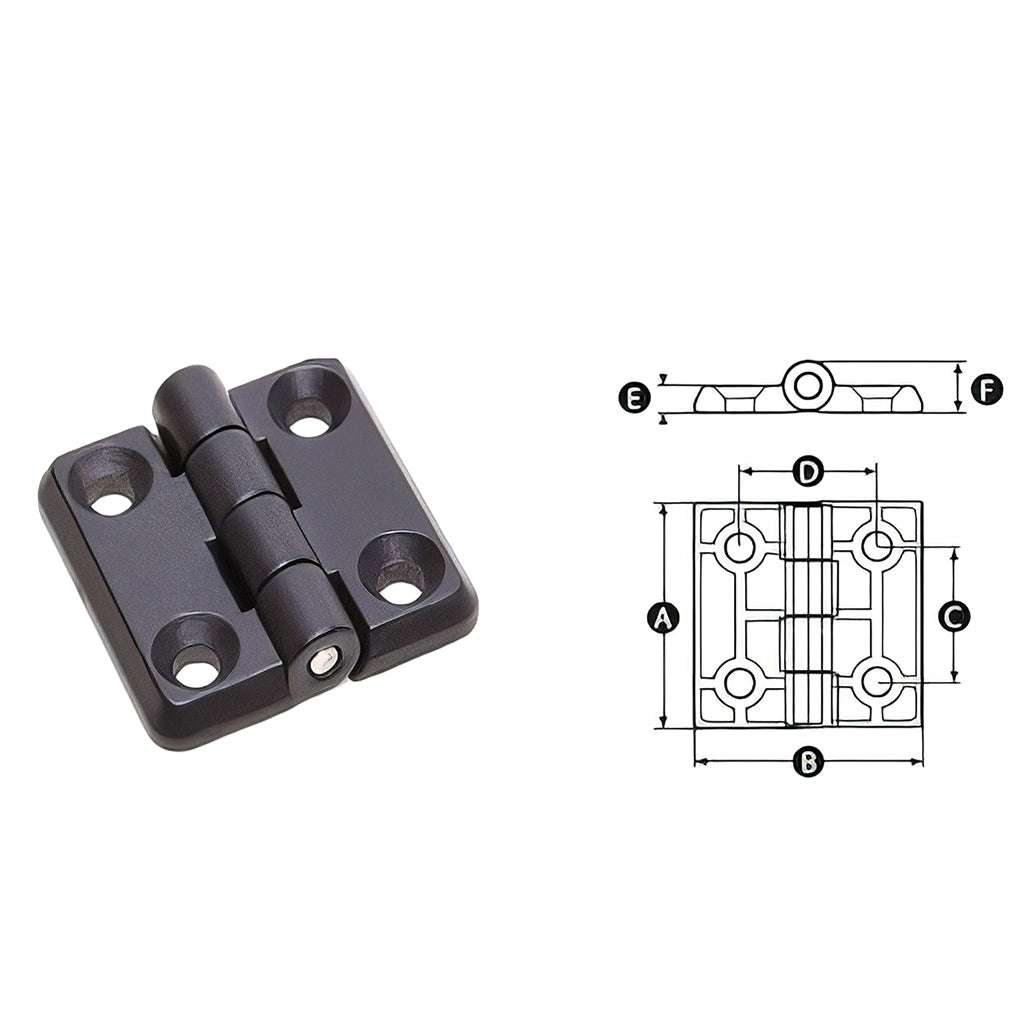

  • Die cast black hinge with zinc leafs, stainless steel pin, and powder coated finish for doors and panels on aluminium profiles
1 1

Technical guidanceExpert support for the right solution

Samples availableGet the right part before you commit

UK & European sourcingAlternatives beyond the catalogue

Trade enquiries welcomeFrom one-off parts to ongoing supply

Read full product description

Die cast zinc hinge leafs, a 316 stainless steel pin and a tough black powder coated finish ensure our hinges are suitable for a wide range of demanding hinge applications.

These are strong, durable and have an attractive, compact appearance. The distance between mounting holes makes them particularly suited to attaching doors and panels on 25mm and 30mm aluminium profile extrusions.

FIND THE RIGHT COMPONENT

Available product options.

Search by size, dimensions or specification, select a matching product and add it to your quotation basket.

QUOTE ONLY · NO PAYMENT

Available options

Choose a matching part to review its specifications

2 options
Part numberSize / technical detailOther specificationAction
EHW56751 Die-cast / 40 / 40 | 25 | 25 | 5 | 10 | Black | 5.2 —
EHQ05751 Die-cast / 50 / 50 | 30 | 30 | 6 | 12 | Black | 6.4 —

Select an option to view its full specifications and choose a quantity for your quote.

Your selected product

DIE CAST BLACK HINGE
EHW56751

Choose a part number and quantity to request a quotation. No online payment is taken.

How does requesting a quote work?
  1. Find the size and product code you need from table below.
  2. Enter product code and quantities required
  3. Click Add To Quote
  4. Repeat on any other product pages as needed.
  5. Once done, submit your quote to our sales team who will be in touch within 1 hour.

Alternatively feel free to call us now on 01279 656189 for an immediate response!

View full details
Choose by specification: filter the options above, compare the full table below, and select any matching part number. Both views stay in sync.Ask our technical team →
Full technical specifications — select a part numberReal product dimensions and technical details from Indifit's catalogue
TECHNICAL DETAILS

Product specifications.

Find part numbers and compare available options
SKU Material A B C D E F Finish Bore size
EHW56751 Die-cast 40 40 25 25 5 10 Black 5.2
EHQ05751 Die-cast 50 50 30 30 6 12 Black 6.4
