What are the main advantages of using a concealed & removable hinge for industrial enclosures?

The concealed & removable hinge enhances security and aesthetics by hiding from view, while also allowing easy removal for maintenance or transport. Its design is ideal for modern industrial applications where a clean look and secure closure are important.

Which materials are available for the concealed & removable hinge, and how do they impact performance?

This hinge is available in Zinc alloy and Aluminium 6061, both known for their strength, durability, and lightweight properties. These materials ensure long-lasting performance even in demanding environments.

Can the concealed & removable hinge be easily installed and removed without specialized tools?

Yes, the hinge features retracting pins that facilitate straightforward installation and removal, making it convenient for maintenance and adjustable applications without needing specialized tools.

Is the concealed & removable hinge suitable for outdoor or harsh environments?

Yes, crafted from corrosion-resistant Zinc alloy or Aluminium 6061, this hinge is well-suited for outdoor or harsh environments, providing reliable operation over many years.

How does the concealed & removable hinge improve the security of my industrial equipment?

By concealing the hinge from exterior view and limiting access points, this hinge increases security and reduces the risk of tampering or vandalism, protecting your valuable equipment.

1 2

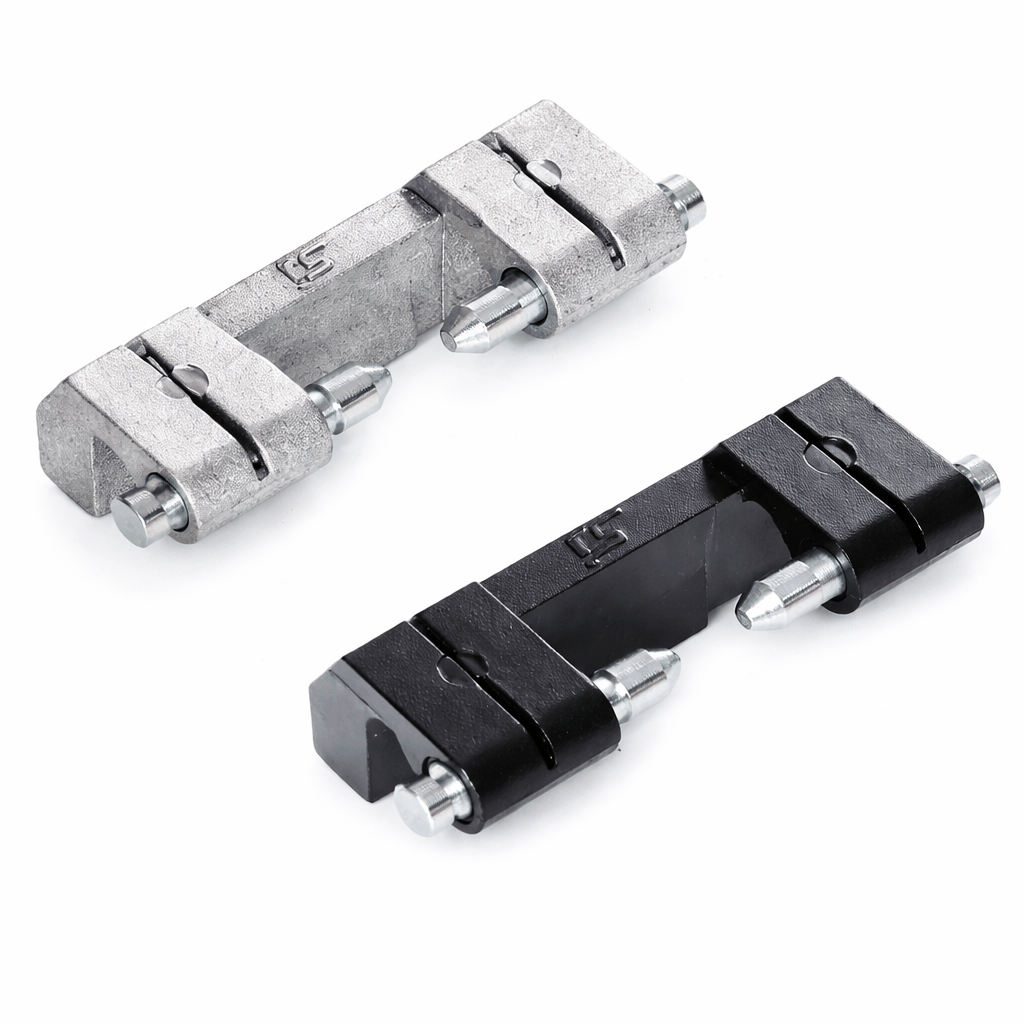

Concealed & Removable Hinge with Retracting Pins

Developed specifically for the needs of modern industrial enclosures, cabinets, HVAC, machinery, vehicles, and telecoms equipment.

This is classified as a concealed hinge. When a concealed hinge is installed it conceals the hinge from the exterior of the enclosure. This concealed installation benefits security and aesthetics, and limits exposing the hinge to the external environment.

The body of this hinge is manufactured from either Zinc alloy or Aluminium 6061. These materials are strong, durable, and lightweight, and guaranteed to provided many years of reliability.

How to Request a Quote

Find the size and product code you need from table below.
Enter product code and quantities required
Click Add To Quote
Repeat on any other product pages as needed.
Once done, submit your quote to our sales team who will be in touch within 1 hour.

Alternatively feel free to call us now on 01279 656189 for an immediate response!

View full details

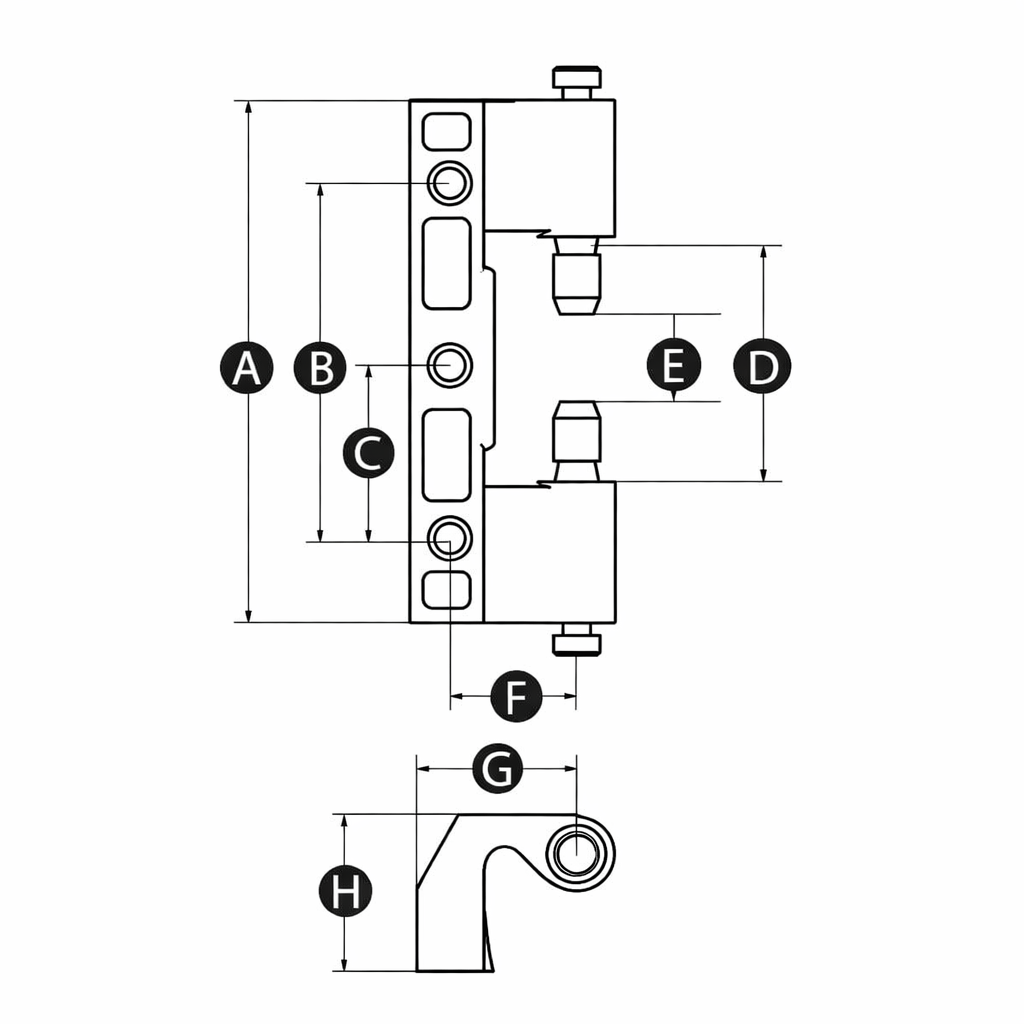

Sku	A	B	C	D	E	F	G	H	I	J	K	Material
16868Z	75	50	25	35	11	19	25	23	-	-	-	Zinc Alloy
16870R	75	50	25	35	11	19	25	23	-	-	-	Alu 6061
16894U	35	27	7	2.5	-	-	-	-	-	-	-	Zinc plated steel
16895Q	34.5	43	28	16	15.5	20.5	6.7	7	14	19	3	Zinc plated steel
