Hinges

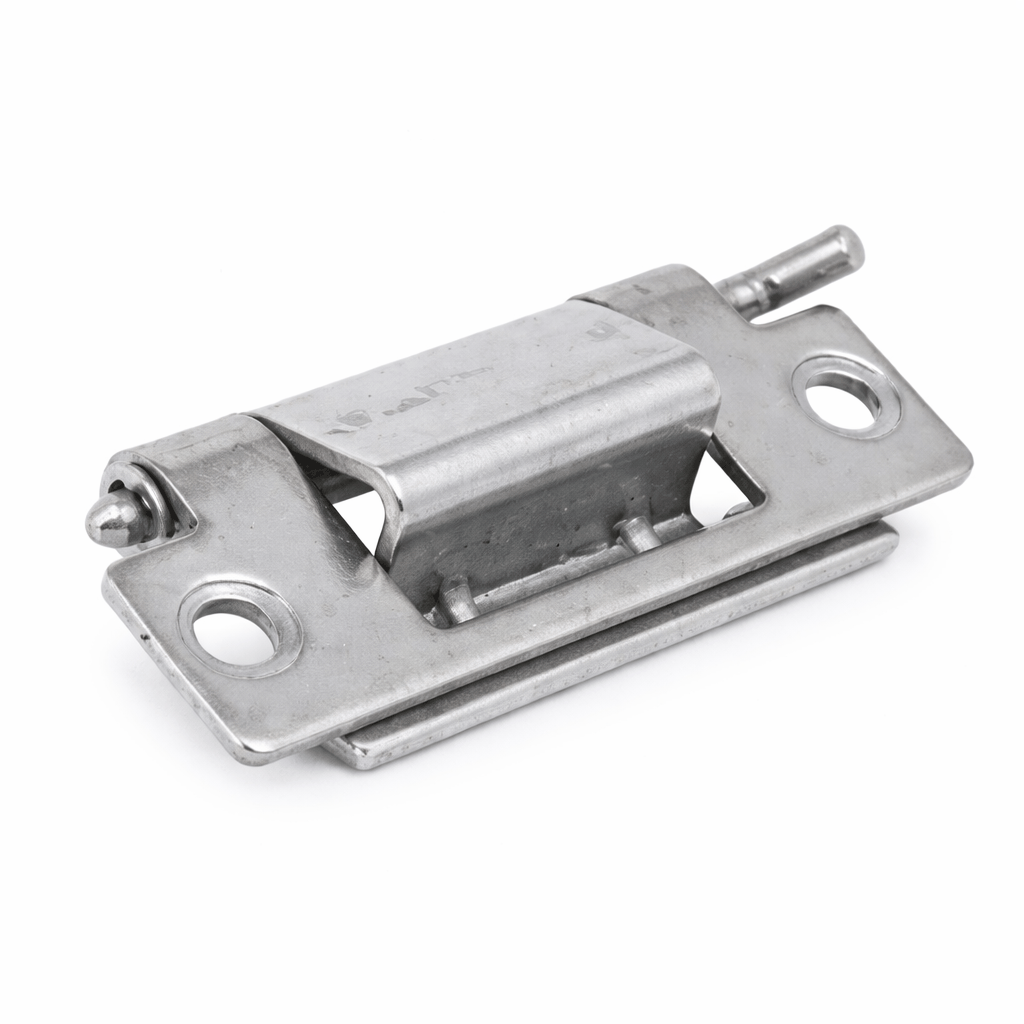

Concealed Hinge with Removable Pin

Simple and reliable concealed and removable hinge which is ideally suited to various types of sheet metal industrial enclosures and cabinets.

Find the right option
  • Concealed hinge with removable pin for industrial metal enclosures and cabinets
  • Concealed hinge with removable pin for secure sheet metal enclosures and cabinets
1 2

Technical guidanceExpert support for the right solution

Samples availableGet the right part before you commit

UK & European sourcingAlternatives beyond the catalogue

Trade enquiries welcomeFrom one-off parts to ongoing supply

Read full product description

Simple and reliable concealed and removable hinge which is ideally suited to various types of sheet metal industrial enclosures and cabinets.

This hinge’s concealed mounting configuration offers improved security and weather resistance over traditional external, surface mounted hinges.

FIND THE RIGHT COMPONENT

Available product options.

Search by size, dimensions or specification, select a matching product and add it to your quotation basket.

QUOTE ONLY · NO PAYMENT

Available options

Choose a matching part to review its specifications

9 options
Part numberSize / technical detailOther specificationAction
16873Q 16873Q —
16874X 16874X —
16875T 16875T —
16876P 16876P —
16877W 16877W —
16878S 16878S —
16879Z 16879Z —
16880V 16880V —
16881R 16881R —

Select an option to view its full specifications and choose a quantity for your quote.

Your selected product

Concealed Hinge with Removable Pin
16873Q

Choose a part number and quantity to request a quotation. No online payment is taken.

How does requesting a quote work?
  1. Find the size and product code you need from table below.
  2. Enter product code and quantities required
  3. Click Add To Quote
  4. Repeat on any other product pages as needed.
  5. Once done, submit your quote to our sales team who will be in touch within 1 hour.

Alternatively feel free to call us now on 01279 656189 for an immediate response!

View full details
Choose by specification: filter the options above, compare the full table below, and select any matching part number. Both views stay in sync.Ask our technical team →
Full technical specifications — select a part numberReal product dimensions and technical details from Indifit's catalogue
TECHNICAL DETAILS

Product specifications.

Find part numbers and compare available options

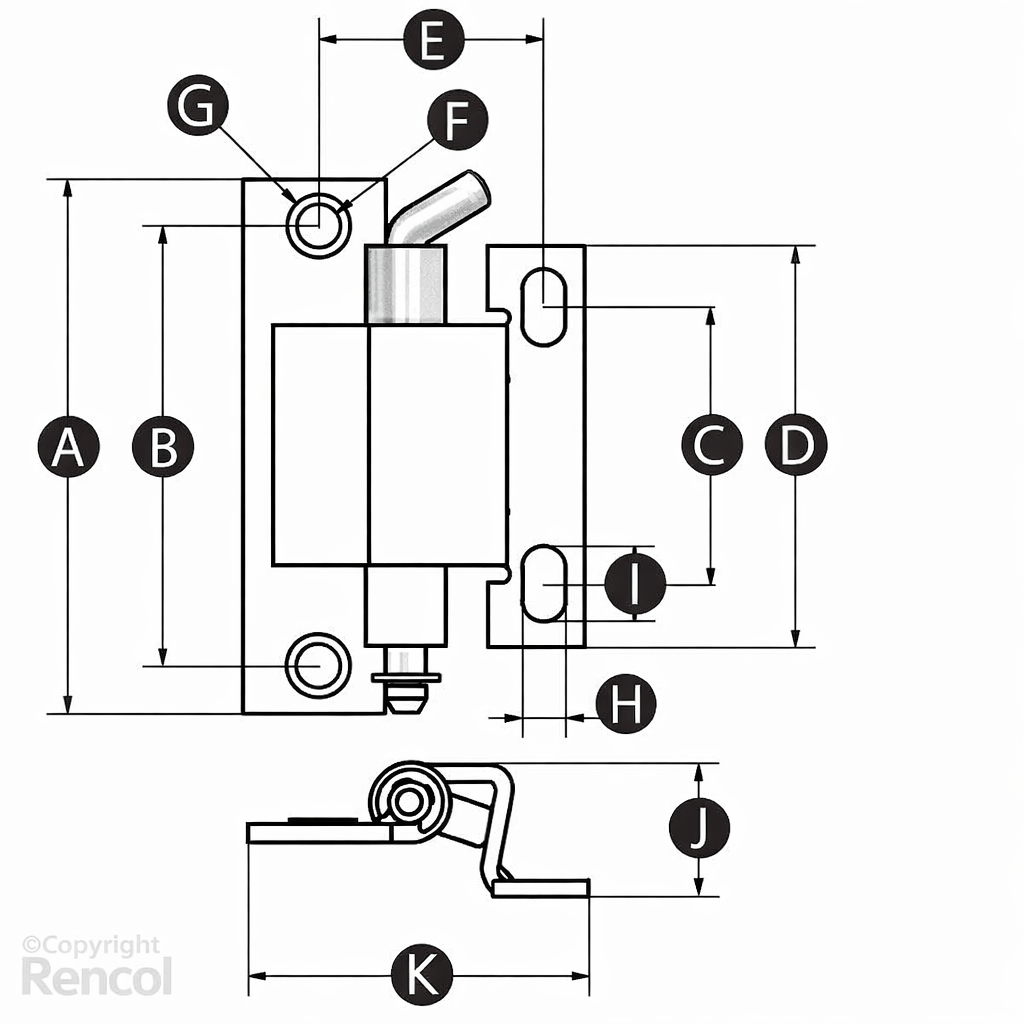

Sku A B C D E F G H I J K Material Pin Material Opening Angle
16873Q 80 66 42 - 36.5 6.5 9.5 6.5 12 20 54.3 ZPS ZPS 120°
16874X 80 66 42 - 36.5 6.5 9.5 6.5 12 20 54.3 SS304 SS304 120°
16875T 80 66 42 60 - 6.5 9.5 6.5 12 24.5 - ZPS ZPS 120°
16876P 80 66 42 60 - 6.5 9.5 6.5 12 24.5 - SS304 SS304 120°
16877W 60 - 60 - - - 6.5 12 19.5 35 ZPS ZPS 120°
16878S 60 - 60 - - - 6.5 12 19.5 35 SS304 SS304 120°
16879Z 60 - 42 60 - - - 6.5 12 24.5 42 ZPS ZPS 120°
16880V 60 - 42 60 - - - 6.5 12 24.5 42 SS304 SS304 120°
16881R 60 48 42 60 - 6.5 - 6.5 12 21 40 ZPS Nylon 100°
