Die Cast Zinc Hinge

Strong and durable surface mount hinge with a modern appearance. We offer a range of sizes to suit most applications, including both open mounting for fixing from above with screws and bolts, and integral metric studs for secure, flush fitting from below.

Find the right option

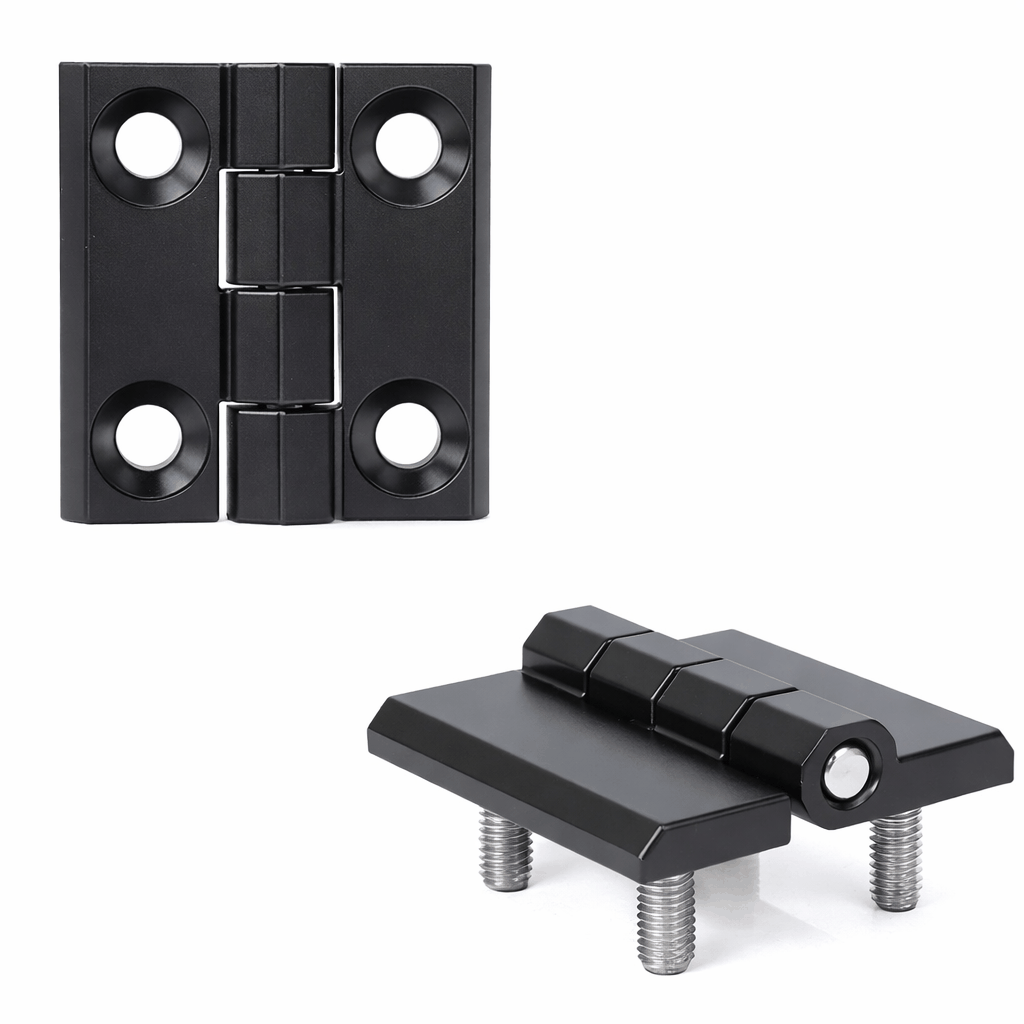

  • Powder coated black die cast zinc hinge for surface mount applications
  • Powder coated black die cast zinc surface mount hinge for industrial and commercial use
1 2

Technical guidanceExpert support for the right solution

Samples availableGet the right part before you commit

UK & European sourcingAlternatives beyond the catalogue

Trade enquiries welcomeFrom one-off parts to ongoing supply

Read full product description

Strong and durable surface mount hinge with a modern appearance. We offer a range of sizes to suit most applications, including both open mounting for fixing from above with screws and bolts, and integral metric studs for secure, flush fitting from below.

These hinges are commonly used on a wide range of applications, from industrial and commercial furniture to vehicle storage, enclosures, electrical cabinets and much more.

The powder coated black finish gives a high quality look and feel while ensuring a long service life and resistance to knocks and scratches.

FIND THE RIGHT COMPONENT

Available product options.

Search by size, dimensions or specification, select a matching product and add it to your quotation basket.

QUOTE ONLY · NO PAYMENT

Available options

Choose a matching part to review its specifications

4 options
Part numberSize / technical detailOther specificationAction
16662Y 16662Y —
16663U 16663U —
16664Q 16664Q —
16665X 16665X —

Select an option to view its full specifications and choose a quantity for your quote.

Your selected product

Die Cast Zinc Hinge
16662Y

Choose a part number and quantity to request a quotation. No online payment is taken.

How does requesting a quote work?
  1. Find the size and product code you need from table below.
  2. Enter product code and quantities required
  3. Click Add To Quote
  4. Repeat on any other product pages as needed.
  5. Once done, submit your quote to our sales team who will be in touch within 1 hour.

Alternatively feel free to call us now on 01279 656189 for an immediate response!

View full details
Choose by specification: filter the options above, compare the full table below, and select any matching part number. Both views stay in sync.Ask our technical team →
Full technical specifications — select a part numberReal product dimensions and technical details from Indifit's catalogue
TECHNICAL DETAILS

Product specifications.

Find part numbers and compare available options

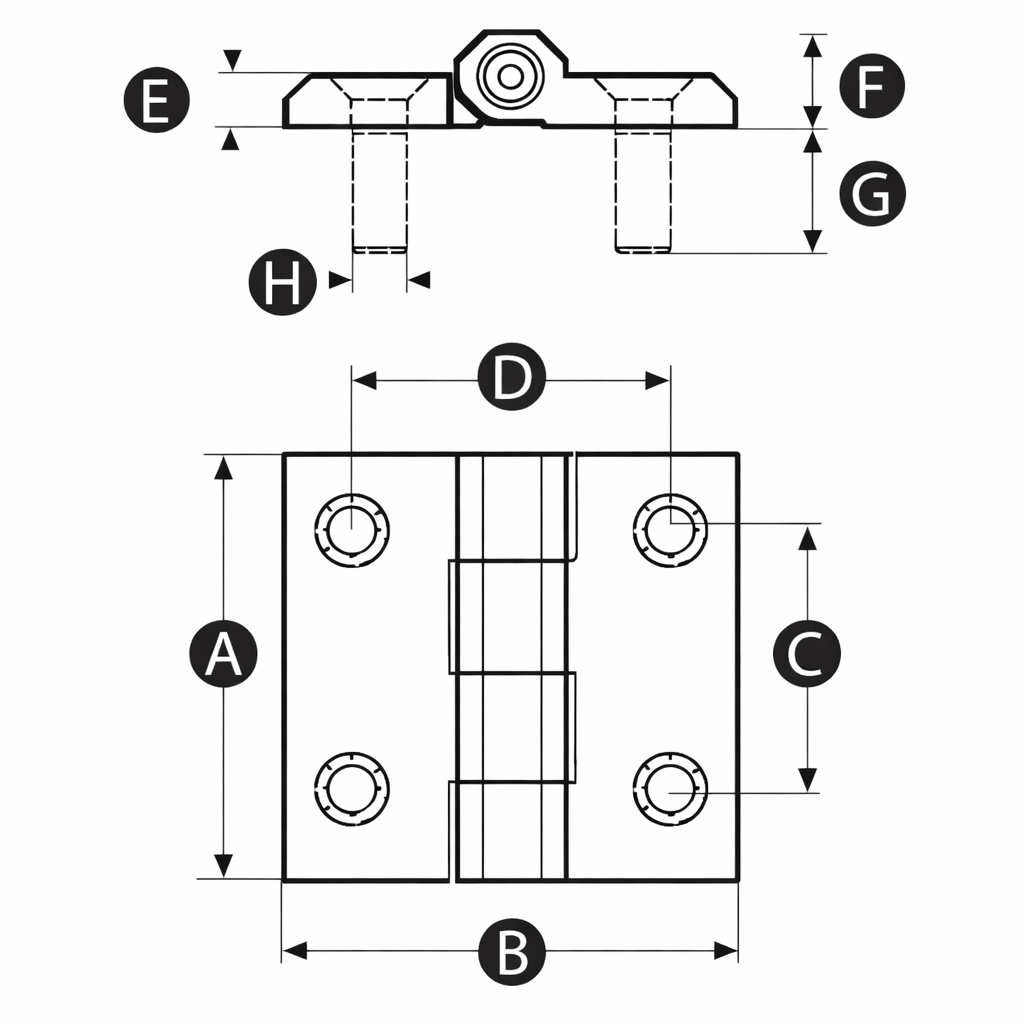

Sku A B C D E F G H Bore Size With Threaded Studs
16662Y 60 60 36 36 8 15 - - 8.4 No
16663U 50 50 - - 6 11.5 14.5 6 - Yes
16664Q 50 76 30 56 6 11.5 - - 6.3 No
16665X 60 120 38 88 8 15 - - 6.8 No
