Standard Nylon Flat Washers

Our standard washers have different dimensions to the metric washers and are available in various thicknesses, along with a variety of outer and inner measurements.

Find the right option

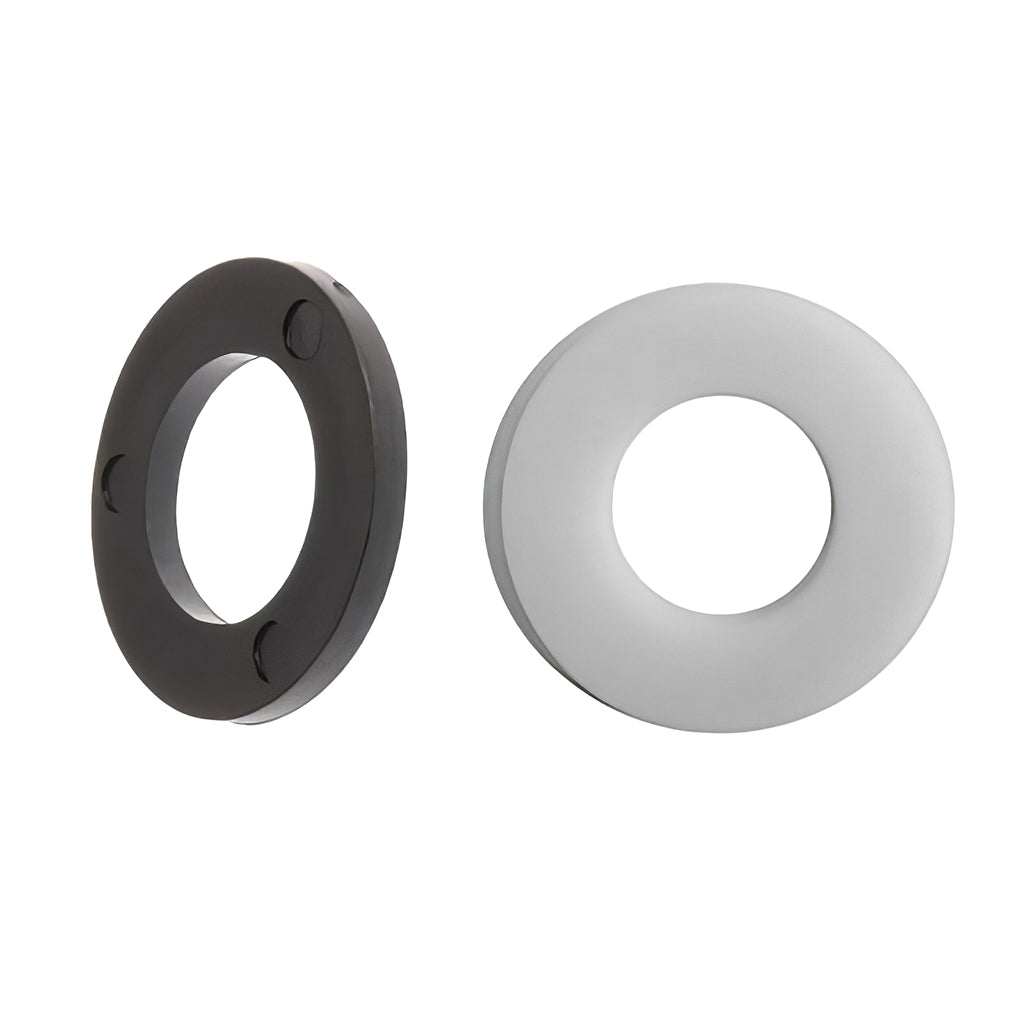

  • Standard Nylon Flat Washers in various sizes, Nylon 66, UL94-V2, RoHS compliant, pack of 1000
1 2

Technical guidanceExpert support for the right solution

Samples availableGet the right part before you commit

UK & European sourcingAlternatives beyond the catalogue

Trade enquiries welcomeFrom one-off parts to ongoing supply

Read full product description

Our standard washers have different dimensions to the metric washers and are available in various thicknesses, along with a variety of outer and inner measurements.

  • Nylon 66
  • UL94-V2
  • RoHS Compliant
  • Operating Temperature -35 to +85°C

Supplied in packs of 1000

FIND THE RIGHT COMPONENT

Available product options.

Search by size, dimensions or specification, select a matching product and add it to your quotation basket.

QUOTE ONLY · NO PAYMENT

Available options

Choose a matching part to review its specifications

40 options
Part numberSize / technical detailOther specificationAction
FW-635-229-081 FW-635-229-081 —
FW-635-229-157 FW-635-229-157 —
FW-635-229-236 FW-635-229-236 —
FW-635-229-318 FW-635-229-318 —
FW-635-292-081 FW-635-292-081 —
FW-635-292-157 FW-635-292-157 —
FW-635-292-236 FW-635-292-236 —
FW-635-292-318 FW-635-292-318 —
FW-792-356-081 FW-792-356-081 —
FW-792-356-157 FW-792-356-157 —
FW-792-356-236 FW-792-356-236 —
FW-792-356-318 FW-792-356-318 —
FW-953-434-081 FW-953-434-081 —
FW-953-434-157 FW-953-434-157 —
FW-953-434-236 FW-953-434-236 —
FW-953-434-318 FW-953-434-318 —
FW-953-493-081 FW-953-493-081 —
FW-953-493-157 FW-953-493-157 —
FW-953-493-236 FW-953-493-236 —
FW-953-493-318 FW-953-493-318 —
FW-1270-653-081 FW-1270-653-081 —
FW-1270-653-157 FW-1270-653-157 —
FW-1270-653-236 FW-1270-653-236 —
FW-1270-653-318 FW-1270-653-318 —
FW-1270-805-081 FW-1270-805-081 —
FW-1270-805-157 FW-1270-805-157 —
FW-1270-805-236 FW-1270-805-236 —
FW-1270-805-318 FW-1270-805-318 —
FW-1588-965-081 FW-1588-965-081 —
FW-1588-965-157 FW-1588-965-157 —
FW-1588-965-236 FW-1588-965-236 —
FW-1588-965-318 FW-1588-965-318 —
FW-1905-1125-081 FW-1905-1125-081 —
FW-1905-1125-157 FW-1905-1125-157 —
FW-1905-1125-236 FW-1905-1125-236 —
FW-1905-1125-318 FW-1905-1125-318 —
FW-1905-1283-081 FW-1905-1283-081 —
FW-1905-1283-157 FW-1905-1283-157 —
FW-1905-1283-236 FW-1905-1283-236 —
FW-1905-1283-318 FW-1905-1283-318 —

Select an option to view its full specifications and choose a quantity for your quote.

Your selected product

Standard Nylon Flat Washers
FW-635-229-081

Choose a part number and quantity to request a quotation. No online payment is taken.

How does requesting a quote work?
  1. Find the size and product code you need from table below.
  2. Enter product code and quantities required
  3. Click Add To Quote
  4. Repeat on any other product pages as needed.
  5. Once done, submit your quote to our sales team who will be in touch within 1 hour.

Alternatively feel free to call us now on 01279 656189 for an immediate response!

View full details
Choose by specification: filter the options above, compare the full table below, and select any matching part number. Both views stay in sync.Ask our technical team →
Full technical specifications — select a part numberReal product dimensions and technical details from Indifit's catalogue
TECHNICAL DETAILS

Product specifications.

Find part numbers and compare available options
SKU OD ID Thick
FW-635-229-081 6.35mm 2.29mm 0.81mm
FW-635-229-157 6.35mm 2.29mm 1.57mm
FW-635-229-236 6.35mm 2.29mm 2.36mm
FW-635-229-318 6.35mm 2.29mm 3.18mm
FW-635-292-081 6.35mm 2.92mm 0.81mm
FW-635-292-157 6.35mm 2.92mm 1.57mm
FW-635-292-236 6.35mm 2.92mm 2.36mm
FW-635-292-318 6.35mm 2.92mm 3.18mm
FW-792-356-081 7.92mm 3.56mm 0.81mm
FW-792-356-157 7.92mm 3.56mm 1.57mm
FW-792-356-236 7.92mm 3.56mm 2.36mm
FW-792-356-318 7.92mm 3.56mm 3.18mm
FW-953-434-081 9.53mm 4.34mm 0.81mm
FW-953-434-157 9.53mm 4.34mm 1.57mm
FW-953-434-236 9.53mm 4.34mm 2.36mm
FW-953-434-318 9.53mm 4.34mm 3.18mm
FW-953-493-081 9.53mm 4.93mm 0.81mm
FW-953-493-157 9.53mm 4.93mm 1.57mm
FW-953-493-236 9.53mm 4.93mm 2.36mm
FW-953-493-318 9.53mm 4.93mm 3.18mm
FW-1270-653-081 12.7mm 6.53mm 0.81mm
FW-1270-653-157 12.7mm 6.53mm 1.57mm
FW-1270-653-236 12.7mm 6.53mm 2.36mm
FW-1270-653-318 12.7mm 6.53mm 3.18mm
FW-1270-805-081 12.7mm 8.05mm 0.81mm
FW-1270-805-157 12.7mm 8.05mm 1.57mm
FW-1270-805-236 12.7mm 8.05mm 2.36mm
FW-1270-805-318 12.7mm 8.05mm 3.18mm
FW-1588-965-081 15.88mm 9.65mm 0.81mm
FW-1588-965-157 15.88mm 9.65mm 1.57mm
FW-1588-965-236 15.88mm 9.65mm 2.36mm
FW-1588-965-318 15.88mm 9.53mm 3.18mm
FW-1905-1125-081 19.05mm 11.25mm 0.81mm
FW-1905-1125-157 19.05mm 11.25mm 1.57mm
FW-1905-1125-236 19.05mm 11.25mm 2.36mm
FW-1905-1125-318 19.05mm 11.25mm 3.18mm
FW-1905-1283-081 19.05mm 12.83mm 0.81mm
FW-1905-1283-157 19.05mm 12.83mm 1.57mm
FW-1905-1283-236 19.05mm 12.83mm 2.36mm
FW-1905-1283-318 19.05mm 12.83mm 3.18mm
