NYLON WASHERS

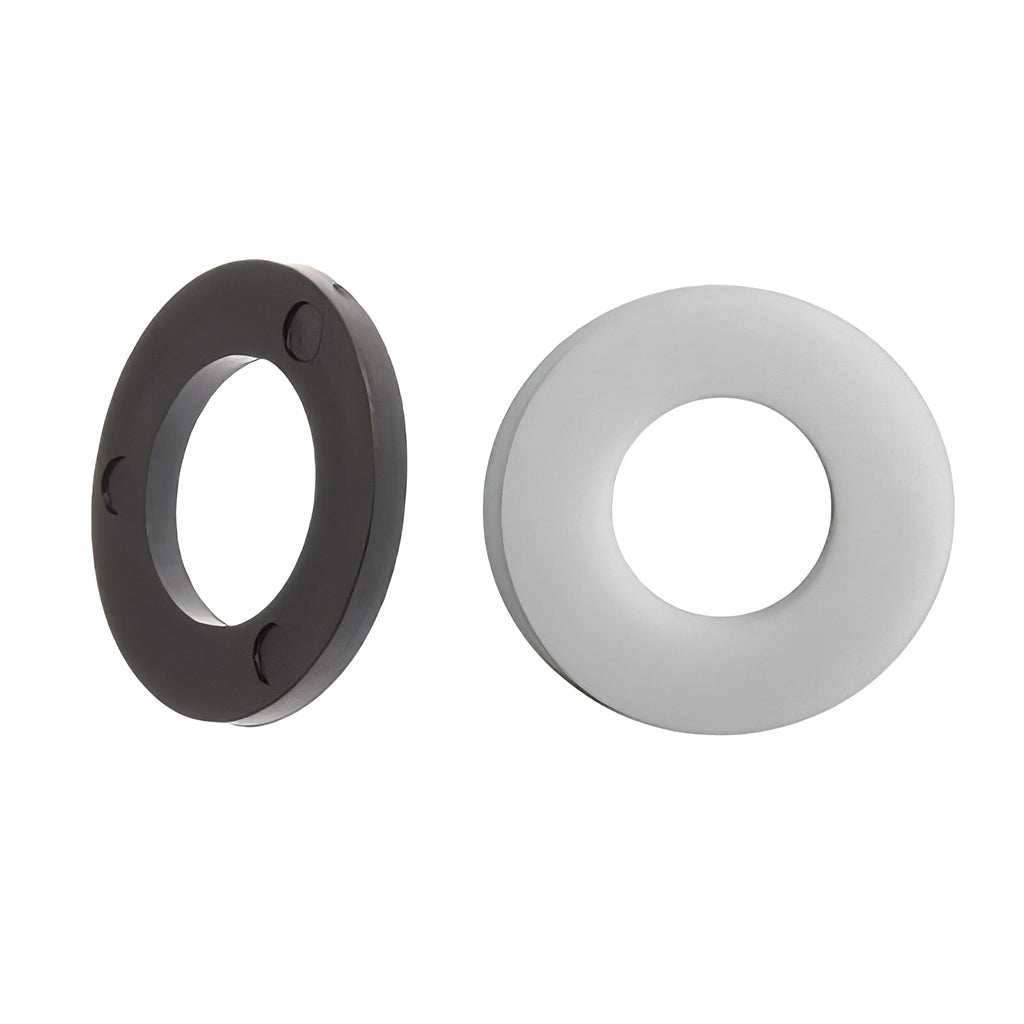

DIN 125 METRIC NYLON WASHERS

These nylon washers are to DIN125 and DIN 34815 specification and are compatible with our range of metric machine screws. Used by Automotive and Aerospace Industries.

Find the right option

1 1

Technical guidanceExpert support for the right solution

Samples availableGet the right part before you commit

UK & European sourcingAlternatives beyond the catalogue

Trade enquiries welcomeFrom one-off parts to ongoing supply

Read full product description

These nylon washers are to DIN125 and DIN 34815 specification and are compatible with our range of metric machine screws. Used by Automotive and Aerospace Industries.

Nylon 66
UL94-V2
RoHS Compliant
Operating Temperature -35 to +85°C

Supplied in packs of 1000

FIND THE RIGHT COMPONENT

Available product options.

Search by size, dimensions or specification, select a matching product and add it to your quotation basket.

QUOTE ONLY · NO PAYMENT

Available options

Choose a matching part to review its specifications

34 options

Part number	Size / technical detail	Other specification
NW022/050030	White / 5.0mm / 2.20mm \| 0.30mm \| 1000	—
NW022/050030B	Black / 5.0mm / 2.20mm \| 0.30mm \| 1000	—
NW025/060050B	Black / 6.0mm / 2.50mm \| 0.50mm \| 1000	—
NW025/060050	White / 6.0mm / 2.50mm \| 0.50mm \| 1000	—
NW032/07050	White / 7.0mm / 3.20mm \| 0.50mm \| 1000	—
NW032/07050B	Black / 7.0mm / 3.20mm \| 0.50mm \| 1000	—
NW043/090080	White / 9.0mm / 4.30mm \| 0.80mm \| 1000	—
NW043/090080B	Black / 9.0mm / 4.30mm \| 0.80mm \| 1000	—
NW053/100010B	Black / 10.0mm / 5.30mm \| 1.0mm \| 1000	—
NW053/100010	White / 10.0mm / 5.30mm \| 1.0mm \| 1000	—
NW064/120016B	Black / 12.0mm / 6.40mm \| 1.6mm \| 1000	—
NW064/120016	White / 12.0mm / 6.40mm \| 1.6mm \| 1000	—
NW084/160016B	Black / 16.0mm / 8.40mm \| 1.6mm \| 1000	—
NW105/20020B	Black / 20.0mm / 10.50mm \| 2.0mm \| 1000	—
NW105/20020	White / 20.0mm / 10.50mm \| 2.0mm \| 1000	—
NW084/160016	White / 16.0mm / 8.40mm \| 1.6mm \| 1000	—
NW130/24025B	Black / 24.0mm / 13.00mm \| 2.5mm \| 1000	—
NW130/24025	White / 24.0mm / 13.00mm \| 2.5mm \| 1000	—
NW170/30030B	Black / 30.0mm / 17.00mm \| 3.0mm \| 1000	—
NW170/30030	White / 30.0mm / 17.00mm \| 3.0mm \| 1000	—
NW210/37030B	Black / 37.0mm / 21.00mm \| 3.0mm \| 1000	—
NW210/37030	White / 37.0mm / 21.00mm \| 3.0mm \| 1000	—
NW250/44040B	Black / 44.0mm / 25.00mm \| 4.0mm \| 1000	—
NW250/44040	White / 44.0mm / 25.00mm \| 4.0mm \| 1000	—
NW280/50040	White / 50.0mm / 28.00mm \| 4.0mm \| 1000	—
NW280/50040B	Black / 50.0mm / 28.00mm \| 4.0mm \| 1000	—
NW310/56040	White / 56.0mm / 31.00mm \| 4.0mm \| 1000	—
NW310/56040B	Black / 56.0mm / 31.00mm \| 4.0mm \| 1000	—
NW340/60050	White / 60.0mm / 34.00mm \| 5.0mm \| 1000	—
NW340/60050B	Black / 60.0mm / 34.00mm \| 5.0mm \| 1000	—
NW370/66050	White / 66.0mm / 37.00mm \| 5.0mm \| 1000	—
NW370/66050B	Black / 66.0mm / 37.00mm \| 5.0mm \| 1000	—
NW410/72060	White / 72.0mm / 41.00mm \| 6.0mm \| 1000	—
NW410/72060B	Black / 72.0mm / 41.00mm \| 6.0mm \| 1000	—

Select an option to view its full specifications and choose a quantity for your quote.

Your selected product

NW022/050030

Selected part number

Choose a part number and quantity to request a quotation. No online payment is taken.

How does requesting a quote work?

Find the size and product code you need from table below.
Enter product code and quantities required
Click Add To Quote
Repeat on any other product pages as needed.
Once done, submit your quote to our sales team who will be in touch within 1 hour.

Alternatively feel free to call us now on 01279 656189 for an immediate response!

View full details

Choose by specification: filter the options above, compare the full table below, and select any matching part number. Both views stay in sync.Ask our technical team →

Full technical specifications — select a part numberReal product dimensions and technical details from Indifit's catalogue

TECHNICAL DETAILS

Product specifications.

Find part numbers and compare available options

SKU	Colour	o/d	I/D	Thickness	Pack Qty
NW022/050030	White	5.0mm	2.20mm	0.30mm	1000
NW022/050030B	Black	5.0mm	2.20mm	0.30mm	1000
NW025/060050B	Black	6.0mm	2.50mm	0.50mm	1000
NW025/060050	White	6.0mm	2.50mm	0.50mm	1000
NW032/07050	White	7.0mm	3.20mm	0.50mm	1000
NW032/07050B	Black	7.0mm	3.20mm	0.50mm	1000
NW043/090080	White	9.0mm	4.30mm	0.80mm	1000
NW043/090080B	Black	9.0mm	4.30mm	0.80mm	1000
NW053/100010B	Black	10.0mm	5.30mm	1.0mm	1000
NW053/100010	White	10.0mm	5.30mm	1.0mm	1000
NW064/120016B	Black	12.0mm	6.40mm	1.6mm	1000
NW064/120016	White	12.0mm	6.40mm	1.6mm	1000
NW084/160016B	Black	16.0mm	8.40mm	1.6mm	1000
NW105/20020B	Black	20.0mm	10.50mm	2.0mm	1000
NW105/20020	White	20.0mm	10.50mm	2.0mm	1000
NW084/160016	White	16.0mm	8.40mm	1.6mm	1000
NW130/24025B	Black	24.0mm	13.00mm	2.5mm	1000
NW130/24025	White	24.0mm	13.00mm	2.5mm	1000
NW170/30030B	Black	30.0mm	17.00mm	3.0mm	1000
NW170/30030	White	30.0mm	17.00mm	3.0mm	1000
NW210/37030B	Black	37.0mm	21.00mm	3.0mm	1000
NW210/37030	White	37.0mm	21.00mm	3.0mm	1000
NW250/44040B	Black	44.0mm	25.00mm	4.0mm	1000
NW250/44040	White	44.0mm	25.00mm	4.0mm	1000
NW280/50040	White	50.0mm	28.00mm	4.0mm	1000
NW280/50040B	Black	50.0mm	28.00mm	4.0mm	1000
NW310/56040	White	56.0mm	31.00mm	4.0mm	1000
NW310/56040B	Black	56.0mm	31.00mm	4.0mm	1000
NW340/60050	White	60.0mm	34.00mm	5.0mm	1000
NW340/60050B	Black	60.0mm	34.00mm	5.0mm	1000
NW370/66050	White	66.0mm	37.00mm	5.0mm	1000
NW370/66050B	Black	66.0mm	37.00mm	5.0mm	1000
NW410/72060	White	72.0mm	41.00mm	6.0mm	1000
NW410/72060B	Black	72.0mm	41.00mm	6.0mm	1000
