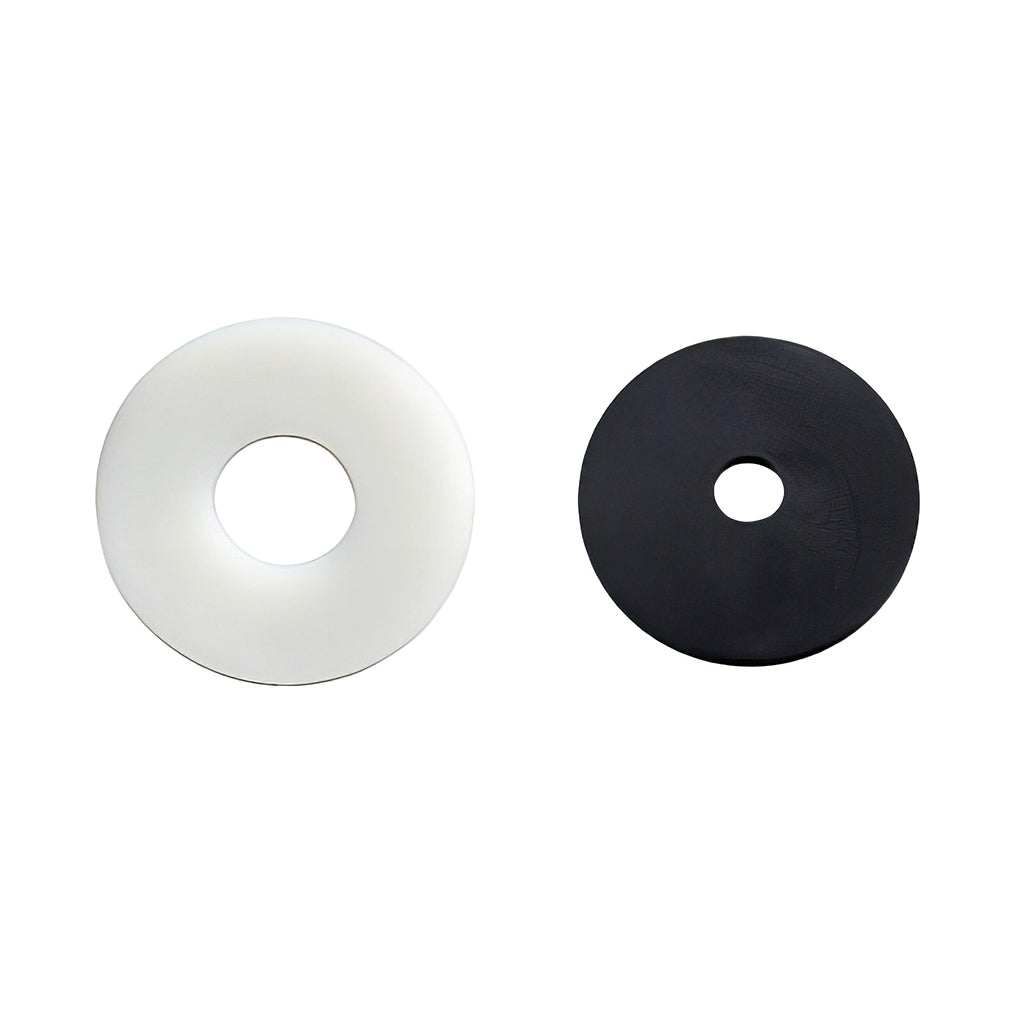

DIN 9021 NYLON PENNY WASHERS

These nylon penny washers are to DIN 9021 specification and are compatible with our range of metric machine screws. Used by Automotive and Aerospace Industries.

Find the right option
  • DIN 9021 nylon penny washers compatible with metric screws, packed 1000, RoHS compliant
1 1

Technical guidanceExpert support for the right solution

Samples availableGet the right part before you commit

UK & European sourcingAlternatives beyond the catalogue

Trade enquiries welcomeFrom one-off parts to ongoing supply

Read full product description

These nylon penny washers are to DIN 9021 specification and are compatible with our range of metric machine screws. Used by Automotive and Aerospace Industries.

  • Nylon 66
  • UL94-V2
  • RoHS Compliant
  • Operating Temperature -35 to +85°C
  • Other sizes available, please contact us for details

Supplied in packs of 1000

FIND THE RIGHT COMPONENT

Available product options.

Search by size, dimensions or specification, select a matching product and add it to your quotation basket.

QUOTE ONLY · NO PAYMENT

Available options

Choose a matching part to review its specifications

20 options
Part numberSize / technical detailOther specificationAction
NW032/090080 White / 9.0mm / 3.20mm | 0.80mm —
NW032/090080B Black / 9.0mm / 3.20mm | 0.80mm —
NW043/120010 White / 12.0mm / 4.30mm | 1.0mm —
NW043/120010B Black / 12.0mm / 4.30mm | 1.0mm —
NW053/150012 White / 15.0mm / 5.30mm | 1.2mm —
NW053/150012B Black / 15.0mm / 5.30mm | 1.2mm —
NW064/180016 White / 18.0mm / 6.40mm | 1.6mm —
NW064/180016B Black / 18.0mm / 6.40mm | 1.6mm —
NW084/20020B Black / 24.0mm / 8.40mm | 2.0mm —
NW084/20020 White / 24.0mm / 8.40mm | 2.0mm —
NW105/300025B Black / 30.0mm / 10.50mm | 2.5mm —
NW105/300025 White / 30.0mm / 10.50mm | 2.5mm —
NW130/37030B Black / 37.0mm / 13.0mm | 3.0mm —
NW130/37030 White / 37.0mm / 13.0mm | 3.0mm —
NW150/44030B Black / 44.0mm / 15.0mm | 3.0mm —
NW150/44030 White / 44.0mm / 15.0mm | 3.0mm —
NW170/50030B Black / 50.0mm / 17.0mm | 3.0mm —
NW170/50030 White / 50.0mm / 17.0mm | 3.0mm —
NW220/60040 White / 60.0mm / 22.0mm | 4.0mm —
NW220/60040B Black / 60.0mm / 22.0mm | 4.0mm —

Select an option to view its full specifications and choose a quantity for your quote.

Your selected product

DIN 9021 NYLON PENNY WASHERS
NW032/090080

Choose a part number and quantity to request a quotation. No online payment is taken.

How does requesting a quote work?
  1. Find the size and product code you need from table below.
  2. Enter product code and quantities required
  3. Click Add To Quote
  4. Repeat on any other product pages as needed.
  5. Once done, submit your quote to our sales team who will be in touch within 1 hour.

Alternatively feel free to call us now on 01279 656189 for an immediate response!

View full details
Choose by specification: filter the options above, compare the full table below, and select any matching part number. Both views stay in sync.Ask our technical team →
Full technical specifications — select a part numberReal product dimensions and technical details from Indifit's catalogue
TECHNICAL DETAILS

Product specifications.

Find part numbers and compare available options
SKU Colour o/d Inside diameter (d) Thickness
NW032/090080 White 9.0mm 3.20mm 0.80mm
NW032/090080B Black 9.0mm 3.20mm 0.80mm
NW043/120010 White 12.0mm 4.30mm 1.0mm
NW043/120010B Black 12.0mm 4.30mm 1.0mm
NW053/150012 White 15.0mm 5.30mm 1.2mm
NW053/150012B Black 15.0mm 5.30mm 1.2mm
NW064/180016 White 18.0mm 6.40mm 1.6mm
NW064/180016B Black 18.0mm 6.40mm 1.6mm
NW084/20020B Black 24.0mm 8.40mm 2.0mm
NW084/20020 White 24.0mm 8.40mm 2.0mm
NW105/300025B Black 30.0mm 10.50mm 2.5mm
NW105/300025 White 30.0mm 10.50mm 2.5mm
NW130/37030B Black 37.0mm 13.0mm 3.0mm
NW130/37030 White 37.0mm 13.0mm 3.0mm
NW150/44030B Black 44.0mm 15.0mm 3.0mm
NW150/44030 White 44.0mm 15.0mm 3.0mm
NW170/50030B Black 50.0mm 17.0mm 3.0mm
NW170/50030 White 50.0mm 17.0mm 3.0mm
NW220/60040 White 60.0mm 22.0mm 4.0mm
NW220/60040B Black 60.0mm 22.0mm 4.0mm
