What are the advantages of using a stainless steel enclosure hinge?

A stainless steel enclosure hinge offers excellent corrosion resistance, durability, and a clean, professional appearance, making it ideal for industrial environments where longevity and aesthetics are important.

Is the stainless steel hinge easy to install and remove from the enclosure?

Yes, this hinge features a simple, tool-free removal mechanism, allowing for quick access and maintenance without the need for complex tools or procedures.

How does the concealed design of the stainless steel hinge benefit my enclosure?

The fully concealed design improves the overall look of your enclosure by hiding the hinge when the door is closed, while also enhancing security and protecting the hinge from exposure to dust, moisture, and environmental elements.

Can this stainless steel hinge be used in outdoor or harsh environments?

Absolutely, the stainless steel construction makes this hinge highly suitable for outdoor and harsh environments, as it resists corrosion and withstands challenging conditions for long-lasting performance.

What size and weight capacity does the stainless steel enclosure hinge support?

This hinge is designed to support standard enclosure door sizes and weights; however, for specific applications, please refer to the product specifications to ensure compatibility with your enclosure requirements.

1 2

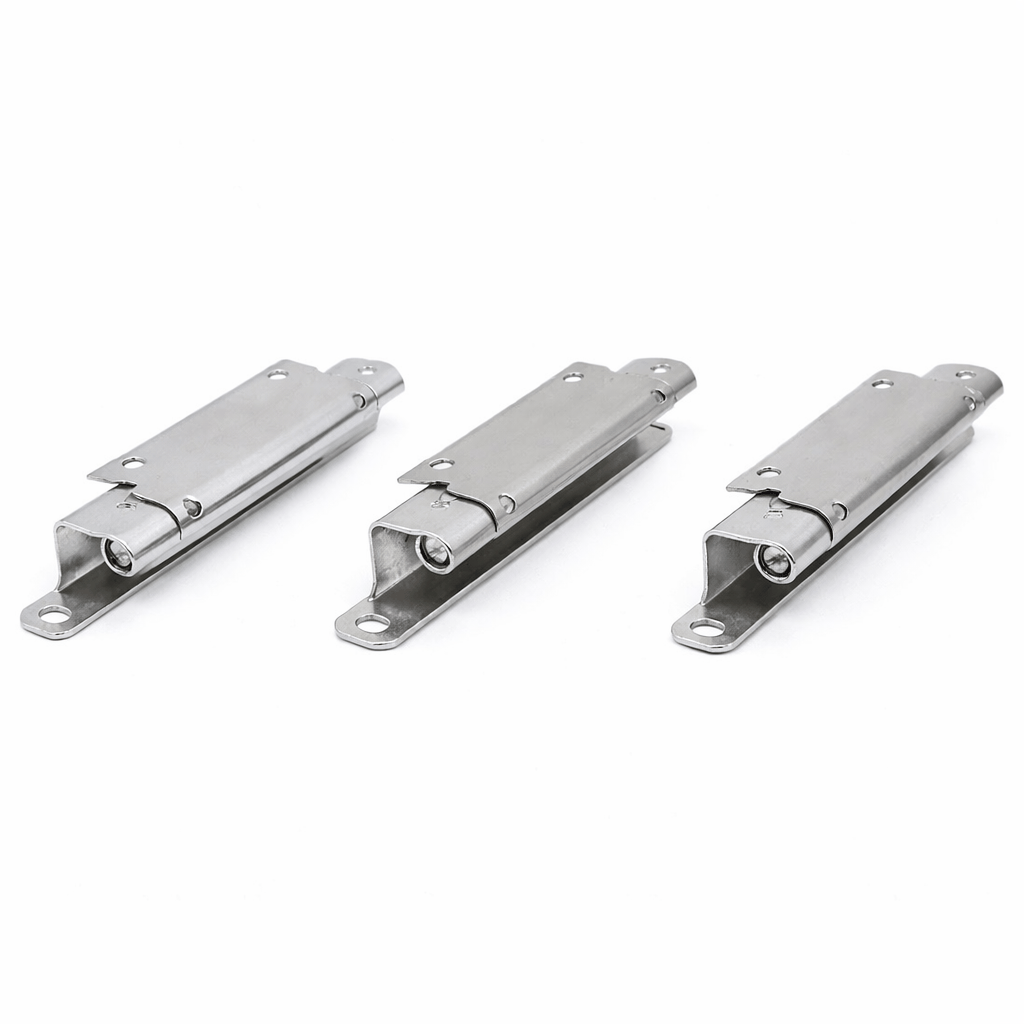

Stainless Steel or Steel Concealed Removable Enclosure Hinge

specialist hinge for mounting doors to industrial enclosures and cabinets. This hinge is designed to fit between the door and the enclosure in such a way that the hinge is fully concealed when the door is closed. This improves aesthetics, security, and protects the hinge from the elements.

This enclosure hinge incorporates a simple, tool-free mechanism for removing the enclosure door, providing greater access and ease of maintenance.

How to Request a Quote

Find the size and product code you need from table below.
Enter product code and quantities required
Click Add To Quote
Repeat on any other product pages as needed.
Once done, submit your quote to our sales team who will be in touch within 1 hour.

Alternatively feel free to call us now on 01279 656189 for an immediate response!

View full details

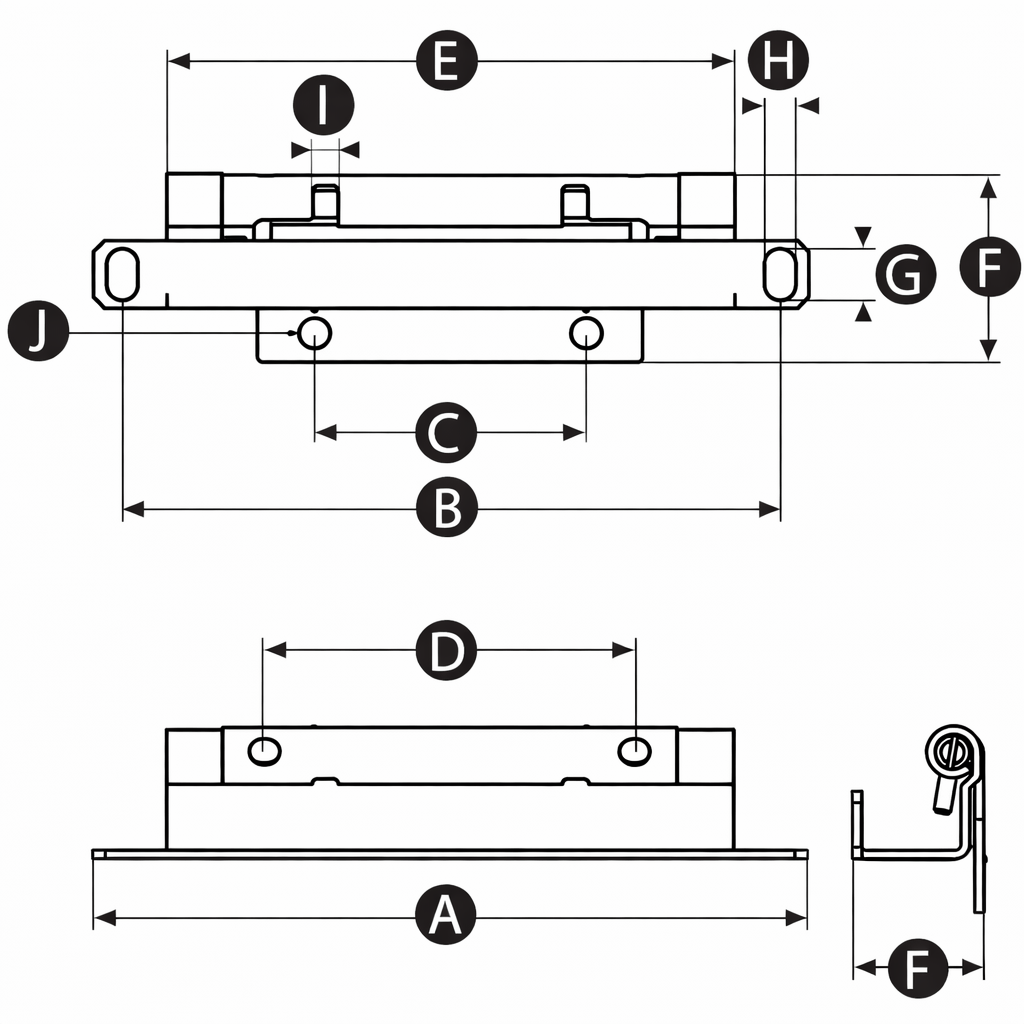

SKU	A	B	C	D	E	F	G	H	I	J	Hole Size	Material
16666T	126	116	48	44	100	23.2	9.2	5.4	4.6	47.5	5.4	Stainless steel
16667P	126	116	48	44	100	20.5	9	5.2	4.6	47.5	5.4	Stainless steel
16668W	126	116	48	44	100	17.5	9.2	5.4	4.6	47.5	5.4	Stainless steel
16669S	126	116	48	44	100	23.2	9.2	5.4	4.6	47.5	5.4	Steel
16670Z	126	116	48	44	100	20.5	9	5.2	4.6	47.5	5.4	Steel
16671V	126	116	48	44	100	17.5	9.2	5.4	4.6	47.5	5.4	Steel
