Castors wheels

MEDIUM DUTY SINGLE BOLT HOLE POLYPROPYLENE CASTORS 150-220KG RATED

These polypropylene castors total load capacity of between 150-220KG per castor.

Find the right option

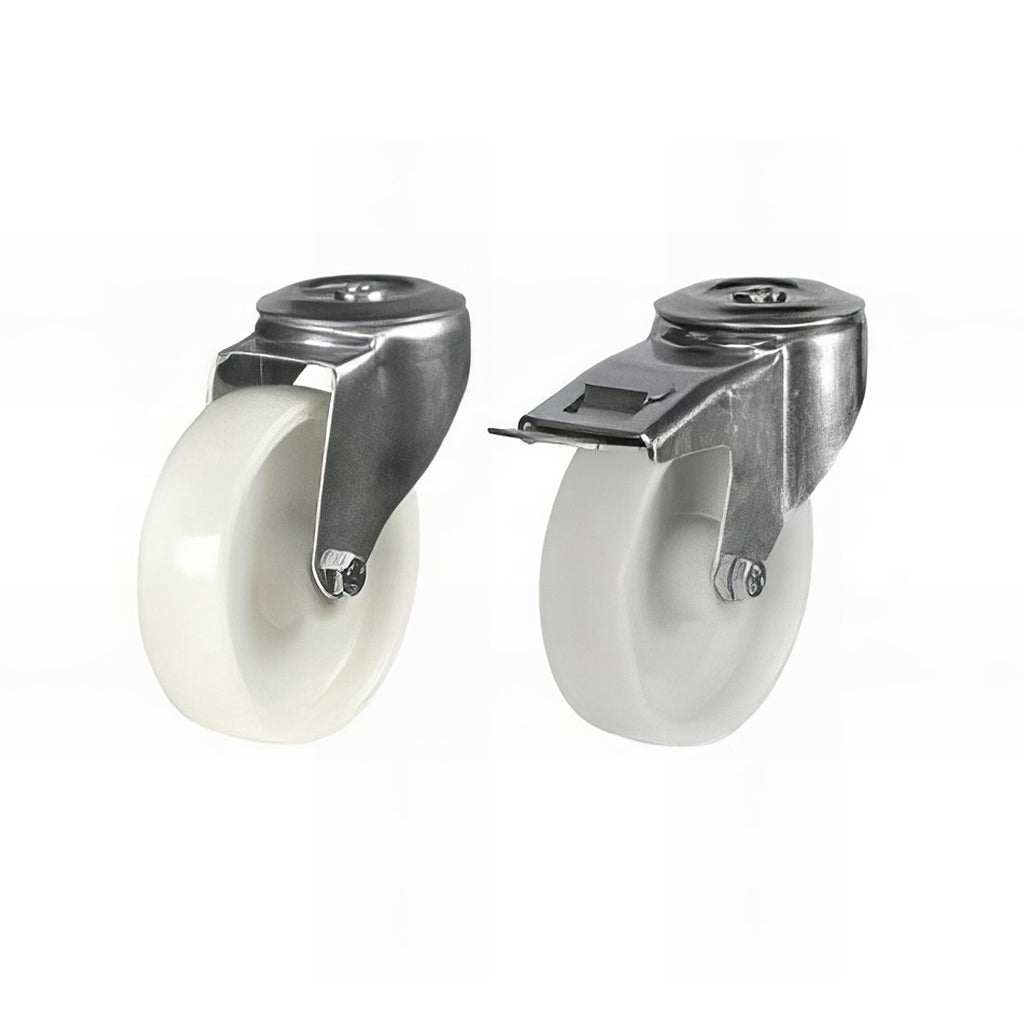

  • Medium duty single bolt hole polypropylene castors with 150-220KG load capacity and pressed steel bracket
1 1

Technical guidanceExpert support for the right solution

Samples availableGet the right part before you commit

UK & European sourcingAlternatives beyond the catalogue

Trade enquiries welcomeFrom one-off parts to ongoing supply

Read full product description

These polypropylene castors total load capacity of between 150-220KG per castor.

Its Pressed Steel bracket with Bolt Hole fitting makes it suitable for a wide variety of medium to heavy duty applications.

These Swivel castors are fitted with a Roller bearing to make heavier loads easier to move.

FIND THE RIGHT COMPONENT

Available product options.

Search by size, dimensions or specification, select a matching product and add it to your quotation basket.

QUOTE ONLY · NO PAYMENT

Available options

Choose a matching part to review its specifications

6 options
Part numberSize / technical detailOther specificationAction
C080/DR4BH12PPB Swivel / 80mm / 35mm | 12mm | Roller Bearing | 150KG —
C080/DR4BH12PPBSWB Swivel braked / 80mm / 35mm | 12mm | Roller Bearing | 150KG —
C100/DR4BH12PPB Swivel / 100mm / 35mm | 12mm | Roller Bearing | 180KG —
C100/DR4BH12PPBSWB Swivel braked / 100mm / 35mm | 12mm | Roller Bearing | 180KG —
C125/DR4BH12PPB Swivel / 125mm / 35mm | 12mm | Roller Bearing | 220KG —
C125/DR4BH12PPBSWB Swivel braked / 125mm / 35mm | 12mm | Roller Bearing | 220KG —

Select an option to view its full specifications and choose a quantity for your quote.

Your selected product

MEDIUM DUTY SINGLE BOLT HOLE POLYPROPYLENE CASTORS 150-220KG RATED
C080/DR4BH12PPB

Choose a part number and quantity to request a quotation. No online payment is taken.

How does requesting a quote work?
  1. Find the size and product code you need from table below.
  2. Enter product code and quantities required
  3. Click Add To Quote
  4. Repeat on any other product pages as needed.
  5. Once done, submit your quote to our sales team who will be in touch within 1 hour.

Alternatively feel free to call us now on 01279 656189 for an immediate response!

View full details
01 · START HERE

Check the dimensions. Find your part number.

Use the full specification table below to identify the correct size and part number. Then return to Available product options above to select that exact part and request a quote.

Select your part & request a quote

Full technical specifications compare sizes & part numbers

Find your part in the table below, then select the matching option above to request a quote.

ALL SPECIFICATIONS VISIBLE

Check each column heading for the relevant measurements and product details. ↔ Swipe sideways to see every column.

TECHNICAL DETAILS

Product specifications.

Find part numbers and compare available options
SKU Type Wheel Diameter Thread Width Bolt Hole Size Bearing Type Weight Loading
C080/DR4BH12PPB Swivel 80mm 35mm 12mm Roller Bearing 150KG
C080/DR4BH12PPBSWB Swivel braked 80mm 35mm 12mm Roller Bearing 150KG
C100/DR4BH12PPB Swivel 100mm 35mm 12mm Roller Bearing 180KG
C100/DR4BH12PPBSWB Swivel braked 100mm 35mm 12mm Roller Bearing 180KG
C125/DR4BH12PPB Swivel 125mm 35mm 12mm Roller Bearing 220KG
C125/DR4BH12PPBSWB Swivel braked 125mm 35mm 12mm Roller Bearing 220KG

Found the correct part number? Select it from the available options above and add it to your quote list.

Choose this part in Available options
