Castors wheels

MEDIUM DUTY SINGLE BOLT HOLE NYLON CASTORS 200-350KG RATED

Bolt Hole castors with a Pressed Steel castor bracket, fitted with a Nylon wheel. These Bolt Hole casters range from 80mm - 200mm and have a capacity up to 350 Kg per caster.

Find the right option

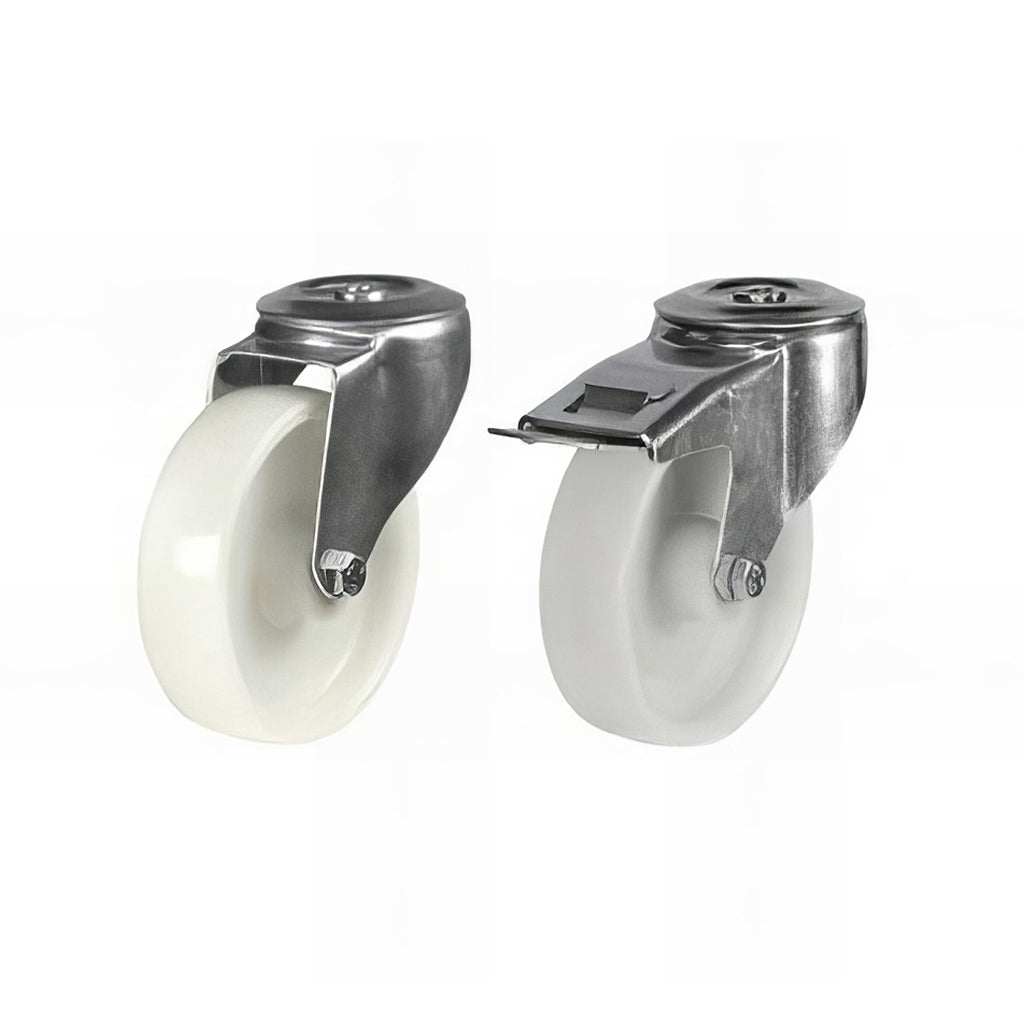

  • Medium duty single bolt hole nylon castor with pressed steel bracket and solid nylon wheel, rated up to 350kg capacity.
  • Plastic square tube inserts for imperial sizes ½”–2” protecting tubing ends and providing a professional finish
  • Medium Duty Nylon Wheel white industrial caster with 100-380 kg load capacity for trolleys and carts
1 3

Technical guidanceExpert support for the right solution

Samples availableGet the right part before you commit

UK & European sourcingAlternatives beyond the catalogue

Trade enquiries welcomeFrom one-off parts to ongoing supply

Read full product description

Bolt Hole castors with a Pressed Steel castor bracket, fitted with a Nylon wheel. These Bolt Hole casters range from 80mm - 200mm and have a capacity up to 350 Kg per caster.

Solid Nylon Wheels are most often white although alternative colours are available, less friendly to floors but do offer incredible load capacity compared to many wheel materials.

They are light in weight and very hard wearing and priced competitively.

FIND THE RIGHT COMPONENT

Available product options.

Search by size, dimensions or specification, select a matching product and add it to your quotation basket.

QUOTE ONLY · NO PAYMENT

Available options

Choose a matching part to review its specifications

18 options
Part numberSize / technical detailOther specificationAction
C080/DR4BH12NY Swivel / 80mm / 35 | 12mm | Plain | 200KG —
C080/DR4BH12NYSWB Swivel braked / 80mm / 35 | 12mm | Plain | 200KG —
C080/DR8BH12NY Fixed / 80mm / 35 | 12mm | Plain | 200KG —
C100/DR4BH12NY Swivel / 100mm / 35 | 12mm | Plain | 200KG —
C100/DR4BH12NYSWB Swivel braked / 100mm / 35 | 12mm | Plain | 200KG —
C100/DR8BH12NY Fixed / 100mm / 35 | 12mm | Plain | 200KG —
C125/DR4BH12NY Swivel / 125mm / 35 | 12mm | Plain | 270KG —
C125/DR7BH12NYSWB Swivel braked / 125mm / 35 | 12mm | Plain | 270KG —
C125/DR8BH12NY Fixed / 125mm / 35 | 12mm | Plain | 270KG —
C150/DR4BH12NY Swivel / 150mm / 40 | 12mm | Plain | 350KG —
C150/DR4BH12NYSWB Swivel braked / 150mm / 40 | 12mm | Plain | 350KG —
C150/DR8BH12NY Fixed / 150mm / 40 | 12mm | Plain | 350KG —
C160/DR4BH12NY Swivel / 160mm / 45 | 12mm | Plain | 350KG —
C160/DR4BH12NYSWB Swivel braked / 160mm / 45 | 12mm | Plain | 350KG —
C160/DR8BH12NY Fixed / 160mm / 45 | 12mm | Plain | 350KG —
C200/DR4BH12NY Swivel / 200mm / 50 | 12mm | Plain | 350KG —
C200/DR4BH12NYSWB Swivel braked / 200mm / 50 | 12mm | Plain | 350KG —
C200/DR8BH12NY Fixed / 200mm / 50 | 12mm | Plain | 350KG —

Select an option to view its full specifications and choose a quantity for your quote.

Your selected product

MEDIUM DUTY SINGLE BOLT HOLE NYLON CASTORS 200-350KG RATED
C080/DR4BH12NY

Choose a part number and quantity to request a quotation. No online payment is taken.

How does requesting a quote work?
  1. Find the size and product code you need from table below.
  2. Enter product code and quantities required
  3. Click Add To Quote
  4. Repeat on any other product pages as needed.
  5. Once done, submit your quote to our sales team who will be in touch within 1 hour.

Alternatively feel free to call us now on 01279 656189 for an immediate response!

View full details
01 · START HERE

Check the dimensions. Find your part number.

Use the full specification table below to identify the correct size and part number. Then return to Available product options above to select that exact part and request a quote.

Select your part & request a quote

Full technical specifications compare sizes & part numbers

Find your part in the table below, then select the matching option above to request a quote.

ALL SPECIFICATIONS VISIBLE

Check each column heading for the relevant measurements and product details. ↔ Swipe sideways to see every column.

TECHNICAL DETAILS

Product specifications.

Find part numbers and compare available options
SKU Type Wheel Diameter Tread Width Bolt Hole Size Bearing Type Weight Loading
C080/DR4BH12NY Swivel 80mm 35 12mm Plain 200KG
C080/DR4BH12NYSWB Swivel braked 80mm 35 12mm Plain 200KG
C080/DR8BH12NY Fixed 80mm 35 12mm Plain 200KG
C100/DR4BH12NY Swivel 100mm 35 12mm Plain 200KG
C100/DR4BH12NYSWB Swivel braked 100mm 35 12mm Plain 200KG
C100/DR8BH12NY Fixed 100mm 35 12mm Plain 200KG
C125/DR4BH12NY Swivel 125mm 35 12mm Plain 270KG
C125/DR7BH12NYSWB Swivel braked 125mm 35 12mm Plain 270KG
C125/DR8BH12NY Fixed 125mm 35 12mm Plain 270KG
C150/DR4BH12NY Swivel 150mm 40 12mm Plain 350KG
C150/DR4BH12NYSWB Swivel braked 150mm 40 12mm Plain 350KG
C150/DR8BH12NY Fixed 150mm 40 12mm Plain 350KG
C160/DR4BH12NY Swivel 160mm 45 12mm Plain 350KG
C160/DR4BH12NYSWB Swivel braked 160mm 45 12mm Plain 350KG
C160/DR8BH12NY Fixed 160mm 45 12mm Plain 350KG
C200/DR4BH12NY Swivel 200mm 50 12mm Plain 350KG
C200/DR4BH12NYSWB Swivel braked 200mm 50 12mm Plain 350KG
C200/DR8BH12NY Fixed 200mm 50 12mm Plain 350KG

Found the correct part number? Select it from the available options above and add it to your quote list.

Choose this part in Available options
CAN'T FIND THE RIGHT COMPONENT?

Challenge Indifit.

Send us a part number, drawing or specification and our team will help you find the right solution. More than a supplier — an extension of your team.

Talk to the team → Browse all products →
