Castors wheels

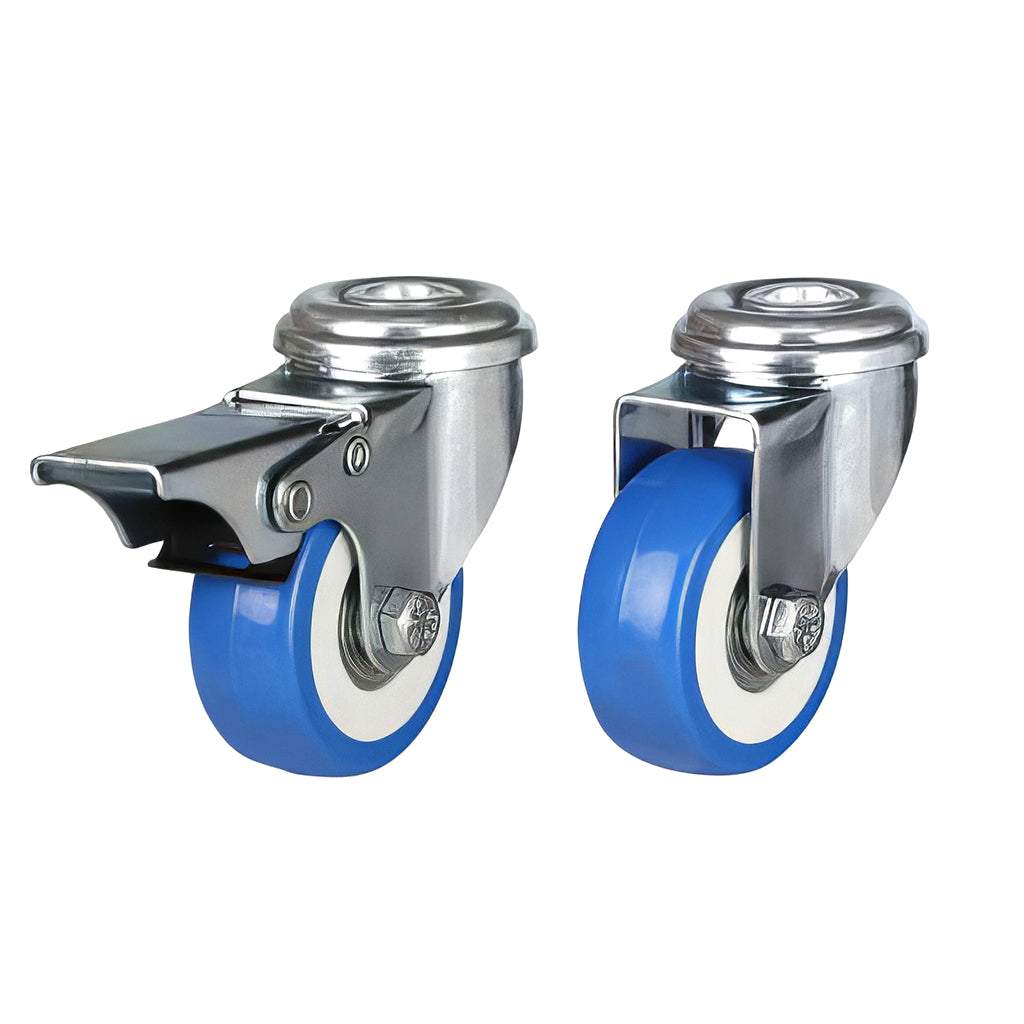

50MM LIGHT DUTY POLYURETHANE ON NYLON SINGLE BOLT HOLE CASTORS

Light duty swivel castor made using a blue injection moulded polyurethane tyre on nylon wheel core fitted with precision ball bearing assembled in a pressed steel bracket.

Find the right option
  • 50mm light duty polyurethane swivel castor with nylon core and bolt hole mounting
1 1

Technical guidanceExpert support for the right solution

Samples availableGet the right part before you commit

UK & European sourcingAlternatives beyond the catalogue

Trade enquiries welcomeFrom one-off parts to ongoing supply

Read full product description

Light duty swivel castor made using a blue injection moulded polyurethane tyre on nylon wheel core fitted with precision ball bearing assembled in a pressed steel bracket.

These bolt hole castors range from 50mm and have a capacity up to 50KG per caster.

Injection polyurethane on nylon centres are quiet provide soft cushion ride are will not damage floors and can be used in food and pharmaceutical applications, point of sale and shop fittings plus many others.

These light duty castors are idea for when design is just as important as function with the added benefit of precision ball bearing in the wheels which are injection polyurethane.

  • Injection Polyurethane
  • 60+/- shore D Non Marking
  • Zinc-Plated Finish
  • Sealed Ball Bearing Centre
  • Nut and Bolt Axle
  • Ball Bearing Wheel
  • Temperature Range - 20°C - + 70°C
  • Choose from swivel or swivel braked options.
FIND THE RIGHT COMPONENT

Available product options.

Search by size, dimensions or specification, select a matching product and add it to your quotation basket.

QUOTE ONLY · NO PAYMENT

Available options

Choose a matching part to review its specifications

2 options
Part numberSize / technical detailOther specificationAction
50AGBH10BEPVCBJSWB Swivel braked / 50mm / 17mm | 68mm | 10mm | Ball Bearing | 50KG —
50AGBH10BEPVCBJ Swivel / 50mm / 17mm | 68mm | 10mm | Ball Bearing | 50KG —

Select an option to view its full specifications and choose a quantity for your quote.

Your selected product

50MM LIGHT DUTY POLYURETHANE ON NYLON SINGLE BOLT HOLE CASTORS
50AGBH10BEPVCBJSWB

Choose a part number and quantity to request a quotation. No online payment is taken.

How does requesting a quote work?
  1. Find the size and product code you need from table below.
  2. Enter product code and quantities required
  3. Click Add To Quote
  4. Repeat on any other product pages as needed.
  5. Once done, submit your quote to our sales team who will be in touch within 1 hour.

Alternatively feel free to call us now on 01279 656189 for an immediate response!

View full details
01 · START HERE

Check the dimensions. Find your part number.

Use the full specification table below to identify the correct size and part number. Then return to Available product options above to select that exact part and request a quote.

Select your part & request a quote

Full technical specifications compare sizes & part numbers

Find your part in the table below, then select the matching option above to request a quote.

ALL SPECIFICATIONS VISIBLE

Check each column heading for the relevant measurements and product details. ↔ Swipe sideways to see every column.

TECHNICAL DETAILS

Product specifications.

Find part numbers and compare available options
SKU Type Wheel Diameter Tread Width Overall Height (mm) Bolt Hole Size Bearing Type Weight Loading
50AGBH10BEPVCBJSWB Swivel braked 50mm 17mm 68mm 10mm Ball Bearing 50KG
50AGBH10BEPVCBJ Swivel 50mm 17mm 68mm 10mm Ball Bearing 50KG

Found the correct part number? Select it from the available options above and add it to your quote list.

Choose this part in Available options
