Castors wheels

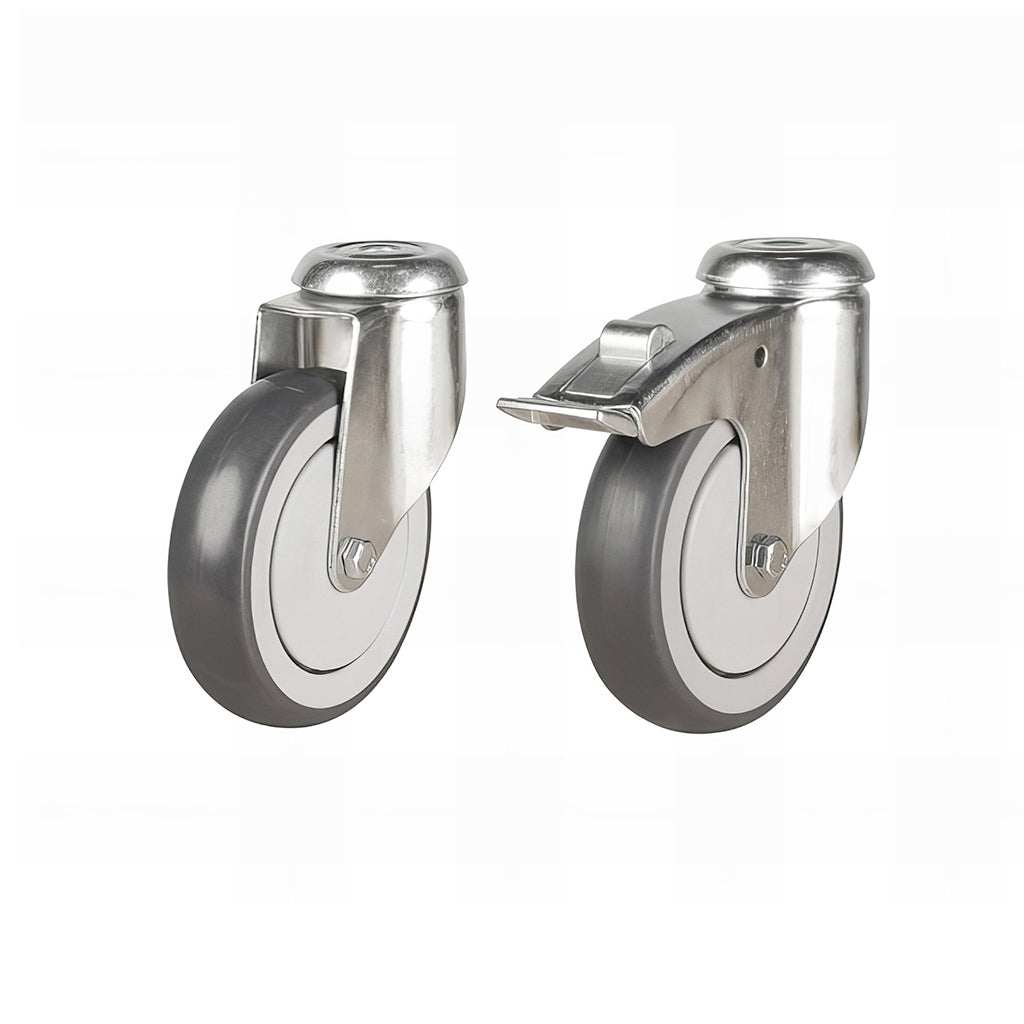

LIGHT DUTY GREY SYNTHETIC RUBBER BOLT HOLE CASTORS 90-130KG LOAD RATING
Bolt Hole castors with a pressed steel castor bracket, fitted with a synthetic non-marking rubber wheel with precision ball bearings and plastic thread guards .
Find the right option
Technical guidanceExpert support for the right solution
Samples availableGet the right part before you commit
UK & European sourcingAlternatives beyond the catalogue
Trade enquiries welcomeFrom one-off parts to ongoing supply
Read full product description
Bolt Hole castors with a pressed steel castor bracket, fitted with a synthetic non-marking rubber wheel with precision ball bearings and plastic thread guards .
These bolt hole casters range from 100mm-125mm and have a capacity up to 130 KG per castor.
Grey non-marking thermoplastic rubber, TPR, Tyres offer quiet running and protect floors from damage.
They are bonded to plastic or nylon centres and are used a lot for medical castors and furniture castors.
- Zinc-Plated Finish
- Single Hole Fixing
- Wheel Synthetic Rubber-Elastomer (TPE)
- Ball Bearing Wheel Centre
- Thread Guards
- 85° shore A Non Marking
- - 20°C - + 60°C
Available product options.
Search by size, dimensions or specification, select a matching product and add it to your quotation basket.
Your selected product
How does requesting a quote work?
- Find the size and product code you need from table below.
- Enter product code and quantities required
- Click Add To Quote
- Repeat on any other product pages as needed.
- Once done, submit your quote to our sales team who will be in touch within 1 hour.
Alternatively feel free to call us now on 01279 656189 for an immediate response!
Check the dimensions. Find your part number.
Use the full specification table below to identify the correct size and part number. Then return to Available product options above to select that exact part and request a quote.
Full technical specifications compare sizes & part numbers
Find your part in the table below, then select the matching option above to request a quote.
Check each column heading for the relevant measurements and product details. ↔ Swipe sideways to see every column.
Product specifications.
| SKU | Type | Wheel Diameter | Tread Width | Bolt Hole Size | Bearing Type | Overall Height | Weight Loading |
|---|---|---|---|---|---|---|---|
| C150/LWABH12TPRBJG | Swivel | 150mm | 32mm | 12.5mm | Ball Bearing | 184.5mm | 130KG |
| C150/LWABH12TPRBJGSWB | Swivel braked | 150mm | 32mm | 12.5mm | Ball Bearing | 184.5mm | 130KG |
| C125/LWABH12TPRBJG | Swivel | 125mm | 32mm | 12.5mm | Ball Bearing | 160mm | 110KG |
| C125/LWABH12TPRBJGSWB | Swivel braked | 125mm | 32mm | 12.5mm | Ball Bearing | 160mm | 110KG |
| C100/LWABH12TPRBJG | Swivel | 100mm | 32mm | 12.5mm | Ball Bearing | 135mm | 90KG |
| C100/LWABH12TPRBJGSWB | Swivel braked | 100mm | 32mm | 12.5mm | Ball Bearing | 135mm | 90KG |
Found the correct part number? Select it from the available options above and add it to your quote list.
Choose this part in Available optionsChallenge Indifit.
Send us a part number, drawing or specification and our team will help you find the right solution. More than a supplier — an extension of your team.
