What is the weight capacity of these LIGHT DUTY POLYPROPYLENE BOLT HOLE CASTORS?

These castors have a load rating of up to 100 kg per caster, making them suitable for light duty applications such as small carts and furniture.

What materials are used in the wheels and frames of these bolt hole castors?

The castors feature a pressed steel bracket and polypropylene wheels, which provide high load capacity and durability in a lightweight design.

Are these castors suitable for use on painted floors?

These castors are non-marking but can damage painted floors, so it's recommended to use castors with a tread attachment if floor protection is a concern.

Can I choose between different wheel colors for these castors?

Yes, the castors are available with either black or white nylon wheels to match your aesthetic preferences or specific requirements.

What are the installation options for these LIGHT DUTY POLYPROPYLENE BOLT HOLE CASTORS?

They feature a single hole fixing with a nut and bolt axle for secure attachment, suitable for various light duty applications.

1 1

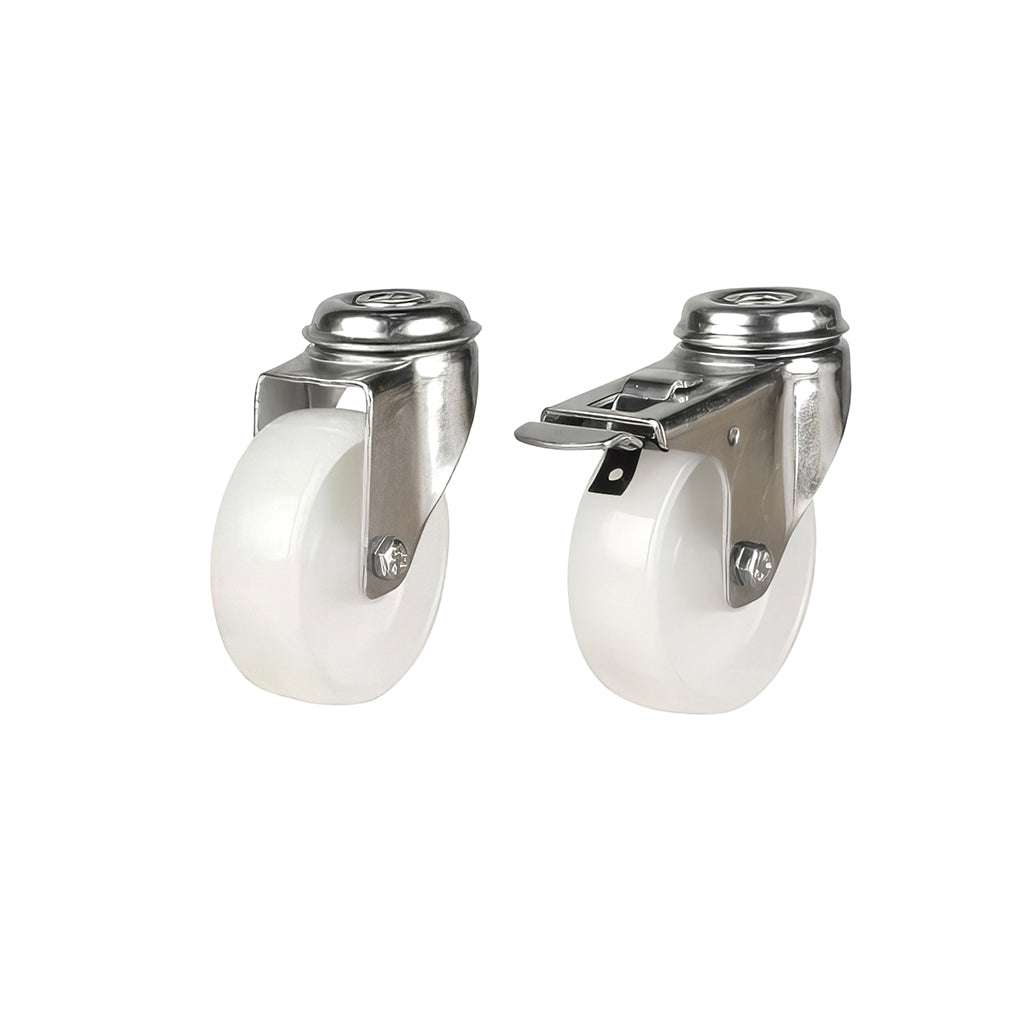

LIGHT DUTY POLYPROPYLENE BOLT HOLE CASTORS 40-100KG LOAD RATING

Bolt hole castors with a pressed steel castor bracket, fitted with a polypropylene wheel.

These bolt hole casters range from 50mm-100mm and have a capacity up to 100 KG per caster.

Polypropylene or poly-prop wheels and castors offer high load capacity compared to many wheel materials.

They are light in weight and very hard wearing and good value for money.

They can damage painted floors, in this case you would need to use a castor with a tread attached.

Zinc-Plated Finish
Single Hole Fixing
Black or White Nylon Wheel
70° shore D Non Marking
Nut and Bolt Axle
Non Marking
Plain Bearing Wheel
- 20°C - + 80°C

How to Request a Quote

Find the size and product code you need from table below.
Enter product code and quantities required
Click Add To Quote
Repeat on any other product pages as needed.
Once done, submit your quote to our sales team who will be in touch within 1 hour.

Alternatively feel free to call us now on 01279 656189 for an immediate response!

View full details

SKU	Type	Wheel Diameter	Tread Width	Bolt Hole Size	Bearing Type	Overall Height	Weight Loading
C050/DRLBH10PP	Swivel	50mm	20mm	10.2mm	Plain	71mm	40KG
CO50/DRLBH10PPSWB	Swivel braked	50mm	20mm	10.2mm	Plain	71mm	50KG
C075/DRLBH10PP	Swivel	75mm	21mm	10.2mm	Plain	95mm	50KG
C075/DRLBH10PPSWB	Swivel braked	75mm	21mm	10.2mm	Plain	95mm	50KG
C100/DRLBH12PP	Swivel	100mm	27mm	12.2mm	Plain	128mm	80KG
C100/DRLBH12PPSWB	Swivel braked	100mm	27mm	12.2mm	Plain	128mm	80KG
C125/DRLBH12PP	Swivel	125mm	27mm	12.2mm	Plain	150mm	100KG
C125/DRLBH12PPSWB	Swivel braked	125mm	27mm	12.2mm	Plain	150mm	100KG
