6-lobe-handwheels

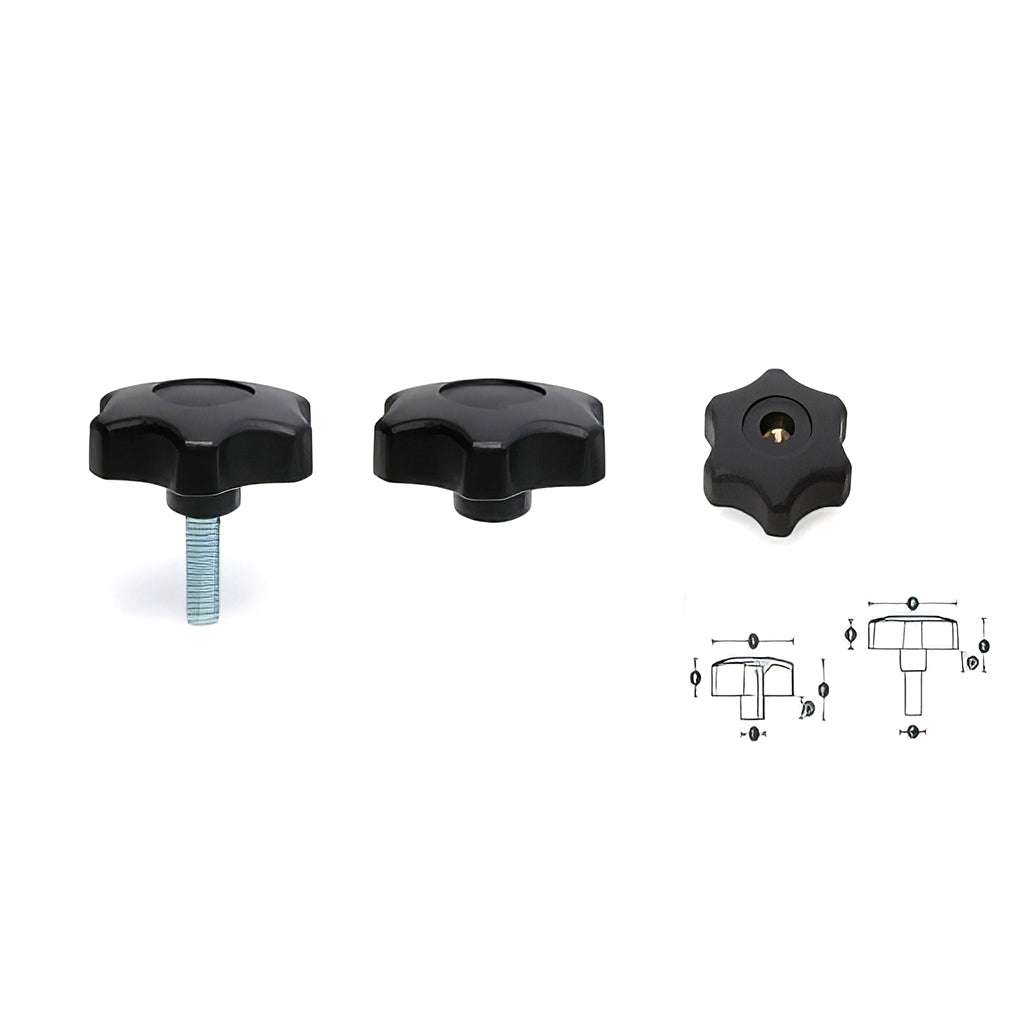

6 LOBE THERMOPLASTIC HANDWHEEL/HANDKNOB
Choice of male, female or through thread female
Find the right option
Technical guidanceExpert support for the right solution
Samples availableGet the right part before you commit
UK & European sourcingAlternatives beyond the catalogue
Trade enquiries welcomeFrom one-off parts to ongoing supply
Read full product description
Choice of male, female or through thread female
Made of high impact resistant thermoplastic.
FIND THE RIGHT COMPONENT
QUOTE ONLY · NO PAYMENT
Available product options.
Search by size, dimensions or specification, select a matching product and add it to your quotation basket.
Your selected product
HL65/28/05
How does requesting a quote work?
- Find the size and product code you need from table below.
- Enter product code and quantities required
- Click Add To Quote
- Repeat on any other product pages as needed.
- Once done, submit your quote to our sales team who will be in touch within 1 hour.
Alternatively feel free to call us now on 01279 656189 for an immediate response!
Choose by specification: filter the options above, compare the full table below, and select any matching part number. Both views stay in sync.Ask our technical team →
Full technical specifications — select a part numberReal product dimensions and technical details from Indifit's catalogue
TECHNICAL DETAILS
Find part numbers and compare available optionsProduct specifications.
| SKU | Type | Knob Material | Thread Material | A | B | C | D | E | Thread Size | Thread Length | Pack Qty |
|---|---|---|---|---|---|---|---|---|---|---|---|
| HL65/28/05 | Female | Nylon | Brass | 28 | 11 | 11 | 6 | 17 | M5 | n/a (female) | 10 |
| HL65/28/05020 | Male | Nylon | Steel zinc | 28 | 11 | 11 | 6 | 17 | M5 | 20 | 10 |
| HL65/28/05TT | Female thru/thread | Nylon | Brass | 28 | 11 | 11 | 6 | 17 | M5 | n/a (female) | 10 |
| HL65/28/06 | Female | Nylon | Brass | 28 | 11 | 11 | 6 | 17 | M6 | n/a (female) | 10 |
| HL65/28/06010 | Male | Nylon | Steel zinc | 28 | 11 | 11 | 6 | 17 | M6 | 10 | 10 |
| HL65/28/06015 | Male | Nylon | Steel zinc | 28 | 11 | 11 | 6 | 17 | M6 | 15 | 10 |
| HL65/28/06020 | Male | Nylon | Steel zinc | 28 | 11 | 11 | 6 | 17 | M6 | 20 | 10 |
| HL65/28/06TT | Female thru/thread | Nylon | Brass | 28 | 11 | 11 | 6 | 17 | M6 | n/a (female) | 10 |
| HL65/40/06 | Female | Nylon | Brass | 40 | 12 | 15 | 8 | 20 | M6 | n/a (female) | 10 |
| HL65/40/06/P | Female | Polypropylene | Zinc | 40 | 12 | 15 | 8 | 20 | M6 | n/a (female) | 10 |
| HL65/40/06015 | Male | Nylon | Steel zinc | 40 | 12 | 15 | 8 | 20 | M6 | 15 | 10 |
| HL65/40/06020/P | Male | Polypropylene | Steel zinc | 40 | 12 | 15 | 8 | 20 | M6 | 20 | 10 |
| HL65/40/06025 | Male | Nylon | Steel zinc | 40 | 12 | 15 | 8 | 20 | M6 | 25 | 10 |
| HL65/40/06035/P | Male | Polypropylene | Steel zinc | 40 | 12 | 15 | 8 | 20 | M6 | 35 | 10 |
| HL65/40/06TT | Female thru/thread | Nylon | Brass | 40 | 12 | 15 | 8 | 20 | M6 | n/a (female) | 10 |
| HL65/40/08 | Female | Nylon | Brass | 40 | 12 | 15 | 8 | 20 | M8 | n/a (female) | 10 |
| HL65/40/08/P | Female | Polypropylene | Zinc | 40 | 12 | 15 | 8 | 20 | M8 | n/a (female) | 10 |
| HL65/40/08015/P | Male | Polypropylene | Steel zinc | 40 | 12 | 15 | 8 | 20 | M8 | 15 | 10 |
| HL65/40/08020/P | Male | Polypropylene | Steel zinc | 40 | 12 | 15 | 8 | 20 | M8 | 20 | 10 |
| HL65/40/08025/P | Male | Polypropylene | Steel zinc | 40 | 12 | 15 | 8 | 20 | M8 | 25 | 10 |
| HL65/40/08035/P | Male | Polypropylene | Steel zinc | 40 | 12 | 15 | 8 | 20 | M8 | 35 | 10 |
| HL65/40/08TT | Female thru/thread | Nylon | Brass | 40 | 12 | 15 | 8 | 20 | M8 | n/a (female) | 10 |
| HL65/50/06 | Female | Nylon | Brass | 50 | 15 | 15 | 9 | 24 | M6 | n/a (female) | 10 |
| HL65/50/06035 | Male | Nylon | Steel zinc | 50 | 15 | 15 | 9 | 24 | M6 | 35 | 10 |
| HL65/50/06TT | Female thru/thread | Nylon | Brass | 50 | 15 | 15 | 9 | 24 | M6 | n/a (female) | 10 |
| HL65/50/08 | Female | Nylon | Brass | 50 | 15 | 15 | 9 | 24 | M8 | n/a (female) | 10 |
| HL65/50/08035 | Male | Nylon | Steel zinc | 50 | 15 | 15 | 9 | 24 | M8 | 35 | 10 |
| HL65/50/08040 | Male | Nylon | Steel zinc | 50 | 15 | 15 | 9 | 24 | M8 | 40 | 10 |
| HL65/50/08TT | Female thru/thread | Nylon | Brass | 50 | 15 | 15 | 9 | 24 | M8 | n/a (female) | 10 |
| HL65/60/08 | Female | Nylon | Brass | 60 | 18 | 19 | 12 | 30 | M8 | n/a (female) | 10 |
| HL65/60/08020/P | Male | Polypropylene | Steel zinc | 60 | 18 | 19 | 12 | 30 | M8 | 20 | 10 |
| HL65/60/08025/P | Male | Polypropylene | Steel zinc | 60 | 18 | 19 | 12 | 30 | M8 | 25 | 10 |
| HL65/60/08030 | Male | Nylon | Steel zinc | 60 | 18 | 19 | 12 | 30 | M8 | 30 | 10 |
| HL65/60/08040/P | Male | Polypropylene | Steel zinc | 60 | 18 | 19 | 12 | 30 | M8 | 40 | 10 |
| HL65/60/10 | Female | Nylon | Brass | 60 | 18 | 19 | 12 | 30 | M10 | n/a (female) | 10 |
| HL65/60/10/P | Female | Polypropylene | Zinc | 60 | 18 | 19 | 12 | 30 | M8 | n/a (female) | 10 |
| HL65/60/10030 | Male | Nylon | Steel zinc | 60 | 18 | 19 | 12 | 30 | M10 | 30 | 10 |
| HL65/60/10040 | Male | Nylon | Steel zinc | 60 | 18 | 19 | 12 | 30 | M10 | 40 | 10 |
| HL65/60/10TT | Female thru/thread | Nylon | Brass | 60 | 18 | 19 | 12 | 30 | M10 | n/a (female) | 10 |
