What are the key benefits of using an offset cast iron cranking handle?

The offset cast iron cranking handle provides increased clearance during operation, preventing obstacles like control knobs and levers from interfering with rotation. Its robust construction ensures durability for industrial applications.

Which sizes are available for the offset cast iron cranking handles?

We offer a range of handle sizes from 100mm to 200mm in length, with square bore sizes ranging from 12mm to 19mm, allowing you to choose the best fit for your machinery.

Are the offset cast iron cranking handles suitable for specific industrial equipment?

Yes, these handles are commonly used on lathes, drilling machines, and milling machines, making them ideal for various industrial and workshop applications requiring reliable manual operation.

How do I select the right offset cast iron handle for my equipment?

Measure the bore size of your existing handle or machine mount and compare it to our available square bore sizes. Also, consider the handle length to ensure adequate clearance and usability.

What maintenance is required for offset cast iron cranking handles?

These cast iron handles require minimal maintenance; occasional cleaning and inspection for rust or wear are recommended to keep them in optimal condition and ensure long-lasting performance.

1 1

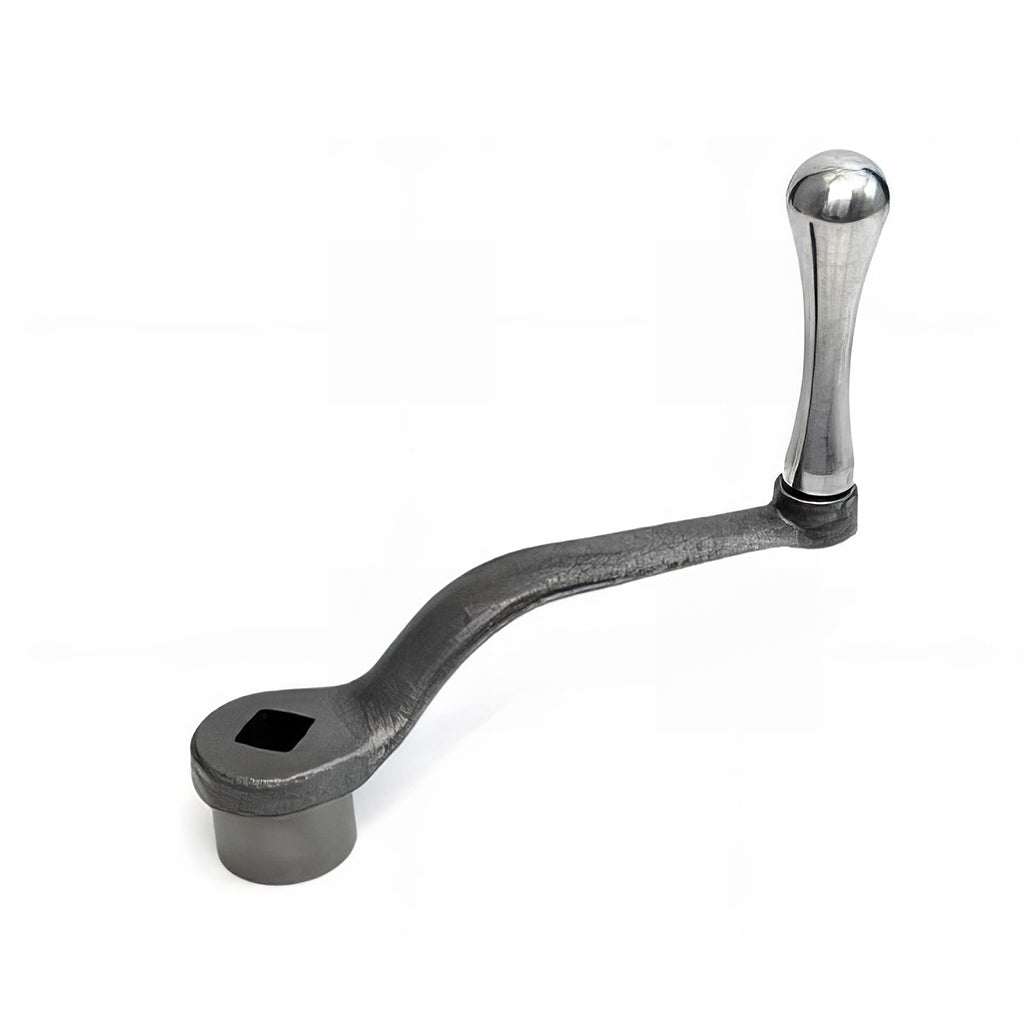

Offset Cast Iron Cranking Handle with Square Hole

Name: Offset Cast Iron Cranking Handle with Square Hole
Brand: Indifit
SKU: HCH11797R
Availability: InStock

Offset Cast Iron Cranking Handle with Square Hole

These cast iron cranked or crank handles are strong, robust and well suited to a wide range of industrial applications. The offset crank handle provides clearance of obstacles in the path of rotation (such as control knobs and levers). These cranking handles are commonly found on lathes, and drilling and milling machines.

We stock a range of handle sizes; from 100mm up to 200mm and with 12mm to 19mm square bore sizes.

How to Request a Quote

Find the size and product code you need from table below.
Enter product code and quantities required
Click Add To Quote
Repeat on any other product pages as needed.
Once done, submit your quote to our sales team who will be in touch within 1 hour.

Alternatively feel free to call us now on 01279 656189 for an immediate response!

View full details

SKU	A	B	C	D	E	Bore size
HCH11797R	100mm	135mm	28mm	46mm	75mm	12mm Squ
HCH11800Q	200mm	200mm	44mm	82mm	95mm	19mm Squ
