What are the main benefits of choosing a thermoplastic crank for my equipment?

A thermoplastic crank offers excellent durability, chemical resistance, and impact resistance, making it suitable for various industrial applications. Its modern ergonomic design also provides comfortable and precise control during operation.

What size and thread options are available for the thermoplastic crank?

Our thermoplastic cranks are available in a range of sizes from 65mm to 110mm, with thread options from M8 to M16, allowing you to find the perfect fit for your equipment.

Can I use the thermoplastic crank with solvents or oily environments?

Yes, the thermoplastic crank is highly resistant to solvents, oils, grease, and other chemical agents, making it ideal for use in demanding industrial environments.

Are there models of thermoplastic crank handles with additional features?

Yes, we offer versions with folding side handles and indexed functionalities, which enhance convenience and control during operation.

How do I choose the right size for my application?

Select the size based on your equipment's specifications and required torque, and ensure the thread size matches your mounting points for a secure fit.

1 1

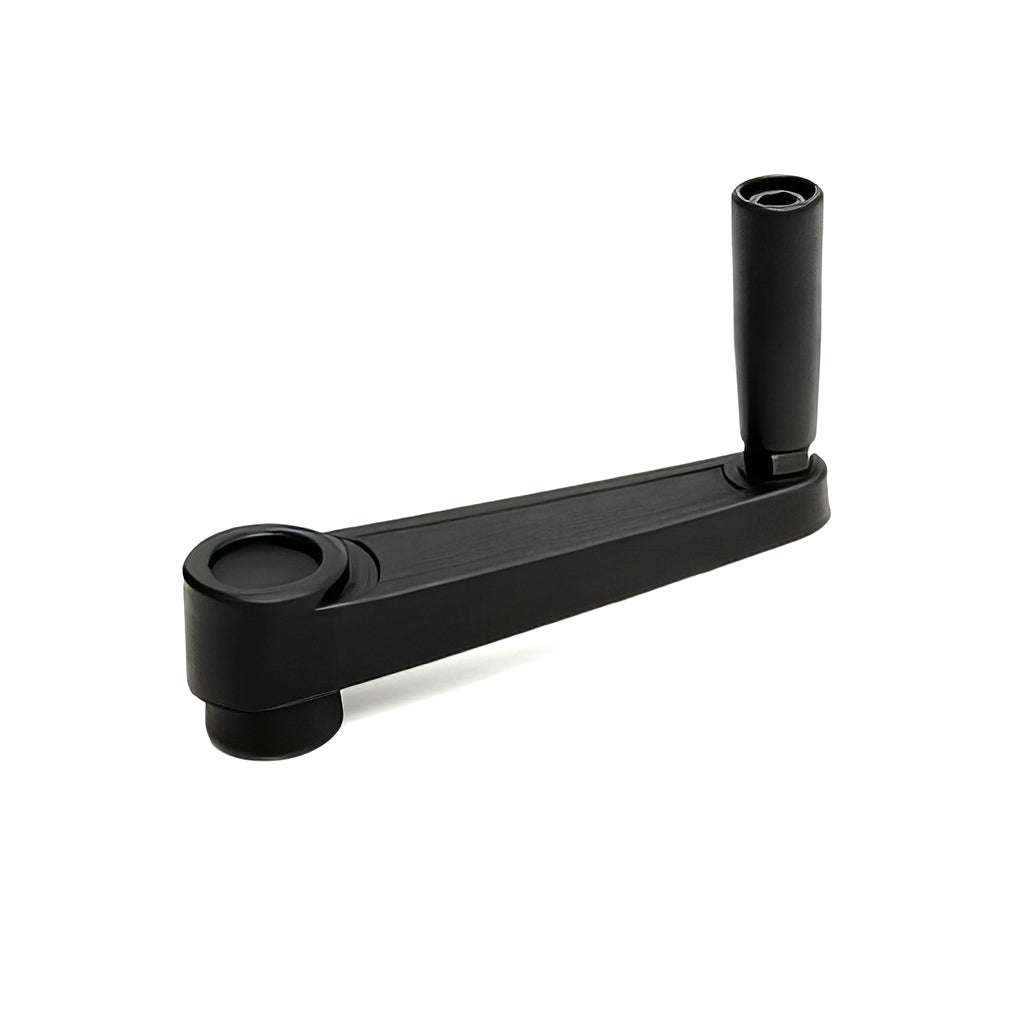

Thermoplastic Crank with Non-Folding Handle

Our cranking handles are designed for efficient adjustment on various types of machines and equipment.

Thanks to a high impact resistant thermoplastic and machined brass inserts, these handles are strong, robust and resistant to solvents, oils, grease and other chemical agents. The modern, ergonomic design ensures they give excellent control and remain comfortable in use.

We offer a wide range of handle sizes from 65mm to 110mm and threads from M8 up to M16.

We also offer a cranking handle with folding side handle and an indexed cranking handle with folding side handle.

How to Request a Quote

Find the size and product code you need from table below.
Enter product code and quantities required
Click Add To Quote
Repeat on any other product pages as needed.
Once done, submit your quote to our sales team who will be in touch within 1 hour.

Alternatively feel free to call us now on 01279 656189 for an immediate response!

View full details

SKU	A	B	C	D	E	Thread Size
HCH6709T	65mm	30mm	22mm	17mm	52mm	M8
HCH7611T	65mm	30mm	22mm	17mm	52mm	M10
HCH7610X	65mm	30mm	22mm	17mm	52mm	M12
HCH6710P	80mm	33mm	26mm	19mm	52mm	M8
HCH6741X	80mm	33mm	26mm	19mm	52mm	M10
HCH7609Q	80mm	33mm	26mm	19mm	52mm	M12
HCH6711W	110mm	39mm	29mm	25mm	62mm	M10
HCH7612P	110mm	39mm	29mm	25mm	62mm	M12
HCH9446Q	110mm	39mm	29mm	25mm	62mm	M14
HCH6712S	140mm	49mm	35mm	33mm	72mm	M12
HCH9447X	140mm	49mm	35mm	33mm	72mm	M14
HCH7609U	140mm	49mm	35mm	33mm	72mm	M16
HCH6713Z	185mm	55mm	40mm	40mm	82mm	M12
HCH9850R	185mm	55mm	40mm	40mm	82mm	M14
HCH7607Y	185mm	55mm	40mm	40mm	82mm	M16
